KUN26L-TRMDJG3 (2012)
Toyota Hilux
Production
Apr 2012
-
Oct 2015
Engine
1KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1204- )IART

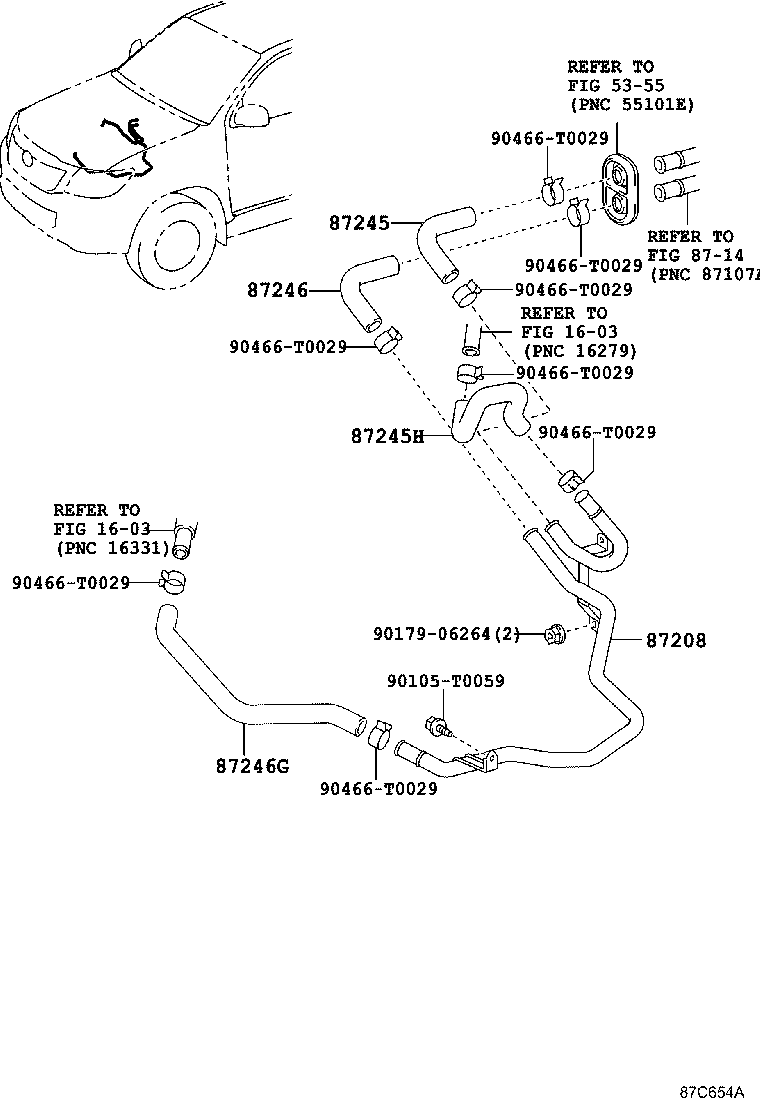

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-0K210 |
KUN26..IART |
1 | ||
| 87245H - HOSE, HEATER WATER, INLET H | ||||
| 87245-0KA40 |
KUN26..IART |
1 | ||
| 87246G - HOSE, HEATER WATER, OUTLET G | ||||
| 87245-0K870 |
KUN26..IART |
1 | ||
| Common parts | ||||
| 90105-T0059 | ||||
| 90179-06264 | ||||
| 90466-T0029 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 5355 | ||||
| 8714 | ||||
