KUN26L-TRMDJG3 (2012)

Toyota Hilux

Production Apr 2012 - Oct 2015
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1208- )2KDFTV..KUN25..SCB..MA ; (1210- )2KDFTV..KUN35..SR..SA ; (1210- )2

Click highlighted areas on diagram

diagram 1708 1708 1708 17862A 25601 25620G 25620G 25620G 25621 25624 25625 25627 25627 25628 25800 8405 90105T0054 90105T0085 90105T0156 90116T0013 90116T0015 9011906749 90119T0058 9012608052 90178T0019 90182T0007 9155180630 9155180816 9155180828 9155180835 9212280870 9415180600 9415180800
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-30130

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

 1
25601-30130

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

 1
25601-0L021

1KDFTV,2KDFTV..KUN25,3#..LA;1KDFTV..KUN26..LHD..DCB..(5F,5FC)..DCR

 1
25601-0L021

1KDFTV,2KDFTV..KUN25,3#..LA;1KDFTV..KUN26..LHD..DCB..(5F,5FC)..DCR

 1
25601-30131

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

 1
25601-30131

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

 1
25620G - GASKET, DIESEL THROTTLE
26171-0L030

1KDFTV..KUN26..IART

 1
26171-0L030

1KDFTV..KUN26..IART

 1
25620G - GASKET, DIESEL THROTTLE
26171-0L030

1KDFTV..KUN26..IART

 1
26171-0L030

1KDFTV..KUN26..IART

 1
25620G - GASKET, DIESEL THROTTLE
26171-0L030

1KDFTV..KUN26..IART

 1
26171-0L030

1KDFTV..KUN26..IART

 1
25621 - CONNECTOR, INTAKE AIR(FOR GASKET)
17861-30130

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

 1
17861-30130

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

 1
25624 - ADAPTER, EGR VALVE
25611-30050

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

 1
25611-30050

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

 1
25625 - BRACKET, EGR VALVE
26175-30020

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

 1
26175-30020

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

 1
25627 - GASKET, EGR VALVE
25627-30070

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

 1
25627-30070

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

 1
25627 - GASKET, EGR VALVE
25627-30070

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

 1
25627-30070

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

 1
25628 - GASKET, EGR INLET
25628-30031

2KDFTV..KUN35..5FC;1KDFTV..KUN26..5FC..CO;1KDFTV,2KDFTV..KUN2#,36..(5F,5FC)..LA;2KDFTV..KUN35..(DCB,SCB)..DLX..(GEN,LA)

 1
25628-30031

2KDFTV..KUN35..5FC;1KDFTV..KUN26..5FC..CO;1KDFTV,2KDFTV..KUN2#,36..(5F,5FC)..LA;2KDFTV..KUN35..(DCB,SCB)..DLX..(GEN,LA)

 1
25800 - VALVE ASSY, ELECTRIC EGR CONTROL
25800-30210

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART

 1
25800-30210

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART

 1
Common parts
90105-T0054
90105-T0085
90105-T0156
90116-T0013
90116-T0015
90119-06749
90119-T0058
90126-08052
90178-T0019
90182-T0007
91551-80630
91551-80816
91551-80828
91551-80835
92122-80870
94151-80600
94151-80800
Linked diagrams
1708
8405

(1204- )1KDFTV..KUN26..IART ; (1208- )2KDFTV..KUN35..5FC ; (1308- )2KDFTV.

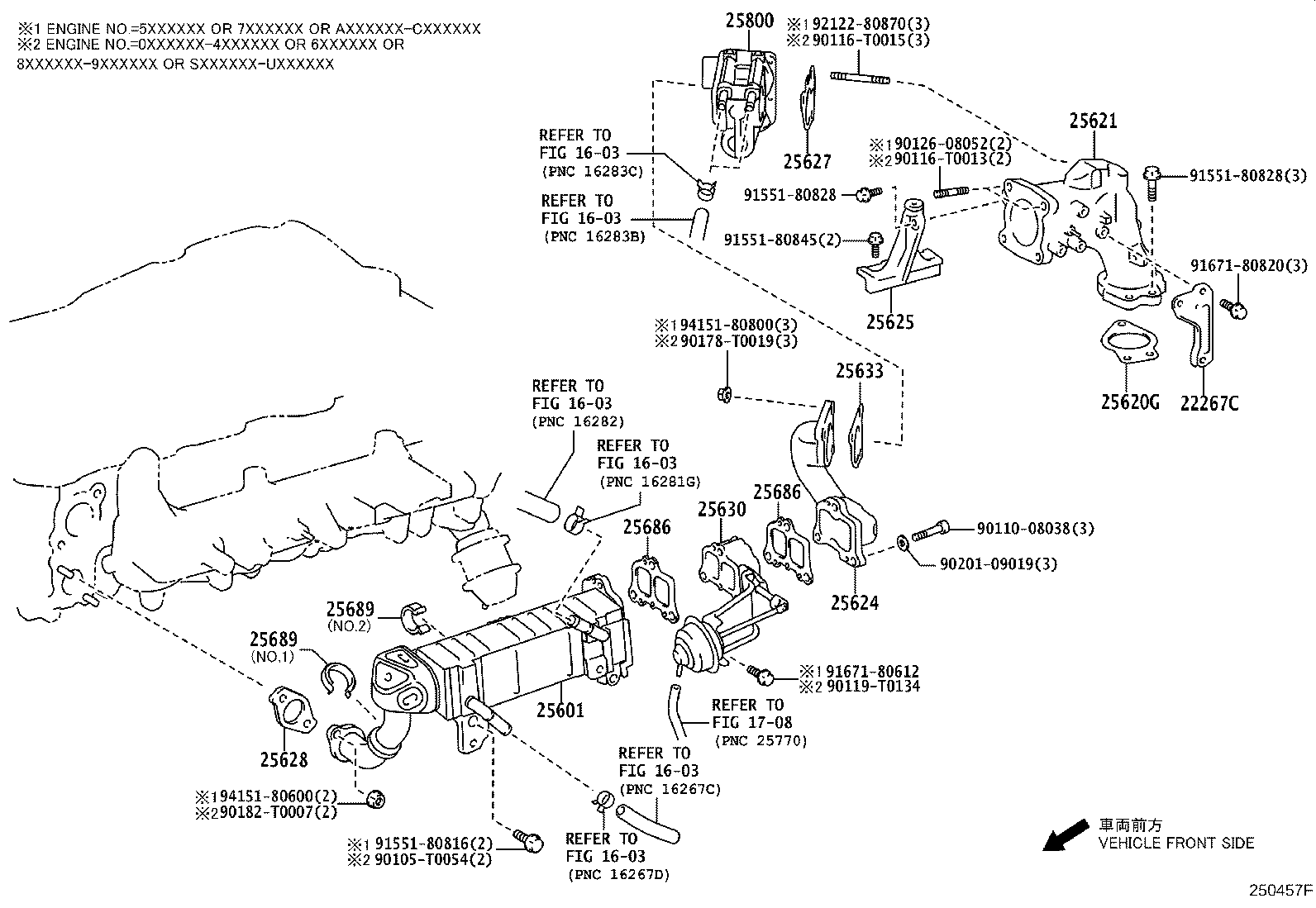

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1603 1708 22267C 25601 25620G 25621 25624 25625 25627 25628 25630 25633 25686 25686 25689 25689 25800 90105T0054 9011008038 90116T0013 90116T0015 90119T0134 9012608052 90178T0019 90182T0007 9020109019 9155180816 9155180828 9155180828 9155180845 9167180612 9167180820 9212280870 9415180600 9415180800
Part # Description Qty Price
22267C - BRACKET, THROTTLE BODY
22267-30040

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

 1
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-30130

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

 1
25601-0L021

1KDFTV,2KDFTV..KUN25,3#..LA;1KDFTV..KUN26..LHD..DCB..(5F,5FC)..DCR

 1
25601-30131

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

 1
25620G - GASKET, DIESEL THROTTLE
26171-0L030

1KDFTV..KUN26..IART

 1
25621 - CONNECTOR, INTAKE AIR(FOR GASKET)
17861-30130

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

 1
25624 - ADAPTER, EGR VALVE
25611-30050

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

 1
25625 - BRACKET, EGR VALVE
26175-30020

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

 1
25627 - GASKET, EGR VALVE
25627-30070

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

 1
25628 - GASKET, EGR INLET
25628-30031

2KDFTV..KUN35..5FC;1KDFTV..KUN26..5FC..CO;1KDFTV,2KDFTV..KUN2#,36..(5F,5FC)..LA;2KDFTV..KUN35..(DCB,SCB)..DLX..(GEN,LA)

 1
25630 - VALVE ASSY, EGR, NO.2
25630-30070

1KDFTV..KUN26..IART

 1
25633 - GASKET, EGR VALVE
25633-26020

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

 1
25686 - GASKET, EGR COOLER, NO.2
25686-30020

2KDFTV..KUN35..5FC;1KDFTV..KUN26..5FC..CO;1KDFTV,2KDFTV..KUN2#,36..(5F,5FC)..LA;2KDFTV..KUN35..(DCB,SCB)..DLX..(GEN,LA)

 2
25686 - GASKET, EGR COOLER, NO.2
25686-30020

2KDFTV..KUN35..5FC;1KDFTV..KUN26..5FC..CO;1KDFTV,2KDFTV..KUN2#,36..(5F,5FC)..LA;2KDFTV..KUN35..(DCB,SCB)..DLX..(GEN,LA)

 2
25689 - INSULATOR, EGR COOLER
25689-30010

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

NO.1

 1
25699-30010

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

NO.2

 1
25689 - INSULATOR, EGR COOLER
25689-30010

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

NO.1

 1
25699-30010

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

NO.2

 1
25800 - VALVE ASSY, ELECTRIC EGR CONTROL
25800-30210

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART

 1
Common parts
90105-T0054
90110-08038
90116-T0013
90116-T0015
90119-T0134
90126-08052
90178-T0019
90182-T0007
90201-09019
91551-80816
91551-80828
91551-80845
91671-80612
91671-80820
92122-80870
94151-80600
94151-80800
Linked diagrams
1603
1708
