KUN26L-TRMDJG3 (2012)

Toyota Hilux

Production Apr 2012 - Oct 2015
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )1KDFTV..KUN26..IART ; (1208- )2KDFTV..KUN35..5FC ; (1308- )2KDFTV.

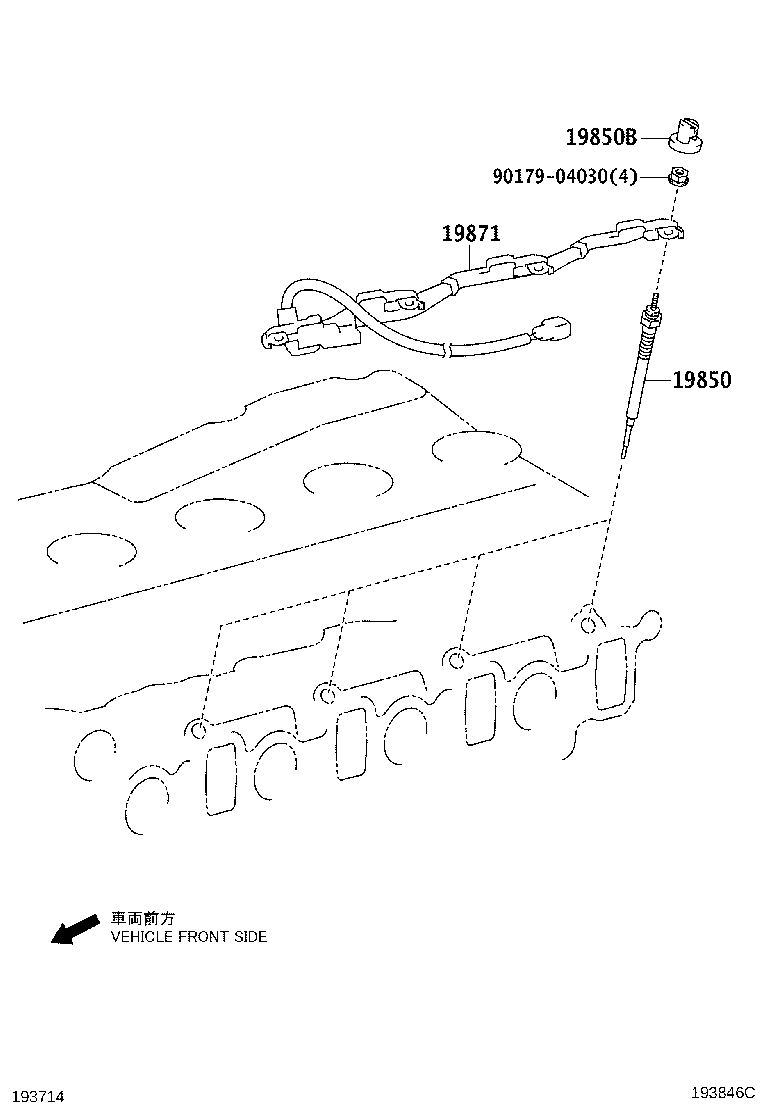

Click highlighted areas on diagram

diagram 19850 19850B 19871 9017904030
Part # Description Qty Price
19850 - PLUG ASSY, GLOW
19850-30030

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

*BV-GV=12V-11V

 4
19850B - GROMMET, SCREW(FOR GLOW PLUG)
90189-T0001

1KDFTV..KUN26..IART

 4
19871 - CONNECTOR, GLOW PLUG NO.1
19871-30090

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

 1
Common parts
90179-04030
