KUN26L-TRMDJG3 (2012)
Toyota Hilux

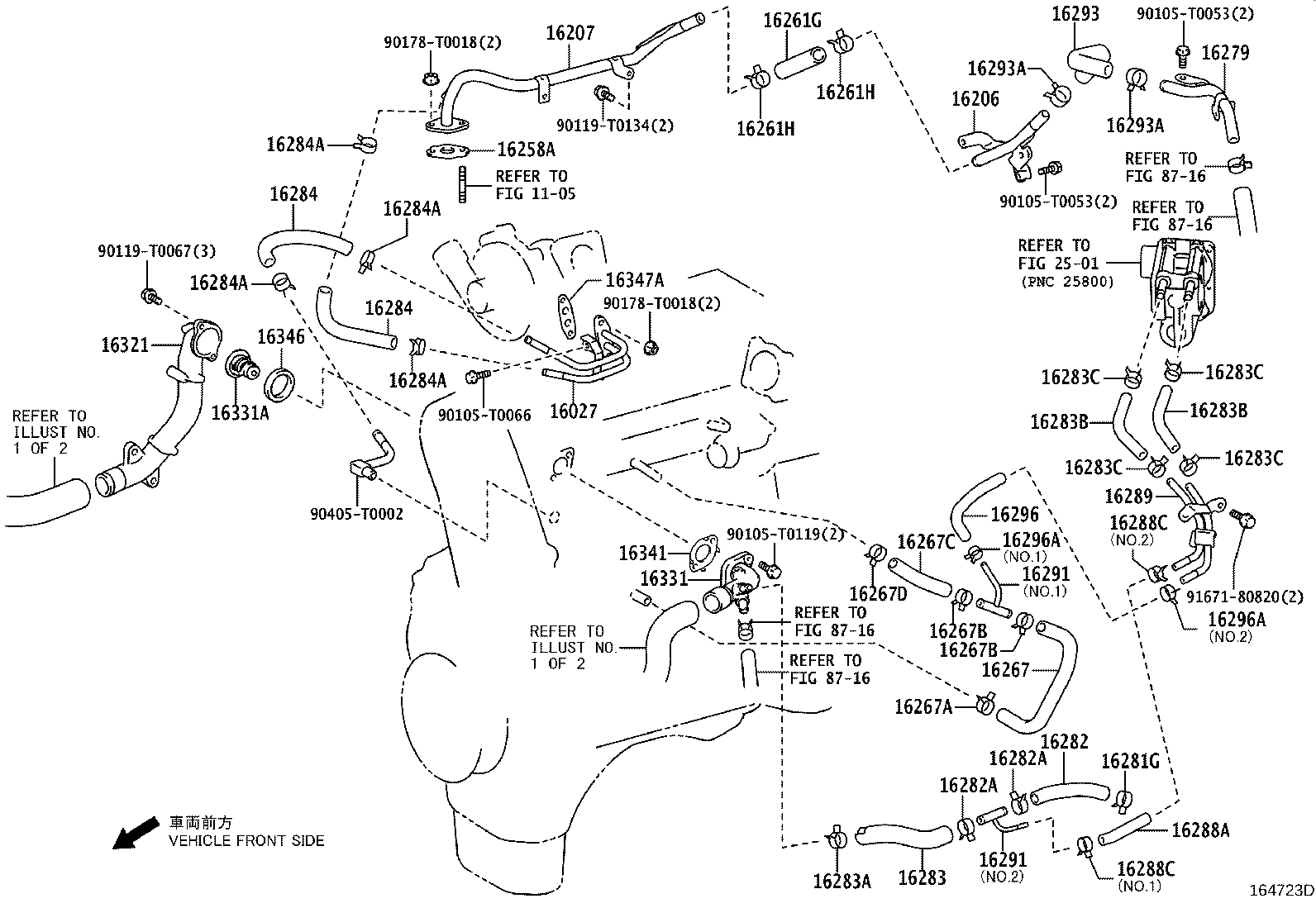

ILLUST NO. 2 OF 2(1204- )1KDFTV..KUN26..IART
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-0L010 |
1KDFTV..KUN26..IART |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-30101 |
1KDFTV..KUN26..IART |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-30180 |
1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-30120 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42101 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
1 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-19022 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
2 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-19022 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
2 | ||
| 16267C - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-30140 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
1 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42101 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16208-30020 |
1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42101 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-30050 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-19022 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-19022 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-30041 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-42101 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
1 | ||
| 16283B - HOSE, WATER BY-PASS | ||||
| 99555-10080 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
2 | ||
| 16283B - HOSE, WATER BY-PASS | ||||
| 99555-10080 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
2 | ||
| 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0015 |
1KDFTV..KUN26..IART |
4 | ||
| 96137-41501 |
1KDFTV..KUN26..IART |
4 | ||
| 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0015 |
1KDFTV..KUN26..IART |
4 | ||
| 96137-41501 |
1KDFTV..KUN26..IART |
4 | ||
| 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0015 |
1KDFTV..KUN26..IART |
4 | ||
| 96137-41501 |
1KDFTV..KUN26..IART |
4 | ||
| 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0015 |
1KDFTV..KUN26..IART |
4 | ||
| 96137-41501 |
1KDFTV..KUN26..IART |
4 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-0L010 |
1KDFTV..KUN26..IART (L) |
2 | ||
| 16284-30070 |
1KDFTV..KUN26..IART (J) |
2 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-0L010 |
1KDFTV..KUN26..IART (L) |
2 | ||
| 16284-30070 |
1KDFTV..KUN26..IART (J) |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96137-41501 |
1KDFTV..KUN26..IART |
4 | ||
| 90466-T0015 |
1KDFTV..KUN26..IART |
4 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96137-41501 |
1KDFTV..KUN26..IART |
4 | ||
| 90466-T0015 |
1KDFTV..KUN26..IART |
4 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96137-41501 |
1KDFTV..KUN26..IART |
4 | ||
| 90466-T0015 |
1KDFTV..KUN26..IART |
4 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96137-41501 |
1KDFTV..KUN26..IART |
4 | ||
| 90466-T0015 |
1KDFTV..KUN26..IART |
4 | ||
| 16288A - HOSE(FOR WATER BY-PASS PIPE NO.4) | ||||
| 16294-30030 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
1 | ||
| 16288C - CLIP(FOR WATER BY-PASS PIPE NO.4) | ||||
| 90467-13128 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN NO.1 |
1 | ||
| 96137-41501 |
1KDFTV..KUN26..IART NO.2 |
1 | ||
| 90466-T0015 |
1KDFTV..KUN26..IART NO.2 |
1 | ||
| 16288C - CLIP(FOR WATER BY-PASS PIPE NO.4) | ||||
| 90467-13128 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN NO.1 |
1 | ||
| 96137-41501 |
1KDFTV..KUN26..IART NO.2 |
1 | ||
| 90466-T0015 |
1KDFTV..KUN26..IART NO.2 |
1 | ||
| 16289 - PIPE, WATER BY-PASS, NO.5 | ||||
| 16289-30011 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-30020 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN NO.1 |
1 | ||
| 16291-30030 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN NO.2 |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-30020 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN NO.1 |
1 | ||
| 16291-30030 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN NO.2 |
1 | ||
| 16293 - HOSE, WATER BY-PASS, NO.10 | ||||
| 16293-30031 |
1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
1 | ||
| 16293A - CLIP(FOR WATER BY-PASS HOSE NO.10) | ||||
| 90466-T0010 |
1KDFTV..KUN26..IART |
2 | ||
| 16293A - CLIP(FOR WATER BY-PASS HOSE NO.10) | ||||
| 90466-T0010 |
1KDFTV..KUN26..IART |
2 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-30020 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96137-41501 |
1KDFTV..KUN26..IART NO.2 |
1 | ||
| 90466-T0015 |
1KDFTV..KUN26..IART NO.2 |
1 | ||
| 90467-13128 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN NO.1 |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96137-41501 |
1KDFTV..KUN26..IART NO.2 |
1 | ||
| 90466-T0015 |
1KDFTV..KUN26..IART NO.2 |
1 | ||
| 90467-13128 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN NO.1 |
1 | ||
| 16347A - GASKET(FOR TURBO WATER PIPE) | ||||
| 16347-0L010 |
1KDFTV..KUN26..IART |
1 | ||
| Common parts | ||||
| 90105-T0053 | ||||
| 90105-T0066 | ||||
| 90105-T0119 | ||||
| 90119-T0067 | ||||
| 90119-T0134 | ||||
| 90178-T0018 | ||||
| 90405-T0002 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 2501 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(1208- )2KDFTV..KUN35..5F..SR..TH ; (1208-)2KDFTV..KUN15..DCB..SR..TH ; (120
WATER COOLING TURBO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-0L010 |
1KDFTV..KUN26..IART |
1 | ||
| 16027-0L010 |
1KDFTV..KUN26..IART |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-30120 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
1 | ||
| 16267-30120 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42101 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
1 | ||
| 96136-42101 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42101 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
1 | ||
| 96136-42101 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
1 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-0L010 |
1KDFTV..KUN26..IART (L) |
2 | ||
| 16284-0L010 |
1KDFTV..KUN26..IART (L) |
2 | ||
| 16284-30070 |
1KDFTV..KUN26..IART (J) |
2 | ||
| 16284-30070 |
1KDFTV..KUN26..IART (J) |
2 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-0L010 |
1KDFTV..KUN26..IART (L) |
2 | ||
| 16284-0L010 |
1KDFTV..KUN26..IART (L) |
2 | ||
| 16284-30070 |
1KDFTV..KUN26..IART (J) |
2 | ||
| 16284-30070 |
1KDFTV..KUN26..IART (J) |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96137-41501 |
1KDFTV..KUN26..IART |
4 | ||
| 96137-41501 |
1KDFTV..KUN26..IART |
4 | ||
| 90466-T0015 |
1KDFTV..KUN26..IART |
4 | ||
| 90466-T0015 |
1KDFTV..KUN26..IART |
4 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96137-41501 |
1KDFTV..KUN26..IART |
4 | ||
| 96137-41501 |
1KDFTV..KUN26..IART |
4 | ||
| 90466-T0015 |
1KDFTV..KUN26..IART |
4 | ||
| 90466-T0015 |
1KDFTV..KUN26..IART |
4 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96137-41501 |
1KDFTV..KUN26..IART |
4 | ||
| 96137-41501 |
1KDFTV..KUN26..IART |
4 | ||
| 90466-T0015 |
1KDFTV..KUN26..IART |
4 | ||
| 90466-T0015 |
1KDFTV..KUN26..IART |
4 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96137-41501 |
1KDFTV..KUN26..IART |
4 | ||
| 96137-41501 |
1KDFTV..KUN26..IART |
4 | ||
| 90466-T0015 |
1KDFTV..KUN26..IART |
4 | ||
| 90466-T0015 |
1KDFTV..KUN26..IART |
4 | ||
| 16347A - GASKET(FOR TURBO WATER PIPE) | ||||
| 16347-0L010 |
1KDFTV..KUN26..IART |
1 | ||
| 16347-0L010 |
1KDFTV..KUN26..IART |
1 | ||
| Common parts | ||||
| 90105-T0066 | ||||
| 90105-T0119 | ||||
| 90119-T0067 | ||||
| 90178-T0018 | ||||
| 90405-08029 | ||||
| 90405-T0002 | ||||
| 90464-00574 | ||||
| 91551-80612 | ||||
| 91551-80818 | ||||
| 91643-80635 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(1208- )2KDFTV..KUN15..SCB,SMT..DLX..TH ; (1210- )2KDFTV..KUN35..DLX..TH ; (1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-30120 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42101 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42101 |
2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN |
1 | ||
| Common parts | ||||
| 90105-T0119 | ||||
| 90119-T0067 | ||||
| 90178-T0018 | ||||
| 90464-00574 | ||||
| 91551-80818 | ||||
| 91643-80635 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
ILLUST NO. 2 OF 2(1302-1503)2TRFE..TGN26..DCB..5F..GEN ; (1302-1504)2TRFE..TGN26..GCC ; (1302-1504)2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0046 |
1KDFTV,2KDFTV..KUN1#,2#,3# |
2 | ||
| 90466-T0046 |
1KDFTV,2KDFTV..KUN1#,2#,3# |
2 | ||
| 90466-T0033 |
1KDFTV,2KDFTV..KUN1#,2#,3# |
2 | ||
| 90466-T0033 |
1KDFTV,2KDFTV..KUN1#,2#,3# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0046 |
1KDFTV,2KDFTV..KUN1#,2#,3# |
2 | ||
| 90466-T0046 |
1KDFTV,2KDFTV..KUN1#,2#,3# |
2 | ||
| 90466-T0033 |
1KDFTV,2KDFTV..KUN1#,2#,3# |
2 | ||
| 90466-T0033 |
1KDFTV,2KDFTV..KUN1#,2#,3# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-T0030 |
2KDFTV..KUN15..HDCR;1KDFTV..KUN36..5F..TH;1KDFTV,2KDFTV..KUN2#,35;1KDFTV,2KDFTV..KUN1#,36..DCR..(ARL,GCC,GEN,IDN,LA,PHL,PKN,SA) |
2 | ||
| 90466-T0030 |
2KDFTV..KUN15..HDCR;1KDFTV..KUN36..5F..TH;1KDFTV,2KDFTV..KUN2#,35;1KDFTV,2KDFTV..KUN1#,36..DCR..(ARL,GCC,GEN,IDN,LA,PHL,PKN,SA) |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-T0030 |
2KDFTV..KUN15..HDCR;1KDFTV..KUN36..5F..TH;1KDFTV,2KDFTV..KUN2#,35;1KDFTV,2KDFTV..KUN1#,36..DCR..(ARL,GCC,GEN,IDN,LA,PHL,PKN,SA) |
2 | ||
| 90466-T0030 |
2KDFTV..KUN15..HDCR;1KDFTV..KUN36..5F..TH;1KDFTV,2KDFTV..KUN2#,35;1KDFTV,2KDFTV..KUN1#,36..DCR..(ARL,GCC,GEN,IDN,LA,PHL,PKN,SA) |
2 | ||
| Common parts | ||||
| 90105-T0120 | ||||
| 90119-T0237 | ||||
| 90178-T0019 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 8716 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
