KUN26L-PRMSYG (2005)

Toyota Hilux

Production Jan 2005 - Oct 2008
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

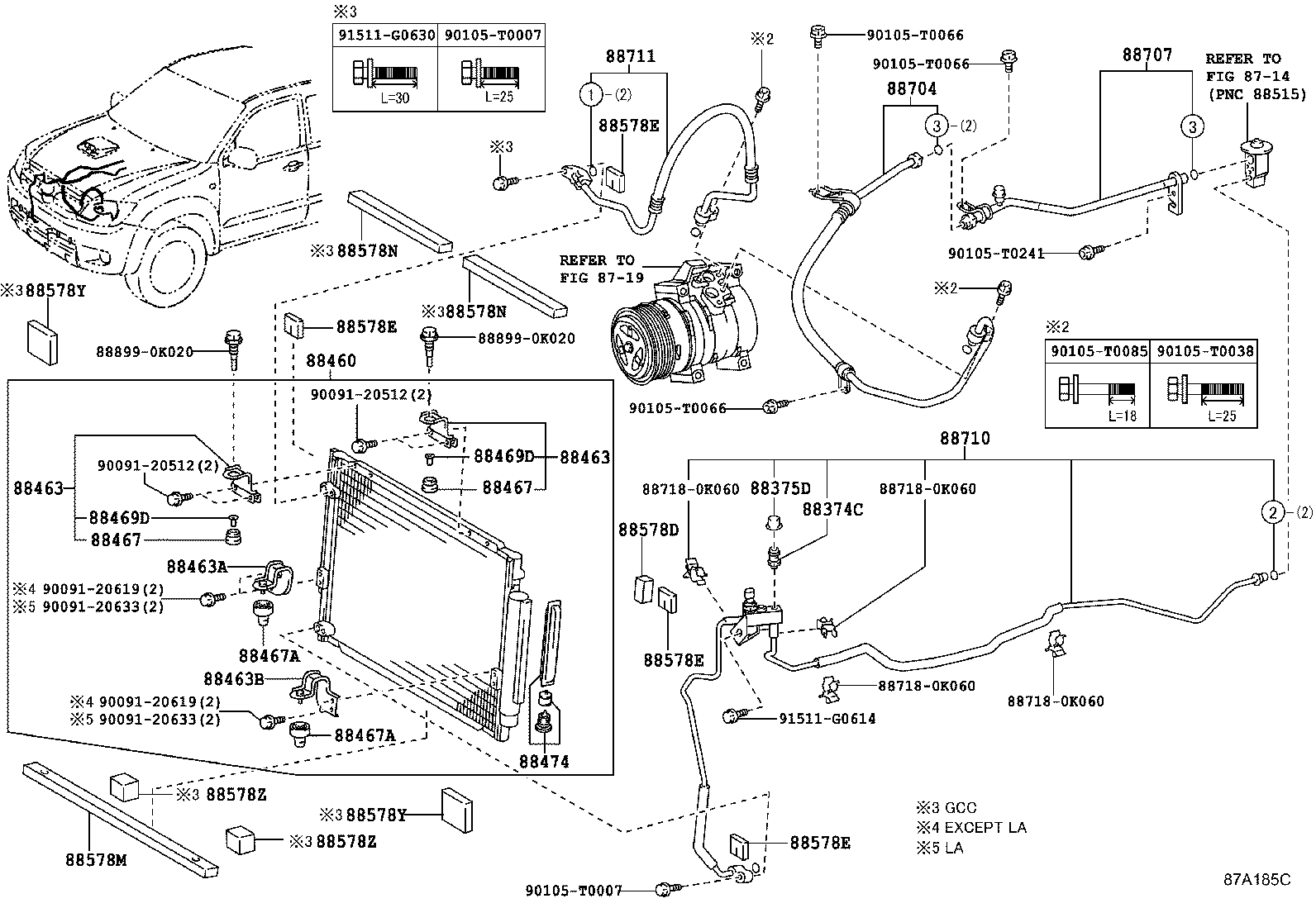

ILLUST NO. 1 OF 2(0501-0810)TGN15,16,26,36..LA,SA ; (0501- )TGN1#,26,36..ARL,GCC,GEN,IDN,PHL,TH

Click highlighted areas on diagram

W(COOLER) OR W(AIR CONDITIONER)

diagram 8714 8719 88374C 88375D 88460 88463 88463 88463A 88463B 88467 88467 88467A 88467A 88469D 88469D 88474 88578D 88578E 88578E 88578E 88578E 88578M 88578N 88578N 88578Y 88578Y 88578Z 88578Z 88704 88707 88710 88711 887180K060 887180K060 887180K060 887180K060 888990K020 888990K020 9009120512 9009120512 9009120619 9009120619 9009120633 9009120633 90105T0007 90105T0007 90105T0038 90105T0066 90105T0066 90105T0066 90105T0085 90105T0241 91511G0614 91511G0630
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-0K130

KUN26,36..SR..LA

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-0K460

KUN26,36..SR..LA

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-0K470

KUN26,36..SR..LA

 1
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-12180

KUN26,36..SR..LA

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-12180

KUN26,36..SR..LA

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

KUN26,36..SR..LA

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

KUN26,36..SR..LA

 2
88474 - DRYER, COOLER
88474-17010

KUN26..SR..LA;KUN15..XTR..DLX

WITHOUT(COOLER)

 1
88474-17010

KUN25..SCB..MA;KUN16..(DCB,SCB,XTR)..TH;KUN15..(DCB,XTR)..(PHL,TH);KUN2#,36..(DCB,THDCB,XTR)..SR..(GEN,LA,MA,PHL,TH);GGN25,TGN16,26,36..(DCB,XTR)..(4FC,5FC)..(ANCOM,PHL,TH)

 1
88474-17010

KUN16..4FC;KUN25,35..MA,PHL,TH;KUN16..(SCB,SMT)..CBU;GGN25,TGN16..ANCOM,LA,TH;KUN26,36,TGN26,36..SR..(LA,PHL,TH);KUN26,36..(THDCB,XTR)..SR..(GEN,SA);KUN15,TGN36..(DCB,SMT,XTR)..(ANCOM,PHL,TH)

 1
88578D - PACKING, COOLER PIPE, NO.1
88578-0K230

KUN2#,3#,TGN26,36..LA

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-0K220

KUN2#,3#,TGN26,36..LA

 4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K220

KUN2#,3#,TGN26,36..LA

 4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K220

KUN2#,3#,TGN26,36..LA

 4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K220

KUN2#,3#,TGN26,36..LA

 4
88578M - PACKING, COOLING PIPE, NO.3
88578-0K210

KUN2#,3#..LA

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-0K140

KUN26,36..SR..LA

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-0K120

KUN26,36..SR..LA

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0K100

KUN26,36..SR..LA

 1
88711-0K100

KUN26..SR..LA

WITHOUT(COOLER)

 1
Common parts
88718-0K060
88899-0K020
90091-20512
90091-20619
90091-20633
90105-T0007
90105-T0038
90105-T0066
90105-T0085
90105-T0241
91511-G0614
91511-G0630
Linked diagrams
8714
8719

ILLUST NO. 1 OF 2(0408-0810)KUN15,2#,3#..LA,SA ; (0408- )KUN26..THDCB ; (0408- )KUN35..SR..PHL

Click highlighted areas on diagram

W(COOLER) OR W(AIR CONDITIONER)

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88463 88463 88463A 88463B 88467 88467 88467A 88467A 88469D 88469D 88474 88578D 88578E 88578E 88578E 88578E 88578M 88578N 88578N 88578Y 88578Y 88578Z 88578Z 88704 88710 88711 887180K060 887180K060 887180K060 887180K060 888990K020 888990K020 9009120512 9009120512 9009120619 9009120619 90105T0007 90105T0007 90105T0038 90105T0066 90105T0085 90105T0241 91511G0614 91511G0630
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-0K130

KUN26,36..SR..LA

 1
88460-0K130

KUN26,36..SR..LA

 1
88460-0K130

KUN26,36..SR..LA

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-0K460

KUN26,36..SR..LA

 1
88463-0K460

KUN26,36..SR..LA

 1
88463-0K460

KUN26,36..SR..LA

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-0K470

KUN26,36..SR..LA

 1
88463-0K470

KUN26,36..SR..LA

 1
88463-0K470

KUN26,36..SR..LA

 1
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-12180

KUN26,36..SR..LA

 2
88467-12180

KUN26,36..SR..LA

 2
88467-12180

KUN26,36..SR..LA

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-12180

KUN26,36..SR..LA

 2
88467-12180

KUN26,36..SR..LA

 2
88467-12180

KUN26,36..SR..LA

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

KUN26,36..SR..LA

 2
88469-52010

KUN26,36..SR..LA

 2
88469-52010

KUN26,36..SR..LA

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

KUN26,36..SR..LA

 2
88469-52010

KUN26,36..SR..LA

 2
88469-52010

KUN26,36..SR..LA

 2
88474 - DRYER, COOLER
88474-17010

KUN26..SR..LA;KUN15..XTR..DLX

WITHOUT(COOLER)

 1
88474-17010

KUN26..SR..LA;KUN15..XTR..DLX

WITHOUT(COOLER)

 1
88474-17010

KUN26..SR..LA;KUN15..XTR..DLX

WITHOUT(COOLER)

 1
88474-17010

KUN25..SCB..MA;KUN16..(DCB,SCB,XTR)..TH;KUN15..(DCB,XTR)..(PHL,TH);KUN2#,36..(DCB,THDCB,XTR)..SR..(GEN,LA,MA,PHL,TH);GGN25,TGN16,26,36..(DCB,XTR)..(4FC,5FC)..(ANCOM,PHL,TH)

 1
88474-17010

KUN25..SCB..MA;KUN16..(DCB,SCB,XTR)..TH;KUN15..(DCB,XTR)..(PHL,TH);KUN2#,36..(DCB,THDCB,XTR)..SR..(GEN,LA,MA,PHL,TH);GGN25,TGN16,26,36..(DCB,XTR)..(4FC,5FC)..(ANCOM,PHL,TH)

 1
88474-17010

KUN25..SCB..MA;KUN16..(DCB,SCB,XTR)..TH;KUN15..(DCB,XTR)..(PHL,TH);KUN2#,36..(DCB,THDCB,XTR)..SR..(GEN,LA,MA,PHL,TH);GGN25,TGN16,26,36..(DCB,XTR)..(4FC,5FC)..(ANCOM,PHL,TH)

 1
88474-17010

KUN16..4FC;KUN25,35..MA,PHL,TH;KUN16..(SCB,SMT)..CBU;GGN25,TGN16..ANCOM,LA,TH;KUN26,36,TGN26,36..SR..(LA,PHL,TH);KUN26,36..(THDCB,XTR)..SR..(GEN,SA);KUN15,TGN36..(DCB,SMT,XTR)..(ANCOM,PHL,TH)

 1
88474-17010

KUN16..4FC;KUN25,35..MA,PHL,TH;KUN16..(SCB,SMT)..CBU;GGN25,TGN16..ANCOM,LA,TH;KUN26,36,TGN26,36..SR..(LA,PHL,TH);KUN26,36..(THDCB,XTR)..SR..(GEN,SA);KUN15,TGN36..(DCB,SMT,XTR)..(ANCOM,PHL,TH)

 1
88474-17010

KUN16..4FC;KUN25,35..MA,PHL,TH;KUN16..(SCB,SMT)..CBU;GGN25,TGN16..ANCOM,LA,TH;KUN26,36,TGN26,36..SR..(LA,PHL,TH);KUN26,36..(THDCB,XTR)..SR..(GEN,SA);KUN15,TGN36..(DCB,SMT,XTR)..(ANCOM,PHL,TH)

 1
88578D - PACKING, COOLER PIPE, NO.1
88578-0K230

KUN2#,3#,TGN26,36..LA

 1
88578-0K230

KUN2#,3#,TGN26,36..LA

 1
88578-0K230

KUN2#,3#,TGN26,36..LA

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-0K220

KUN2#,3#,TGN26,36..LA

 4
88578-0K220

KUN2#,3#,TGN26,36..LA

 4
88578-0K220

KUN2#,3#,TGN26,36..LA

 4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K220

KUN2#,3#,TGN26,36..LA

 4
88578-0K220

KUN2#,3#,TGN26,36..LA

 4
88578-0K220

KUN2#,3#,TGN26,36..LA

 4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K220

KUN2#,3#,TGN26,36..LA

 4
88578-0K220

KUN2#,3#,TGN26,36..LA

 4
88578-0K220

KUN2#,3#,TGN26,36..LA

 4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K220

KUN2#,3#,TGN26,36..LA

 4
88578-0K220

KUN2#,3#,TGN26,36..LA

 4
88578-0K220

KUN2#,3#,TGN26,36..LA

 4
88578M - PACKING, COOLING PIPE, NO.3
88578-0K210

KUN2#,3#..LA

 1
88578-0K210

KUN2#,3#..LA

 1
88578-0K210

KUN2#,3#..LA

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-0K140

KUN26,36..SR..LA

 1
88704-0K140

KUN26,36..SR..LA

 1
88704-0K140

KUN26,36..SR..LA

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-0K120

KUN26,36..SR..LA

 1
88710-0K120

KUN26,36..SR..LA

 1
88710-0K120

KUN26,36..SR..LA

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0K100

KUN26,36..SR..LA

 1
88711-0K100

KUN26,36..SR..LA

 1
88711-0K100

KUN26,36..SR..LA

 1
88711-0K100

KUN26..SR..LA

WITHOUT(COOLER)

 1
88711-0K100

KUN26..SR..LA

WITHOUT(COOLER)

 1
88711-0K100

KUN26..SR..LA

WITHOUT(COOLER)

 1
Common parts
88718-0K060
88899-0K020
90091-20512
90091-20619
90105-T0007
90105-T0038
90105-T0066
90105-T0085
90105-T0241
91511-G0614
91511-G0630
Linked diagrams
8714
8719

ILLUST NO. 1 OF 2(0808- )KUN2#,3#..LA

Click highlighted areas on diagram

diagram 8714 8719 88460 88463 88463 88463A 88463B 88467 88467 88469D 88469D 88474 88578D 88578E 88578E 88578E 88578E 88578M 88645H 88704 88710 88711 887180K060 887180K060 887180K060 887180K060 8889952050 8889952050 9009120633 9009120633 90105T0007 90105T0066 90105T0085 90105T0085 90105T0241 91511G0614 91511G0630
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-0K130

KUN26,36..SR..LA

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-0K460

KUN26,36..SR..LA

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-0K470

KUN26,36..SR..LA

 1
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

KUN26,36..SR..LA

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

KUN26,36..SR..LA

 2
88474 - DRYER, COOLER
88474-17010

KUN26..SR..LA;KUN15..XTR..DLX

WITHOUT(COOLER)

 1
88474-17010

KUN25..SCB..MA;KUN16..(DCB,SCB,XTR)..TH;KUN15..(DCB,XTR)..(PHL,TH);KUN2#,36..(DCB,THDCB,XTR)..SR..(GEN,LA,MA,PHL,TH);GGN25,TGN16,26,36..(DCB,XTR)..(4FC,5FC)..(ANCOM,PHL,TH)

 1
88474-17010

KUN16..4FC;KUN25,35..MA,PHL,TH;KUN16..(SCB,SMT)..CBU;GGN25,TGN16..ANCOM,LA,TH;KUN26,36,TGN26,36..SR..(LA,PHL,TH);KUN26,36..(THDCB,XTR)..SR..(GEN,SA);KUN15,TGN36..(DCB,SMT,XTR)..(ANCOM,PHL,TH)

 1
88578D - PACKING, COOLER PIPE, NO.1
88578-0K230

KUN2#,3#,TGN26,36..LA

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-0K220

KUN2#,3#,TGN26,36..LA

 4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K220

KUN2#,3#,TGN26,36..LA

 4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K220

KUN2#,3#,TGN26,36..LA

 4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K220

KUN2#,3#,TGN26,36..LA

 4
88578M - PACKING, COOLING PIPE, NO.3
88578-0K210

KUN2#,3#..LA

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-0K140

KUN26,36..SR..LA

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-0K120

KUN26,36..SR..LA

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0K100

KUN26,36..SR..LA

 1
88711-0K100

KUN26..SR..LA

WITHOUT(COOLER)

 1
Common parts
88718-0K060
88899-52050
90091-20633
90105-T0007
90105-T0066
90105-T0085
90105-T0241
91511-G0614
91511-G0630
Linked diagrams
8714
8719
