KUN26L-PRMSYG (2005)

Toyota Hilux

Production Jan 2005 - Oct 2008
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0808- )GGN25,KUN26,36..LHD..SR..GEN,LA ; (0810- )DCB..SR..SA ; (0812- )GG

Click highlighted areas on diagram

CONTROL---PUSH TYPE

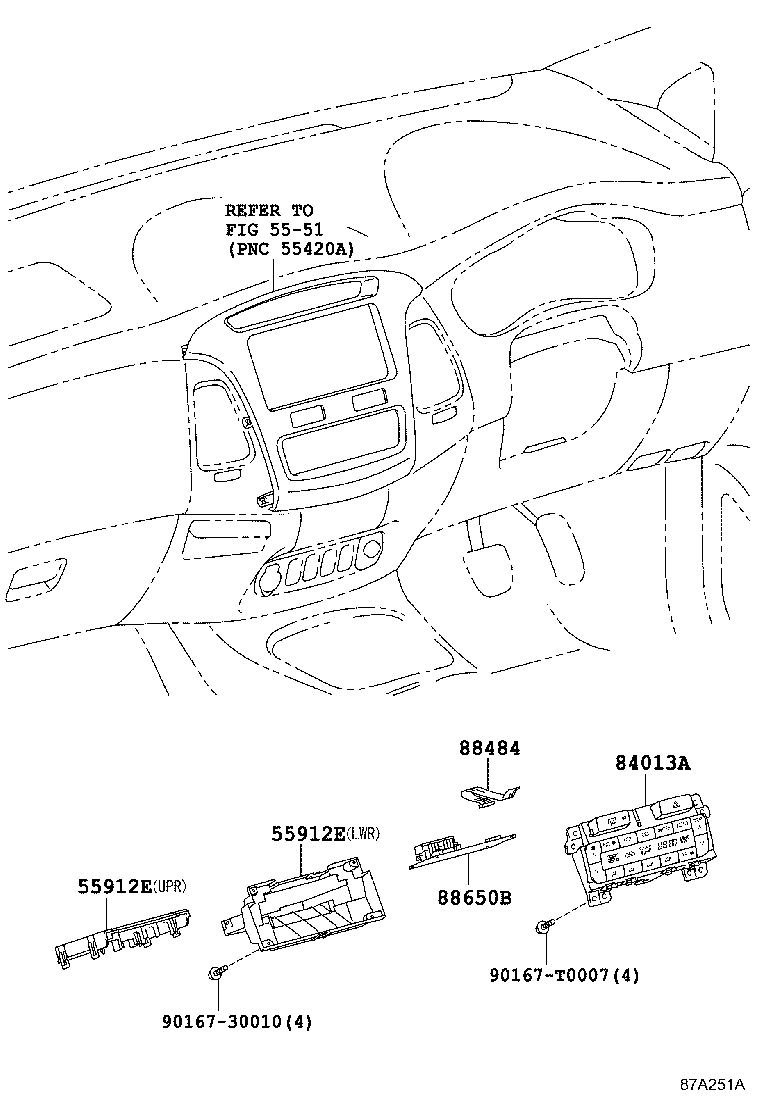

diagram 5551 55912E 55912E 84013A 88484 88650B 9016730010 90167T0007
Part # Description Qty Price
55912E - BASE, HEATER CONTROL, LOWER
55912-0K120

GGN25,KUN26,36..LHD..SR..(GEN,LA)

AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE,UPPER

 1
55912-0K080

GGN25,KUN26,36..LHD..SR..(GEN,LA)

AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE,LOWER

 1
55912E - BASE, HEATER CONTROL, LOWER
55912-0K120

GGN25,KUN26,36..LHD..SR..(GEN,LA)

AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE,UPPER

 1
55912-0K080

GGN25,KUN26,36..LHD..SR..(GEN,LA)

AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE,LOWER

 1
84013A - PANEL SUB-ASSY, INTEGRATION
84013-0K050

GGN25,KUN26,36..LHD..SR..(GEN,LA)

AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE

 1
88484 - WIRE, COOLER, NO.1
88484-0K110

GGN25,KUN26,36..LHD..SR..(GEN,LA)

AIR CONDITIONER-AUTO AIR CONDITIONER SINGLE

 1
Common parts
90167-30010
90167-T0007
Linked diagrams
5551
