KUN26L-PRMSYG (2005)

Toyota Hilux

Production Jan 2005 - Oct 2008
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )TGN1#,26,36..LHD

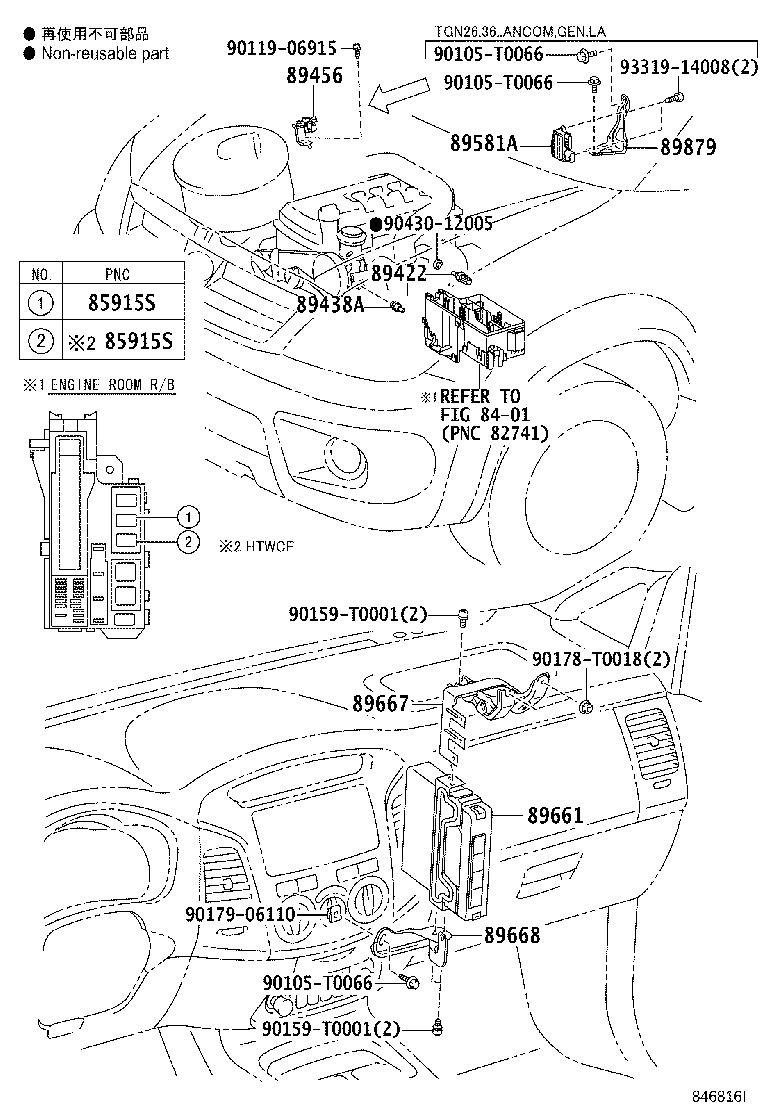

Click highlighted areas on diagram

diagram 8401 85915S 85915S 89422 89438A 89456 89581A 89661 89667 89668 89879 90105T0066 90105T0066 90105T0066 9011906915 90159T0001 90159T0001 90178T0018 9017906110 9043012005 9331914008
Part # Description Qty Price
89581A - DRIVER, AIR INJECTION CONTROL
89581-34041

TGN36..LA..CBU;TGN26..THDCB..DLX;TGN16,26..ARL,LA,TH

 1
89581-34041

TGN26..THDCB..DLX;TGN16,36..5F..(ARL,LA);TGN16,26..(DCB,XTR)..(LA,TH)

 1
Common parts
90105-T0066
90119-06915
90159-T0001
90178-T0018
90179-06110
90430-12005
93319-14008
Linked diagrams
8401
