KUN26L-PRMSYG (2005)

Toyota Hilux

Production Jan 2005 - Oct 2008
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 8(0501- )TGN1#,26,36

Click highlighted areas on diagram

ENGINE & TRANSMISSION

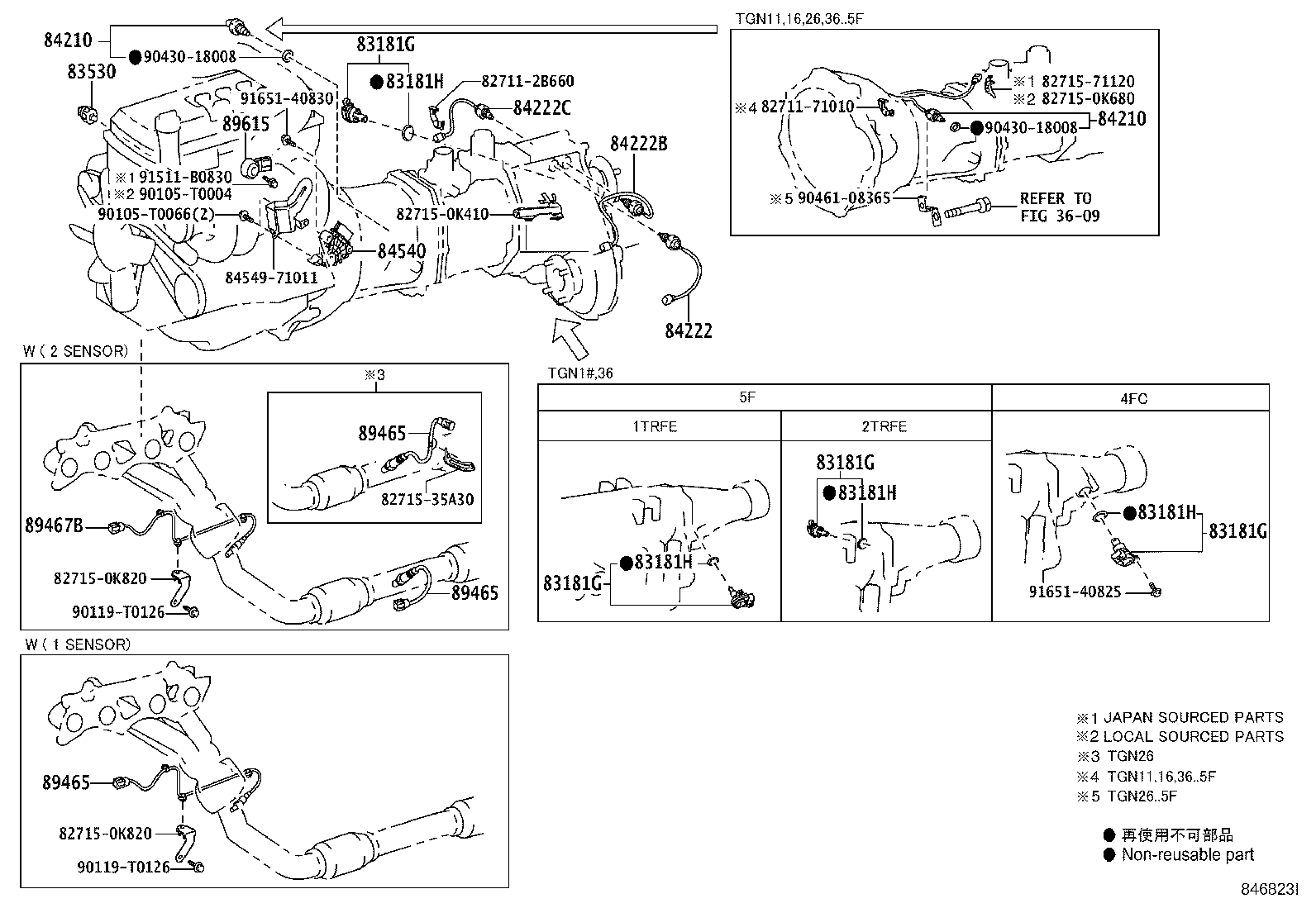

diagram 3609 827112B660 8271171010 827150K410 827150K680 827150K820 827150K820 8271535A30 8271571120 83181G 83181G 83181G 83181G 83181H 83181H 83181H 83181H 83530 84210 84210 84222 84222B 84222C 84540 8454971011 89465 89465 89465 89467B 89615 90105T0004 90105T0066 90119T0126 90119T0126 9043018008 9043018008 9046108365 91511B0830 9165140825 9165140830
Part # Description Qty Price
83181G - SENSOR, SPEEDOMETER
83181-12020

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN16..XTR..TH;KUN26..DCB..5F..SA;KUN16..(DCB,SCB)..5F;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;KUN25,TGN36..RHD..(DCB,XTR)..SR;GGN25,KUN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);GGN15,KUN15,LAN25,TGN11,16..(DCB,SCB,XTR)..5F..(DEFI,HDCR,HTWC)

 1
83181G - SENSOR, SPEEDOMETER
83181-12020

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN16..XTR..TH;KUN26..DCB..5F..SA;KUN16..(DCB,SCB)..5F;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;KUN25,TGN36..RHD..(DCB,XTR)..SR;GGN25,KUN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);GGN15,KUN15,LAN25,TGN11,16..(DCB,SCB,XTR)..5F..(DEFI,HDCR,HTWC)

 1
83181G - SENSOR, SPEEDOMETER
83181-12020

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN16..XTR..TH;KUN26..DCB..5F..SA;KUN16..(DCB,SCB)..5F;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;KUN25,TGN36..RHD..(DCB,XTR)..SR;GGN25,KUN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);GGN15,KUN15,LAN25,TGN11,16..(DCB,SCB,XTR)..5F..(DEFI,HDCR,HTWC)

 1
83181G - SENSOR, SPEEDOMETER
83181-12020

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN16..XTR..TH;KUN26..DCB..5F..SA;KUN16..(DCB,SCB)..5F;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;KUN25,TGN36..RHD..(DCB,XTR)..SR;GGN25,KUN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);GGN15,KUN15,LAN25,TGN11,16..(DCB,SCB,XTR)..5F..(DEFI,HDCR,HTWC)

 1
83181H - RING, O (FOR SPEEDOMETER SENSOR)
96711-24030

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN16..XTR..TH;KUN26..DCB..5F..SA;KUN16..(DCB,SCB)..5F;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;KUN25,TGN36..RHD..(DCB,XTR)..SR;GGN25,KUN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);GGN15,KUN15,LAN25,TGN11,16..(DCB,SCB,XTR)..5F..(DEFI,HDCR,HTWC)

 1
83181H - RING, O (FOR SPEEDOMETER SENSOR)
96711-24030

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN16..XTR..TH;KUN26..DCB..5F..SA;KUN16..(DCB,SCB)..5F;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;KUN25,TGN36..RHD..(DCB,XTR)..SR;GGN25,KUN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);GGN15,KUN15,LAN25,TGN11,16..(DCB,SCB,XTR)..5F..(DEFI,HDCR,HTWC)

 1
83181H - RING, O (FOR SPEEDOMETER SENSOR)
96711-24030

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN16..XTR..TH;KUN26..DCB..5F..SA;KUN16..(DCB,SCB)..5F;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;KUN25,TGN36..RHD..(DCB,XTR)..SR;GGN25,KUN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);GGN15,KUN15,LAN25,TGN11,16..(DCB,SCB,XTR)..5F..(DEFI,HDCR,HTWC)

 1
83181H - RING, O (FOR SPEEDOMETER SENSOR)
96711-24030

KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN16..XTR..TH;KUN26..DCB..5F..SA;KUN16..(DCB,SCB)..5F;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;KUN25,TGN36..RHD..(DCB,XTR)..SR;GGN25,KUN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);GGN15,KUN15,LAN25,TGN11,16..(DCB,SCB,XTR)..5F..(DEFI,HDCR,HTWC)

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-28010

KUN16..DCB,SCB;KUN16..XTR..TH;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN10,15,36..(DCB,SCB,XTR)..5F;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-0K010

KUN25..SCB..MA;KUN36..5F..(LA,SA);KUN26..DCB..5F..(LA,SA);KUN25,35..DLX..(ANCOM,LA,SA);GGN25,KUN25..5F..SR..(MA,SA)

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-0K010

KUN25..SCB..MA;KUN36..5F..(LA,SA);KUN26..DCB..5F..(LA,SA);KUN25,35..DLX..(ANCOM,LA,SA);GGN25,KUN25..5F..SR..(MA,SA)

 1
84222 - SWITCH, TRANSFER INDICATOR, NO.1
84222-35080

KUN25..SA;TGN26..RHD;TGN26..4FC..GCC;KUN26..(DCB,THDCB)..5F..SR..(GEN,LA,SA);GGN25,KUN26..(4FC,5FC)..(ANCOM,ARL,GEN,LA,PHL,TH);GGN25,KUN25,TGN26..(4FC,5F)..SR..(ANCOM,GEN,MA,SA)

 1
84222C - SWITCH, TRANSFER INDICATOR, NO.3
84222-35110

KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;GGN25..5FC..(ANCOM,ARL);TGN26..ANCOM,GCC,GEN,SA,TH;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);GGN25,KUN25,LAN25..5F..(ANCOM,ARL,GCC,GEN,LA,SA)

 1
89467B - SENSOR, AIR FUEL RATIO
89467-71010

TGN26..THDCB..DLX;TGN16,36..5F..(ARL,LA);TGN16,26..(DCB,XTR)..(LA,TH)

 1
Common parts
82711-2B660
82711-71010
82715-0K410
82715-0K680
82715-0K820
82715-35A30
82715-71120
84549-71011
90105-T0004
90105-T0066
90119-T0126
90430-18008
90461-08365
91511-B0830
91651-40825
91651-40830
