KUN26L-PRMSYG (2005)

Toyota Hilux

Production Jan 2005 - Oct 2008
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

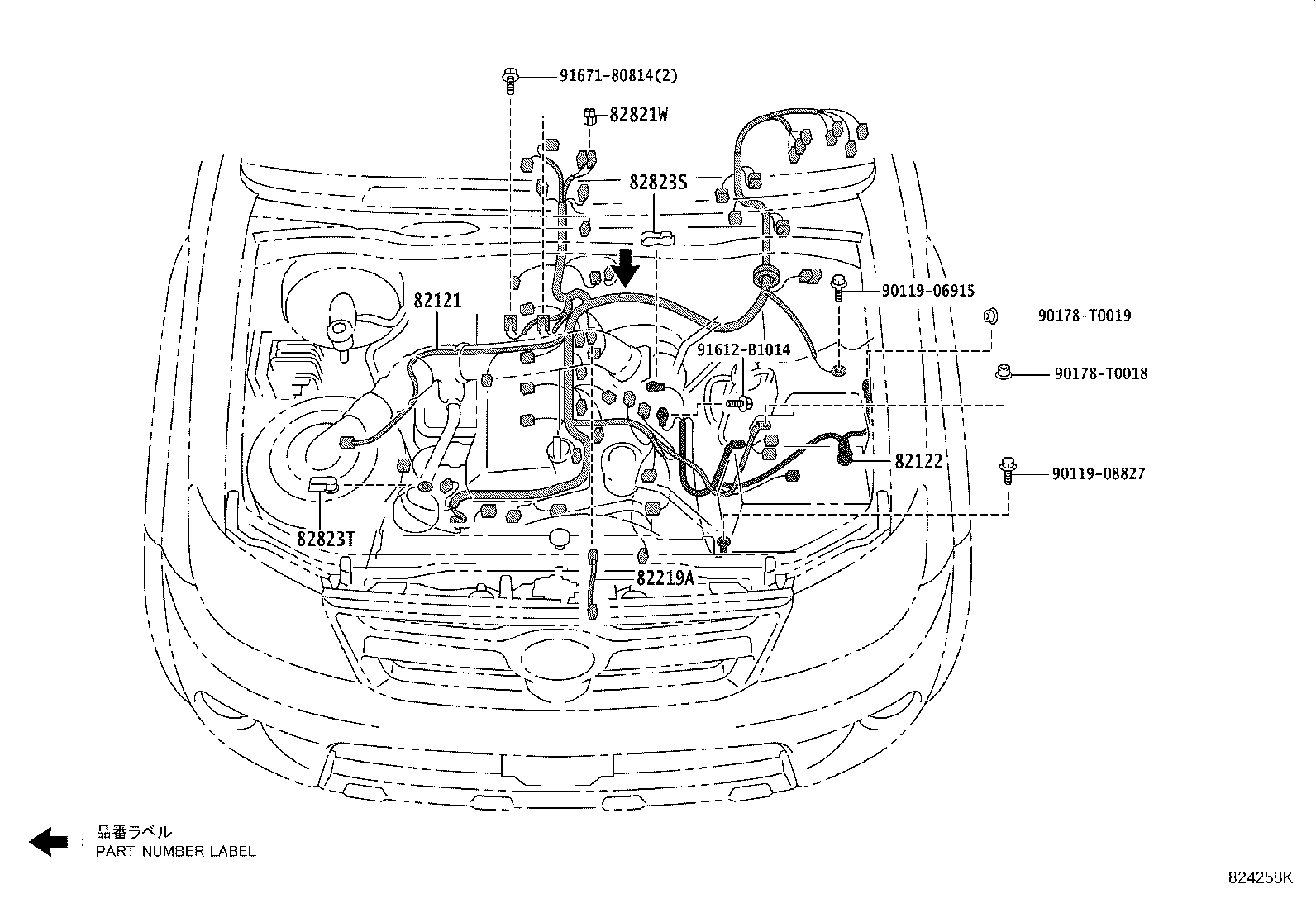

ILLUST NO. 2 OF 9(0501- )TGN1#,26,36

Click highlighted areas on diagram

ENGINE

diagram 82121 82122 82219A 82821W 82823S 82823T 9011906915 9011908827 90178T0018 90178T0019 91612B1014 9167180814
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-0K191

KUN26..LHD..5F..SR

 1
82121-0K192

KUN26..LHD..5F..SR

 1
82121-0K191

KUN26..LHD..5F..SR

 1
82121-0K192

KUN26..LHD..5F..SR

 1
82219A - WIRE, SENSOR
82219-0K010

TGN1#,26,36

 1
82823S - CAP, STARTER TERMINAL
82823-35050

KUN26..THDCB;KUN25..SCB..MA;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..5F..SR;KUN10,16,LAN15,25,35..DCB,SCB;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
Common parts
90119-06915
90119-08827
90178-T0018
90178-T0019
91612-B1014
91671-80814
