KUN26L-PRMSYG (2005)

Toyota Hilux

Production Jan 2005 - Oct 2008
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

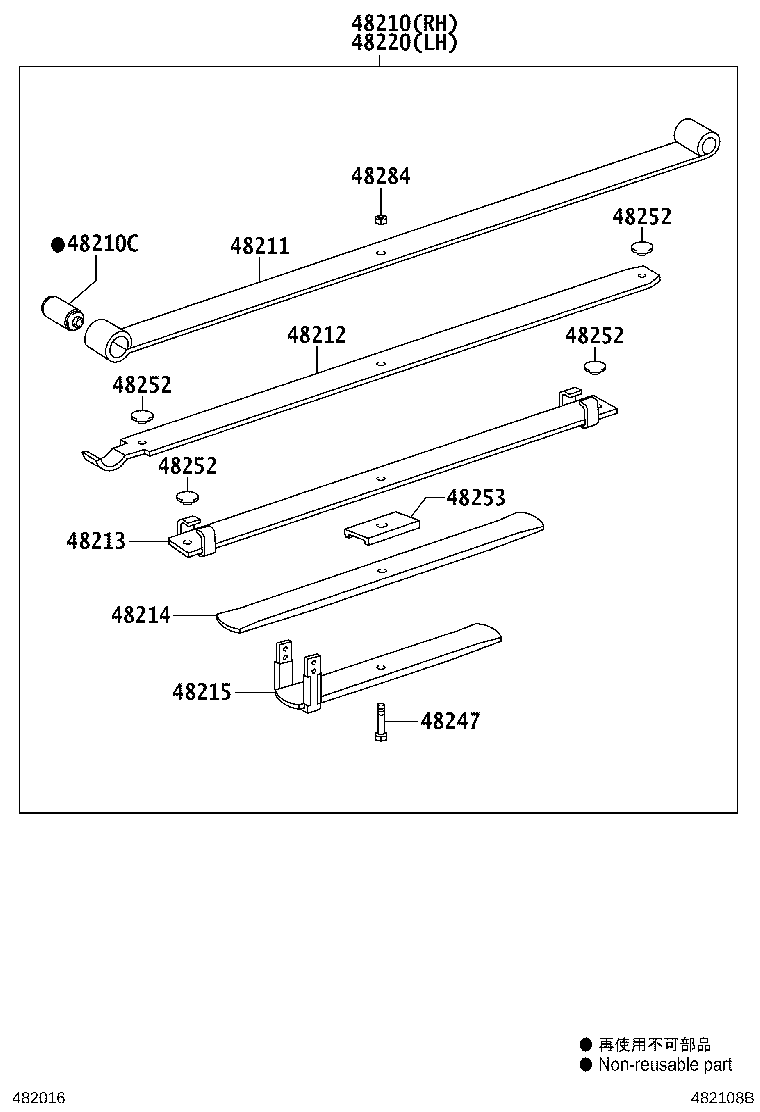

ILLUST NO. 2 OF 2(0501- )LA,MA

Click highlighted areas on diagram

5-LEAF

diagram 48210 48210C 48211 48212 48213 48214 48215 48220 48247 48252 48252 48252 48252 48253 48284
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-0K120

KUN2#,3#,TGN26,36..DCB..LA

5-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90080-38152

KUN2#,3#,TGN26,36..LA

 2
48211 - LEAF, REAR SPRING, NO.1
48211-0K120

KUN2#,3#,TGN26,36..DCB..LA

 2
48212 - LEAF, REAR SPRING, NO.2
48212-0K120

KUN2#,3#,TGN26,36..DCB..LA

 2
48213 - LEAF, REAR SPRING, NO.3
48213-0K120

KUN2#,3#,TGN26,36..DCB..LA

 2
48214 - LEAF, REAR SPRING, NO.4
48214-0K120

KUN2#,3#,TGN26,36..DCB..LA

 2
48215 - LEAF, REAR SPRING, NO.5
48215-0K120

KUN2#,3#,TGN26,36..DCB..LA

 2
48220 - SPRING ASSY, REAR LH
48210-0K120

KUN2#,3#,TGN26,36..DCB..LA

5-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-0K120

KUN2#,3#,TGN26,36..DCB..LA

 2
48252 - SILENCER, REAR SPRING
48252-0K120

KUN2#,3#,TGN26,36..LA

 8
48252 - SILENCER, REAR SPRING
48252-0K120

KUN2#,3#,TGN26,36..LA

 8
48252 - SILENCER, REAR SPRING
48252-0K120

KUN2#,3#,TGN26,36..LA

 8
48252 - SILENCER, REAR SPRING
48252-0K120

KUN2#,3#,TGN26,36..LA

 8
48253 - SPACER, REAR SPRING, NO.1
48253-0K120

KUN2#,3#,TGN26,36..LA

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-0K120

KUN2#,3#,TGN26,36..LA

 2

ILLUST NO. 2 OF 2(0408-0508)KUN1#,TGN16..XTR..TH ; (0408- )KUN15,TGN16..SMT,XTR..DLX ; (0408-

Click highlighted areas on diagram

5-LEAF

diagram 48210 48210C 48211 48212 48213 48220 48247 48248B 48248B 48252 48252 48252 48252 48253 48261 48262 48284
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-0K120

KUN2#,3#,TGN26,36..DCB..LA

5-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90080-38152

KUN2#,3#,TGN26,36..LA

 2
48211 - LEAF, REAR SPRING, NO.1
48211-0K120

KUN2#,3#,TGN26,36..DCB..LA

 2
48212 - LEAF, REAR SPRING, NO.2
48212-0K120

KUN2#,3#,TGN26,36..DCB..LA

 2
48213 - LEAF, REAR SPRING, NO.3
48213-0K120

KUN2#,3#,TGN26,36..DCB..LA

 2
48220 - SPRING ASSY, REAR LH
48210-0K120

KUN2#,3#,TGN26,36..DCB..LA

5-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-0K120

KUN2#,3#,TGN26,36..DCB..LA

 2
48252 - SILENCER, REAR SPRING
48252-0K120

KUN2#,3#,TGN26,36..LA

 8
48252 - SILENCER, REAR SPRING
48252-0K120

KUN2#,3#,TGN26,36..LA

 8
48252 - SILENCER, REAR SPRING
48252-0K120

KUN2#,3#,TGN26,36..LA

 8
48252 - SILENCER, REAR SPRING
48252-0K120

KUN2#,3#,TGN26,36..LA

 8
48253 - SPACER, REAR SPRING, NO.1
48253-0K120

KUN2#,3#,TGN26,36..LA

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-0K120

KUN2#,3#,TGN26,36..LA

 2

ILLUST NO. 2 OF 2(1107-1208)KUN26..4FC..TH ; (1107- )GGN25,KUN2#..5F,5FC..ANCOM,TH ; (1208- )K

Click highlighted areas on diagram

5-LEAF

diagram 48210 48210C 48211 48212 48213 48214 48220 48247 48248B 48252 48252 48252 48252 48252 48252 48253 48261 48284
Part # Description Qty Price
