KUN26L-PRMSYG (2005)

Toyota Hilux

Production Jan 2005 - Oct 2008
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )TGN1#,26,36..LHD

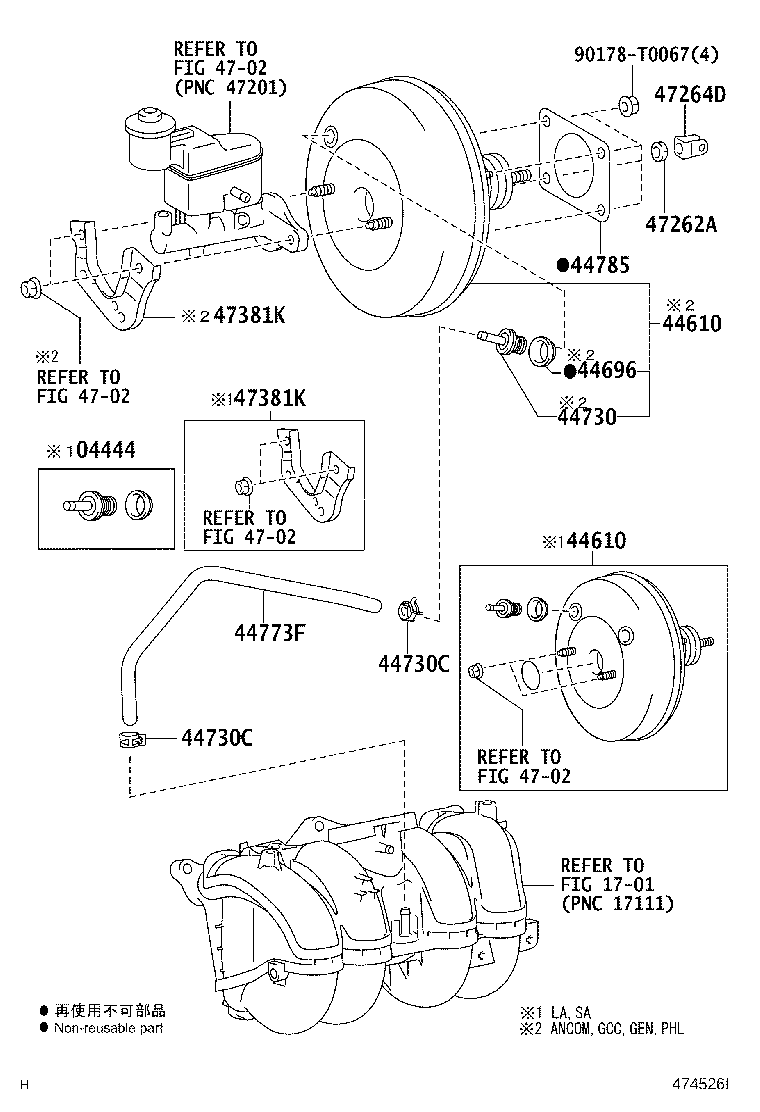

Click highlighted areas on diagram

diagram 04444 1701 44610 44610 44696 44730 44730C 44730C 44773F 44785 4702 4702 4702 4702 47262A 47264D 47381K 47381K 90178T0067
Part # Description Qty Price
04444 - VALVE KIT, BOOSTER CONTROL
04444-02010

KUN25..LHD..SCB;KUN25..DCB..(LA,SA);GGN25,KUN15,26,3#,LAN15,25,35,TGN15,16,26,36..LA,SA

 1
44610 - BOOSTER ASSY, BRAKE
44610-09310

TGN16,26,36..LHD..(LA,SA)

 1
44610-09290

KUN15,2#,3#,LAN15,25..LHD..(LA,SA)

 1
44610 - BOOSTER ASSY, BRAKE
44610-09310

TGN16,26,36..LHD..(LA,SA)

 1
44610-09290

KUN15,2#,3#,LAN15,25..LHD..(LA,SA)

 1
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019

GGN15..SCB,XTR;GGN25..5FC..SA;TGN15..SA..CBU;GGN15..DCB..DLX;GGN25..DCB..ARL;KUN15,2#,3#..LHD;GGN15..DCB..5FC..SR;GGN35,KUN10,LAN35,TGN36..GCC,SA;LAN15,25,TGN10,16..RHD..(ARL,IDN,SA,TH)

 4
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019

GGN15..SCB,XTR;GGN25..5FC..SA;TGN15..SA..CBU;GGN15..DCB..DLX;GGN25..DCB..ARL;KUN15,2#,3#..LHD;GGN15..DCB..5FC..SR;GGN35,KUN10,LAN35,TGN36..GCC,SA;LAN15,25,TGN10,16..RHD..(ARL,IDN,SA,TH)

 4
44773F - HOSE, UNION TO CHECK VALVE
44773-0K030

TGN16,26,36..LHD..(LA,SA)

 1
44785 - GASKET, BRAKE BOOSTER
44785-17010

TGN36..SCB;KUN26..THDCB;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..LHD..SCB..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN16,36,TGN16..XTR..TH;KUN25..SCB..(GEN,LA,MA);TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35..DLX..(ANCOM,GEN,LA,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN25,TGN36..(DCB,THDCB,THSCB)..5F..DLX..(ANCOM,GCC,GEN,LA,SA);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
44785-17010

GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK
47262-0K010

KUN25..LHD..SCB;KUN25..DCB..(LA,SA);GGN25,KUN15,26,3#,LAN15,25,35,TGN15,16,26,36..LA,SA

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-0K020

KUN25..LHD..SCB;KUN25..DCB..(LA,SA);GGN25,KUN15,26,3#,LAN15,25,35,TGN15,16,26,36..LA,SA

 1
47381K - BRACKET, BRAKE BOOSTER TUBE CLAMP
47381-09020

KUN25..LHD..SCB;KUN25..DCB..(LA,SA);GGN25,KUN15,26,3#,LAN15,25,35,TGN15,16,26,36..LA,SA

 1
47381K - BRACKET, BRAKE BOOSTER TUBE CLAMP
47381-09020

KUN25..LHD..SCB;KUN25..DCB..(LA,SA);GGN25,KUN15,26,3#,LAN15,25,35,TGN15,16,26,36..LA,SA

 1
Common parts
90178-T0067
Linked diagrams
1701
4702
