KUN26L-PRMSYG (2005)

Toyota Hilux

Production Jan 2005 - Oct 2008
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

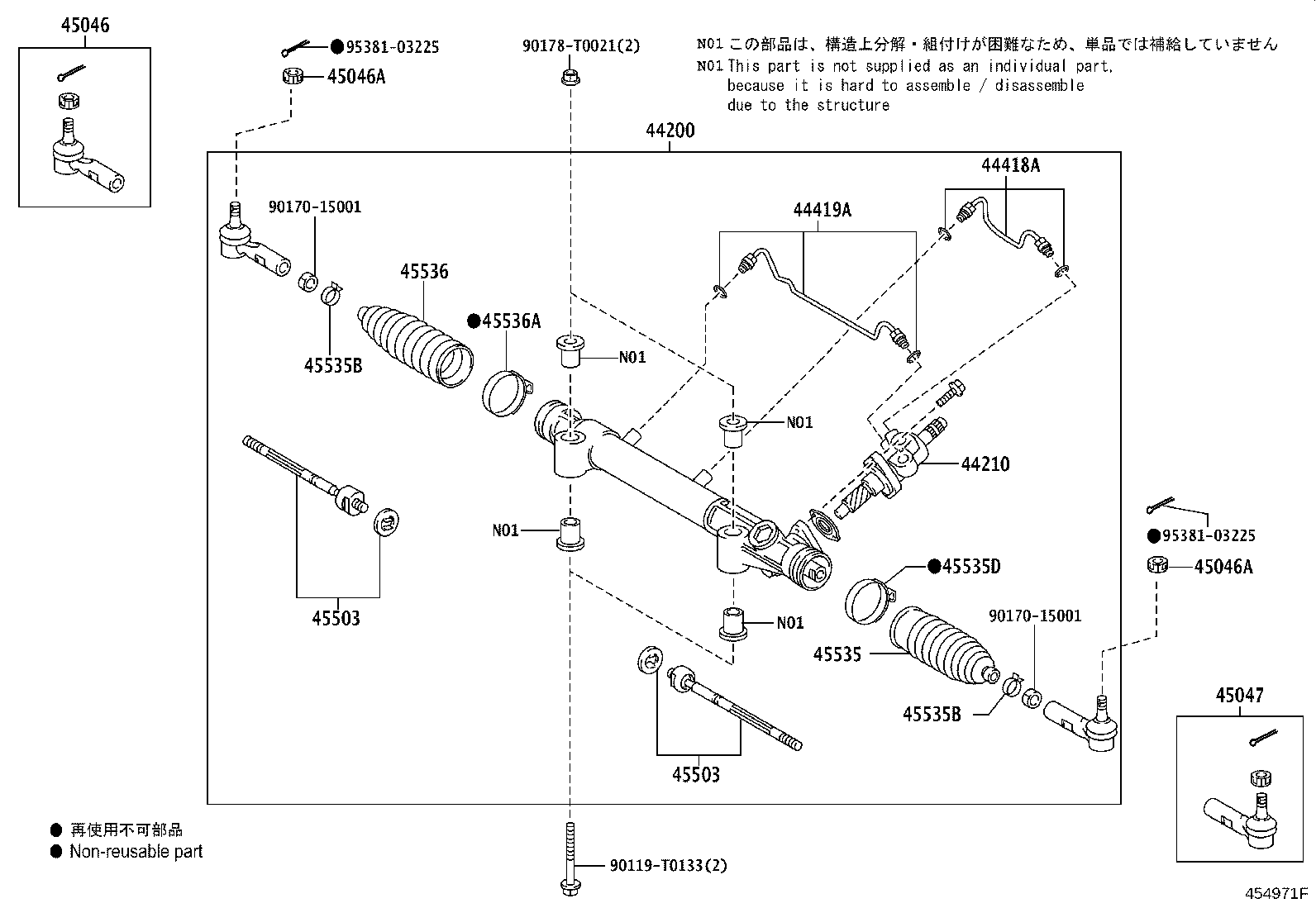

ILLUST NO. 1 OF 2(0501- )LA

Click highlighted areas on diagram

diagram 44200 44210 44418A 44419A 45046 45046A 45046A 45047 45503 45503 45535 45535B 45535B 45535D 45536 45536A 90119T0133 9017015001 9017015001 90178T0021 9538103225 9538103225
Part # Description Qty Price
44200 - LINK ASSY, POWER STEERING
44200-0K080

KUN2#,3#,TGN26,36..LA

 1
44210 - VALVE ASSY, POWER STEERING CONTROL
44210-0K040

KUN2#,3#,TGN26,36..LA

 1
44418A - TUBE, STEERING RIGHT TURN PRESSURE
44418-0K160

KUN2#,3#,TGN26,36..LA

 1
44419A - TUBE, STEERING LEFT TURN PRESSURE
44419-0K160

KUN2#,3#,TGN26,36..LA

 1
45046 - END SUB-ASSY, TIE ROD, RH
45046-09310

KUN2#,3#,TGN26,36..LA

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-T0002

TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25,35..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH

 2
90171-T0002

KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..GCC,GEN,LA,SA;KUN25..(DCB,XTR)..SR;KUN35,TGN36..SCB,THDCB;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35,TGN36..DCB..DLX..(LA,SA);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-T0002

TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25,35..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH

 2
90171-T0002

KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..GCC,GEN,LA,SA;KUN25..(DCB,XTR)..SR;KUN35,TGN36..SCB,THDCB;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN35,TGN36..DCB..DLX..(LA,SA);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-09310

KUN2#,3#,TGN26,36..LA

 1
45503 - END SUB-ASSY, STEERING RACK
45503-09340

KUN2#,3#,TGN26,36..LA

 2
45503 - END SUB-ASSY, STEERING RACK
45503-09340

KUN2#,3#,TGN26,36..LA

 2
45535 - BOOT, STEERING RACK, NO.1
45535-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;TGN26..ANCOM,GCC,GEN,SA,TH;KUN15,16,36,TGN16..XTR..SR..TH;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN35,TGN36..DCB..5F..DLX..(LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,TGN36..DCB..(ANCOM,GCC,GEN,PHL,SA,TH);KUN15,35,TGN36..(SCB,THDCB)..(ANCOM,GCC,GEN,LA,PKN,SA);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
45535-0K010

TGN16..XTR;KUN15..DCB,SMT;GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN16,TGN10,15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,IDN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90080-46370

KUN2#,3#,TGN26,36..LA

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90080-46370

KUN2#,3#,TGN26,36..LA

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90080-46371

KUN2#,3#,TGN26,36..LA

 1
45536 - BOOT, STEERING RACK, NO.2
45536-0K010

KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;TGN26..ANCOM,GCC,GEN,SA,TH;KUN15,16,36,TGN16..XTR..SR..TH;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN35,TGN36..DCB..5F..DLX..(LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,TGN36..DCB..(ANCOM,GCC,GEN,PHL,SA,TH);KUN15,35,TGN36..(SCB,THDCB)..(ANCOM,GCC,GEN,LA,PKN,SA);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
45536-0K010

TGN16..XTR;KUN15..DCB,SMT;GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN15..SCB..(GCC,GEN,PHL,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN16,TGN10,15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,IDN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90080-46371

KUN2#,3#,TGN26,36..LA

 1
Common parts
90119-T0133
90170-15001
90178-T0021
95381-03225
