KUN26L-PRMSYG (2005)

Toyota Hilux

Production Jan 2005 - Oct 2008
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0408-0708) ; (0708-0710)DCB,SCB,XTR ; (0710-0712)DCB,SCB,XTR..ANCOM,ARL,GCC,GEN,ID

Click highlighted areas on diagram

diagram 04412 41110A 42110 42110A 42110B 42110C 42110D 42110E 42181 9017008042 9017008042 9020108002 9020108002
Part # Description Qty Price
04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER
04412-0K310

TGN36..DLX;TGN26,36..SR..(ANCOM,PHL);TGN26..DCB..DLX..(ANCOM,LA);TGN26..(SCB,THDCB)..(ANCOM,GEN);KUN26..(DCB,THDCB,XTR)..(GEN,LA,PHL,TH);GGN25,KUN25,3#..(DCB,SCB,THDCB,THSCB,XTR)..(ANCOM,GEN,LA,TH)

 1
04412-0K310

TGN36..DLX;TGN26,36..SR..(ANCOM,PHL);TGN26..DCB..DLX..(ANCOM,LA);TGN26..(SCB,THDCB)..(ANCOM,GEN);KUN26..(DCB,THDCB,XTR)..(GEN,LA,PHL,TH);GGN25,KUN25,3#..(DCB,SCB,THDCB,THSCB,XTR)..(ANCOM,GEN,LA,TH)

 1
04412-0K310

TGN36..DLX;TGN26,36..SR..(ANCOM,PHL);TGN26..DCB..DLX..(ANCOM,LA);TGN26..(SCB,THDCB)..(ANCOM,GEN);KUN26..(DCB,THDCB,XTR)..(GEN,LA,PHL,TH);GGN25,KUN25,3#..(DCB,SCB,THDCB,THSCB,XTR)..(ANCOM,GEN,LA,TH)

 1
41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
90116-08233

GGN15,25,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

S=14 & 14,L=42

 2
90116-08233

GGN15,25,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

S=14 & 14,L=42

 2
90116-08233

GGN15,25,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

S=14 & 14,L=42

 2
90116-08329

TGN26..DCB..SA;KUN15,LAN15,25,35,TGN15,16;GGN15,25,KUN10,16,2#,3#,TGN10,11,26,36..ANCOM,ARL,GCC,GEN,LA,MA,PHL,TH

S=17 & 12,L=37

 8
90116-08329

TGN26..DCB..SA;KUN15,LAN15,25,35,TGN15,16;GGN15,25,KUN10,16,2#,3#,TGN10,11,26,36..ANCOM,ARL,GCC,GEN,LA,MA,PHL,TH

S=17 & 12,L=37

 8
90116-08329

TGN26..DCB..SA;KUN15,LAN15,25,35,TGN15,16;GGN15,25,KUN10,16,2#,3#,TGN10,11,26,36..ANCOM,ARL,GCC,GEN,LA,MA,PHL,TH

S=17 & 12,L=37

 8
42110 - HOUSING ASSY, REAR AXLE
42110-0K060

TGN36..4FC..ANCOM;GGN25,KUN26,36,TGN26..SR..(ANCOM,LA)

 1
42110-0K060

TGN36..4FC..ANCOM;GGN25,KUN26,36,TGN26..SR..(ANCOM,LA)

 1
42110-0K060

TGN36..4FC..ANCOM;GGN25,KUN26,36,TGN26..SR..(ANCOM,LA)

 1
42110A - PLUG (FOR REAR AXLE HOUSING FILLER)
90341-18006

TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
90341-18006

TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
90341-18006

TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG)
12157-10010

TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
12157-10010

TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
12157-10010

TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING)
90930-03031

GGN25,KUN2#,3#,TGN26,36..ANCOM,LA

 1
90930-03031

GGN25,KUN2#,3#,TGN26,36..ANCOM,LA

 1
90930-03031

GGN25,KUN2#,3#,TGN26,36..ANCOM,LA

 1
42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
12157-10010

TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
12157-10010

TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
12157-10010

TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
42110E - PLUG (FOR REAR AXLE HOUSING DRAIN)
90341-18057

TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
90341-18057

TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
90341-18057

TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
42181 - GASKET, REAR DIFFERENTIAL CARRIER
42181-60020

KUN26..THDCB;KUN25..SCB..MA;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN36..4FC..(ANCOM,PHL);TGN26..DCB..DLX..(LA,SA);TGN16..5F..(ARL,GCC,GEN,SA);KUN16,LAN15,25,35,TGN15..DCB,SCB;KUN26,36..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;KUN25,35,TGN36..5F..DLX..(ANCOM,GCC,GEN,LA);GGN15,25,KUN10,15,TGN11,26..(DCB,SCB,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,PKN,TH)

 1
42181-60020

KUN26..THDCB;KUN25..SCB..MA;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN36..4FC..(ANCOM,PHL);TGN26..DCB..DLX..(LA,SA);TGN16..5F..(ARL,GCC,GEN,SA);KUN16,LAN15,25,35,TGN15..DCB,SCB;KUN26,36..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;KUN25,35,TGN36..5F..DLX..(ANCOM,GCC,GEN,LA);GGN15,25,KUN10,15,TGN11,26..(DCB,SCB,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,PKN,TH)

 1
42181-60020

KUN26..THDCB;KUN25..SCB..MA;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN36..4FC..(ANCOM,PHL);TGN26..DCB..DLX..(LA,SA);TGN16..5F..(ARL,GCC,GEN,SA);KUN16,LAN15,25,35,TGN15..DCB,SCB;KUN26,36..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;KUN25,35,TGN36..5F..DLX..(ANCOM,GCC,GEN,LA);GGN15,25,KUN10,15,TGN11,26..(DCB,SCB,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,PKN,TH)

 1
Common parts
90170-08042
90201-08002

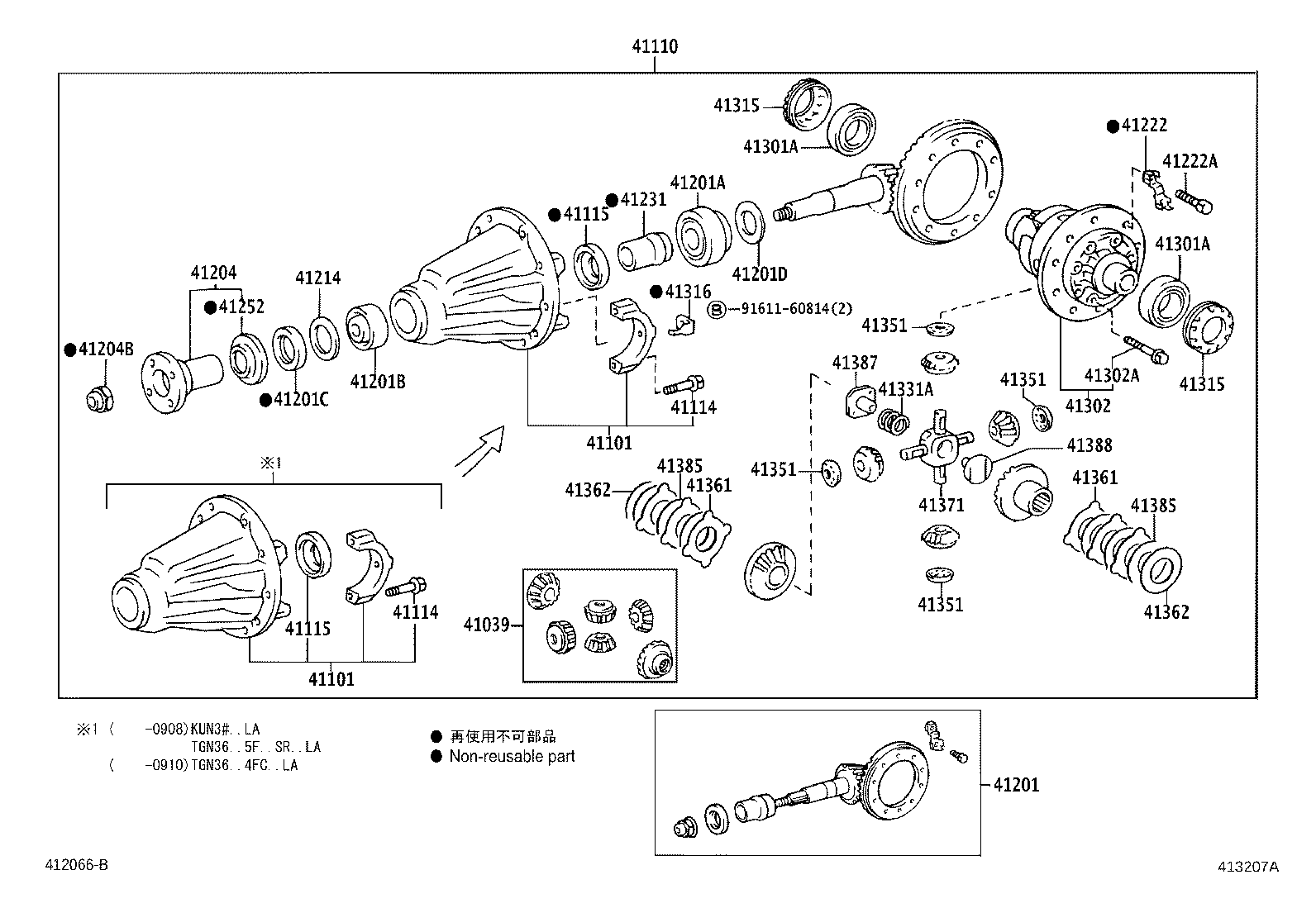

ILLUST NO. 1 OF 2(0501- )KUN35..ANCOM ; (0501- )GGN25,KUN2#,TGN16,26..LHD..ANCOM,LA,SA ; (0501

Click highlighted areas on diagram

diagram 41101 41110 41114 41115 41201 41201A 41201B 41201C 41201D 41204 41204B 41214 41222A 41231 41252 41301 41301A 41301A 41301E 41301E
Part # Description Qty Price
41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41101-35170

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41101-35170

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41110 - CARRIER ASSY, DIFFERENTIAL, REAR
41110-0K110

GGN25,KUN26..(5F,5FC)..(ANCOM,LA)

*FGR=43:12=3.583

 1
41110-0K110

GGN25,KUN26..(5F,5FC)..(ANCOM,LA)

*FGR=43:12=3.583

 1
41110-71010

KUN26..5F..LA

*FGR=43:12=3.583,DIFFERENTIAL-WITH(LSD)

 1
41110-71010

KUN26..5F..LA

*FGR=43:12=3.583,DIFFERENTIAL-WITH(LSD)

 1
41114 - BOLT, REAR DIFFERENTIAL BEARING CAP
90105-12053

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 4
90105-12053

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 4
41115 - RING, DIFFERENTIAL OIL STORAGE
41115-35010

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41115-35010

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR
41201-09620

GGN25,KUN26..(5F,5FC)..(ANCOM,LA)

*FGR=43:12=3.583

 1
41201-09620

GGN25,KUN26..(5F,5FC)..(ANCOM,LA)

*FGR=43:12=3.583

 1
41201-80208

KUN26..5F..LA

*FGR=43:12=3.583,DIFFERENTIAL-WITH(LSD)

 1
41201-80208

KUN26..5F..LA

*FGR=43:12=3.583,DIFFERENTIAL-WITH(LSD)

 1
41201A - BEARING (FOR REAR DRIVE PINION REAR)
90366-35087

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
90366-35087

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41201B - BEARING (FOR REAR DRIVE PINION FRONT)
90366-30067

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
90366-30067

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
90080-31109

KUN35..ANCOM;TGN26..LHD..(ANCOM,LA,SA);GGN25,KUN2#,TGN36..ANCOM,LA;KUN15,LAN15,25,35,TGN15,16..SA

 1
90080-31109

KUN35..ANCOM;TGN26..LHD..(ANCOM,LA,SA);GGN25,KUN2#,TGN36..ANCOM,LA;KUN15,LAN15,25,35,TGN15,16..SA

 1
90311-41009

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
90311-41009

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
90080-56136

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.47

 1
90080-56136

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.47

 1
90080-56137

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.45

 1
90080-56137

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.45

 1
90080-56143

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.30

 1
90080-56143

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.30

 1
90080-56140

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.37

 1
90080-56140

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.37

 1
90080-56142

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.32

 1
90080-56142

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.32

 1
90080-56138

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.42

 1
90080-56138

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.42

 1
90080-56144

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.27

 1
90080-56144

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.27

 1
90080-56145

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.24

 1
90080-56145

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.24

 1
90080-56141

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.35

 1
90080-56141

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.35

 1
90080-56150

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.12

 1
90080-56150

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.12

 1
90080-56149

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.14

 1
90080-56149

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.14

 1
90080-56147

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.19

 1
90080-56147

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.19

 1
90080-56148

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.17

 1
90080-56148

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.17

 1
90080-56139

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.40

 1
90080-56139

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.40

 1
90080-56146

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.22

 1
90080-56146

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.22

 1
90080-56152

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.07

 1
90080-56152

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.07

 1
90080-56151

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.09

 1
90080-56151

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.09

 1
90080-56153

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.04

 1
90080-56153

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.04

 1
90080-56156

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.97

 1
90080-56156

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.97

 1
90080-56162

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.81

 1
90080-56162

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.81

 1
90080-56159

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.89

 1
90080-56159

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.89

 1
90080-56238

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.69

 1
90080-56238

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.69

 1
90080-56158

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.91

 1
90080-56158

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.91

 1
90080-56161

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.84

 1
90080-56161

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.84

 1
90080-56163

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.79

 1
90080-56163

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.79

 1
90080-56160

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.86

 1
90080-56160

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.86

 1
90080-56165

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.74

 1
90080-56165

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.74

 1
90080-56154

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.02

 1
90080-56154

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.02

 1
90080-56157

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.94

 1
90080-56157

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.94

 1
90080-56164

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.76

 1
90080-56164

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.76

 1
90080-56166

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.71

 1
90080-56166

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.71

 1
90080-56155

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.99

 1
90080-56155

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.99

 1
90201-35499

KUN2#,TGN26,36..LA

OD=47,T=1.76,DIFFERENTIAL-WITH(LSD)

 1
90201-35499

KUN2#,TGN26,36..LA

OD=47,T=1.76,DIFFERENTIAL-WITH(LSD)

 1
90201-35498

KUN2#,TGN26,36..LA

OD=47,T=1.73,DIFFERENTIAL-WITH(LSD)

 1
90201-35498

KUN2#,TGN26,36..LA

OD=47,T=1.73,DIFFERENTIAL-WITH(LSD)

 1
90201-35497

KUN2#,TGN26,36..LA

OD=47,T=1.70,DIFFERENTIAL-WITH(LSD)

 1
90201-35497

KUN2#,TGN26,36..LA

OD=47,T=1.70,DIFFERENTIAL-WITH(LSD)

 1
90201-35500

KUN2#,TGN26,36..LA

OD=47,T=1.79,DIFFERENTIAL-WITH(LSD)

 1
90201-35500

KUN2#,TGN26,36..LA

OD=47,T=1.79,DIFFERENTIAL-WITH(LSD)

 1
90201-35507

KUN2#,TGN26,36..LA

OD=47,T=2.00,DIFFERENTIAL-WITH(LSD)

 1
90201-35507

KUN2#,TGN26,36..LA

OD=47,T=2.00,DIFFERENTIAL-WITH(LSD)

 1
90201-35503

KUN2#,TGN26,36..LA

OD=47,T=1.88,DIFFERENTIAL-WITH(LSD)

 1
90201-35503

KUN2#,TGN26,36..LA

OD=47,T=1.88,DIFFERENTIAL-WITH(LSD)

 1
90201-35508

KUN2#,TGN26,36..LA

OD=47,T=2.03,DIFFERENTIAL-WITH(LSD)

 1
90201-35508

KUN2#,TGN26,36..LA

OD=47,T=2.03,DIFFERENTIAL-WITH(LSD)

 1
90201-35510

KUN2#,TGN26,36..LA

OD=47,T=2.09,DIFFERENTIAL-WITH(LSD)

 1
90201-35510

KUN2#,TGN26,36..LA

OD=47,T=2.09,DIFFERENTIAL-WITH(LSD)

 1
90201-35511

KUN2#,TGN26,36..LA

OD=47,T=2.12,DIFFERENTIAL-WITH(LSD)

 1
90201-35511

KUN2#,TGN26,36..LA

OD=47,T=2.12,DIFFERENTIAL-WITH(LSD)

 1
90201-35504

KUN2#,TGN26,36..LA

OD=47,T=1.91,DIFFERENTIAL-WITH(LSD)

 1
90201-35504

KUN2#,TGN26,36..LA

OD=47,T=1.91,DIFFERENTIAL-WITH(LSD)

 1
90201-35502

KUN2#,TGN26,36..LA

OD=47,T=1.85,DIFFERENTIAL-WITH(LSD)

 1
90201-35502

KUN2#,TGN26,36..LA

OD=47,T=1.85,DIFFERENTIAL-WITH(LSD)

 1
90201-35501

KUN2#,TGN26,36..LA

OD=47,T=1.82,DIFFERENTIAL-WITH(LSD)

 1
90201-35501

KUN2#,TGN26,36..LA

OD=47,T=1.82,DIFFERENTIAL-WITH(LSD)

 1
90201-35505

KUN2#,TGN26,36..LA

OD=47,T=1.94,DIFFERENTIAL-WITH(LSD)

 1
90201-35505

KUN2#,TGN26,36..LA

OD=47,T=1.94,DIFFERENTIAL-WITH(LSD)

 1
90201-35509

KUN2#,TGN26,36..LA

OD=47,T=2.06,DIFFERENTIAL-WITH(LSD)

 1
90201-35509

KUN2#,TGN26,36..LA

OD=47,T=2.06,DIFFERENTIAL-WITH(LSD)

 1
90201-35506

KUN2#,TGN26,36..LA

OD=47,T=1.97,DIFFERENTIAL-WITH(LSD)

 1
90201-35506

KUN2#,TGN26,36..LA

OD=47,T=1.97,DIFFERENTIAL-WITH(LSD)

 1
90201-35512

KUN2#,TGN26,36..LA

OD=47,T=2.15,DIFFERENTIAL-WITH(LSD)

 1
90201-35512

KUN2#,TGN26,36..LA

OD=47,T=2.15,DIFFERENTIAL-WITH(LSD)

 1
90201-35518

KUN2#,TGN26,36..LA

OD=47,T=2.33,MARK 04,DIFFERENTIAL-WITH(LSD)

 1
90201-35518

KUN2#,TGN26,36..LA

OD=47,T=2.33,MARK 04,DIFFERENTIAL-WITH(LSD)

 1
90201-35514

KUN2#,TGN26,36..LA

OD=47,T=2.21,DIFFERENTIAL-WITH(LSD)

 1
90201-35514

KUN2#,TGN26,36..LA

OD=47,T=2.21,DIFFERENTIAL-WITH(LSD)

 1
90201-35515

KUN2#,TGN26,36..LA

OD=47,T=2.24,MARK 01,DIFFERENTIAL-WITH(LSD)

 1
90201-35515

KUN2#,TGN26,36..LA

OD=47,T=2.24,MARK 01,DIFFERENTIAL-WITH(LSD)

 1
90201-35516

KUN2#,TGN26,36..LA

OD=47,T=2.27,MARK 02,DIFFERENTIAL-WITH(LSD)

 1
90201-35516

KUN2#,TGN26,36..LA

OD=47,T=2.27,MARK 02,DIFFERENTIAL-WITH(LSD)

 1
90201-35513

KUN2#,TGN26,36..LA

OD=47,T=2.18,DIFFERENTIAL-WITH(LSD)

 1
90201-35513

KUN2#,TGN26,36..LA

OD=47,T=2.18,DIFFERENTIAL-WITH(LSD)

 1
90201-35517

KUN2#,TGN26,36..LA

OD=47,T=2.30,MARK 03,DIFFERENTIAL-WITH(LSD)

 1
90201-35517

KUN2#,TGN26,36..LA

OD=47,T=2.30,MARK 03,DIFFERENTIAL-WITH(LSD)

 1
41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204-35100

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41204-35100

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41204B - NUT (FOR REAR DRIVE PINION)
90177-22003

KUN2#,TGN26,36..LA

OD=39.5,DIFFERENTIAL-WITH(LSD)

 1
90177-22003

KUN2#,TGN26,36..LA

OD=39.5,DIFFERENTIAL-WITH(LSD)

 1
41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41214-26011

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41214-26011

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
90101-11353

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 10
90101-11353

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 10
41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41231-24010

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41231-24010

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41252-35041

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41252-35041

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41301A - BEARING(FOR REAR DIFFERENTIAL CASE)
90366-50007

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 2
90366-50007

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 2
41301A - BEARING(FOR REAR DIFFERENTIAL CASE)
90366-50007

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 2
90366-50007

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 2
41301E - SHIM(FOR DIFFERENTIAL CASE)
90080-56167

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.29

 2
90080-56167

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.29

 2
90080-56169

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.24

 2
90080-56169

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.24

 2
90080-56172

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.17

 2
90080-56172

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.17

 2
90080-56171

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.19

 2
90080-56171

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.19

 2
90080-56174

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.11

 2
90080-56174

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.11

 2
90080-56175

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.09

 2
90080-56175

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.09

 2
90080-56168

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.27

 2
90080-56168

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.27

 2
90080-56177

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.04

 2
90080-56177

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.04

 2
90080-56170

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.22

 2
90080-56170

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.22

 2
90080-56182

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.91

 2
90080-56182

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.91

 2
90080-56180

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.96

 2
90080-56180

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.96

 2
90080-56183

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.89

 2
90080-56183

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.89

 2
90080-56184

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.86

 2
90080-56184

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.86

 2
90080-56179

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.99

 2
90080-56179

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.99

 2
90080-56181

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.94

 2
90080-56181

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.94

 2
90080-56176

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.06

 2
90080-56176

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.06

 2
90080-56178

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.01

 2
90080-56178

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.01

 2
90080-56190

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.71

 2
90080-56190

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.71

 2
90080-56173

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.14

 2
90080-56173

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.14

 2
90080-56188

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.76

 2
90080-56188

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.76

 2
90080-56186

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.81

 2
90080-56186

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.81

 2
90080-56185

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.84

 2
90080-56185

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.84

 2
90080-56195

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.58

 2
90080-56195

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.58

 2
90080-56187

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.78

 2
90080-56187

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.78

 2
90080-56197

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.53

 2
90080-56197

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.53

 2
90080-56189

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.73

 2
90080-56189

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.73

 2
90080-56193

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.63

 2
90080-56193

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.63

 2
90080-56192

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.66

 2
90080-56192

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.66

 2
90080-56194

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.61

 2
90080-56194

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.61

 2
90080-56198

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.51

 2
90080-56198

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.51

 2
90080-56191

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.68

 2
90080-56191

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.68

 2
90080-56201

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.43

 2
90080-56201

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.43

 2
90080-56199

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.48

 2
90080-56199

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.48

 2
90080-56202

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.40

 2
90080-56202

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.40

 2
90080-56196

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.56

 2
90080-56196

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.56

 2
90080-56205

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.33

 2
90080-56205

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.33

 2
90080-56204

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.35

 2
90080-56204

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.35

 2
90080-56208

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.25

 2
90080-56208

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.25

 2
90080-56213

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.12

 2
90080-56213

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.12

 2
90080-56203

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.38

 2
90080-56203

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.38

 2
90080-56209

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.23

 2
90080-56209

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.23

 2
90080-56200

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.45

 2
90080-56200

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.45

 2
90080-56211

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.18

 2
90080-56211

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.18

 2
90080-56206

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.30

 2
90080-56206

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.30

 2
90080-56216

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.05

 2
90080-56216

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.05

 2
90080-56207

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.28

 2
90080-56207

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.28

 2
90080-56220

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.95

 2
90080-56220

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.95

 2
90080-56215

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.07

 2
90080-56215

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.07

 2
90080-56218

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.00

 2
90080-56218

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.00

 2
90080-56212

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.15

 2
90080-56212

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.15

 2
90080-56223

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.87

 2
90080-56223

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.87

 2
90080-56210

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.20

 2
90080-56210

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.20

 2
90080-56225

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.82

 2
90080-56225

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.82

 2
90080-56224

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.84

 2
90080-56224

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.84

 2
90080-56217

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.02

 2
90080-56217

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.02

 2
90080-56214

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.10

 2
90080-56214

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.10

 2
90080-56222

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.90

 2
90080-56222

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.90

 2
90080-56221

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.92

 2
90080-56221

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.92

 2
90080-56228

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.74

 2
90080-56228

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.74

 2
90080-56219

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.97

 2
90080-56219

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.97

 2
90080-56226

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.79

 2
90080-56226

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.79

 2
90080-56231

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.67

 2
90080-56231

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.67

 2
90080-56227

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.77

 2
90080-56227

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.77

 2
90080-56233

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.62

 2
90080-56233

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.62

 2
90080-56229

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.72

 2
90080-56229

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.72

 2
90080-56230

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.69

 2
90080-56230

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.69

 2
90080-56236

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.54

 2
90080-56236

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.54

 2
90080-56232

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.64

 2
90080-56232

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.64

 2
90080-56234

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.59

 2
90080-56234

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.59

 2
90080-56235

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.57

 2
90080-56235

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.57

 2
90080-56237

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.51

 2
90080-56237

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.51

 2
41301E - SHIM(FOR DIFFERENTIAL CASE)
90080-56167

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.29

 2
90080-56167

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.29

 2
90080-56169

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.24

 2
90080-56169

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.24

 2
90080-56172

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.17

 2
90080-56172

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.17

 2
90080-56171

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.19

 2
90080-56171

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.19

 2
90080-56174

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.11

 2
90080-56174

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.11

 2
90080-56175

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.09

 2
90080-56175

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.09

 2
90080-56168

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.27

 2
90080-56168

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.27

 2
90080-56177

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.04

 2
90080-56177

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.04

 2
90080-56170

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.22

 2
90080-56170

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.22

 2
90080-56182

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.91

 2
90080-56182

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.91

 2
90080-56180

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.96

 2
90080-56180

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.96

 2
90080-56183

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.89

 2
90080-56183

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.89

 2
90080-56184

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.86

 2
90080-56184

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.86

 2
90080-56179

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.99

 2
90080-56179

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.99

 2
90080-56181

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.94

 2
90080-56181

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.94

 2
90080-56176

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.06

 2
90080-56176

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.06

 2
90080-56178

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.01

 2
90080-56178

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.01

 2
90080-56190

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.71

 2
90080-56190

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.71

 2
90080-56173

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.14

 2
90080-56173

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=4.14

 2
90080-56188

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.76

 2
90080-56188

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.76

 2
90080-56186

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.81

 2
90080-56186

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.81

 2
90080-56185

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.84

 2
90080-56185

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.84

 2
90080-56195

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.58

 2
90080-56195

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.58

 2
90080-56187

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.78

 2
90080-56187

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.78

 2
90080-56197

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.53

 2
90080-56197

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.53

 2
90080-56189

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.73

 2
90080-56189

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.73

 2
90080-56193

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.63

 2
90080-56193

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.63

 2
90080-56192

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.66

 2
90080-56192

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.66

 2
90080-56194

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.61

 2
90080-56194

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.61

 2
90080-56198

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.51

 2
90080-56198

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.51

 2
90080-56191

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.68

 2
90080-56191

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.68

 2
90080-56201

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.43

 2
90080-56201

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.43

 2
90080-56199

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.48

 2
90080-56199

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.48

 2
90080-56202

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.40

 2
90080-56202

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.40

 2
90080-56196

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.56

 2
90080-56196

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.56

 2
90080-56205

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.33

 2
90080-56205

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.33

 2
90080-56204

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.35

 2
90080-56204

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.35

 2
90080-56208

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.25

 2
90080-56208

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.25

 2
90080-56213

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.12

 2
90080-56213

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.12

 2
90080-56203

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.38

 2
90080-56203

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.38

 2
90080-56209

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.23

 2
90080-56209

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.23

 2
90080-56200

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.45

 2
90080-56200

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.45

 2
90080-56211

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.18

 2
90080-56211

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.18

 2
90080-56206

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.30

 2
90080-56206

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.30

 2
90080-56216

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.05

 2
90080-56216

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.05

 2
90080-56207

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.28

 2
90080-56207

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.28

 2
90080-56220

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.95

 2
90080-56220

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.95

 2
90080-56215

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.07

 2
90080-56215

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.07

 2
90080-56218

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.00

 2
90080-56218

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.00

 2
90080-56212

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.15

 2
90080-56212

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.15

 2
90080-56223

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.87

 2
90080-56223

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.87

 2
90080-56210

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.20

 2
90080-56210

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.20

 2
90080-56225

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.82

 2
90080-56225

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.82

 2
90080-56224

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.84

 2
90080-56224

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.84

 2
90080-56217

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.02

 2
90080-56217

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.02

 2
90080-56214

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.10

 2
90080-56214

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=3.10

 2
90080-56222

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.90

 2
90080-56222

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.90

 2
90080-56221

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.92

 2
90080-56221

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.92

 2
90080-56228

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.74

 2
90080-56228

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.74

 2
90080-56219

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.97

 2
90080-56219

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.97

 2
90080-56226

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.79

 2
90080-56226

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.79

 2
90080-56231

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.67

 2
90080-56231

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.67

 2
90080-56227

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.77

 2
90080-56227

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.77

 2
90080-56233

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.62

 2
90080-56233

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.62

 2
90080-56229

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.72

 2
90080-56229

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.72

 2
90080-56230

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.69

 2
90080-56230

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.69

 2
90080-56236

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.54

 2
90080-56236

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.54

 2
90080-56232

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.64

 2
90080-56232

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.64

 2
90080-56234

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.59

 2
90080-56234

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.59

 2
90080-56235

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.57

 2
90080-56235

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.57

 2
90080-56237

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.51

 2
90080-56237

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=2.51

 2

ILLUST NO. 2 OF 2(0708- )THDCB,THSCB ; (0710- )LA ; (0712-)ANCOM ; (0812- )GGN25,35,KUN

Click highlighted areas on diagram

diagram 04412 41110A 42110 42110A 42110B 42110D 42110E 42181 42306A 42306B 42306C 42306D 42306D 42306F 8202 90119T0029 9017008042 9017008042 9020108002 9020108002 9155180814
Part # Description Qty Price
04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER
04412-0K310

TGN36..DLX;TGN26,36..SR..(ANCOM,PHL);TGN26..DCB..DLX..(ANCOM,LA);TGN26..(SCB,THDCB)..(ANCOM,GEN);KUN26..(DCB,THDCB,XTR)..(GEN,LA,PHL,TH);GGN25,KUN25,3#..(DCB,SCB,THDCB,THSCB,XTR)..(ANCOM,GEN,LA,TH)

 1
41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
90116-08233

GGN15,25,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36

S=14 & 14,L=42

 2
90116-08329

TGN26..DCB..SA;KUN15,LAN15,25,35,TGN15,16;GGN15,25,KUN10,16,2#,3#,TGN10,11,26,36..ANCOM,ARL,GCC,GEN,LA,MA,PHL,TH

S=17 & 12,L=37

 8
42110 - HOUSING ASSY, REAR AXLE
42110-0K060

TGN36..4FC..ANCOM;GGN25,KUN26,36,TGN26..SR..(ANCOM,LA)

 1
42110A - PLUG (FOR REAR AXLE HOUSING FILLER)
90341-18006

TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG)
12157-10010

TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
12157-10010

TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
42110E - PLUG (FOR REAR AXLE HOUSING DRAIN)
90341-18057

TGN36..SCB;KUN26..THDCB;KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)

 1
42181 - GASKET, REAR DIFFERENTIAL CARRIER
42181-60020

KUN26..THDCB;KUN25..SCB..MA;KUN16,TGN16..XTR..TH;KUN25..(DCB,XTR)..SR;TGN36..4FC..(ANCOM,PHL);TGN26..DCB..DLX..(LA,SA);TGN16..5F..(ARL,GCC,GEN,SA);KUN16,LAN15,25,35,TGN15..DCB,SCB;KUN26,36..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,TGN10..(DCB,SCB)..(IDN,PHL,SA)..CBU;KUN25,35,TGN36..5F..DLX..(ANCOM,GCC,GEN,LA);GGN15,25,KUN10,15,TGN11,26..(DCB,SCB,THDCB,XTR)..(ANCOM,ARL,GCC,GEN,PKN,TH)

 1
42306A - UNION (FOR REAR AXLE BREATHER HOUSE)
90404-51052

KUN2#,3#,TGN26,36..LA

 1
90404-51052

TGN26..LA;KUN26..XTR..SA;KUN25..ANCOM,LA;TGN36..LHD..CBU;TGN26..DCB..ANCOM;TGN36..ANCOM..IV3;KUN25,36..THDCB,THSCB,XTR;GGN25,KUN26,3#..LHD..(ANCOM,GEN,LA);TGN26..(SCB,THDCB)..(ANCOM,GEN)..CBU

 1
42306B - HOSE (FOR REAR AXLE BREATHER)
42316-0K010

TGN26..LA;KUN26..XTR..SA;KUN25..ANCOM,LA;TGN36..LHD..CBU;TGN26..DCB..ANCOM;TGN36..ANCOM..IV3;KUN25,36..THDCB,THSCB,XTR;GGN25,KUN26,3#..LHD..(ANCOM,GEN,LA);TGN26..(SCB,THDCB)..(ANCOM,GEN)..CBU

 1
42316-0K010

KUN2#,3#,TGN26,36..LA

 1
42306C - CLIP, HOSE (FOR REAR AXLE BREATHER HOSE)
90466-T0040

KUN2#,3#,TGN26,36..LA

 1
90466-T0040

TGN26..LA;KUN26..XTR..SA;KUN25..ANCOM,LA;TGN36..LHD..CBU;TGN26..DCB..ANCOM;TGN36..ANCOM..IV3;KUN25,36..THDCB,THSCB,XTR;GGN25,KUN26,3#..LHD..(ANCOM,GEN,LA);TGN26..(SCB,THDCB)..(ANCOM,GEN)..CBU

 1
42306D - CLAMP (FOR REAR AXLE BRATHER HOSE)
42309-0K010

TGN26..LA;KUN26..XTR..SA;KUN25..ANCOM,LA;TGN36..LHD..CBU;TGN26..DCB..ANCOM;TGN36..ANCOM..IV3;KUN25,36..THDCB,THSCB,XTR;GGN25,KUN26,3#..LHD..(ANCOM,GEN,LA);TGN26..(SCB,THDCB)..(ANCOM,GEN)..CBU

NO.1

 1
90949-01646

KUN2#,3#,TGN26,36..LA

NO.2

 1
42309-0K010

KUN2#,3#,TGN26,36..LA

NO.1

 1
90949-01646

TGN26..LA;KUN26..XTR..SA;KUN25..ANCOM,LA;TGN36..LHD..CBU;TGN26..DCB..ANCOM;TGN36..ANCOM..IV3;KUN25,36..THDCB,THSCB,XTR;GGN25,KUN26,3#..LHD..(ANCOM,GEN,LA);TGN26..(SCB,THDCB)..(ANCOM,GEN)..CBU

NO.2

 1
42306D - CLAMP (FOR REAR AXLE BRATHER HOSE)
42309-0K010

TGN26..LA;KUN26..XTR..SA;KUN25..ANCOM,LA;TGN36..LHD..CBU;TGN26..DCB..ANCOM;TGN36..ANCOM..IV3;KUN25,36..THDCB,THSCB,XTR;GGN25,KUN26,3#..LHD..(ANCOM,GEN,LA);TGN26..(SCB,THDCB)..(ANCOM,GEN)..CBU

NO.1

 1
90949-01646

KUN2#,3#,TGN26,36..LA

NO.2

 1
42309-0K010

KUN2#,3#,TGN26,36..LA

NO.1

 1
90949-01646

TGN26..LA;KUN26..XTR..SA;KUN25..ANCOM,LA;TGN36..LHD..CBU;TGN26..DCB..ANCOM;TGN36..ANCOM..IV3;KUN25,36..THDCB,THSCB,XTR;GGN25,KUN26,3#..LHD..(ANCOM,GEN,LA);TGN26..(SCB,THDCB)..(ANCOM,GEN)..CBU

NO.2

 1
42306F - PLUG, BREATHER (FOR REAR AXLE)
90930-03097

KUN2#,3#,TGN26,36..LA

 1
90930-03097

TGN26..LA;KUN26..XTR..SA;KUN25..ANCOM,LA;TGN36..LHD..CBU;TGN26..DCB..ANCOM;TGN36..ANCOM..IV3;KUN25,36..THDCB,THSCB,XTR;GGN25,KUN26,3#..LHD..(ANCOM,GEN,LA);TGN26..(SCB,THDCB)..(ANCOM,GEN)..CBU

 1
Common parts
90119-T0029
90170-08042
90201-08002
91551-80814
Linked diagrams
8202

ILLUST NO. 1 OF 2(0501- )KUN3#..LA ; (0708- )GGN25,KUN2#,TGN26,36..LA ; (1010- )KUN35..DCB.

Click highlighted areas on diagram

W(LSD)

diagram 41039 41101 41101 41110 41114 41114 41115 41115 41201 41201A 41201B 41201C 41201D 41204 41204B 41214 41222 41222A 41231 41252 41301A 41301A 41302 41302A 41315 41315 41316 41331A 41351 41351 41351 41351 41361 41361 41362 41362 41371 41385 41385 41387 41388 9161160814
Part # Description Qty Price
41039 - GEAR KIT, DIFFERENTIAL, REAR
41039-34070

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41039-34070

GGN15..SCB,XTR;TGN16..5F..ARL;GGN15..DCB..5FC..SR;TGN36..DLX..LA..CBU;KUN26..LHD..(GEN,LA);KUN16,25..ARL,GCC,GEN,LA;TGN16,26..(THDCB,XTR)..DLX;GGN15,TGN26..DCB..DLX..(ARL,GCC);GGN25,KUN15,TGN15,26..(DCB,SCB)..(GEN,LA)

DIFFERENTIAL-WITH(LSD)

 1
41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41101-35170

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR
41101-35170

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41110 - CARRIER ASSY, DIFFERENTIAL, REAR
41110-0K110

GGN25,KUN26..(5F,5FC)..(ANCOM,LA)

*FGR=43:12=3.583

 1
41110-71010

KUN26..5F..LA

*FGR=43:12=3.583,DIFFERENTIAL-WITH(LSD)

 1
41114 - BOLT, REAR DIFFERENTIAL BEARING CAP
90105-12053

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 4
41114 - BOLT, REAR DIFFERENTIAL BEARING CAP
90105-12053

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 4
41115 - RING, DIFFERENTIAL OIL STORAGE
41115-35010

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41115 - RING, DIFFERENTIAL OIL STORAGE
41115-35010

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR
41201-09620

GGN25,KUN26..(5F,5FC)..(ANCOM,LA)

*FGR=43:12=3.583

 1
41201-80208

KUN26..5F..LA

*FGR=43:12=3.583,DIFFERENTIAL-WITH(LSD)

 1
41201A - BEARING (FOR REAR DRIVE PINION REAR)
90366-35087

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41201B - BEARING (FOR REAR DRIVE PINION FRONT)
90366-30067

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
90080-31109

KUN35..ANCOM;TGN26..LHD..(ANCOM,LA,SA);GGN25,KUN2#,TGN36..ANCOM,LA;KUN15,LAN15,25,35,TGN15,16..SA

 1
90311-41009

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
90080-56136

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.47

 1
90080-56137

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.45

 1
90080-56143

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.30

 1
90080-56140

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.37

 1
90080-56142

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.32

 1
90080-56138

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.42

 1
90080-56144

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.27

 1
90080-56145

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.24

 1
90080-56141

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.35

 1
90080-56150

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.12

 1
90080-56149

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.14

 1
90080-56147

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.19

 1
90080-56148

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.17

 1
90080-56139

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.40

 1
90080-56146

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.22

 1
90080-56152

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.07

 1
90080-56151

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.09

 1
90080-56153

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.04

 1
90080-56156

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.97

 1
90080-56162

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.81

 1
90080-56159

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.89

 1
90080-56238

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.69

 1
90080-56158

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.91

 1
90080-56161

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.84

 1
90080-56163

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.79

 1
90080-56160

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.86

 1
90080-56165

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.74

 1
90080-56154

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=1.02

 1
90080-56157

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.94

 1
90080-56164

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.76

 1
90080-56166

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.71

 1
90080-56155

KUN2#..LA;TGN26..DCB..(LA,SA);KUN15,LAN15,25,35,TGN15,16,36..DLX..(LA,SA)

T=0.99

 1
90201-35499

KUN2#,TGN26,36..LA

OD=47,T=1.76,DIFFERENTIAL-WITH(LSD)

 1
90201-35498

KUN2#,TGN26,36..LA

OD=47,T=1.73,DIFFERENTIAL-WITH(LSD)

 1
90201-35497

KUN2#,TGN26,36..LA

OD=47,T=1.70,DIFFERENTIAL-WITH(LSD)

 1
90201-35500

KUN2#,TGN26,36..LA

OD=47,T=1.79,DIFFERENTIAL-WITH(LSD)

 1
90201-35507

KUN2#,TGN26,36..LA

OD=47,T=2.00,DIFFERENTIAL-WITH(LSD)

 1
90201-35503

KUN2#,TGN26,36..LA

OD=47,T=1.88,DIFFERENTIAL-WITH(LSD)

 1
90201-35508

KUN2#,TGN26,36..LA

OD=47,T=2.03,DIFFERENTIAL-WITH(LSD)

 1
90201-35510

KUN2#,TGN26,36..LA

OD=47,T=2.09,DIFFERENTIAL-WITH(LSD)

 1
90201-35511

KUN2#,TGN26,36..LA

OD=47,T=2.12,DIFFERENTIAL-WITH(LSD)

 1
90201-35504

KUN2#,TGN26,36..LA

OD=47,T=1.91,DIFFERENTIAL-WITH(LSD)

 1
90201-35502

KUN2#,TGN26,36..LA

OD=47,T=1.85,DIFFERENTIAL-WITH(LSD)

 1
90201-35501

KUN2#,TGN26,36..LA

OD=47,T=1.82,DIFFERENTIAL-WITH(LSD)

 1
90201-35505

KUN2#,TGN26,36..LA

OD=47,T=1.94,DIFFERENTIAL-WITH(LSD)

 1
90201-35509

KUN2#,TGN26,36..LA

OD=47,T=2.06,DIFFERENTIAL-WITH(LSD)

 1
90201-35506

KUN2#,TGN26,36..LA

OD=47,T=1.97,DIFFERENTIAL-WITH(LSD)

 1
90201-35512

KUN2#,TGN26,36..LA

OD=47,T=2.15,DIFFERENTIAL-WITH(LSD)

 1
90201-35518

KUN2#,TGN26,36..LA

OD=47,T=2.33,MARK 04,DIFFERENTIAL-WITH(LSD)

 1
90201-35514

KUN2#,TGN26,36..LA

OD=47,T=2.21,DIFFERENTIAL-WITH(LSD)

 1
90201-35515

KUN2#,TGN26,36..LA

OD=47,T=2.24,MARK 01,DIFFERENTIAL-WITH(LSD)

 1
90201-35516

KUN2#,TGN26,36..LA

OD=47,T=2.27,MARK 02,DIFFERENTIAL-WITH(LSD)

 1
90201-35513

KUN2#,TGN26,36..LA

OD=47,T=2.18,DIFFERENTIAL-WITH(LSD)

 1
90201-35517

KUN2#,TGN26,36..LA

OD=47,T=2.30,MARK 03,DIFFERENTIAL-WITH(LSD)

 1
41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204-35100

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41204B - NUT (FOR REAR DRIVE PINION)
90177-22003

KUN2#,TGN26,36..LA

OD=39.5,DIFFERENTIAL-WITH(LSD)

 1
41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41214-26011

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-35020

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 5
41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
90101-11353

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 10
41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41231-24010

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41252-35041

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41301A - BEARING(FOR REAR DIFFERENTIAL CASE)
90366-50007

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 2
41301A - BEARING(FOR REAR DIFFERENTIAL CASE)
90366-50007

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 2
41302 - CASE SUB-ASSY, REAR DIFFERENTIAL
41302-35040

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41302A - BOLT(FOR REAR DIFFERENTIAL CASE)
90105-10084

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 8
41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41315-35020

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 2
41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41315-35020

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 2
41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41316-35010

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 2
41331A - SPRING, COMPRESSION
90501-65003

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-30060

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 4
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-30060

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 4
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-30060

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 4
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-30060

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 4
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-35161

KUN2#,TGN26,36..LA

T=1.8,DIFFERENTIAL-WITH(LSD)

 6
41361-35291

KUN2#,TGN26,36..LA

T=1.70,MARK N,DIFFERENTIAL-WITH(LSD)

 2
41361-35291

GGN15..SCB,XTR;TGN16..5F..ARL;GGN15..DCB..5FC..SR;TGN36..DLX..LA..CBU;KUN26..LHD..(GEN,LA);KUN16,25..ARL,GCC,GEN,LA;TGN16,26..(THDCB,XTR)..DLX;GGN15,TGN26..DCB..DLX..(ARL,GCC);GGN25,KUN15,TGN15,26..(DCB,SCB)..(GEN,LA)

T=1.70,MARK N,DIFFERENTIAL-WITH(LSD)

 2
41361-35161

GGN15..SCB,XTR;TGN16..5F..ARL;GGN15..DCB..5FC..SR;TGN36..DLX..LA..CBU;KUN26..LHD..(GEN,LA);KUN16,25..ARL,GCC,GEN,LA;TGN16,26..(THDCB,XTR)..DLX;GGN15,TGN26..DCB..DLX..(ARL,GCC);GGN25,KUN15,TGN15,26..(DCB,SCB)..(GEN,LA)

T=1.8,DIFFERENTIAL-WITH(LSD)

 6
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-35161

KUN2#,TGN26,36..LA

T=1.8,DIFFERENTIAL-WITH(LSD)

 6
41361-35291

KUN2#,TGN26,36..LA

T=1.70,MARK N,DIFFERENTIAL-WITH(LSD)

 2
41361-35291

GGN15..SCB,XTR;TGN16..5F..ARL;GGN15..DCB..5FC..SR;TGN36..DLX..LA..CBU;KUN26..LHD..(GEN,LA);KUN16,25..ARL,GCC,GEN,LA;TGN16,26..(THDCB,XTR)..DLX;GGN15,TGN26..DCB..DLX..(ARL,GCC);GGN25,KUN15,TGN15,26..(DCB,SCB)..(GEN,LA)

T=1.70,MARK N,DIFFERENTIAL-WITH(LSD)

 2
41361-35161

GGN15..SCB,XTR;TGN16..5F..ARL;GGN15..DCB..5FC..SR;TGN36..DLX..LA..CBU;KUN26..LHD..(GEN,LA);KUN16,25..ARL,GCC,GEN,LA;TGN16,26..(THDCB,XTR)..DLX;GGN15,TGN26..DCB..DLX..(ARL,GCC);GGN25,KUN15,TGN15,26..(DCB,SCB)..(GEN,LA)

T=1.8,DIFFERENTIAL-WITH(LSD)

 6
41362 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2
90564-50001

KUN2#,TGN26,36..LA

T=0.15,DIFFERENTIAL-WITH(LSD)

 1
90564-50002

KUN2#,TGN26,36..LA

T=0.20,DIFFERENTIAL-WITH(LSD)

 1
90564-50005

KUN2#,TGN26,36..LA

T=0.35,DIFFERENTIAL-WITH(LSD)

 1
90564-50004

KUN2#,TGN26,36..LA

T=0.30,DIFFERENTIAL-WITH(LSD)

 1
90564-50003

KUN2#,TGN26,36..LA

T=0.25,DIFFERENTIAL-WITH(LSD)

 1
90564-50001

GGN15..SCB,XTR;TGN16..5F..ARL;GGN15..DCB..5FC..SR;TGN36..DLX..LA..CBU;KUN26..LHD..(GEN,LA);KUN16,25..ARL,GCC,GEN,LA;TGN16,26..(THDCB,XTR)..DLX;GGN15,TGN26..DCB..DLX..(ARL,GCC);GGN25,KUN15,TGN15,26..(DCB,SCB)..(GEN,LA)

T=0.15,DIFFERENTIAL-WITH(LSD)

 1
90564-50003

GGN15..SCB,XTR;TGN16..5F..ARL;GGN15..DCB..5FC..SR;TGN36..DLX..LA..CBU;KUN26..LHD..(GEN,LA);KUN16,25..ARL,GCC,GEN,LA;TGN16,26..(THDCB,XTR)..DLX;GGN15,TGN26..DCB..DLX..(ARL,GCC);GGN25,KUN15,TGN15,26..(DCB,SCB)..(GEN,LA)

T=0.25,DIFFERENTIAL-WITH(LSD)

 1
90564-50002

GGN15..SCB,XTR;TGN16..5F..ARL;GGN15..DCB..5FC..SR;TGN36..DLX..LA..CBU;KUN26..LHD..(GEN,LA);KUN16,25..ARL,GCC,GEN,LA;TGN16,26..(THDCB,XTR)..DLX;GGN15,TGN26..DCB..DLX..(ARL,GCC);GGN25,KUN15,TGN15,26..(DCB,SCB)..(GEN,LA)

T=0.20,DIFFERENTIAL-WITH(LSD)

 1
90564-50004

GGN15..SCB,XTR;TGN16..5F..ARL;GGN15..DCB..5FC..SR;TGN36..DLX..LA..CBU;KUN26..LHD..(GEN,LA);KUN16,25..ARL,GCC,GEN,LA;TGN16,26..(THDCB,XTR)..DLX;GGN15,TGN26..DCB..DLX..(ARL,GCC);GGN25,KUN15,TGN15,26..(DCB,SCB)..(GEN,LA)

T=0.30,DIFFERENTIAL-WITH(LSD)

 1
90564-50005

GGN15..SCB,XTR;TGN16..5F..ARL;GGN15..DCB..5FC..SR;TGN36..DLX..LA..CBU;KUN26..LHD..(GEN,LA);KUN16,25..ARL,GCC,GEN,LA;TGN16,26..(THDCB,XTR)..DLX;GGN15,TGN26..DCB..DLX..(ARL,GCC);GGN25,KUN15,TGN15,26..(DCB,SCB)..(GEN,LA)

T=0.35,DIFFERENTIAL-WITH(LSD)

 1
41362 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2
90564-50001

KUN2#,TGN26,36..LA

T=0.15,DIFFERENTIAL-WITH(LSD)

 1
90564-50002

KUN2#,TGN26,36..LA

T=0.20,DIFFERENTIAL-WITH(LSD)

 1
90564-50005

KUN2#,TGN26,36..LA

T=0.35,DIFFERENTIAL-WITH(LSD)

 1
90564-50004

KUN2#,TGN26,36..LA

T=0.30,DIFFERENTIAL-WITH(LSD)

 1
90564-50003

KUN2#,TGN26,36..LA

T=0.25,DIFFERENTIAL-WITH(LSD)

 1
90564-50001

GGN15..SCB,XTR;TGN16..5F..ARL;GGN15..DCB..5FC..SR;TGN36..DLX..LA..CBU;KUN26..LHD..(GEN,LA);KUN16,25..ARL,GCC,GEN,LA;TGN16,26..(THDCB,XTR)..DLX;GGN15,TGN26..DCB..DLX..(ARL,GCC);GGN25,KUN15,TGN15,26..(DCB,SCB)..(GEN,LA)

T=0.15,DIFFERENTIAL-WITH(LSD)

 1
90564-50003

GGN15..SCB,XTR;TGN16..5F..ARL;GGN15..DCB..5FC..SR;TGN36..DLX..LA..CBU;KUN26..LHD..(GEN,LA);KUN16,25..ARL,GCC,GEN,LA;TGN16,26..(THDCB,XTR)..DLX;GGN15,TGN26..DCB..DLX..(ARL,GCC);GGN25,KUN15,TGN15,26..(DCB,SCB)..(GEN,LA)

T=0.25,DIFFERENTIAL-WITH(LSD)

 1
90564-50002

GGN15..SCB,XTR;TGN16..5F..ARL;GGN15..DCB..5FC..SR;TGN36..DLX..LA..CBU;KUN26..LHD..(GEN,LA);KUN16,25..ARL,GCC,GEN,LA;TGN16,26..(THDCB,XTR)..DLX;GGN15,TGN26..DCB..DLX..(ARL,GCC);GGN25,KUN15,TGN15,26..(DCB,SCB)..(GEN,LA)

T=0.20,DIFFERENTIAL-WITH(LSD)

 1
90564-50004

GGN15..SCB,XTR;TGN16..5F..ARL;GGN15..DCB..5FC..SR;TGN36..DLX..LA..CBU;KUN26..LHD..(GEN,LA);KUN16,25..ARL,GCC,GEN,LA;TGN16,26..(THDCB,XTR)..DLX;GGN15,TGN26..DCB..DLX..(ARL,GCC);GGN25,KUN15,TGN15,26..(DCB,SCB)..(GEN,LA)

T=0.30,DIFFERENTIAL-WITH(LSD)

 1
90564-50005

GGN15..SCB,XTR;TGN16..5F..ARL;GGN15..DCB..5FC..SR;TGN36..DLX..LA..CBU;KUN26..LHD..(GEN,LA);KUN16,25..ARL,GCC,GEN,LA;TGN16,26..(THDCB,XTR)..DLX;GGN15,TGN26..DCB..DLX..(ARL,GCC);GGN25,KUN15,TGN15,26..(DCB,SCB)..(GEN,LA)

T=0.35,DIFFERENTIAL-WITH(LSD)

 1
41371 - SPIDER, REAR DIFFERENTIAL
41306-35040

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41385 - PLATE, CLUTCH
41385-22020

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 6
41385-22020

GGN15..SCB,XTR;TGN16..5F..ARL;GGN15..DCB..5FC..SR;TGN36..DLX..LA..CBU;KUN26..LHD..(GEN,LA);KUN16,25..ARL,GCC,GEN,LA;TGN16,26..(THDCB,XTR)..DLX;GGN15,TGN26..DCB..DLX..(ARL,GCC);GGN25,KUN15,TGN15,26..(DCB,SCB)..(GEN,LA)

DIFFERENTIAL-WITH(LSD)

 6
41385 - PLATE, CLUTCH
41385-22020

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 6
41385-22020

GGN15..SCB,XTR;TGN16..5F..ARL;GGN15..DCB..5FC..SR;TGN36..DLX..LA..CBU;KUN26..LHD..(GEN,LA);KUN16,25..ARL,GCC,GEN,LA;TGN16,26..(THDCB,XTR)..DLX;GGN15,TGN26..DCB..DLX..(ARL,GCC);GGN25,KUN15,TGN15,26..(DCB,SCB)..(GEN,LA)

DIFFERENTIAL-WITH(LSD)

 6
41387 - RETAINER, SPRING, RH
41308-35010

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41308-35010

GGN15..SCB,XTR;TGN16..5F..ARL;GGN15..DCB..5FC..SR;TGN36..DLX..LA..CBU;KUN26..LHD..(GEN,LA);KUN16,25..ARL,GCC,GEN,LA;TGN16,26..(THDCB,XTR)..DLX;GGN15,TGN26..DCB..DLX..(ARL,GCC);GGN25,KUN15,TGN15,26..(DCB,SCB)..(GEN,LA)

DIFFERENTIAL-WITH(LSD)

 1
41388 - RETAINER, SPRING, LH
41388-35020

KUN2#,TGN26,36..LA

DIFFERENTIAL-WITH(LSD)

 1
41388-35020

GGN15..SCB,XTR;TGN16..5F..ARL;GGN15..DCB..5FC..SR;TGN36..DLX..LA..CBU;KUN26..LHD..(GEN,LA);KUN16,25..ARL,GCC,GEN,LA;TGN16,26..(THDCB,XTR)..DLX;GGN15,TGN26..DCB..DLX..(ARL,GCC);GGN25,KUN15,TGN15,26..(DCB,SCB)..(GEN,LA)

DIFFERENTIAL-WITH(LSD)

 1
Common parts
91611-60814
