KUN26L-PRMSYG (2005)
Toyota Hilux
(0501- )GGN25,KUN2#,LAN25,TGN26..DCB,SCB..ANCOM,LA,SA

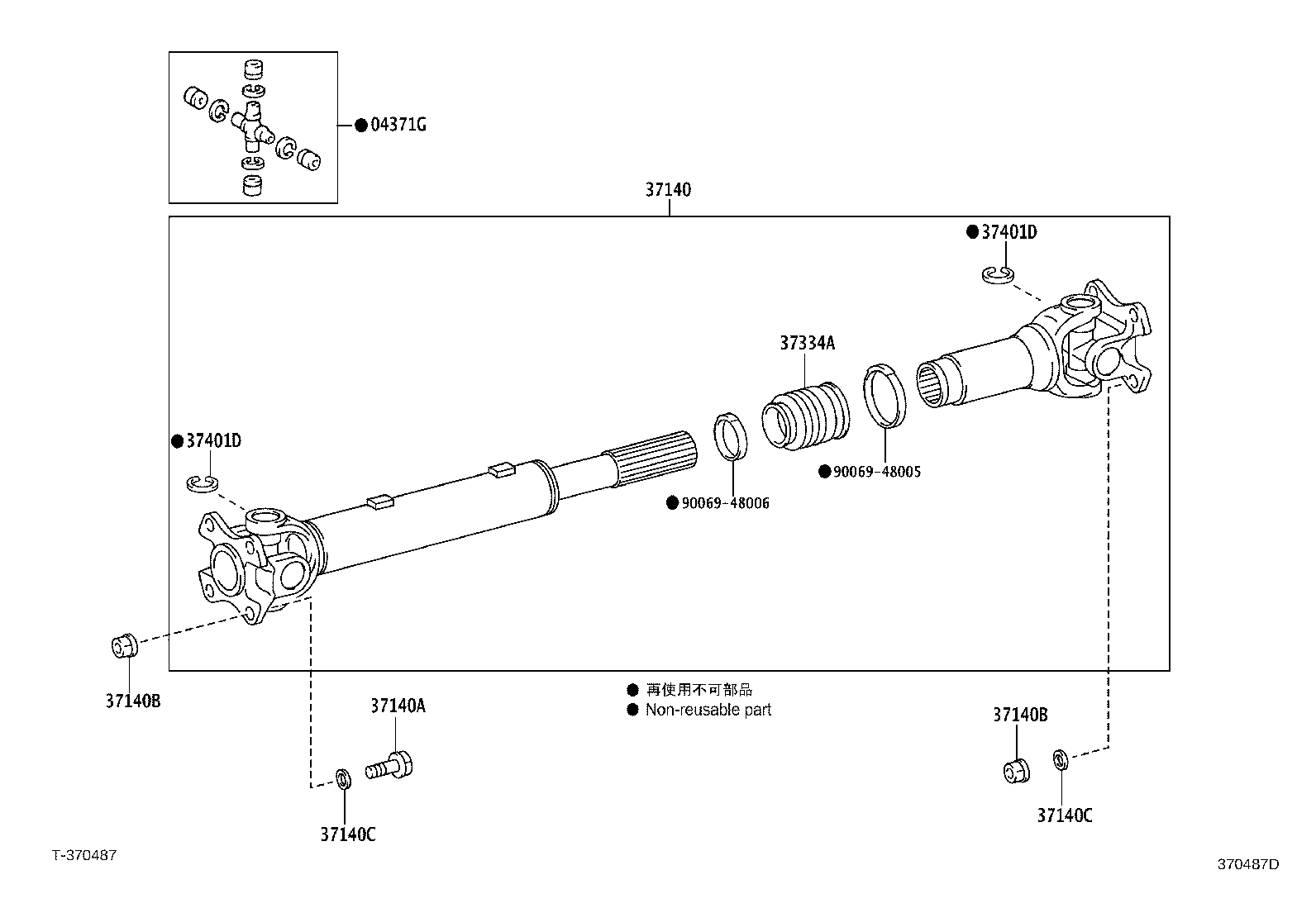

FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371G - SPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04375-0K010 |
GGN25,KUN2#,LAN25,TGN26..ANCOM,LA,SA |
2 | ||
| 04375-0K011 |
GGN25,KUN2#,LAN25,TGN26..LA,SA |
2 | ||
| 37140 - SHAFT ASSY, PROPELLER, FRONT | ||||
| 37140-0K080 |
KUN2#..5F..LA |
1 | ||
| 37140-0K081 |
KUN2#..5F..LA |
1 | ||
| 37140A - BOLT (F0R FRONT PROPELLER SHAFT) | ||||
| 90105-T0084 |
GGN25,KUN2#,LAN25,TGN26..LA,SA |
4 | ||
| 90105-T0084 |
GGN25..5FC..SA;TGN26..ANCOM..CBU;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN2#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH |
4 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90178-T0024 |
GGN25..5FC..SA;TGN26..ANCOM..CBU;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN2#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH |
8 | ||
| 90178-T0024 |
GGN25,KUN2#,LAN25,TGN26..LA,SA |
8 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90178-T0024 |
GGN25..5FC..SA;TGN26..ANCOM..CBU;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN2#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH |
8 | ||
| 90178-T0024 |
GGN25,KUN2#,LAN25,TGN26..LA,SA |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90201-T0003 |
GGN25..5FC..SA;TGN26..ANCOM..CBU;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN2#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH |
8 | ||
| 90201-T0003 |
GGN25,KUN2#,LAN25,TGN26..LA,SA |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90201-T0003 |
GGN25..5FC..SA;TGN26..ANCOM..CBU;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN2#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH |
8 | ||
| 90201-T0003 |
GGN25,KUN2#,LAN25,TGN26..LA,SA |
8 | ||
| 37334A - BOOT, SLIDING SHAFT | ||||
| 37334-0C010 |
GGN25,KUN2#,LAN25,TGN26..LA,SA |
1 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90080-52041 |
GGN25,KUN2#,LAN25,TGN26..LA,SA T=1.49,COPPER |
8 | ||
| 90080-52039 |
GGN25,KUN2#,LAN25,TGN26..LA,SA T=1.59,YELLOW |
8 | ||
| 90080-52038 |
GGN25,KUN2#,LAN25,TGN26..LA,SA T=1.64,BLUE |
8 | ||
| 90080-52040 |
GGN25,KUN2#,LAN25,TGN26..LA,SA T=1.54,SILVER |
8 | ||
| 90080-52044 |
GGN25,KUN2#,LAN25,TGN26..LA,SA T=1.38,GREEN |
8 | ||
| 90080-52176 |
GGN25,KUN2#,LAN25,TGN26..LA,SA T=1.48 |
8 | ||
| 90080-52175 |
GGN25,KUN2#,LAN25,TGN26..LA,SA T=1.46 |
8 | ||
| 90080-52179 |
GGN25,KUN2#,LAN25,TGN26..LA,SA T=1.66 |
8 | ||
| 90080-52177 |
GGN25,KUN2#,LAN25,TGN26..LA,SA T=1.56 |
8 | ||
| 90080-52174 |
GGN25,KUN2#,LAN25,TGN26..LA,SA T=1.41 |
8 | ||
| 90080-52043 |
GGN25,KUN2#,LAN25,TGN26..LA,SA T=1.44,RED |
8 | ||
| 90080-52042 |
GGN25,KUN2#,LAN25,TGN26..LA,SA T=1.51,BLACK |
8 | ||
| 90080-52178 |
GGN25,KUN2#,LAN25,TGN26..LA,SA T=1.61 |
8 | ||
| 90080-52180 |
GGN25,KUN2#,LAN25,TGN26..LA,SA T=1.71 |
8 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90080-52041 |
GGN25,KUN2#,LAN25,TGN26..LA,SA T=1.49,COPPER |
8 | ||
| 90080-52039 |
GGN25,KUN2#,LAN25,TGN26..LA,SA T=1.59,YELLOW |
8 | ||
| 90080-52038 |
GGN25,KUN2#,LAN25,TGN26..LA,SA T=1.64,BLUE |
8 | ||
| 90080-52040 |
GGN25,KUN2#,LAN25,TGN26..LA,SA T=1.54,SILVER |
8 | ||
| 90080-52044 |
GGN25,KUN2#,LAN25,TGN26..LA,SA T=1.38,GREEN |
8 | ||
| 90080-52176 |
GGN25,KUN2#,LAN25,TGN26..LA,SA T=1.48 |
8 | ||
| 90080-52175 |
GGN25,KUN2#,LAN25,TGN26..LA,SA T=1.46 |
8 | ||
| 90080-52179 |
GGN25,KUN2#,LAN25,TGN26..LA,SA T=1.66 |
8 | ||
| 90080-52177 |
GGN25,KUN2#,LAN25,TGN26..LA,SA T=1.56 |
8 | ||
| 90080-52174 |
GGN25,KUN2#,LAN25,TGN26..LA,SA T=1.41 |
8 | ||
| 90080-52043 |
GGN25,KUN2#,LAN25,TGN26..LA,SA T=1.44,RED |
8 | ||
| 90080-52042 |
GGN25,KUN2#,LAN25,TGN26..LA,SA T=1.51,BLACK |
8 | ||
| 90080-52178 |
GGN25,KUN2#,LAN25,TGN26..LA,SA T=1.61 |
8 | ||
| 90080-52180 |
GGN25,KUN2#,LAN25,TGN26..LA,SA T=1.71 |
8 | ||
| Common parts | ||||
| 90069-48005 | ||||
| 90069-48006 | ||||
(0501- )GGN25,KUN2#,LAN25,TGN26..DCB,SCB..ANCOM,LA,SA

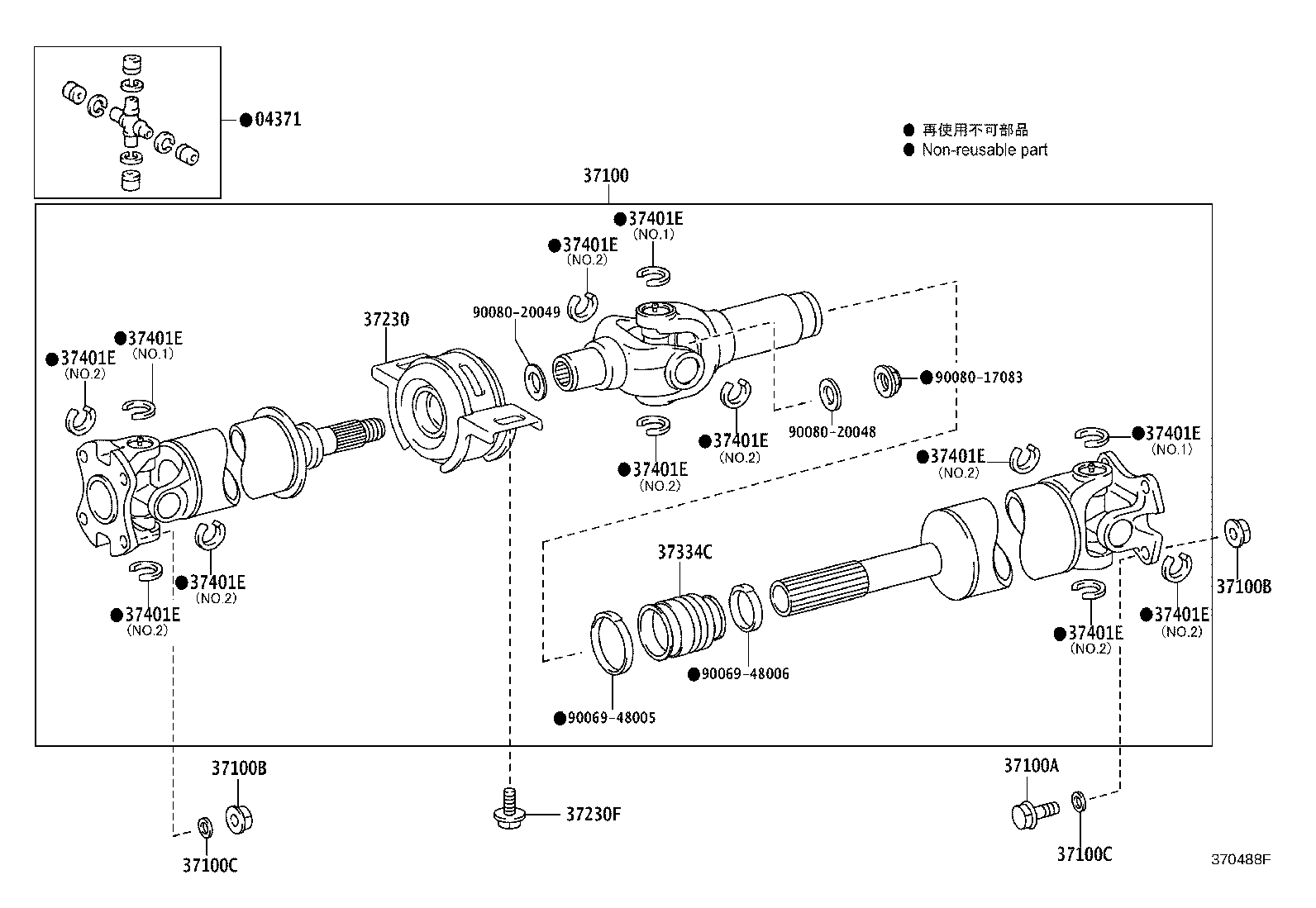

REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT) | ||||
| 04371-0K080 |
GGN25,KUN2#,LAN25,TGN26..ANCOM,LA,SA |
3 | ||
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-0K290 |
KUN2#..5F..LA |
1 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-T0084 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
4 | ||
| 90105-T0084 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
4 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90178-T0024 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN25,LAN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
8 | ||
| 90178-T0024 |
GGN25..5FC..SA;TGN26..ANCOM..CBU;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN2#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH |
8 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90178-T0024 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN25,LAN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
8 | ||
| 90178-T0024 |
GGN25..5FC..SA;TGN26..ANCOM..CBU;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN2#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH |
8 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90201-T0003 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN25,LAN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
8 | ||
| 90201-T0003 |
GGN25..5FC..SA;TGN26..ANCOM..CBU;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN2#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH |
8 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90201-T0003 |
KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;TGN26..ANCOM,GCC,GEN,SA,TH;GGN25,KUN25,LAN25..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) |
8 | ||
| 90201-T0003 |
GGN25..5FC..SA;TGN26..ANCOM..CBU;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN2#,LAN25..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH |
8 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-0K010 |
KUN2# |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-T0148 |
TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
2 | ||
| 90119-T0148 |
GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) |
2 | ||
| Common parts | ||||
| 90069-48005 | ||||
| 90069-48006 | ||||
| 90080-17083 | ||||
| 90080-20048 | ||||
| 90080-20049 | ||||
