KUN26L-PRMSYG (2005)
Toyota Hilux

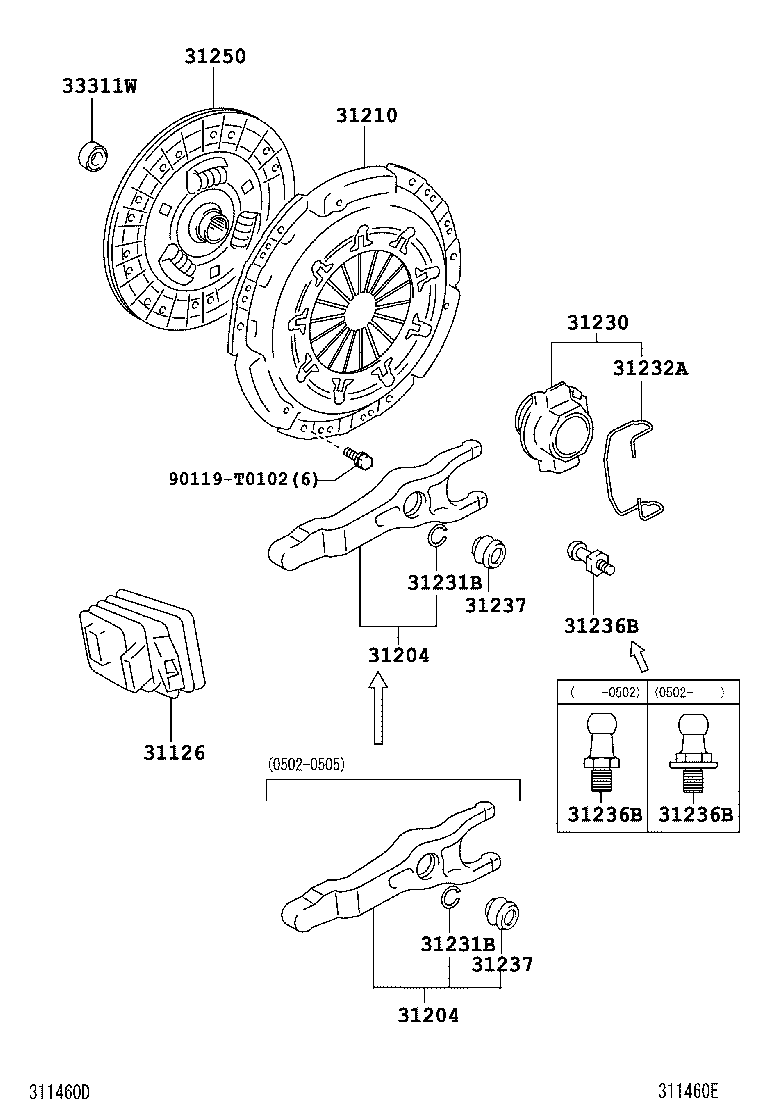

(0501-0810)KUN2#,3#..5F..LA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-60081 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31204 - FORK SUB-ASSY, CLUTCH RELEASE | ||||
| 31204-0K010 |
KUN15,25,35..DCB..HDCR;KUN16,26,36..(DCB,SCB)..5F..(LA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31204-0K080 |
KUN16,26,36..(DCB,SCB)..5F..(LA,SA,TH);KUN15,25,35..(DCB,SCB)..5F..HDCR..(LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31204-0K081 |
KUN16,26,36..5F..(LA,SA,TH);KUN15,25,35..5F..HDCR..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31204 - FORK SUB-ASSY, CLUTCH RELEASE | ||||
| 31204-0K010 |
KUN15,25,35..DCB..HDCR;KUN16,26,36..(DCB,SCB)..5F..(LA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31204-0K080 |
KUN16,26,36..(DCB,SCB)..5F..(LA,SA,TH);KUN15,25,35..(DCB,SCB)..5F..HDCR..(LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31204-0K081 |
KUN16,26,36..5F..(LA,SA,TH);KUN15,25,35..5F..HDCR..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-0K090 |
KUN26,36..5F..LA |
1 | ||
| 31230 - BEARING ASSY, CLUTCH RELEASE | ||||
| 31230-71010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31230-71010 |
KUN26..5F..(LA,SA);KUN25,3#..DLX..(ANCOM,LA,SA) |
1 | ||
| 31231B - RING, SNAP(FOR CLUTCH RELEASE HUB) | ||||
| 90521-22003 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 90520-T0031 |
KUN36..RHD..5F;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN10,15..GCC,GEN,PHL,TH;KUN2#,35..5F..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01 |
1 | ||
| 31231B - RING, SNAP(FOR CLUTCH RELEASE HUB) | ||||
| 90521-22003 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 90520-T0031 |
KUN36..RHD..5F;KUN16..DCB..ARL;KUN16..SCB,SMT,XTR;KUN10,15..GCC,GEN,PHL,TH;KUN2#,35..5F..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01 |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-71010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31236B - SUPPORT, RELEASE FORK | ||||
| 31236-60060 |
KUN15,25,35..DCB..HDCR;KUN16,26,36..(DCB,SCB)..5F..(LA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31236-71010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31236B - SUPPORT, RELEASE FORK | ||||
| 31236-60060 |
KUN15,25,35..DCB..HDCR;KUN16,26,36..(DCB,SCB)..5F..(LA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31236-71010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31236B - SUPPORT, RELEASE FORK | ||||
| 31236-60060 |
KUN15,25,35..DCB..HDCR;KUN16,26,36..(DCB,SCB)..5F..(LA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31236-71010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31237 - BOOT, CLUTCH RELEASE FORK SUPPORT | ||||
| 31237-60010 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31237-0K010 |
GGN15..5F..DLX;KUN36..RHD..5F;KUN16..SCB,SMT,XTR;KUN10,15..GCC,GEN,PHL,TH;GGN25,KUN16..DCB..5F..ARL;KUN2#,35..5F..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01 |
1 | ||
| 31237 - BOOT, CLUTCH RELEASE FORK SUPPORT | ||||
| 31237-60010 |
KUN36;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH);GGN25,KUN15,35..5F..(HDCR,HTWC)..(ANCOM,LA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31237-0K010 |
GGN15..5F..DLX;KUN36..RHD..5F;KUN16..SCB,SMT,XTR;KUN10,15..GCC,GEN,PHL,TH;GGN25,KUN16..DCB..5F..ARL;KUN2#,35..5F..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,SA,TH) TYPE D:REFER 33-01 |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-0K070 |
KUN36..DCB..LA;KUN2#,35..5F..LA |
1 | ||
| 31250-0K200 |
KUN16,26..5F;KUN15,25..HDCR |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 90080-36199 |
KUN36..DCB..LA;KUN2#,35..5F..LA |
1 | ||
| Common parts | ||||
| 90119-T0102 | ||||

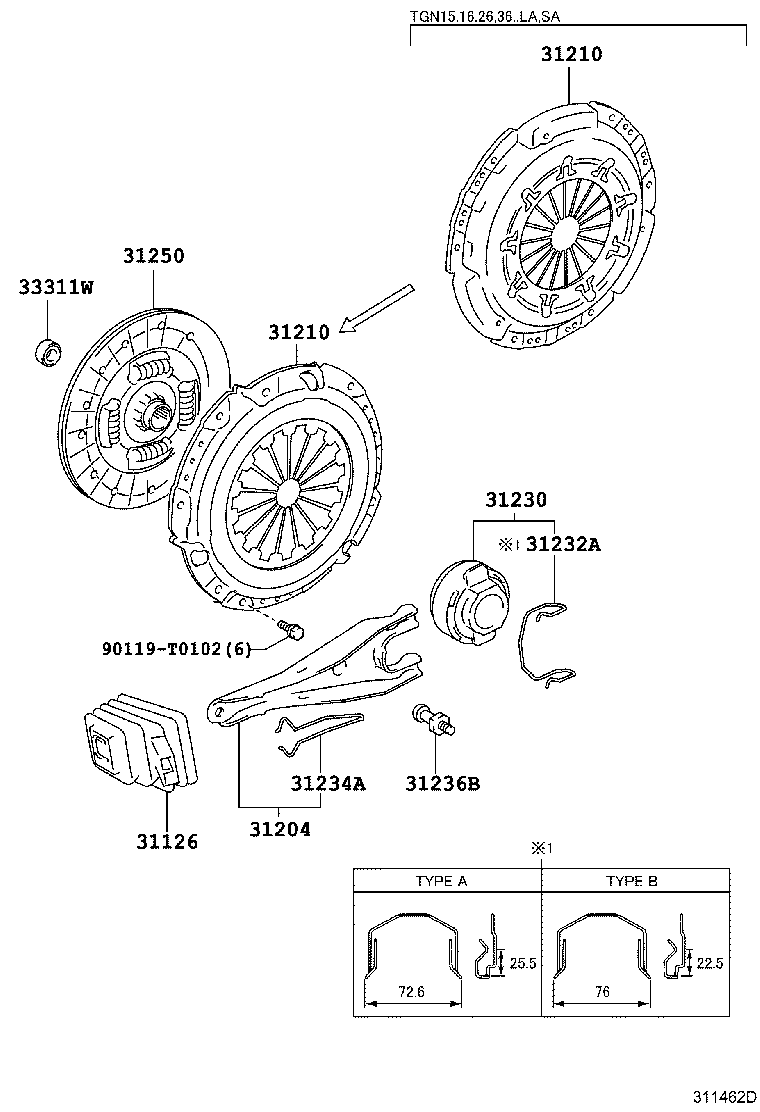

(0501- )TGN1#,26,36..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-60081 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31204 - FORK SUB-ASSY, CLUTCH RELEASE | ||||
| 31204-0K010 |
KUN15,25,35..DCB..HDCR;KUN16,26,36..(DCB,SCB)..5F..(LA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31204-0K080 |
KUN16,26,36..(DCB,SCB)..5F..(LA,SA,TH);KUN15,25,35..(DCB,SCB)..5F..HDCR..(LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31204-0K081 |
KUN16,26,36..5F..(LA,SA,TH);KUN15,25,35..5F..HDCR..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-0K090 |
KUN26,36..5F..LA |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-0K090 |
KUN26,36..5F..LA |
1 | ||
| 31230 - BEARING ASSY, CLUTCH RELEASE | ||||
| 31230-71010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31230-71010 |
KUN26..5F..(LA,SA);KUN25,3#..DLX..(ANCOM,LA,SA) |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-71010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31236B - SUPPORT, RELEASE FORK | ||||
| 31236-60060 |
KUN15,25,35..DCB..HDCR;KUN16,26,36..(DCB,SCB)..5F..(LA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31236-71010 |
KUN36;KUN15,35..(DCB,SCB,XTR)..HDCR;KUN16,2#..(DCB,SCB)..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-0K070 |
KUN36..DCB..LA;KUN2#,35..5F..LA |
1 | ||
| 31250-0K200 |
KUN16,26..5F;KUN15,25..HDCR |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 90080-36199 |
KUN36..DCB..LA;KUN2#,35..5F..LA |
1 | ||
| Common parts | ||||
| 90119-T0102 | ||||
