KUN26L-PRMSJG (2012)

Toyota Hilux

Production Apr 2012 - Oct 2015
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1204- )1KDFTV..KUN26..IART ; (1208- )2KDFTV..KUN35..5FC ; (1208- )2KDFTV.

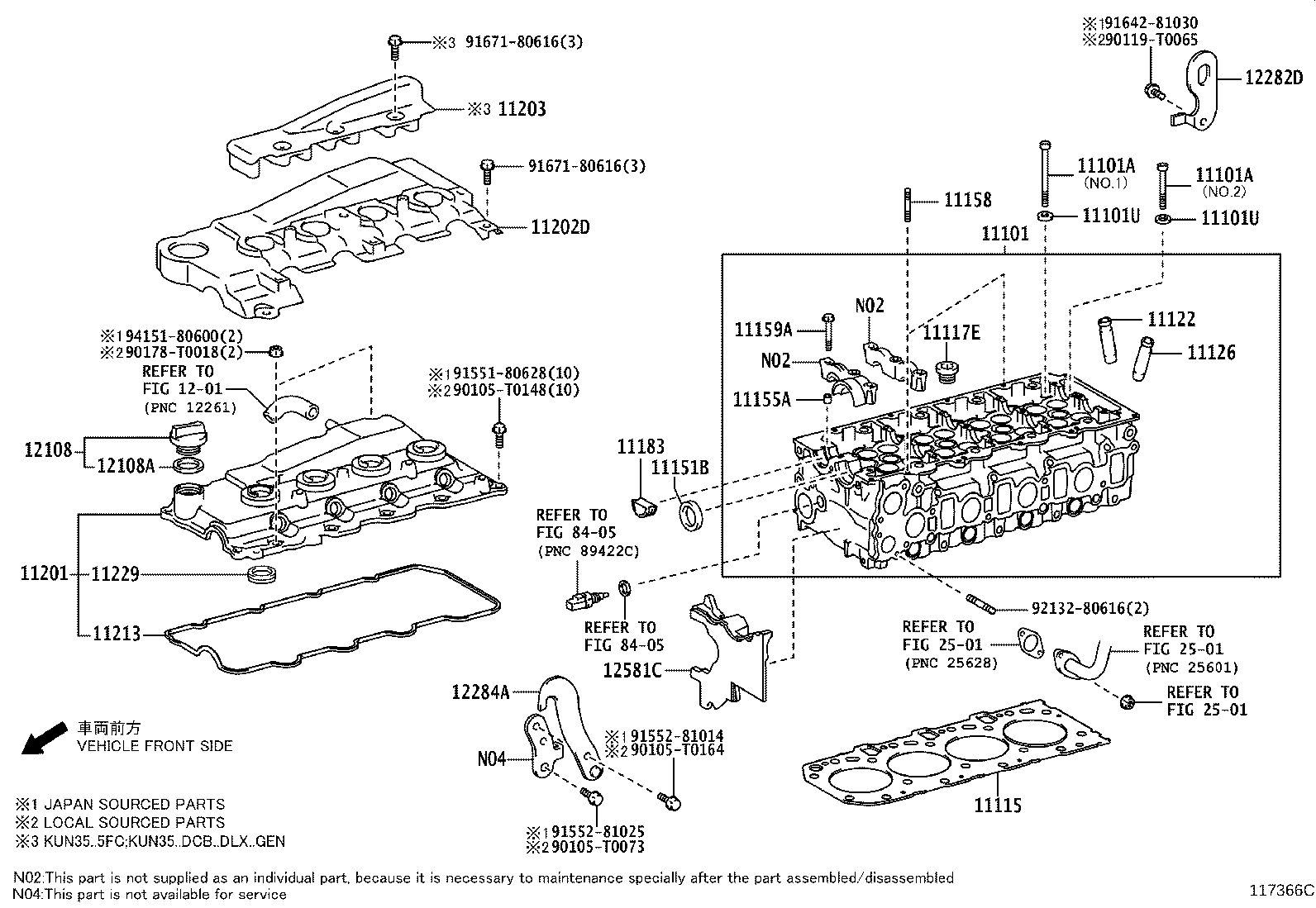

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11101U 11101U 11115 11117E 11122 11126 11151B 11155A 11158 11159A 11183 11201 11202D 11203 11213 11229 1201 12108 12108A 12282D 12284A 12581C 2501 2501 2501 8405 8405 90105T0073 90105T0148 90105T0164 90119T0065 90178T0018 9155180628 9155281014 9155281025 9164281030 9167180616 9167180616 9213280616 9415180600
Part # Description Qty Price
11201 - COVER SUB-ASSY, CYLINDER HEAD
11210-30100

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

 1
11202D - COVER SUB-ASSY, CYLINDER HEAD, NO.2
11202-30060

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-30040

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

 1
11229 - GASKET, CYLINDER HEAD COVER, NO.3
23682-30040

2KDFTV..KUN35..5FC;1KDFTV..KUN26..IART;2KDFTV..KUN35..DCB..DLX..GEN

 4
12108 - CAP SUB-ASSY, OIL FILLER
12180-0H020

1KDFTV..KUN26..IART

 1
12108A - GASKET(FOR OIL FILLER CAP)
90080-43027

1KDFTV..KUN26..IART

 1
12282D - HANGER, ENGINE, NO.2
12282-67030

1KDFTV..KUN16,26,36..ARL,CO,LA;1KDFTV..KUN16,26,36..5FC..(GEN,TH)

 1
12284A - HANGER, ENGINE, NO.1 UPPER
12284-30060

1KDFTV..KUN16,26..ARL;1KDFTV..KUN26,36..5F..LA;1KDFTV..KUN16,26,36..5FC..(CO,GEN,LA,TH)

 1
Common parts
90105-T0073
90105-T0148
90105-T0164
90119-T0065
90178-T0018
91551-80628
91552-81014
91552-81025
91642-81030
91671-80616
92132-80616
94151-80600
Linked diagrams
1201
2501
8405
