KUN26L-HRMSY (2008)
Toyota Hilux

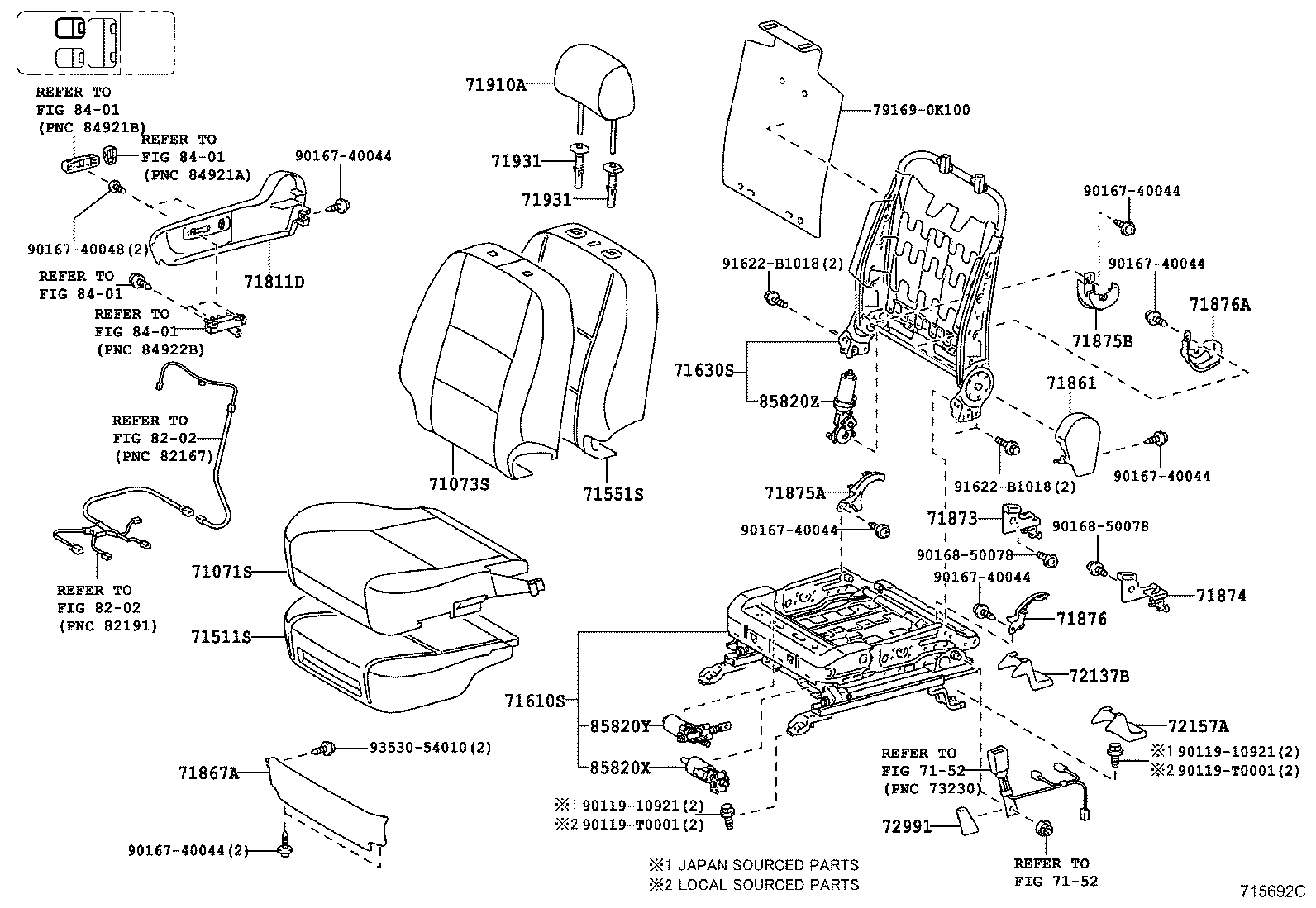

ILLUST NO. 1 OF 3(0808- )KUN26..DCB..GEN,IDN,TH
DRIVER SEAT W(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0K100B0 |
KUN15..DCB..HDCR;KUN15..SR..DCR..TH;GGN15,25,KUN16,2#,TGN16,26..SR..(ARL,TH) MID.GRAY,TRIM1# |
1 | ||
| 71071-0K100A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26..SR..(ARL,TH) IVORY,TRIM0# |
1 | ||
| 71071-0K020B0 |
KUN15,25,TGN15,16,26..LHD..DCB..GEN SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID.GRAY,TRIM1# |
1 | ||
| 71071-0K020B0 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID.GRAY,TRIM1# |
1 | ||
| 71071-0K020B0 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),MID.GRAY,TRIM1# |
1 | ||
| 71071-0K020B0 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),MID.GRAY,TRIM1# |
1 | ||
| 71071-0K070B0 |
KUN15,25,TGN15,16,26..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM1# |
1 | ||
| 71071-0K070B0 |
KUN15,25,TGN15,16,26..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID.GRAY,TRIM1# |
1 | ||
| 71071-0K070B0 |
KUN15,25,TGN15,16,26..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),MID.GRAY,TRIM1# |
1 | ||
| 71071-0K070B0 |
KUN15,25,TGN15,16,26..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM1# |
1 | ||
| 71071-0K070B0 |
KUN15,25,TGN15,16,26..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),MID.GRAY,TRIM1# |
1 | ||
| 71071-0K070B0 |
TGN16..(DCB,SCB)..5F..(ARL,GEN);KUN15,25,TGN15,26..LHD..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID.GRAY,TRIM1# |
1 | ||
| 71071-0K100B0 |
KUN16..SMT;KUN15,26,TGN16..5F..SR..TH SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM1# |
1 | ||
| 71071-0K080B0 |
KUN26,TGN26..THDCB..SR MID.GRAY,TRIM1# |
1 | ||
| 71071-0K100E0 |
TGN16..5F..SR..TH;KUN26,35..5F..(IDN,TH);KUN15,16,25,36..SR..TH SAND BEIGE,TRIM4# |
1 | ||
| 71071-0K081B0 |
KUN26,TGN26..THDCB..SR MID. GRAY,TRIM1# |
1 | ||
| 71071-0K101E0 |
KUN26,35..5F..(IDN,TH);KUN15,16,25,36,TGN16..SR..TH SAND BEIGE,TRIM4# |
1 | ||
| 71071-0K021B0 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID.GRAY,TRIM1# |
1 | ||
| 71071-0KB30B2 |
KUN26..THDCB..SR SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
1 | ||
| 71071-0K010B0 |
KUN15..PHL..IV3;KUN15,25,TGN15,16,26..LHD..(DCB,SCB,THSCB)..GEN MID.GRAY,TRIM1# |
1 | ||
| 71071-0K021B0 |
KUN15,25,TGN15,16,26..LHD..DCB..GEN SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID.GRAY,TRIM1# |
1 | ||
| 71071-0K071B0 |
KUN15,25,TGN15,16,26..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID.GRAY,TRIM1# |
1 | ||
| 71071-0KB40E2 |
KUN26..DCB..5F..(IDN,TH) SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4# |
1 | ||
| 71071-0K071B0 |
KUN15,25,TGN15,16,26..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM1# |
1 | ||
| 71071-0K021B0 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),MID.GRAY,TRIM1# |
1 | ||
| 71071-0K021B0 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),MID.GRAY,TRIM1# |
1 | ||
| 71071-0K071B0 |
KUN15,25,TGN15,16,26..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),MID.GRAY,TRIM1# |
1 | ||
| 71071-0K071B0 |
TGN16..5F..ARL;KUN15,TGN16..LHD..DCB..GEN;KUN25,TGN15,26..LHD..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID.GRAY,TRIM1# |
1 | ||
| 71071-0K071B0 |
KUN15,25,TGN15,16,26..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM1# |
1 | ||
| 71071-0K071B0 |
KUN15,25,TGN15,16,26..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),MID.GRAY,TRIM1# |
1 | ||
| 71071-0KB30B2 |
KUN26..THDCB..SR CHILE SPEC&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
1 | ||
| 71071-0KB40B0 |
KUN26..DCB..GEN SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
1 | ||
| 71071-0K100E0 |
KUN26,35..5F..(IDN,TH);KUN15,16,25,36,TGN16..SR..TH SAND BEIGE,TRIM4# |
1 | ||
| 71071-0K080B0 |
KUN26,TGN26..THDCB..SR MID.GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0K080A0 |
KUN26..XTR..ARL..CBU;GGN15,25,TGN36..SR..(ARL,PHL);KUN15,16,2#,36,TGN26..DCB..SR..(ARL,PHL,TH) IVORY,TRIM0# |
1 | ||
| 71073-0K020B0 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID.GRAY,TRIM1# |
1 | ||
| 71073-0K020B0 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),MID.GRAY,TRIM1# |
1 | ||
| 71073-0K070B0 |
KUN15,25,TGN15,16,26..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID.GRAY,TRIM1# |
1 | ||
| 71073-0K020B0 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),MID.GRAY,TRIM1# |
1 | ||
| 71073-0K020B0 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM1# |
1 | ||
| 71073-0K070B0 |
KUN15,25,TGN15,16,26..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),MID.GRAY,TRIM1# |
1 | ||
| 71073-0K070B0 |
KUN15,25,TGN15,16,26..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),MID.GRAY,TRIM1# |
1 | ||
| 71073-0K070B0 |
TGN16..(DCB,SCB)..5F..(ARL,GEN);KUN15,25,TGN15,26..LHD..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID.GRAY,TRIM1# |
1 | ||
| 71073-0K020B0 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID.GRAY,TRIM1# |
1 | ||
| 71073-0K070B0 |
KUN15,25,TGN15,16,26..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM1# |
1 | ||
| 71073-0K020B0 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM1# |
1 | ||
| 71073-0K070B0 |
KUN15,25,TGN15,16,26..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM1# |
1 | ||
| 71073-0K080B0 |
KUN16..SMT;KUN15,26,TGN16..5F..SR..TH SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM1# |
1 | ||
| 71073-0K081B0 |
KUN35..TH;KUN26..4FC..SR..(ARL,GEN);KUN26..5F..SR..(ARL,GEN,TH);GGN15,25,KUN15,16,25,36,TGN16,26..SR..(ARL,GEN,TH) MID. GRAY,TRIM1# |
1 | ||
| 71073-0K080B0 |
KUN26..SR..(ARL,GEN);GGN15,25,KUN16,TGN26..(DCB,THDCB,XTR)..SR..(ARL,GEN,TH) MID.GRAY,TRIM1# |
1 | ||
| 71073-0K080E0 |
KUN35..TH;KUN35..SR..PHL;KUN26..4FC..PHL;KUN15,16,25,36..SR..(PHL,TH);KUN26,TGN16..5F..SR..(IDN,PHL,TH) SAND BEIGE,TRIM4# |
1 | ||
| 71073-0K021B0 |
KUN15,25,TGN15,16,26..LHD..DCB..GEN SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID.GRAY,TRIM1# |
1 | ||
| 71073-0KA70B2 |
KUN26..THDCB..SR SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
1 | ||
| 71073-0K010B0 |
KUN15..PHL..IV3;KUN15,25,TGN15,16,26..LHD..(DCB,SCB,THSCB)..GEN MID.GRAY,TRIM1# |
1 | ||
| 71073-0K081E0 |
KUN35..TH;KUN35..SR..PHL;KUN26..4FC..PHL;KUN26..5F..(IDN,PHL,TH);KUN15,16,25,36,TGN16..SR..(PHL,TH) SAND BEIGE,TRIM4# |
1 | ||
| 71073-0K021B0 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),MID.GRAY,TRIM1# |
1 | ||
| 71073-0K021B0 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),MID.GRAY,TRIM1# |
1 | ||
| 71073-0K071B0 |
KUN15,25,TGN15,16,26..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),MID.GRAY,TRIM1# |
1 | ||
| 71073-0K021B0 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID.GRAY,TRIM1# |
1 | ||
| 71073-0K071B0 |
KUN15,25,TGN15,16,26..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM1# |
1 | ||
| 71073-0K071B0 |
TGN16..5F..ARL;KUN15,TGN16..LHD..DCB..GEN;KUN25,TGN15,26..LHD..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID.GRAY,TRIM1# |
1 | ||
| 71073-0KA90E2 |
KUN26..DCB..5F..(IDN,TH) SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4# |
1 | ||
| 71073-0K071B0 |
KUN15,25,TGN15,16,26..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,MID.GRAY,TRIM1# |
1 | ||
| 71073-0K071B0 |
KUN15,25,TGN15,16,26..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),MID.GRAY,TRIM1# |
1 | ||
| 71073-0KA70B2 |
KUN26..THDCB..SR CHILE SPEC&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
1 | ||
| 71073-0K071B0 |
KUN15,25,TGN15,16,26..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),MID.GRAY,TRIM1# |
1 | ||
| 71073-0KA90B0 |
KUN26..DCB..GEN SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
1 | ||
| 71073-0K080B0 |
KUN35..TH;KUN26..4FC..SR..(ARL,GEN);KUN26..5F..SR..(ARL,GEN,TH);GGN15,25,KUN15,16,25,36,TGN16,26..SR..(ARL,GEN,TH) MID.GRAY,TRIM1# |
1 | ||
| 71073-0K080E0 |
KUN35..TH;KUN35..SR..PHL;KUN26..4FC..PHL;KUN26..5F..(IDN,PHL,TH);KUN15,16,25,36,TGN16..SR..(PHL,TH) SAND BEIGE,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-0K050 |
TGN26..RHD;KUN25..SCB..MA;KUN16..DCB,SCB;TGN26..4FC..GCC;KUN26..DCB..5F..SA;KUN35..DLX..(GEN,SA);KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN25,TGN26..THDCB..DLX;KUN36..RHD..(DCB,SCB)..5F;KUN16,36,TGN16..XTR..(GEN,TH);KUN15,25..DCB..(ANCOM,LA,PHL);KUN26..(DCB,SCB,XTR)..(ARL,TH);KUN15,TGN10..RHD..DLX..(IDN,SA);KUN35,TGN26..DCB..DLX..(ANCOM,LA);KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN26,36,TGN36..LHD..(DCB,THDCB)..5F..DLX;GGN15,25,LAN15,25,35,TGN15,16,36..RHD..(5F,5FC)..(ARL,PKN,SA) |
1 | ||
| 71511-0K050 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP |
1 | ||
| 71051-0K020 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 71051-0K020 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 71511-0K050 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 71511-0K070 |
KUN26..DCB..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71511-0K070 |
KUN26..DCB..5F..(IDN,TH) SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 71511-0K050 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 71511-0K050 |
KUN15,TGN16..LHD..DCB..GEN;KUN25,TGN15,26..LHD..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0K020 |
TGN26..RHD;TGN36..PHL,SA;KUN2#,TGN26..THDCB;KUN36..(DCB,SCB)..5F;GGN15,25..ANCOM,ARL,SA;TGN26,36..4FC..(ANCOM,GCC);KUN36,TGN16..XTR..(GEN,TH);KUN35..(SCB,THDCB)..(GEN,SA);KUN15,16..(DCB,SCB)..DLX..(ARL,PHL);KUN26,TGN26..DCB..5F..SR..(ANCOM,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN25,35,TGN26,36..DCB..5F..DLX..(ANCOM,LA);KUN15,16,25,LAN15..(DCB,SCB,XTR)..(SR,STD)..(MA,PHL,PKN,TH)..CBU |
1 | ||
| 71551-0K020 |
KUN15,25,TGN15,16,26..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 71551-0K020 |
KUN15,25,TGN15,16,26..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP |
1 | ||
| 71551-0K020 |
TGN16..5F..ARL;KUN15,TGN16..LHD..DCB..GEN;KUN25,TGN15,26..LHD..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP |
1 | ||
| 71551-0K020 |
KUN15,25,TGN15,16,26..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 71551-0K020 |
KUN15,25,TGN15,16,26..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 71551-0K120 |
KUN26..DCB..5F..(IDN,TH) SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 71551-0K020 |
KUN15,25,TGN15,16,26..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 71551-0K040 |
KUN26..THDCB..SR CHILE SPEC&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71551-0K120 |
KUN26..DCB..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-0K020 |
KUN26..DCB..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71610-0K020 |
KUN26..DCB..5F..(IDN,TH) SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-0K040 |
KUN15,TGN16..LHD..DCB..GEN;KUN25,TGN15,26..LHD..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP |
1 | ||
| 71630-0K040 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 71630-0K040 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP |
1 | ||
| 71630-0K100 |
KUN26..DCB..5F..(IDN,TH) SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 71630-0K040 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 71630-0K040 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 71630-0K040 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY) |
1 | ||
| 71630-0K100 |
KUN26..DCB..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71630-0K040 |
TGN36..SR;KUN15..XTR..TH;TGN16..ARL..IV3;TGN26..SR..ANCOM;TGN26..DCB..5F..LA;KUN36,TGN10..IDN,LA,SA,TH;KUN25,TGN16..RHD..(DCB,SMT);KUN25..(SCB,THDCB)..(GEN,MA);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN25,TGN16..(4FC,5FC)..(GCC,SA);GGN35,KUN35,LAN35..DCB,SMT,THDCB;KUN26..5F..(ARL,GEN,LA,PHL,SA,TH);GGN25,KUN15..DCB..(ANCOM,ARL,LA,PHL);KUN26,TGN26..4FC..(ARL,GCC,GEN,LA,PHL,SA);GGN15,KUN16,25,TGN36..DCB..DLX..(ANCOM,ARL,LA);GGN15,KUN16,TGN26..(SCB,SMT,THDCB,XTR)..(ARL,GEN,TH);KUN15,LAN15,25,TGN15..RHD..(DCB,SCB,SMT)..(DLX,SR)..CBU |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0K040A0 |
KUN15,16,2#,36,TGN16,26..SR..(MA,TH) IVORY,TRIM0# |
1 | ||
| 71811-0K020B0 |
KUN26..DLX;KUN25..THDCB;KUN26..THDCB..5F..SR;KUN35..DLX..(GEN,SA);KUN35..DCB..(ANCOM,LA);TGN26,36..SR..(ANCOM,SA);KUN26..LHD..4FC..(GEN,LA);TGN26,36..4FC..(ANCOM,GCC);KUN26..DCB..5F..SR..(LA,SA);TGN26..(SCB,THDCB)..(GEN,SA);KUN36..(DCB,SCB)..5F..(LA,SA);GGN25,TGN10..(ANCOM,IDN,SA)..CBU;KUN15,25..(SCB,XTR)..DLX..(MA,TH);KUN15,25,TGN26,36..DCB..5F..DLX..(ANCOM,LA,PHL);KUN16,25,LAN15..RHD..(DCB,SCB)..DLX..(ARL,GEN,SA,TH);GGN15,25,KUN15,LAN25,35,TGN15,16..RHD..(5F,5FC)..(DLX,STD)..(ARL,GEN,PKN,SA) GRAY,TRIM1# |
1 | ||
| 71811-0K020B0 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1# |
1 | ||
| 71811-0K020B0 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),GRAY,TRIM1# |
1 | ||
| 71811-0K040B0 |
KUN16..SMT;KUN15,26,TGN16..5F..SR..TH SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1# |
1 | ||
| 71811-0K020B0 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1# |
1 | ||
| 71811-0K060E0 |
KUN26..DCB..5F..(IDN,TH) SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4# |
1 | ||
| 71811-0K020B0 |
KUN15,TGN16..LHD..DCB..GEN;KUN25,TGN15,26..LHD..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,GRAY,TRIM1# |
1 | ||
| 71811-0K020B0 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,GRAY,TRIM1# |
1 | ||
| 71811-0K020B0 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),GRAY,TRIM1# |
1 | ||
| 71811-0K060B0 |
KUN26..DCB..GEN SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
1 | ||
| 71811-0K040E1 |
KUN26,35..5F..(IDN,TH);KUN15,16,25,36,TGN16..SR..TH SAND BEIGE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0K040A0 |
KUN15,16,2#,36,TGN16,26..SR..(MA,TH) IVORY,TRIM0# |
1 | ||
| 71861-0K020B0 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1# |
1 | ||
| 71861-0K020B0 |
KUN26..DLX;KUN26..THDCB..5F..SR;KUN35..DLX..(GEN,SA);KUN35..DCB..(ANCOM,LA);TGN26,36..SR..(ANCOM,SA);KUN26..LHD..4FC..(GEN,LA);TGN26,36..4FC..(ANCOM,GCC);KUN26..DCB..5F..SR..(LA,SA);TGN26..(SCB,THDCB)..(GEN,SA);KUN36..(DCB,SCB)..5F..(LA,SA);KUN25,TGN16..(THDCB,XTR)..GEN;GGN25,TGN10..(ANCOM,IDN,SA)..CBU;KUN15,25..(SCB,XTR)..DLX..(MA,TH);KUN15,25,TGN26,36..DCB..5F..DLX..(ANCOM,LA,PHL);KUN16,25,LAN15..RHD..(DCB,SCB)..DLX..(ARL,GEN,SA,TH);GGN15,25,KUN15,LAN25,35,TGN15,16..RHD..(5F,5FC)..(DLX,STD)..(ARL,GEN,PKN,SA) GRAY,TRIM1# |
1 | ||
| 71861-0K020B0 |
KUN15,TGN16..LHD..DCB..GEN;KUN25,TGN15,26..LHD..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,GRAY,TRIM1# |
1 | ||
| 71861-0K020B0 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),GRAY,TRIM1# |
1 | ||
| 71861-0K020B0 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),GRAY,TRIM1# |
1 | ||
| 71861-0K020B0 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,GRAY,TRIM1# |
1 | ||
| 71861-0K020B0 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1# |
1 | ||
| 71861-0K040E1 |
KUN26,35..5F..(IDN,TH);KUN15,16,25,36,TGN16..SR..TH SAND BEIGE,TRIM4# |
1 | ||
| 71861-0K040B0 |
KUN16..SMT;KUN15,26,TGN16..5F..SR..TH SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1# |
1 | ||
| 71861-0K060E0 |
KUN26..DCB..5F..(IDN,TH) SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4# |
1 | ||
| 71861-0K060B0 |
KUN26..DCB..GEN SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-0K020B0 |
KUN26..DCB..GEN SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
1 | ||
| 71867-0K020E0 |
KUN26..DCB..5F..(IDN,TH) SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-06250 |
KUN26..DCB..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71873-06250 |
KUN26..DCB..5F..(IDN,TH) SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06260 |
KUN26..DCB..5F..(IDN,TH) SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 71874-06260 |
KUN26..DCB..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-06100B2 |
KUN26..DCB..GEN SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
1 | ||
| 71875-06100E1 |
KUN26..DCB..5F..(IDN,TH) SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-06310 |
KUN26..DCB..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71875-06310 |
KUN26..DCB..5F..(IDN,TH) SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06330B2 |
KUN26..DCB..GEN SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
1 | ||
| 71876-06330E1 |
KUN26..DCB..5F..(IDN,TH) SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06400 |
KUN26..DCB..5F..(IDN,TH) SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 71876-06400 |
KUN26..DCB..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0K050B0 |
KUN16,2#..XTR..TH;KUN26..SR..(ARL,GEN);TGN26..(THDCB,XTR)..SR;GGN15,25,KUN15,TGN16..(DCB,XTR)..SR..(DCR,HTWC)..(ARL,GCC,TH) MID.GRAY,TRIM1# |
2 | ||
| 71910-0K050A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,PHL,TH) IVORY,TRIM0# |
2 | ||
| 71910-0K050E0 |
KUN26..4FC..PHL;KUN26..5F..(IDN,PHL,TH);KUN15,16,25,3#,TGN16..SR..(PHL,TH) SAND BEIGE,TRIM4# |
2 | ||
| 71910-0K050B0 |
GGN15,25,KUN26,TGN16,26..(DCB,THDCB,XTR)..SR..(ARL,GCC,GEN) MID.GRAY,TRIM1# |
2 | ||
| 71910-0K680E2 |
KUN26..DCB..5F..(IDN,TH) SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4# |
2 | ||
| 71910-0K840B0 |
KUN26..SR..GEN SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
2 | ||
| 71910-0K050B2 |
KUN35..TH;KUN35..SR..PHL;KUN26..4FC..PHL;KUN26..THDCB..SR;TGN16..(DCB,SMT)..SR;KUN16,TGN26..(SMT,THDCB)..SR;KUN15,2#,36..5F..SR..(IDN,PHL,TH) GRAY,TRIM1# |
2 | ||
| 71910-0K050B2 |
KUN16..SMT;KUN15,26,TGN16..5F..SR..TH SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1# |
2 | ||
| 71910-0K050B2 |
KUN26..DCB..SR..(ARL,GEN);GGN15,25,KUN16..DCB..SR..(ARL,TH) GRAY,TRIM1# |
2 | ||
| 71910-0K051B0 |
KUN35..TH;KUN26..4FC..SR..(ARL,GEN);KUN26..5F..SR..(ARL,GEN,TH);GGN15,25,KUN15,16,25,36,TGN16,26..(DCB,SMT,THDCB,XTR)..SR..(ARL,GCC,GEN,TH) GRAY,TRIM1# |
2 | ||
| 71910-0K051E0 |
KUN35..TH;KUN35..SR..PHL;KUN26..4FC..PHL;KUN26..5F..(IDN,PHL,TH);KUN15,16,25,36,TGN16..SR..(PHL,TH) SAND BEIGE,TRIM4# |
2 | ||
| 71910-0K050B2 |
KUN35..TH;KUN26..4FC..SR..(ARL,GEN);KUN26..5F..SR..(ARL,GEN,TH);GGN15,25,KUN15,16,25,36,TGN16,26..(DCB,SMT,THDCB,XTR)..SR..(ARL,GCC,GEN,TH) GRAY,TRIM1# |
2 | ||
| 71910-0K050E1 |
KUN35..TH;KUN35..SR..PHL;KUN26..4FC..PHL;KUN26..5F..(IDN,PHL,TH);KUN15,16,25,36,TGN16..SR..(PHL,TH) SAND BEIGE,TRIM4# |
2 | ||
| 71910-0K840B1 |
KUN26..THDCB..SR SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
2 | ||
| 71910-0K680E3 |
KUN26..DCB..5F..(IDN,TH) SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4# |
2 | ||
| 71910-0K680B3 |
KUN26..DCB..GEN SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
2 | ||
| 71910-0K840B1 |
KUN26..THDCB..SR CHILE SPEC&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02030B3 |
KUN26..ARL,LA;TGN36..4FC..ANCOM;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN25,TGN26..SR..(ANCOM,MA);KUN16,TGN36..(DCB,SCB)..5F..DLX;KUN15,TGN26..DCB..DLX..(ANCOM,GCC,GEN,LA,PHL);KUN25,3#,TGN10..(DLX,SR)..(ANCOM,GCC,GEN,IDN,LA);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(ANCOM,GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN) W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-02050A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-02030A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-02050B3 |
KUN16..SMT;KUN15,26,TGN16..5F..SR..TH W(LOCK),SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1# |
2 | ||
| 71930-02050B3 |
KUN26..ARL;KUN25..SR..MA;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN15,TGN26..DCB..DLX..(GCC,GEN,PHL);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN16,25,TGN10..(DCB,SCB,THDCB,THSCB)..DLX..(ARL,GCC,GEN,IDN,TH) W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-02030B3 |
KUN16..SMT;KUN15,26,TGN16..5F..SR..TH W/O(LOCK),SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1# |
2 | ||
| 71930-02050E2 |
KUN35..TH;KUN35..SR..PHL;KUN15,16,2#,36,TGN16..SR..(IDN,PHL,TH) W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-02030E2 |
KUN35..TH;KUN35..SR..PHL;KUN15,16,2#,36,TGN16..SR..(IDN,PHL,TH) W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02030B3 |
KUN26..ARL,LA;TGN36..4FC..ANCOM;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN25,TGN26..SR..(ANCOM,MA);KUN16,TGN36..(DCB,SCB)..5F..DLX;KUN15,TGN26..DCB..DLX..(ANCOM,GCC,GEN,LA,PHL);KUN25,3#,TGN10..(DLX,SR)..(ANCOM,GCC,GEN,IDN,LA);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(ANCOM,GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN) W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-02050A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W(LOCK),IVORY,TRIM0# |
2 | ||
| 71931-02030A0 |
GGN15,25,KUN15,16,2#,36,TGN16,26,36..SR..(ARL,MA,PHL,TH) W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71930-02050B3 |
KUN16..SMT;KUN15,26,TGN16..5F..SR..TH W(LOCK),SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1# |
2 | ||
| 71930-02050B3 |
KUN26..ARL;KUN25..SR..MA;KUN16,TGN16..XTR..TH;KUN25..(SCB,XTR)..(MA,TH);KUN15,TGN26..DCB..DLX..(GCC,GEN,PHL);KUN15,26,TGN26..(SCB,THDCB,XTR)..(DCR,HTWC)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,35,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN);KUN16,25,TGN10..(DCB,SCB,THDCB,THSCB)..DLX..(ARL,GCC,GEN,IDN,TH) W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-02030B3 |
KUN16..SMT;KUN15,26,TGN16..5F..SR..TH W/O(LOCK),SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1# |
2 | ||
| 71930-02050E2 |
KUN35..TH;KUN35..SR..PHL;KUN15,16,2#,36,TGN16..SR..(IDN,PHL,TH) W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-02030E2 |
KUN35..TH;KUN35..SR..PHL;KUN15,16,2#,36,TGN16..SR..(IDN,PHL,TH) W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-0K010A0 |
KUN26..XTR..TH;GGN15,25,KUN26..DCB..SR..(ARL,LA,PHL,SA,TH);KUN15,16,25,36,TGN16,26,36..(DCB,XTR)..SR..(LA,MA,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 72137-0K010B0 |
TGN26..THDCB;KUN25..DCB..SR;KUN26..XTR..ARL;KUN35..(DCB,THDCB)..DLX;KUN15,16,LAN25..RHD..DCB;TGN26..DCB..4FC..(GCC,TH);TGN36..DCB..(ANCOM,PHL,SA);KUN2#..RHD..DCB..5F..(GEN,SA);KUN15,25,TGN16..(THDCB,XTR)..DLX;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN15,TGN26..5F..SR..(DCR,HTWC)..(ANCOM,PHL,TH);KUN15,25,TGN16,26,36..DCB..5F..DLX..(ANCOM,ARL,LA,PHL);GGN15,25,KUN36,LAN35..(DCB,XTR)..(5F,5FC)..(ANCOM,ARL,LA,SA) GRAY,TRIM1# |
1 | ||
| 72137-0K010E0 |
KUN35..SR..PHL;KUN26..4FC..PHL;KUN26..5F..(IDN,PHL,TH);KUN25,35..(DCB,SMT)..(MA,TH);KUN15,16,36,TGN16..SR..(PHL,TH) SAND BEIGE,TRIM4# |
1 | ||
| 72137-0K060B0 |
KUN26..DCB..GEN SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
1 | ||
| 72137-0K060E0 |
KUN26..DCB..5F..(IDN,TH) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-0K010A0 |
KUN26..XTR..TH;GGN15,25,KUN26..DCB..SR..(ARL,LA,PHL,SA,TH);KUN15,16,25,36,TGN16,26,36..(DCB,XTR)..SR..(LA,MA,PHL,SA,TH) IVORY,TRIM0# |
1 | ||
| 72157-0K010B0 |
TGN26..THDCB;KUN25..DCB..SR;KUN26..XTR..ARL;KUN35..(DCB,THDCB)..DLX;KUN15,16,LAN25..RHD..DCB;TGN26..DCB..4FC..(GCC,TH);TGN36..DCB..(ANCOM,PHL,SA);KUN2#..RHD..DCB..5F..(GEN,SA);KUN15,25,TGN16..(THDCB,XTR)..DLX;KUN26..(DCB,THDCB)..(ARL,GEN,LA,PHL,TH);KUN15,TGN26..5F..SR..(DCR,HTWC)..(ANCOM,PHL,TH);KUN15,25,TGN16,26,36..DCB..5F..DLX..(ANCOM,ARL,LA,PHL);GGN15,25,KUN36,LAN35..(DCB,XTR)..(5F,5FC)..(ANCOM,ARL,LA,SA) GRAY,TRIM1# |
1 | ||
| 72157-0K010E0 |
KUN35..SR..PHL;KUN26..4FC..PHL;KUN26..5F..(IDN,PHL,TH);KUN25,35..(DCB,SMT)..(MA,TH);KUN15,16,36,TGN16..SR..(PHL,TH) SAND BEIGE,TRIM4# |
1 | ||
| 72157-0K040B0 |
KUN26..DCB..GEN SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1# |
1 | ||
| 72157-0K040E0 |
KUN26..DCB..5F..(IDN,TH) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 72991 - COVER, FRONT SEAT CUSHION, RH | ||||
| 72991-0K010 |
TGN16..XTR;TGN26..RHD;KUN25..THDCB;KUN26..XTR..IV3;TGN26..4FC..GCC;TGN26..DCB..DLX..LA;KUN36..(DCB,XTR)..(LA,TH);KUN3#..(SCB,THDCB)..(GEN,SA);KUN26..(DCB,XTR)..SR..(ARL,LA,PHL,TH);GGN25,KUN15,TGN10..RHD..(SCB,XTR)..DLX;KUN2#,35,TGN36..DCB..5F..DLX..(ANCOM,LA);GGN15,TGN26,36..DCB..SR..(ANCOM,ARL,PHL);KUN16,26,TGN26..(SCB,THDCB)..(ARL,GEN,TH);GGN25,KUN15,16,25..(DCB,SCB,XTR)..(SR,STD)..(ANCOM,ARL,MA,PHL,PKN,TH)..CBU;GGN15,KUN25,LAN15,25,TGN15,16,36..RHD..(SCB,XTR)..(5F,5FC)..(ARL,GEN,MA,PKN,SA) |
1 | ||
| 72991-0K010 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,FOR MANUAL SEAT |
1 | ||
| 72991-0K050 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,FOR POWER SEAT |
1 | ||
| 72991-0K050 |
KUN15..SR..DCR;KUN26..XTR..SA;KUN15..DLX..PHL;TGN16..RHD..DCB;TGN16..SMT..DLX;TGN16..ARL..IV3;TGN16..4FC..GCC;KUN25,36,TGN26..THDCB,XTR;KUN15,25..RHD..(GEN,MA,TH);KUN26..5F..(ARL,GEN,IDN,PHL,TH);KUN26,TGN26..4FC..(ARL,GCC,GEN,PHL);GGN15,25,KUN16,3#,TGN10..ARL,GEN,IDN,PHL,TH FOR POWER SEAT |
1 | ||
| 72991-0K050 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),FOR POWER SEAT |
1 | ||
| 72991-0K050 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),FOR POWER SEAT |
1 | ||
| 72991-0K050 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),FOR POWER SEAT |
1 | ||
| 72991-0K050 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),FOR POWER SEAT |
1 | ||
| 72991-0K050 |
KUN15,25,TGN15,16,26..LHD..DCB..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,FOR POWER SEAT |
1 | ||
| 72991-0K051 |
KUN26..DCB..GEN SEAT COVER MATERIAL-LEATHER,FOR POWER SEAT |
1 | ||
| 72991-0K051 |
KUN26..DCB..5F..(IDN,TH) SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),FOR POWER SEAT |
1 | ||
| 72991-0K010 |
KUN15,25,TGN15,16,26..LHD..DCB..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,FOR MANUAL SEAT |
1 | ||
| 72991-0K010 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),FOR MANUAL SEAT |
1 | ||
| 72991-0K051 |
KUN15,25,TGN16,26..LHD..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),FOR POWER SEAT |
1 | ||
| 72991-0K051 |
KUN15,25,TGN16,26..LHD..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,FOR POWER SEAT |
1 | ||
| 72991-0K010 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),FOR MANUAL SEAT |
1 | ||
| 72991-0K051 |
KUN15,25,TGN16,26..LHD..DCB..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP,FOR POWER SEAT |
1 | ||
| 72991-0K010 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),FOR MANUAL SEAT |
1 | ||
| 72991-0K010 |
KUN15,25,TGN15,16,26..LHD..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),FOR MANUAL SEAT |
1 | ||
| 72991-0K051 |
KUN15,25,TGN16,26..LHD..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER ONLY),FOR POWER SEAT |
1 | ||
| 72991-0K051 |
KUN15,25,TGN16,26..LHD..(DCB,SCB)..GEN FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),FOR POWER SEAT |
1 | ||
| 72991-0K051 |
KUN15,25,TGN16,26..LHD..(DCB,SCB)..GEN POWER DOOR LOCK-WITH&FRONT SEAT-PASSENGER SEAT(FOR ONE PERSON)&SEAT COVER MATERIAL-SEMI FABRIC FOR PICK-UP&SRS AIR BAG-WITH(DRIVER & PASSENGER),FOR POWER SEAT |
1 | ||
| 85820X - MOTOR ASSY, POWER SEAT | ||||
| 85801-06010 |
KUN26..DCB..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 85801-06010 |
KUN26..DCB..5F..(IDN,TH) SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85801-06070 |
KUN26..DCB..5F..(IDN,TH) SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 85801-06070 |
KUN26..DCB..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 85820Z - MOTOR ASSY, POWER SEAT | ||||
| 85801-06030 |
KUN26..DCB..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 85801-06030 |
KUN26..DCB..5F..(IDN,TH) SEAT COVER MATERIAL-LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| Common parts | ||||
| 79169-0K100 | ||||
| 90119-10921 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90168-50078 | ||||
| 91622-B1018 | ||||
| 93530-54010 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
