Toyota Hilux KUN26 BRAKE TUBE & CLAMP

Manufacturers Home
Toyota
US
HILUX
KUN26L-HRMSY (2008)
4708 - BRAKE TUBE & CLAMP

KUN26L-HRMSY (2008)

Toyota Hilux

Production Aug 2008 - Jul 2011

Engine 1KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

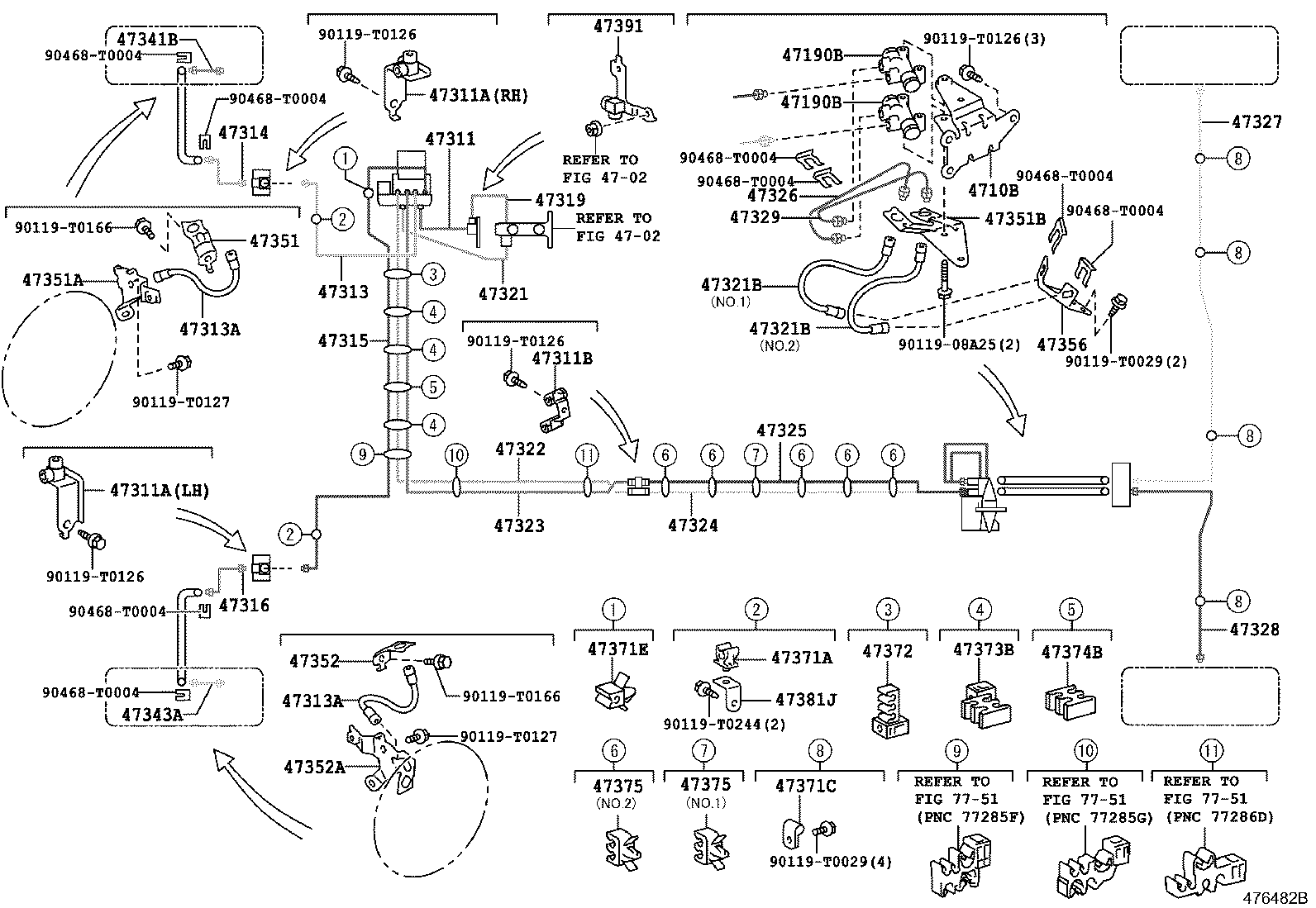

ILLUST NO. 1 OF 3(0808- )KUN26..DCB..TH ; (1008- )KUN26..DCB..ARL..CBU

Click highlighted areas on diagram

W(VSC)

Part #	Description	Period	Qty
4710B - BRACKET SUB-ASSY, BLEND PROPORTIONING VALVE
4710B-71010	KUN26..DCB..5F..TH VSC-WITH	08/2008 - 07/2011	1
47190B - VALVE ASSY, BLEND PROPORTIONING
47150-71010	KUN26..DCB..5F..TH VSC-WITH	08/2008 - 07/2011	2
47190B - VALVE ASSY, BLEND PROPORTIONING
47150-71010	KUN26..DCB..5F..TH VSC-WITH	08/2008 - 07/2011	2
47311 - TUBE, FRONT BRAKE, NO.1
47311-0K010	TGN16..5F..ARL;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,TH);KUN25..RHD..(DCB,SCB,XTR)..(GEN,TH);KUN16,TGN10..RHD..(DCB,SCB)..(DLX,SR);GGN15,25,KUN15,36,LAN15,TGN26..RHD..(DCB,SCB,XTR)..(ARL,GEN,PKN,TH)	08/2004 - 02/2012	1
47311-0K030	KUN10,15,2#,35,TGN1#,26..LHD..(GCC,GEN,PHL)	08/2008 - 07/2011	1
47311-0K150	KUN26..DCB..5F..TH VSC-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)	08/2008 - 07/2011	1
47311 - TUBE, FRONT BRAKE, NO.1
47311-0K010	TGN16..5F..ARL;KUN16,TGN16..XTR..TH;KUN26..(DCB,SCB,XTR)..(ARL,TH);KUN25..RHD..(DCB,SCB,XTR)..(GEN,TH);KUN16,TGN10..RHD..(DCB,SCB)..(DLX,SR);GGN15,25,KUN15,36,LAN15,TGN26..RHD..(DCB,SCB,XTR)..(ARL,GEN,PKN,TH)	08/2004 - 02/2012	1
47311-0K030	KUN10,15,2#,35,TGN1#,26..LHD..(GCC,GEN,PHL)	08/2008 - 07/2011	1
47311-0K150	KUN26..DCB..5F..TH VSC-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)	08/2008 - 07/2011	1
47311A - WAY(FOR FRONT BRAKE TUBE)
90412-10252	GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) LH	08/2008 - 12/2999	1
90412-10251	TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) RH	08/2004 - 02/2012	1
90412-10251	GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) RH	08/2008 - 12/2999	1
90412-10252	TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) LH	08/2004 - 02/2012	1
47311A - WAY(FOR FRONT BRAKE TUBE)
90412-10252	GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) LH	08/2008 - 12/2999	1
90412-10251	TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) RH	08/2004 - 02/2012	1
90412-10251	GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) RH	08/2008 - 12/2999	1
90412-10252	TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) LH	08/2004 - 02/2012	1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10253	GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH)	08/2008 - 12/2999	1
90412-10253	TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA)	08/2004 - 02/2012	1
47313 - TUBE, FRONT BRAKE, NO.3
47313-0K010	KUN35..DCB..SA;KUN26..4FC..ARL;KUN15,16,25..XTR..SR;KUN26,36..(DCB,SCB,XTR)..5F..(ARL,TH);KUN16,LAN15,25,35..RHD..(DCB,SCB)..(ARL,SA);GGN15,25,KUN15,25,TGN16..RHD..(5F,5FC)..(ARL,GEN) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH	08/2004 - 10/2008	1
47313-0K020	KUN16..XTR..TH;TGN16..5F..ARL;KUN26..4FC..ARL;KUN16,TGN10..RHD..(DCB,SCB)..DLX;KUN26..(DCB,SCB,XTR)..5F..(ARL,TH);KUN25..RHD..(DCB,SCB,XTR)..(GEN,TH);GGN15,25,KUN15,36,LAN15..RHD..(DCB,SCB,XTR)..(ARL,GEN,PKN,TH)	08/2004 - 02/2012	1
47313-0K040	GGN25,KUN15,26,3#,TGN26,36..LHD..SR..(GEN,LA,PHL)	08/2008 - 12/2999	1
47313-0K130	KUN26..DCB..5F..TH VSC-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)	08/2008 - 07/2011	1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94029	KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)	08/2004 - 12/2008	2
90080-94029	TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25,35..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH	08/2008 - 12/2999	2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94029	KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)	08/2004 - 12/2008	2
90080-94029	TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25,35..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH	08/2008 - 12/2999	2
47314 - TUBE, FRONT BRAKE, NO.4
47314-0K030	KUN35..GEN,LA,SA;GGN25,KUN2#,36,LAN25,35,TGN26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,LA,PHL,SA,TH)	08/2004 - 10/2008	1
47314-0K030	GGN25..5FC..SA;TGN36..(LA,SA)..CBU;GGN25..DCB..(ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25,35..ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH	08/2008 - 12/2999	1
47315 - TUBE, FRONT BRAKE, NO.5
47315-0K020	KUN16..XTR..TH;TGN16..5F..ARL;KUN26..4FC..ARL;KUN16,TGN10..RHD..(DCB,SCB)..DLX;KUN26..(DCB,SCB,XTR)..5F..(ARL,TH);KUN25..RHD..(DCB,SCB,XTR)..(GEN,TH);GGN15,25,KUN15,36,LAN15..RHD..(DCB,SCB,XTR)..(ARL,GEN,PKN,TH)	08/2004 - 02/2012	1
47315-0K010	KUN35..DCB..SA;KUN26..4FC..ARL;KUN15,16,25..XTR..SR;KUN26,36..(DCB,SCB,XTR)..5F..(ARL,TH);KUN16,LAN15,25,35..RHD..(DCB,SCB)..(ARL,SA);GGN15,25,KUN15,25,TGN16..RHD..(5F,5FC)..(ARL,GEN) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH	08/2004 - 10/2008	1
47315-0K130	KUN26..DCB..5F..TH VSC-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)	08/2008 - 08/2010	1
47315-0K040	GGN25,KUN15,26,3#,TGN26,36..LHD..SR..(GEN,LA,PHL)	08/2008 - 12/2999	1
47315-0K150	KUN26..DCB..5F..TH VSC-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)	08/2010 - 07/2011	1
47316 - TUBE, FRONT BRAKE, NO.6
47316-0K030	KUN35..GEN,LA,SA;GGN25,KUN2#,36,LAN25,35,TGN26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,LA,PHL,SA,TH)	08/2004 - 10/2008	1
47316-0K030	GGN25..5FC..SA;TGN36..(LA,SA)..CBU;GGN25..DCB..(ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25,35..ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH	08/2008 - 12/2999	1
47319 - TUBE, FRONT BRAKE, NO.9
47319-0K020	KUN26..DCB..5F..TH VSC-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)	08/2008 - 12/2999	1
47321 - TUBE, REAR BRAKE, NO.1
47321-0K010	KUN26..4FC..ARL;KUN15,16,25..XTR..SR;KUN15,16,25..RHD..(ARL,GEN);GGN15,25,KUN26,36,TGN16..(5F,5FC)..(ARL,TH) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH	08/2004 - 08/2008	1
47321-0K030	KUN15,26,35,TGN26..LHD..SR..(GEN,PHL)	08/2008 - 07/2011	1
47321-0K110	KUN26..DCB..5F..TH VSC-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)	08/2008 - 07/2011	1
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-T2015	KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)	08/2004 - 12/2008	1
90947-T2057	KUN26..DCB..5F..TH VSC-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER),NO.1	08/2008 - 07/2011	1
90947-T2015	TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN35,KUN25,3#,LAN25,35;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN26..4FC..(ARL,GEN,LA,PHL,SA);KUN26..5F..(ARL,GEN,LA,PHL,SA,TH)	08/2008 - 12/2999	1
90947-T2058	KUN26..DCB..5F..TH VSC-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER),NO.2	08/2008 - 07/2011	1
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-T2015	KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)	08/2004 - 12/2008	1
90947-T2057	KUN26..DCB..5F..TH VSC-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER),NO.1	08/2008 - 07/2011	1
90947-T2015	TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN35,KUN25,3#,LAN25,35;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN26..4FC..(ARL,GEN,LA,PHL,SA);KUN26..5F..(ARL,GEN,LA,PHL,SA,TH)	08/2008 - 12/2999	1
90947-T2058	KUN26..DCB..5F..TH VSC-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER),NO.2	08/2008 - 07/2011	1
47322 - TUBE, REAR BRAKE, NO.2
47322-0K010	KUN26..DCB..5F..TH VSC-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)	08/2008 - 12/2999	1
47323 - TUBE, REAR BRAKE, NO.3
47323-0K010	KUN35..DCB..SA;KUN26..4FC..ARL;KUN15,16,25..XTR..SR;KUN26,36..(DCB,SCB,XTR)..5F..(ARL,TH);KUN16,LAN15,25,35..RHD..(DCB,SCB)..(ARL,SA);GGN15,25,KUN15,25,TGN16..RHD..(5F,5FC)..(ARL,GEN) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH	08/2004 - 10/2008	1
47323-0K020	KUN16..XTR..TH;TGN16..5F..ARL;KUN26..4FC..ARL;KUN16,TGN10..RHD..(DCB,SCB)..DLX;KUN26..(DCB,SCB,XTR)..5F..(ARL,TH);KUN25..RHD..(DCB,SCB,XTR)..(GEN,TH);GGN15,25,KUN15,36,LAN15..RHD..(DCB,SCB,XTR)..(ARL,GEN,PKN,TH)	08/2004 - 02/2012	1
47323-0K130	KUN26..DCB..5F..TH VSC-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)	08/2008 - 07/2011	1
47323-0K040	GGN25,KUN15,26,3#,TGN26,36..LHD..SR..(GEN,LA,PHL)	08/2008 - 12/2999	1
47324 - TUBE, REAR BRAKE, NO.4
47324-0K010	KUN26..DCB..5F..TH VSC-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)	08/2008 - 12/2999	1
47325 - TUBE, REAR BRAKE, NO.5
47325-0K120	KUN26..DCB..5F..TH VSC-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)	08/2008 - 07/2011	1
47325-0K020	TGN16..5F;KUN16,TGN16..XTR..TH;KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,SA,TH);GGN15,25,KUN15,2#,36,LAN15,25,35,TGN15,26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,PHL,SA,TH)	08/2004 - 10/2008	1
47326 - TUBE, REAR BRAKE, NO.6
47326-0K010	KUN26..DCB..5F..TH VSC-WITH	08/2008 - 07/2011	1
47329-0K021	KUN26..DCB..5F..SA;KUN25..LHD..SCB..SA;TGN36..SCB..(LA,SA);TGN26..GCC,GEN,SA,TH;KUN25..SCB..(GEN,LA);TGN36..DCB..(PHL,SA);TGN26,36..DCB..DLX..LA;KUN35..DLX..(GEN,LA,SA);KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH);KUN25..(DCB,THDCB,THSCB,XTR)..(GCC,GEN,LA,SA,TH);GGN25,KUN36,LAN25,35..(DCB,SCB,XTR)..(5F,5FC)..(ARL,LA,SA,TH)	08/2004 - 12/2008	1
47329-0K021	TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN35,KUN25,3#,LAN25,35;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);KUN26..4FC..(ARL,GEN,LA,PHL,SA);KUN26..5F..(ARL,GEN,LA,PHL,SA,TH)	08/2008 - 12/2999	1
47327 - TUBE, REAR BRAKE, NO.7
47327-0K090	KUN26..DCB..5F..TH VSC-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)	08/2008 - 07/2010	1
47327-0K020	KUN35..GEN,LA,SA;GGN25,KUN2#,36,LAN25,35,TGN26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,LA,PHL,SA,TH)	08/2004 - 10/2008	1
47327-0K020	KUN26..5F;GGN25..ARL,LA;GGN25..5FC..SA;TGN36..(LA,SA)..CBU;TGN26..LHD..(GCC,GEN,LA,SA);KUN26..4FC..(ARL,GEN,LA,PHL,SA);GGN35,KUN25,3#,LAN25,35..GCC,GEN,LA,PHL,SA,TH	08/2008 - 07/2010	1
47327-0K021	GGN25..DCB..(ARL,LA,SA);KUN26..4FC..(ARL,GEN,LA,PHL,SA);KUN26..5F..(ARL,GEN,LA,PHL,SA,TH);GGN35,KUN25,3#,LAN25,35,TGN26,36..GCC,GEN,LA,PHL,PKN,SA,TH	08/2010 - 12/2999	1
47327-0K091	KUN26..DCB..5F..TH VSC-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)	08/2010 - 07/2011	1
47328 - TUBE, REAR BRAKE, NO.8
47328-0K020	KUN26..5F;GGN25..ARL,LA;GGN25..5FC..SA;TGN36..(LA,SA)..CBU;TGN26..LHD..(GCC,GEN,LA,SA);KUN26..4FC..(ARL,GEN,LA,PHL,SA);GGN35,KUN25,3#,LAN25,35..GCC,GEN,LA,PHL,SA,TH	08/2008 - 07/2010	1
47328-0K090	KUN26..DCB..5F..TH VSC-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)	08/2008 - 07/2010	1
47328-0K020	KUN35..GEN,LA,SA;GGN25,KUN2#,36,LAN25,35,TGN26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,LA,PHL,SA,TH)	08/2004 - 10/2008	1
47328-0K091	KUN26..DCB..5F..TH VSC-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)	08/2010 - 07/2011	1
47328-0K021	GGN25..DCB..(ARL,LA,SA);KUN26..4FC..(ARL,GEN,LA,PHL,SA);KUN26..5F..(ARL,GEN,LA,PHL,SA,TH);GGN35,KUN25,3#,LAN25,35,TGN26,36..GCC,GEN,LA,PHL,PKN,SA,TH	08/2010 - 12/2999	1
47329 - TUBE, REAR BRAKE, NO.9
47329-0K090	KUN26..DCB..5F..TH VSC-WITH	08/2008 - 07/2011	1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-0K010	KUN25..RHD..SCB..SA;GGN25,KUN2#,3#,TGN26,36..ARL,GCC,GEN,PHL,TH	08/2004 - 08/2008	1
47341-0K010	TGN26..4FC;GGN25..5FC..SA;TGN36..DCB..SR;TGN36..4FC..DLX..LA;KUN26..(SCB,XTR)..ARL;GGN25..DCB..(ANCOM,ARL,LA);KUN35,TGN26..5F..SR..(LA,SA);TGN26..(DCB,SCB)..5F..(GCC,GEN);KUN25,35..(DCB,SCB,SMT)..(GCC,GEN,MA,PHL,PKN,TH);GGN35,KUN26,36..(DCB,SMT,THDCB)..(ARL,GEN,LA,PHL,SA,TH)	08/2008 - 12/2999	1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-0K010	KUN25..RHD..SCB..SA;GGN25,KUN2#,3#,TGN26,36..ARL,GCC,GEN,PHL,TH	08/2004 - 08/2008	1
47343-0K010	TGN26..4FC;GGN25..5FC..SA;TGN36..DCB..SR;TGN36..4FC..DLX..LA;KUN26..(SCB,XTR)..ARL;GGN25..DCB..(ANCOM,ARL,LA);KUN35,TGN26..5F..SR..(LA,SA);TGN26..(DCB,SCB)..5F..(GCC,GEN);KUN25,35..(DCB,SCB,SMT)..(GCC,GEN,MA,PHL,PKN,TH);GGN35,KUN26,36..(DCB,SMT,THDCB)..(ARL,GEN,LA,PHL,SA,TH)	08/2008 - 12/2999	1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-0K010	KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)	08/2004 - 12/2008	1
47351-0K010	TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25,35..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH	08/2008 - 12/2999	1
47351A - BRACKET, FLEXIBLE HOSE, FRONT RH NO.1
47353-0K020	TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25,35..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH	08/2008 - 12/2999	1
47353-0K020	GGN25,KUN2#,3#,TGN26,36..ARL,GCC,GEN,PHL,TH	08/2004 - 08/2008	1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47355-71010	KUN26..DCB..5F..TH VSC-WITH	08/2008 - 07/2011	1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-0K030	KUN35..DLX;TGN36..SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;TGN26,36..DCB..DLX..LA;KUN36..(DCB,SCB,XTR)..5F;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);GGN25,KUN25,LAN25,35..ANCOM,ARL,GCC,GEN,LA,SA;KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH)	08/2004 - 12/2008	1
47352-0K030	TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25,35..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH	08/2008 - 12/2999	1
47352A - BRACKET, FLEXIBLE HOSE, FRONT LH NO.1
47354-0K020	GGN25,KUN2#,3#,TGN26,36..ARL,GCC,GEN,PHL,TH	08/2004 - 08/2008	1
47354-0K020	TGN36..CBU;GGN25..5FC..SA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN35,KUN2#,3#,LAN25,35..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH	08/2008 - 12/2999	1
47356 - BRACKET, FLEXIBLE HOSE, NO.6
47356-0K010	KUN26..DCB..5F..TH VSC-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)	08/2008 - 12/2999	1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-T1011	KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN26..(DCB,SCB,XTR)..(ARL,TH);GGN15,25,LAN15,25,35,TGN15,26,36..RHD;KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN15,35,TGN10,16..RHD..5F..DLX..(ARL,IDN,SA)	08/2004 - 02/2012	2
90949-T1011	TGN16..XTR;TGN16..GCC,SA;TGN36..LHD..CBU;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..(GCC,GEN,LA,SA);GGN25,KUN10,15,2#,3#,LAN15,25,TGN10,11,15..LHD	08/2008 - 12/2999	1
47371C - CLAMP, BRAKE TUBE, NO.7
90461-T0001	TGN16..5F;KUN16,TGN16..XTR..TH;KUN16,35..(DCB,SCB,THDCB)..(ARL,GEN,LA,SA,TH);GGN15,25,KUN10,15,2#,36,LAN15,25,35,TGN10,11,15,26,36..(DCB,SCB,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,LA,PHL,SA,TH)	08/2004 - 10/2008	4
90461-T0001	GGN25..5FC..SA;GGN15..DCB..DLX;GGN25..DCB..(ARL,LA);TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ARL,GCC,GEN,LA,PHL,PKN,SA,TH)	08/2008 - 12/2999	4
47371E - CLAMP, BRAKE TUBE, NO.9
90949-T1005	KUN26..DCB..5F..TH VSC-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)	08/2008 - 08/2010	1
90949-T1007	KUN26..DCB..5F..TH VSC-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)	08/2010 - 12/2999	1
47372 - CLAMP, BRAKE TUBE, NO.2
90949-T1014	KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN26..(DCB,SCB,XTR)..(ARL,TH);GGN15,25,LAN15,25,35,TGN15,26,36..RHD;KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN15,35,TGN10,16..RHD..5F..DLX..(ARL,IDN,SA)	08/2004 - 02/2012	1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-T1008	KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN26..(DCB,SCB,XTR)..(ARL,TH);GGN15,25,LAN15,25,35,TGN15,26,36..RHD;KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN15,35,TGN10,16..RHD..5F..DLX..(ARL,IDN,SA)	08/2004 - 02/2012	3
90949-T1012	TGN16..XTR;TGN16..GCC,SA;TGN36..LHD..CBU;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..(GCC,GEN,LA,SA);GGN25,KUN10,15,2#,3#,LAN15,25,TGN10,11,15..LHD	08/2008 - 12/2999	4
47374B - CLAMP, BRAKE TUBE, NO.4
90949-T1009	KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN26..(DCB,SCB,XTR)..(ARL,TH);GGN15,25,LAN15,25,35,TGN15,26,36..RHD;KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN15,35,TGN10,16..RHD..5F..DLX..(ARL,IDN,SA)	08/2004 - 02/2012	1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-T1006	GGN15,25,KUN1#,2#,3#,TGN1#,26,36..ARL,GEN,PHL,SA,TH NO.1 & NO.2	08/2004 - 05/2005	6
47375 - CLAMP, BRAKE TUBE, NO.5
90949-T1006	GGN15,25,KUN1#,2#,3#,TGN1#,26,36..ARL,GEN,PHL,SA,TH NO.1 & NO.2	08/2004 - 05/2005	6
47381J - BRACKET, BRAKE TUBE CLAMP, NO.2
90949-T2001	KUN16..DCB,SCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN25..RHD..(GEN,SA);KUN16,36,TGN16..XTR..TH;KUN36..RHD..(DCB,SCB)..5F;KUN26..(DCB,SCB,XTR)..(ARL,TH);GGN15,25,LAN15,25,35,TGN15,26,36..RHD;KUN15..RHD..(DCB,SCB,XTR)..(GEN,PKN,TH);KUN15,35,TGN10,16..RHD..5F..DLX..(ARL,IDN,SA)	08/2004 - 02/2012	2
90949-T2001	TGN16..XTR;TGN16..GCC,SA;TGN36..LHD..CBU;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN26..LHD..(GCC,GEN,LA,SA);GGN25,KUN10,15,2#,3#,LAN15,25,TGN10,11,15..LHD	08/2008 - 12/2999	1
47391 - WAY, BRAKE TUBE
47391-71020	KUN26..DCB..5F..TH VSC-WITH	04/2009 - 07/2011	1
47391-0K010	KUN26..DCB..5F..TH VSC-WITH	08/2008 - 04/2009	1
Common parts
90119-08A25
90119-T0029
90119-T0126
90119-T0127
90119-T0166
90119-T0244
90468-T0004
Linked diagrams
4702
7751

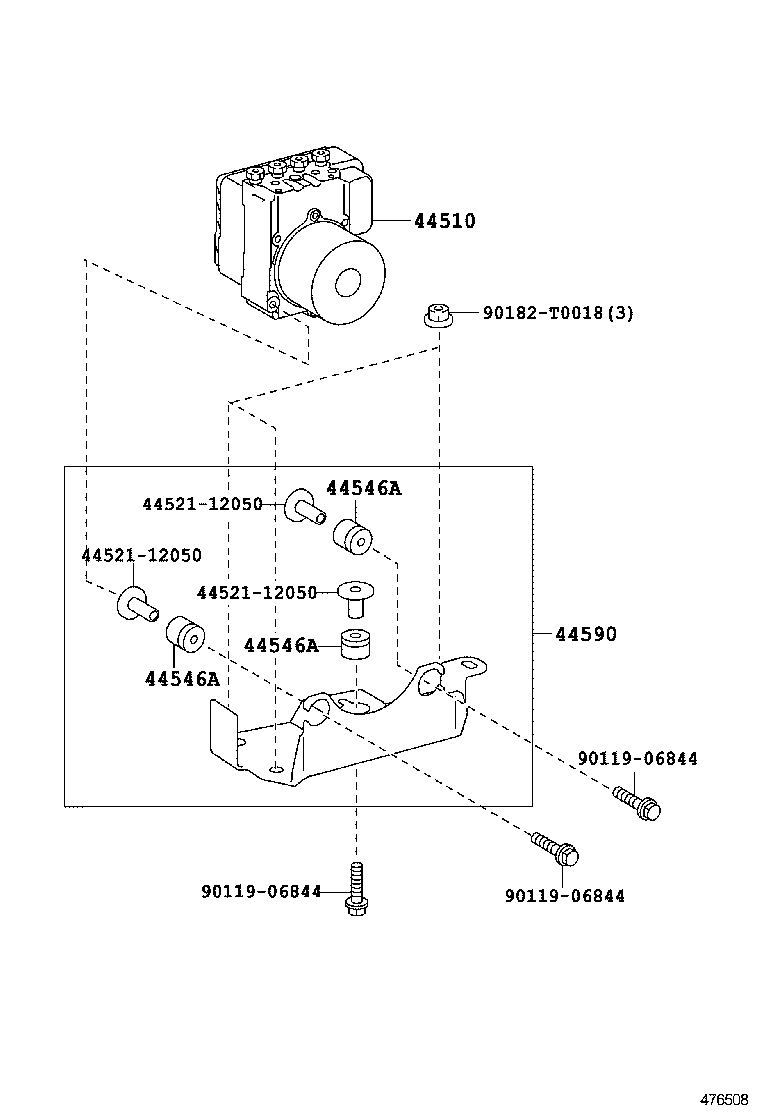

ILLUST NO. 2 OF 3(0808- )KUN26..DCB..TH ; (1008- )KUN26..DCB..ARL..CBU

Click highlighted areas on diagram

W(VSC)

Part #	Description	Period	Qty
44510 - ACTUATOR ASSY, BRAKE
44050-71030	KUN25..XTR;KUN25..LHD..SA;KUN26..4FC..ARL;KUN26,LAN25..DLX..(GEN,LA,SA);KUN26..(DCB,SCB,XTR)..5F..(ARL,TH);TGN26..LHD..(DCB,SCB)..(GCC,GEN,SA);GGN25,KUN25..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH	08/2004 - 10/2008	1
44050-71090	KUN26..DCB..5F..TH SRS AIR BAG-WITH(DRIVER & PASSENGER)	08/2008 - 08/2010	1
44050-71030	KUN26..4FC..(GEN,LA,TH);TGN26..SR..(ANCOM,GEN,TH);GGN25,KUN25..SR..(ANCOM,MA,SA);KUN26..(DCB,THDCB)..5F..SR..(GEN,LA,SA)	08/2004 - 12/2008	1
44050-71091	KUN26..DCB..5F..TH SRS AIR BAG-WITH(DRIVER & PASSENGER)	08/2010 - 07/2011	1
44050-71030	KUN26..THDCB..SR;KUN26..SR..(LA,PHL,SA);GGN25..5FC..(ANCOM,LA,SA);GGN25,KUN25,TGN26..(DCB,THDCB)..(4FC,5F)..SR..(ANCOM,ARL,GEN,LA,MA)	08/2008 - 12/2999	1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-0K010	KUN26..DCB..5F..TH VSC-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)	08/2010 - 07/2011	3
44546-60060	KUN25..SR..MA;TGN36..4FC..ANCOM;KUN36..5F..SR..(LA,SA);TGN26..SR..(ANCOM,GEN,TH);KUN26..(DCB,THDCB)..5F..SR..(GEN,LA,SA);KUN26,TGN16..(DCB,THDCB,XTR)..4FC..(GEN,LA,TH);GGN25,KUN16,TGN36..(DCB,SCB)..SR..(ANCOM,SA,TH)	08/2004 - 12/2008	3
44546-12130	KUN26..DCB..5F..TH SRS AIR BAG-WITH(DRIVER & PASSENGER)	08/2008 - 01/2009	3
44547-0K010	KUN26..DCB..5F..TH SRS AIR BAG-WITH(DRIVER & PASSENGER)	02/2009 - 08/2010	3
44546-60060	KUN26..4FC..ARL;KUN26..LHD..DLX;KUN15,25..LHD..SA;KUN15,16,25..XTR..SR;KUN35..(DCB,THDCB)..(GEN,SA);LAN15,25,35,TGN16..5F..(DLX,SR);KUN16,36..(DCB,SCB)..DLX..(ARL,LA);TGN26..LHD..(DCB,SCB)..(GCC,GEN,SA);KUN26,36..(DCB,SCB,XTR)..5F..(ARL,TH);GGN15,25,KUN10,15,25,TGN10,11,15..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH	08/2004 - 10/2008	3
44546-60060	KUN26..THDCB..SR;TGN36..4FC..ANCOM;KUN26,3#,TGN36..SR..(LA,PHL,SA);GGN25,35,KUN16,TGN16..(4FC,5FC)..(ANCOM,LA,SA,TH);GGN25,KUN15,25,TGN26..(DCB,THDCB)..(4FC,5F)..SR..(ANCOM,ARL,GEN,LA,MA,PHL)	08/2008 - 12/2999	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-0K010	KUN26..DCB..5F..TH VSC-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)	08/2010 - 07/2011	3
44546-60060	KUN25..SR..MA;TGN36..4FC..ANCOM;KUN36..5F..SR..(LA,SA);TGN26..SR..(ANCOM,GEN,TH);KUN26..(DCB,THDCB)..5F..SR..(GEN,LA,SA);KUN26,TGN16..(DCB,THDCB,XTR)..4FC..(GEN,LA,TH);GGN25,KUN16,TGN36..(DCB,SCB)..SR..(ANCOM,SA,TH)	08/2004 - 12/2008	3
44546-12130	KUN26..DCB..5F..TH SRS AIR BAG-WITH(DRIVER & PASSENGER)	08/2008 - 01/2009	3
44547-0K010	KUN26..DCB..5F..TH SRS AIR BAG-WITH(DRIVER & PASSENGER)	02/2009 - 08/2010	3
44546-60060	KUN26..4FC..ARL;KUN26..LHD..DLX;KUN15,25..LHD..SA;KUN15,16,25..XTR..SR;KUN35..(DCB,THDCB)..(GEN,SA);LAN15,25,35,TGN16..5F..(DLX,SR);KUN16,36..(DCB,SCB)..DLX..(ARL,LA);TGN26..LHD..(DCB,SCB)..(GCC,GEN,SA);KUN26,36..(DCB,SCB,XTR)..5F..(ARL,TH);GGN15,25,KUN10,15,25,TGN10,11,15..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH	08/2004 - 10/2008	3
44546-60060	KUN26..THDCB..SR;TGN36..4FC..ANCOM;KUN26,3#,TGN36..SR..(LA,PHL,SA);GGN25,35,KUN16,TGN16..(4FC,5FC)..(ANCOM,LA,SA,TH);GGN25,KUN15,25,TGN26..(DCB,THDCB)..(4FC,5F)..SR..(ANCOM,ARL,GEN,LA,MA,PHL)	08/2008 - 12/2999	3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-0K010	KUN26..DCB..5F..TH VSC-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)	08/2010 - 07/2011	3
44546-60060	KUN25..SR..MA;TGN36..4FC..ANCOM;KUN36..5F..SR..(LA,SA);TGN26..SR..(ANCOM,GEN,TH);KUN26..(DCB,THDCB)..5F..SR..(GEN,LA,SA);KUN26,TGN16..(DCB,THDCB,XTR)..4FC..(GEN,LA,TH);GGN25,KUN16,TGN36..(DCB,SCB)..SR..(ANCOM,SA,TH)	08/2004 - 12/2008	3
44546-12130	KUN26..DCB..5F..TH SRS AIR BAG-WITH(DRIVER & PASSENGER)	08/2008 - 01/2009	3
44547-0K010	KUN26..DCB..5F..TH SRS AIR BAG-WITH(DRIVER & PASSENGER)	02/2009 - 08/2010	3
44546-60060	KUN26..4FC..ARL;KUN26..LHD..DLX;KUN15,25..LHD..SA;KUN15,16,25..XTR..SR;KUN35..(DCB,THDCB)..(GEN,SA);LAN15,25,35,TGN16..5F..(DLX,SR);KUN16,36..(DCB,SCB)..DLX..(ARL,LA);TGN26..LHD..(DCB,SCB)..(GCC,GEN,SA);KUN26,36..(DCB,SCB,XTR)..5F..(ARL,TH);GGN15,25,KUN10,15,25,TGN10,11,15..(DCB,SCB,THDCB,XTR)..(ARL,GCC,GEN) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH	08/2004 - 10/2008	3
44546-60060	KUN26..THDCB..SR;TGN36..4FC..ANCOM;KUN26,3#,TGN36..SR..(LA,PHL,SA);GGN25,35,KUN16,TGN16..(4FC,5FC)..(ANCOM,LA,SA,TH);GGN25,KUN15,25,TGN26..(DCB,THDCB)..(4FC,5F)..SR..(ANCOM,ARL,GEN,LA,MA,PHL)	08/2008 - 12/2999	3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44591-0K020	KUN35..DCB..SA;KUN26..4FC..ARL;KUN15,16,25..XTR..SR;KUN26,36..(DCB,SCB,XTR)..5F..(ARL,TH);KUN16,LAN15,25,35..RHD..(DCB,SCB)..(ARL,SA);GGN15,25,KUN15,25,TGN16..RHD..(5F,5FC)..(ARL,GEN) ABS (ANTI-LOCK BRAKE SYSTEM)-WITH	08/2004 - 10/2008	1
44590-0K030	KUN26..DCB..5F..TH SRS AIR BAG-WITH(DRIVER & PASSENGER)	08/2008 - 08/2010	1
44590-0K010	TGN36..4FC..ANCOM;KUN26..LHD..SR..(GEN,PHL);GGN25,KUN15,35,TGN26,36..LHD..SR	08/2008 - 06/2011	1
44590-0K040	KUN26..DCB..5F..TH VSC-WITH&SRS AIR BAG-WITH(DRIVER & PASSENGER)	08/2010 - 07/2011	1
44590-0K011	TGN36..4FC;GGN25,KUN15,26,3#,TGN26..LHD..SR	06/2011 - 12/2999	1
Common parts
44521-12050
90119-06844
90182-T0018

KUN26L-HRMSY (2008)

ILLUST NO. 1 OF 3(0808- )KUN26..DCB..TH ; (1008- )KUN26..DCB..ARL..CBU

ILLUST NO. 2 OF 3(0808- )KUN26..DCB..TH ; (1008- )KUN26..DCB..ARL..CBU

Part Price Details
