Toyota Hilux KUN25 HEATING & AIR CONDITIONING - COMPRESSOR

Manufacturers Home
Toyota
US
HILUX
KUN25R-PRMDHN (2005)
8719 - HEATING & AIR CONDITIONING - COMPRESSOR

KUN25R-PRMDHN (2005)

Toyota Hilux

Production Apr 2005 - Oct 2008

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0507-0810)LAN15,25,35..SA ; (0710- )LAN15..PKN

Click highlighted areas on diagram

Part #	Description	Period	Qty

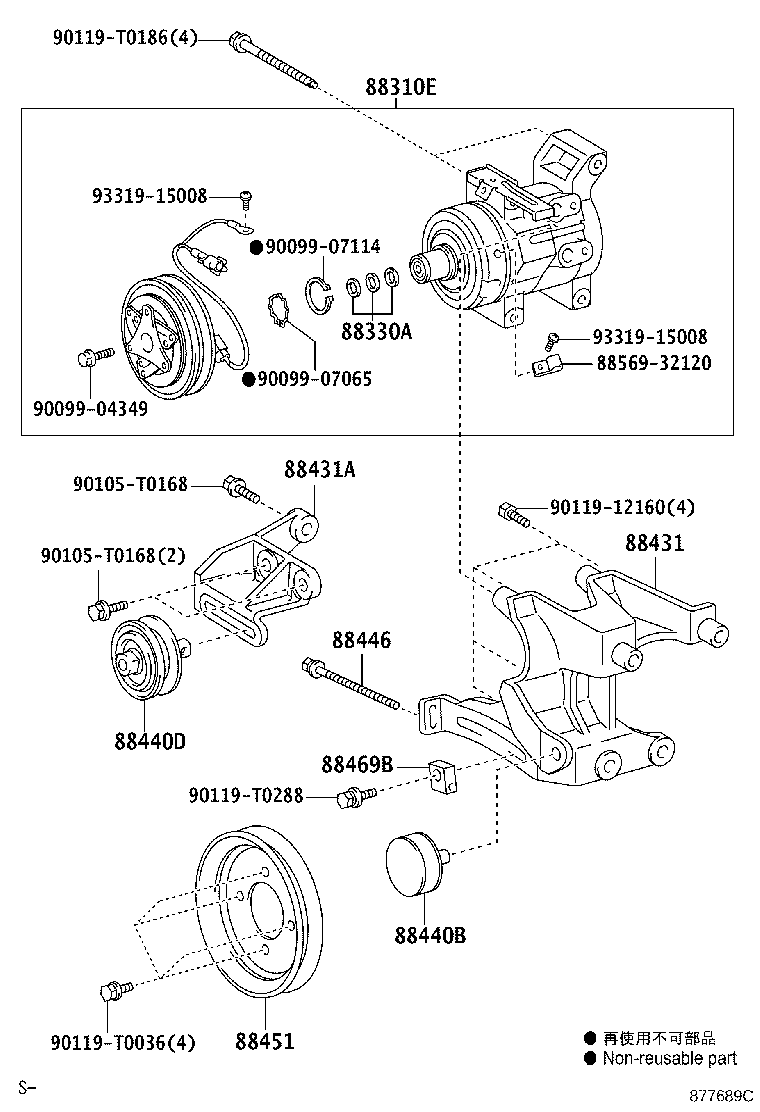

88310E - COMPRESSOR, W/MAGNET CLUTCH
88310-0K130	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 11/2007	1
88310-0K111	KUN15,25..SA;KUN35..DCB..SA SINGLE AIR CONDITIONER	12/2007 - 03/2008	1
88310-0K110	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 11/2007	1
88310-0K131	LAN15,25,35..SA SINGLE AIR CONDITIONER	12/2007 - 03/2008	1
88310-0K132	LAN15,25,35..SA SINGLE AIR CONDITIONER	04/2008 - 10/2008	1
88310-0K112	KUN15,25..SA;KUN35..DCB..SA SINGLE AIR CONDITIONER	04/2008 - 10/2008	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-0K060	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
88431-0K080	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88431A - BRACKET, COMPRESSOR MOUNTING, NO.2
88431-0K090	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88440B - PULLEY ASSY, IDLE
88440-0K270	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88440-0K250	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
88440D - PULLEY ASSY, IDLE NO.2
88440-0K030	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
88440-0K280	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88446 - BOLT, IDLE PULLEY
88446-60020	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88469B - COLLAR
88469-30280	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
Common parts
88569-32120
90099-04349
90099-07065
90099-07114
90105-T0168
90119-12160
90119-T0036
90119-T0186
90119-T0288
93319-15008

(0504-0810)KUN15,2#,3#..SA

Click highlighted areas on diagram

Part #	Description	Period	Qty
88310E - COMPRESSOR, W/MAGNET CLUTCH
88310-0K130	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 11/2007	1
88310-0K111	KUN15,25..SA;KUN35..DCB..SA SINGLE AIR CONDITIONER	12/2007 - 03/2008	1
88310-0K110	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 11/2007	1
88310-0K131	LAN15,25,35..SA SINGLE AIR CONDITIONER	12/2007 - 03/2008	1
88310-0K132	LAN15,25,35..SA SINGLE AIR CONDITIONER	04/2008 - 10/2008	1
88310-0K112	KUN15,25..SA;KUN35..DCB..SA SINGLE AIR CONDITIONER	04/2008 - 10/2008	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-0K060	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
88431-0K080	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88440B - PULLEY ASSY, IDLE
88440-0K270	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88440-0K250	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
88440D - PULLEY ASSY, IDLE NO.2
88440-0K030	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
88440-0K280	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88688K - BRACKET, COOLER COMPRESSOR
88688-0K140	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
Common parts
88569-60070
90099-04349
90099-07065
90099-07114
90105-T0040
90105-T0066
90119-T0186
93319-15008
Linked diagrams
1601

(0808- )KUN1#,25,36..DLX,SR..GCC,GEN,PHL,TH ;(0809- )MA ; (0810- )KUN15,2

Click highlighted areas on diagram

Part #	Description	Period	Qty
88310E - COMPRESSOR, W/MAGNET CLUTCH
88310-0K130	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 11/2007	1
88310-0K130	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 11/2007	1
88310-0K130	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 11/2007	1
88310-0K111	KUN15,25..SA;KUN35..DCB..SA SINGLE AIR CONDITIONER	12/2007 - 03/2008	1
88310-0K111	KUN15,25..SA;KUN35..DCB..SA SINGLE AIR CONDITIONER	12/2007 - 03/2008	1
88310-0K111	KUN15,25..SA;KUN35..DCB..SA SINGLE AIR CONDITIONER	12/2007 - 03/2008	1
88310-0K110	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 11/2007	1
88310-0K110	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 11/2007	1
88310-0K110	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 11/2007	1
88310-0K131	LAN15,25,35..SA SINGLE AIR CONDITIONER	12/2007 - 03/2008	1
88310-0K131	LAN15,25,35..SA SINGLE AIR CONDITIONER	12/2007 - 03/2008	1
88310-0K131	LAN15,25,35..SA SINGLE AIR CONDITIONER	12/2007 - 03/2008	1
88310-0K132	LAN15,25,35..SA SINGLE AIR CONDITIONER	04/2008 - 10/2008	1
88310-0K132	LAN15,25,35..SA SINGLE AIR CONDITIONER	04/2008 - 10/2008	1
88310-0K132	LAN15,25,35..SA SINGLE AIR CONDITIONER	04/2008 - 10/2008	1
88310-0K112	KUN15,25..SA;KUN35..DCB..SA SINGLE AIR CONDITIONER	04/2008 - 10/2008	1
88310-0K112	KUN15,25..SA;KUN35..DCB..SA SINGLE AIR CONDITIONER	04/2008 - 10/2008	1
88310-0K112	KUN15,25..SA;KUN35..DCB..SA SINGLE AIR CONDITIONER	04/2008 - 10/2008	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-0K060	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
88431-0K060	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
88431-0K060	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
88431-0K080	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88431-0K080	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88431-0K080	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88440B - PULLEY ASSY, IDLE
88440-0K270	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88440-0K270	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88440-0K270	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88440-0K250	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
88440-0K250	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
88440-0K250	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
88440D - PULLEY ASSY, IDLE NO.2
88440-0K030	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
88440-0K030	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
88440-0K030	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
88440-0K280	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88440-0K280	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88440-0K280	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88688K - BRACKET, COOLER COMPRESSOR
88688-0K140	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
88688-0K140	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
88688-0K140	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
Common parts
88569-60070
90099-04349
90099-07065
90099-07114
90105-T0066
90105-T0125
90119-T0232
91512-81040
93319-15008
Linked diagrams
1601

(0808- )KUN16..XTR ; (0808- )KUN26..THDCB; (0808- )KUN35..DLX..GEN,PHL ;

Click highlighted areas on diagram

Part #	Description	Period	Qty
88310E - COMPRESSOR, W/MAGNET CLUTCH
88310-0K130	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 11/2007	1
88310-0K130	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 11/2007	1
88310-0K130	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 11/2007	1
88310-0K111	KUN15,25..SA;KUN35..DCB..SA SINGLE AIR CONDITIONER	12/2007 - 03/2008	1
88310-0K111	KUN15,25..SA;KUN35..DCB..SA SINGLE AIR CONDITIONER	12/2007 - 03/2008	1
88310-0K111	KUN15,25..SA;KUN35..DCB..SA SINGLE AIR CONDITIONER	12/2007 - 03/2008	1
88310-0K110	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 11/2007	1
88310-0K110	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 11/2007	1
88310-0K110	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 11/2007	1
88310-0K131	LAN15,25,35..SA SINGLE AIR CONDITIONER	12/2007 - 03/2008	1
88310-0K131	LAN15,25,35..SA SINGLE AIR CONDITIONER	12/2007 - 03/2008	1
88310-0K131	LAN15,25,35..SA SINGLE AIR CONDITIONER	12/2007 - 03/2008	1
88310-0K132	LAN15,25,35..SA SINGLE AIR CONDITIONER	04/2008 - 10/2008	1
88310-0K132	LAN15,25,35..SA SINGLE AIR CONDITIONER	04/2008 - 10/2008	1
88310-0K132	LAN15,25,35..SA SINGLE AIR CONDITIONER	04/2008 - 10/2008	1
88310-0K112	KUN15,25..SA;KUN35..DCB..SA SINGLE AIR CONDITIONER	04/2008 - 10/2008	1
88310-0K112	KUN15,25..SA;KUN35..DCB..SA SINGLE AIR CONDITIONER	04/2008 - 10/2008	1
88310-0K112	KUN15,25..SA;KUN35..DCB..SA SINGLE AIR CONDITIONER	04/2008 - 10/2008	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-0K060	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
88431-0K060	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
88431-0K060	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
88431-0K080	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88431-0K080	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88431-0K080	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88440B - PULLEY ASSY, IDLE
88440-0K270	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88440-0K270	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88440-0K270	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88440-0K250	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
88440-0K250	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
88440-0K250	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
88440D - PULLEY ASSY, IDLE NO.2
88440-0K030	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
88440-0K030	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
88440-0K030	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
88440-0K280	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88440-0K280	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88440-0K280	LAN15,25,35..SA SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88688K - BRACKET, COOLER COMPRESSOR
88688-0K140	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
88688-0K140	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
88688-0K140	KUN15..SA;KUN25,35..DCB..SA;KUN25..LHD..SCB..SA SINGLE AIR CONDITIONER	04/2005 - 10/2008	1
Common parts
88569-60070
90099-04349
90099-07065
90099-07114
90105-T0066
90105-T0125
90119-T0232
91512-81040
93319-15008
Linked diagrams
1601

KUN25R-PRMDHN (2005)

(0507-0810)LAN15,25,35..SA ; (0710- )LAN15..PKN

(0504-0810)KUN15,2#,3#..SA

(0808- )KUN1#,25,36..DLX,SR..GCC,GEN,PHL,TH ;(0809- )MA ; (0810- )KUN15,2

(0808- )KUN16..XTR ; (0808- )KUN26..THDCB; (0808- )KUN35..DLX..GEN,PHL ;
