KUN25L-TRMDHG3 (2011)

Toyota Hilux

Production Oct 2011 - Oct 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

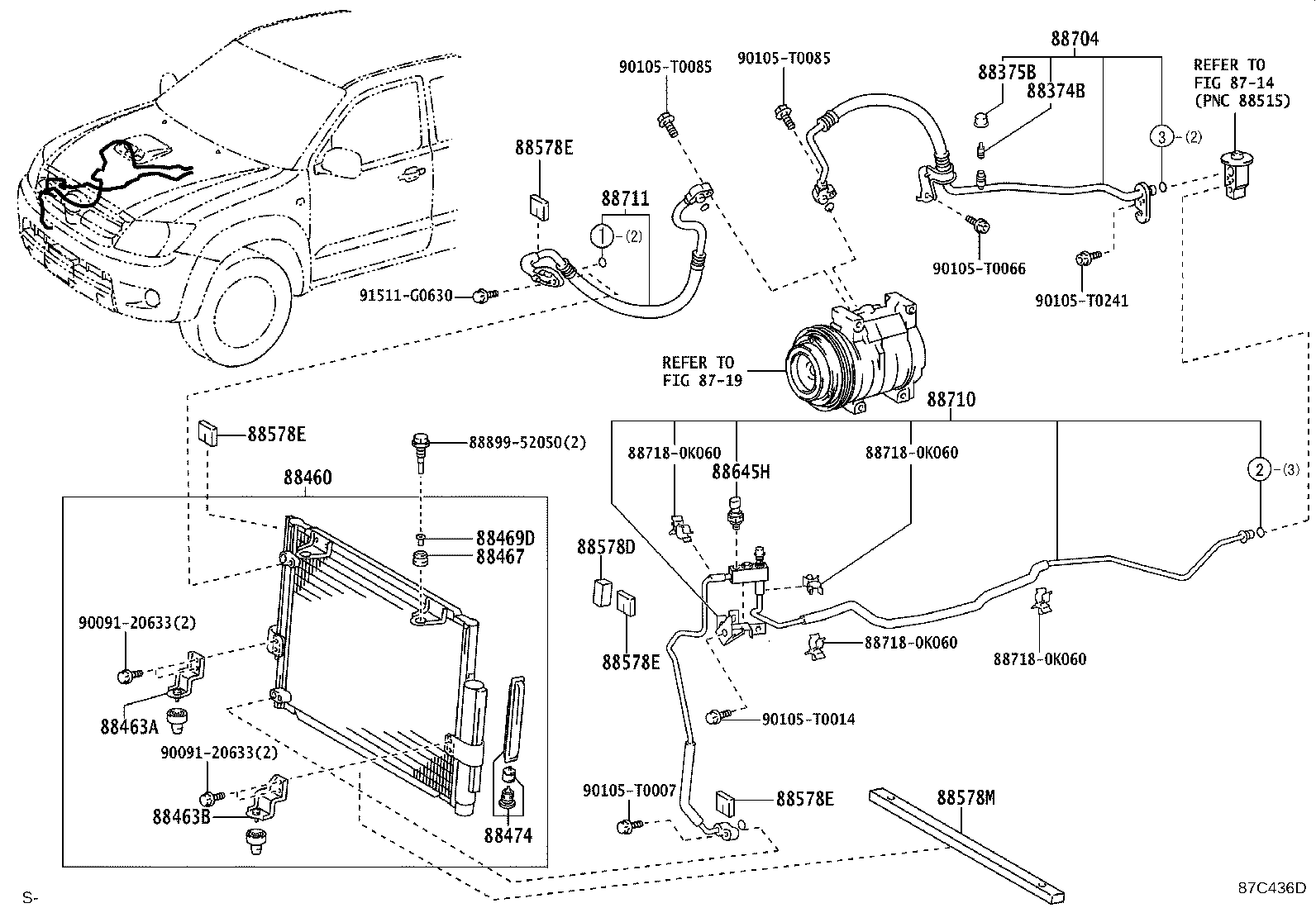

ILLUST NO. 1 OF 2(1110- )KUN2#,3#..CO,LA

Click highlighted areas on diagram

diagram 8714 8719 88374B 88375B 88460 88463A 88463B 88467 88469D 88474 88578D 88578E 88578E 88578E 88578E 88578M 88645H 88704 88710 88711 887180K060 887180K060 887180K060 887180K060 8889952050 9009120633 9009120633 90105T0007 90105T0014 90105T0066 90105T0085 90105T0085 90105T0241 91511G0630
Part # Description Qty Price
88578D - PACKING, COOLER PIPE, NO.1
88578-0K230

KUN2#,3#,TGN26,36..CO,LA

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-0K220

KUN2#,3#,TGN26,36..CO,LA

 4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K220

KUN2#,3#,TGN26,36..CO,LA

 4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K220

KUN2#,3#,TGN26,36..CO,LA

 4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K220

KUN2#,3#,TGN26,36..CO,LA

 4
88578M - PACKING, COOLING PIPE, NO.3
88578-0K211

KUN2#,3#..CO,LA

 1
Common parts
88718-0K060
88899-52050
90091-20633
90105-T0007
90105-T0014
90105-T0066
90105-T0085
90105-T0241
91511-G0630
Linked diagrams
8714
8719
