KUN25L-TRMDHG3 (2011)

Toyota Hilux

Production Oct 2011 - Oct 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1110- )DCR,HDCR..LA ; (1410- )KUN2#,35..CO

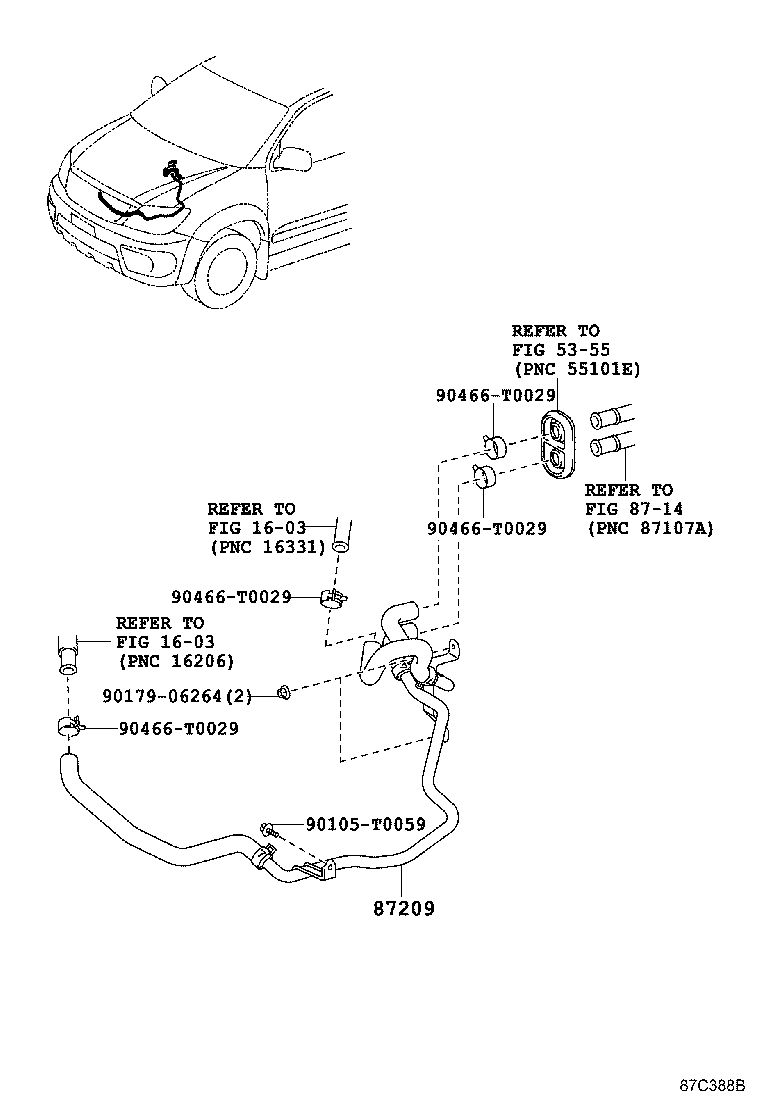

Click highlighted areas on diagram

EURO 4

diagram 1603 1603 5355 8714 87209 90105T0059 9017906264 90466T0029 90466T0029 90466T0029 90466T0029
Part # Description Qty Price
87209 - HOSE SUB-ASSY, WATER
87209-0K430

KUN26..LHD..DCB..5FC..DCR;KUN2#,3#..5F..(DCR,HDCR)..LA

 1
Common parts
90105-T0059
90179-06264
90466-T0029
Linked diagrams
1603
5355
8714

(1110- )4FC,5F..DCR,HDCR..CO,LA

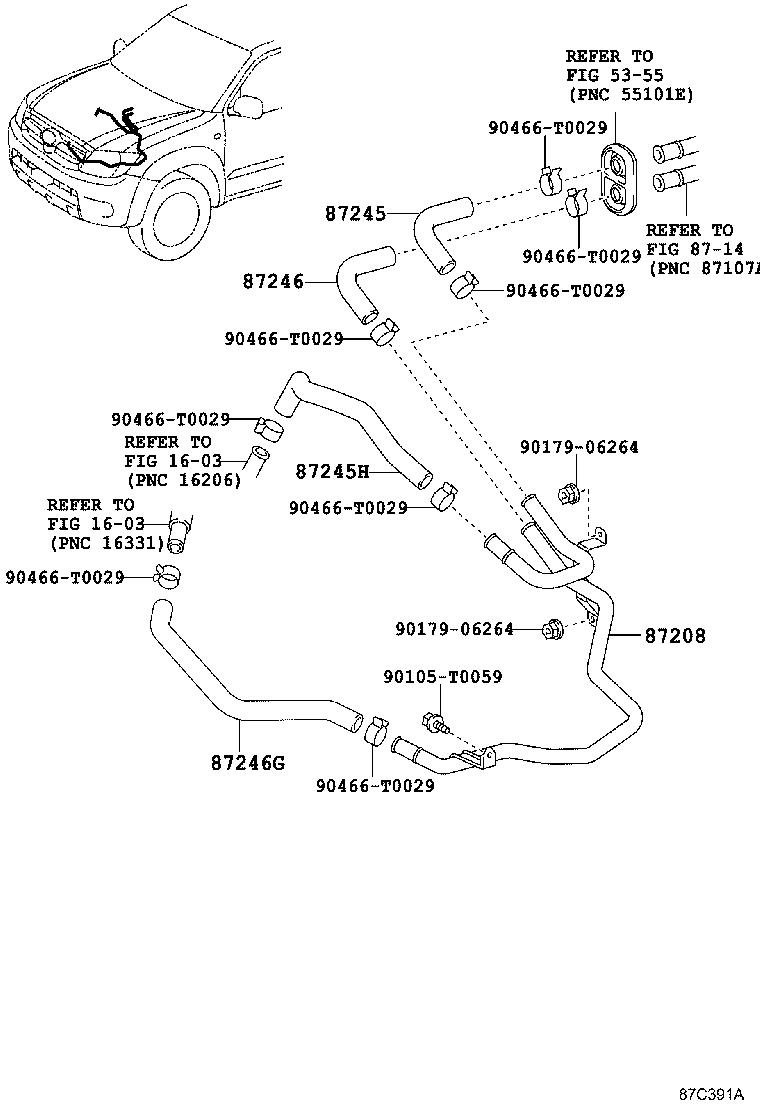

Click highlighted areas on diagram

EXCEPT EURO 4

diagram 1603 1603 5355 8714 87208 87245 87245H 87246 87246G 90105T0059 9017906264 9017906264 90466T0029 90466T0029 90466T0029 90466T0029 90466T0029 90466T0029 90466T0029 90466T0029
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-0K090

KUN35..DCB..LA;KUN25,36..DLX..LA

BRAZIL SPEC

 1
87245 - HOSE, HEATER WATER, INLET
87245-0K650

KUN35..DCB..LA;KUN25,36..DLX..LA

BRAZIL SPEC

 1
87245H - HOSE, HEATER WATER, INLET H
87245-0K030

KUN35..DCB..LA;KUN25,36..DLX..LA

BRAZIL SPEC

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-0K650

KUN35..DCB..LA;KUN25,36..DLX..LA

BRAZIL SPEC

 1
87246G - HOSE, HEATER WATER, OUTLET G
87245-0K660

KUN35..DCB..LA;KUN25,36..DLX..LA

BRAZIL SPEC

 1
Common parts
90105-T0059
90179-06264
90466-T0029
Linked diagrams
1603
5355
8714
