KUN25L-TRMDHG3 (2011)

Toyota Hilux

Production Oct 2011 - Oct 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1110- )IART ; (1110- )4FC,5F..DCR,HDCR,HTWCF..LA

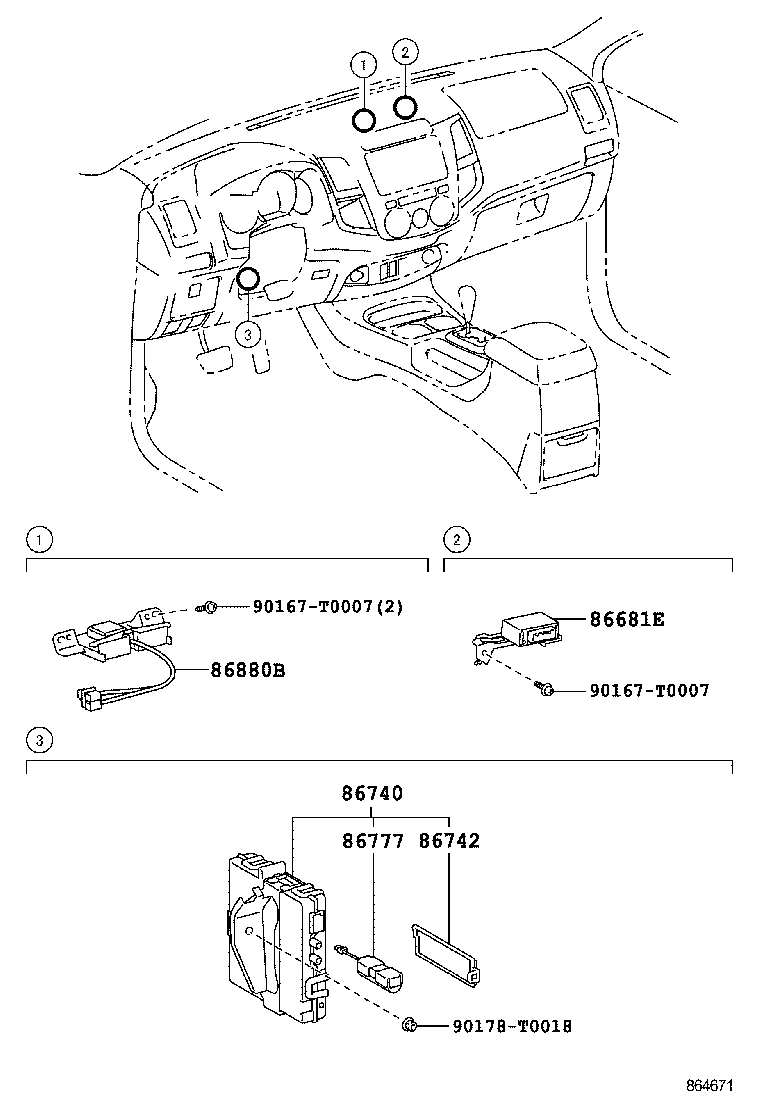

Click highlighted areas on diagram

diagram 86681E 86740 86742 86777 86880B 90167T0007 90167T0007 90178T0018
Part # Description Qty Price
86740 - TRANSCEIVER ASSY, TELEPHONE
86740-0K030

TGN36..SCB..HTWCF;KUN2#,35..5F..DLX..(HDCR,IART)..LA

ANTI-THEFT SYSTEM-*IM & WITH(TRACKING & BLOCKING SYSTEM)

 1
86742 - COVER, TRANSCEIVER
86742-02020

TGN36..SCB..HTWCF;KUN2#,35..5F..DLX..(HDCR,IART)..LA

ANTI-THEFT SYSTEM-*IM & WITH(TRACKING & BLOCKING SYSTEM)

 1
86777 - BATTERY, MAYDAY
86777-02010

KUN25,35..LA

ANTI-THEFT SYSTEM-*IM & WITH(TRACKING & BLOCKING SYSTEM)

 1
86880B - ANTENNA ASSY, INSTRUMENT PANEL INTEGRATION
86880-0K010

KUN25,35..LA

ANTI-THEFT SYSTEM-*IM & WITH(TRACKING & BLOCKING SYSTEM)

 1
Common parts
90167-T0007
90178-T0018
