KUN25L-TRMDHG3 (2011)

Toyota Hilux

Production Oct 2011 - Oct 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1110-1202)1KDFTV..KUN26..5F..LA ; (1110-1202)1KDFTV,2KDFTV..KUN25,3#..CO,LA

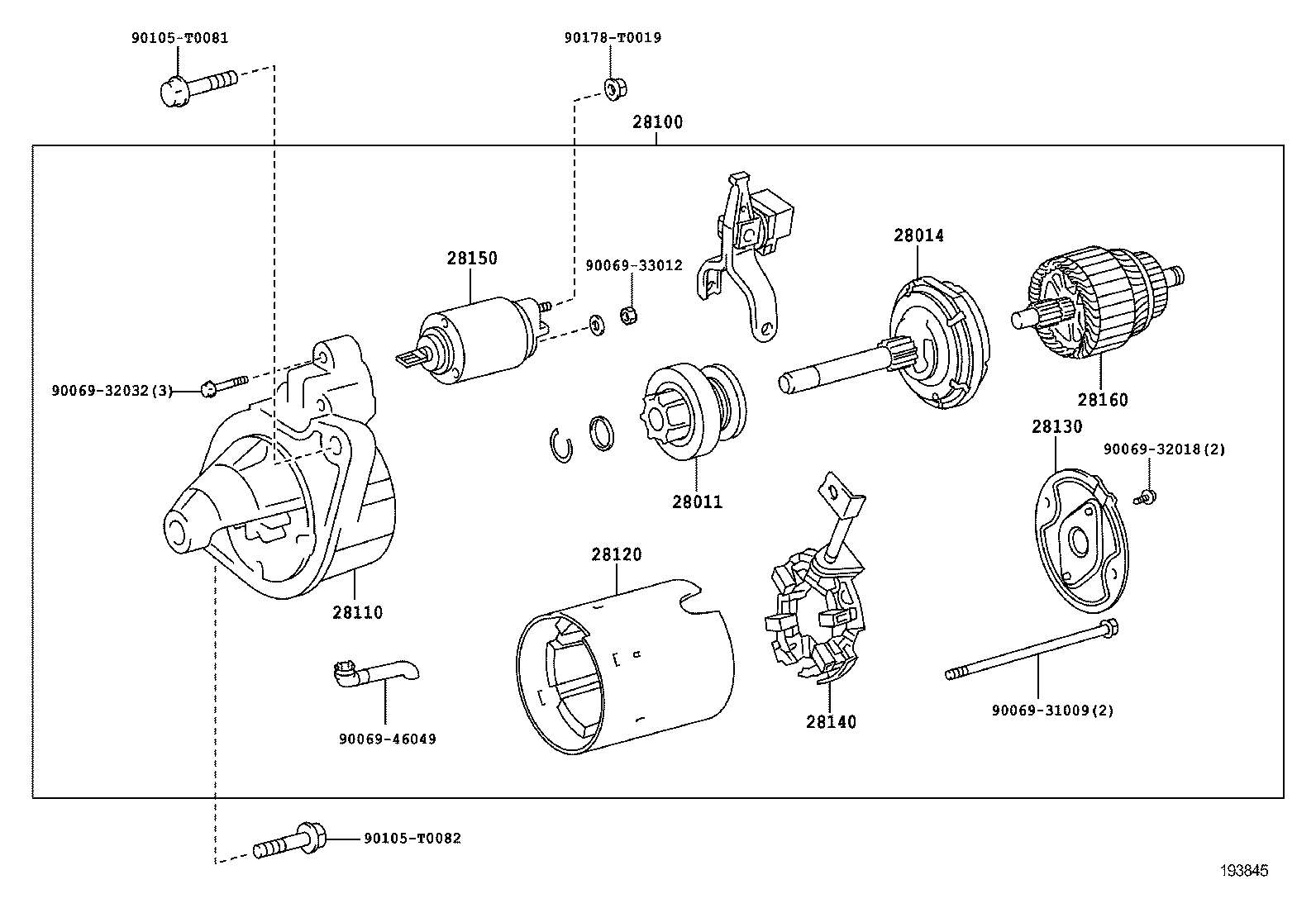

Click highlighted areas on diagram

12V 2.2KW

diagram 28011 28014 28100 28110 28120 28130 28140 28150 28160 9006931009 9006932018 9006932032 9006933012 9006946049 90105T0081 90105T0082 90178T0019
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-0L071

1KDFTV..KUN26..5F..LA;1KDFTV,2KDFTV..KUN25,3#..CO,LA

 1
28011-0L072

1KDFTV..KUN26..5F..LA;1KDFTV,2KDFTV..KUN25,3#..CO,LA

 1
28014 - SHAFT SUB-ASSY, PLANET CARRIER
28014-0L070

1KDFTV..KUN26..5F..LA;1KDFTV,2KDFTV..KUN25,3#..CO,LA

 1
28100 - STARTER ASSY
28100-0L071

1KDFTV..KUN26..5F..LA;1KDFTV,2KDFTV..KUN25,3#..CO,LA

12V 2.2KW

 1
28100-0L072

1KDFTV..KUN26..5F..LA;1KDFTV,2KDFTV..KUN25,3#..CO,LA

12V 2.2KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-0L071

1KDFTV..KUN26..5F..LA;1KDFTV,2KDFTV..KUN25,3#..CO,LA

 1
28120 - YOKE ASSY, STARTER
28120-0L070

1KDFTV..KUN26..5F..LA;1KDFTV,2KDFTV..KUN25,3#..CO,LA

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-0L070

1KDFTV..KUN26..5F..LA;1KDFTV,2KDFTV..KUN25,3#..CO,LA

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-0L070

1KDFTV..KUN26..5F..LA;1KDFTV,2KDFTV..KUN25,3#..CO,LA

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-0L071

1KDFTV..KUN26..5F..LA;1KDFTV,2KDFTV..KUN25,3#..CO,LA

 1
28160 - ARMATURE ASSY, STARTER
28160-0L070

1KDFTV..KUN26..5F..LA;1KDFTV,2KDFTV..KUN25,3#..CO,LA

 1
Common parts
90069-31009
90069-32018
90069-32032
90069-33012
90069-46049
90105-T0081
90105-T0082
90178-T0019

(1202- )1KDFTV,2KDFTV..KUN2#,3#..CO,LA

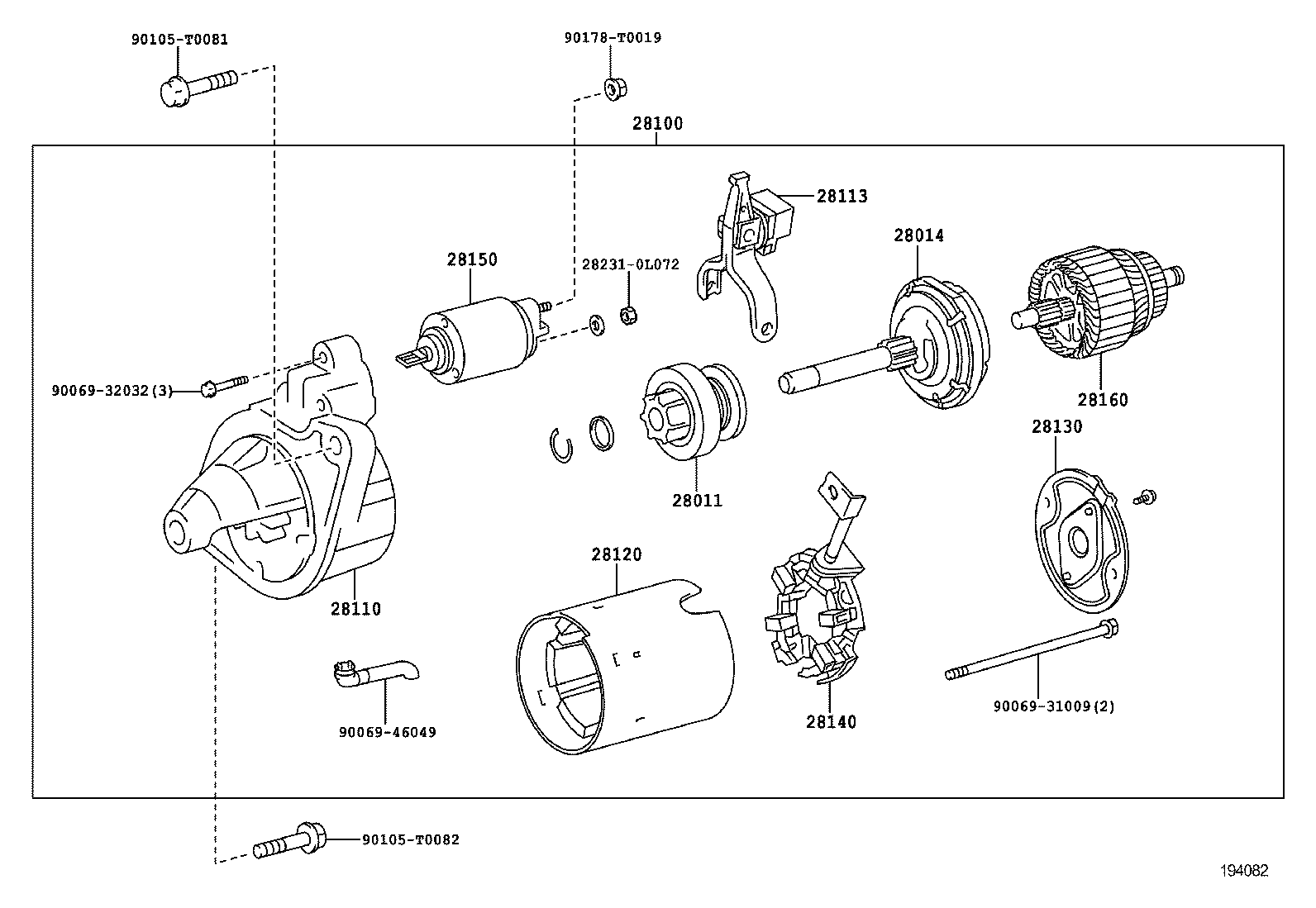

Click highlighted areas on diagram

12V 2.2KW

diagram 28011 28014 28100 28110 28113 28120 28130 28140 28150 28160 282310L072 9006931009 9006932032 9006946049 90105T0081 90105T0082 90178T0019
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-0L071

1KDFTV..KUN26..5F..LA;1KDFTV,2KDFTV..KUN25,3#..CO,LA

 1
28011-0L072

1KDFTV..KUN26..5F..LA;1KDFTV,2KDFTV..KUN25,3#..CO,LA

 1
28014 - SHAFT SUB-ASSY, PLANET CARRIER
28014-0L070

1KDFTV..KUN26..5F..LA;1KDFTV,2KDFTV..KUN25,3#..CO,LA

 1
28100 - STARTER ASSY
28100-0L071

1KDFTV..KUN26..5F..LA;1KDFTV,2KDFTV..KUN25,3#..CO,LA

12V 2.2KW

 1
28100-0L072

1KDFTV..KUN26..5F..LA;1KDFTV,2KDFTV..KUN25,3#..CO,LA

12V 2.2KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-0L071

1KDFTV..KUN26..5F..LA;1KDFTV,2KDFTV..KUN25,3#..CO,LA

 1
28113 - LEVER, STARTER PINION DRIVE
28113-0L072

1KDFTV..KUN26..5F..LA;1KDFTV,2KDFTV..KUN25,3#..CO,LA

 1
28120 - YOKE ASSY, STARTER
28120-0L070

1KDFTV..KUN26..5F..LA;1KDFTV,2KDFTV..KUN25,3#..CO,LA

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-0L070

1KDFTV..KUN26..5F..LA;1KDFTV,2KDFTV..KUN25,3#..CO,LA

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-0L070

1KDFTV..KUN26..5F..LA;1KDFTV,2KDFTV..KUN25,3#..CO,LA

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-0L071

1KDFTV..KUN26..5F..LA;1KDFTV,2KDFTV..KUN25,3#..CO,LA

 1
28160 - ARMATURE ASSY, STARTER
28160-0L070

1KDFTV..KUN26..5F..LA;1KDFTV,2KDFTV..KUN25,3#..CO,LA

 1
Common parts
28231-0L072
90069-31009
90069-32032
90069-46049
90105-T0081
90105-T0082
90178-T0019
