KUN25L-FRMDH (2011)
Toyota Hilux

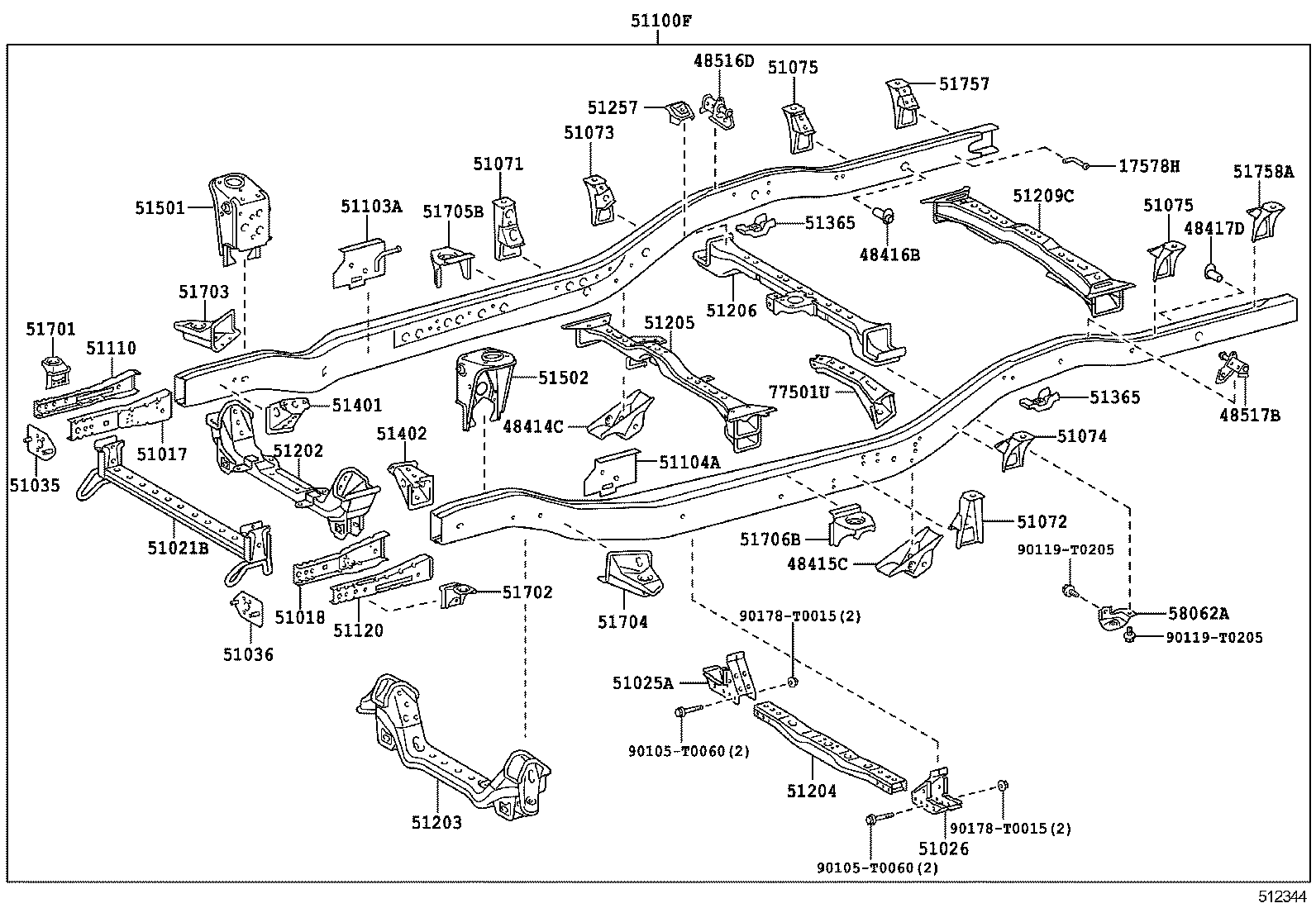

ILLUST NO. 1 OF 2(1107- )KUN2#,3#,LAN25,TGN26,36..SCB,THSCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17571A - BRACKET, EXHAUST PIPE SUPPORT, NO.9 | ||||
| 17571-0L010 |
2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN35..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN10,15,26,36..ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KUN16,25,LAN15,25,35,TGN1#,26,36..(4FC,5F)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,SA,TH) |
1 | ||
| 17578H - BRACKET, EXHAUST PIPE SUPPORT, NO.10 | ||||
| 17505-0L010 |
1GRFE..GGN15,25,35;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48404-0K020 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48407-0K020 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48405-0K010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48405-0K010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-0K010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH | ||||
| 48505-0K010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-0K020 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-0K020 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 51021B - CROSSMEMBER SUB-ASSY, FRAME AUXILIARY | ||||
| 51021-0K020 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 51025A - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, RH | ||||
| 51025-0K020 |
KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 51025-0K030 |
KUN16..4FC,5F;KUN35..LHD..GEN;KUN35..PHL,SA,TH;GGN15,25,35,KUN10,15,2#,36,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 51026 - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, LH | ||||
| 51026-0K020 |
KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 51026-0K030 |
KUN16..4FC,5F;KUN35..LHD..GEN;KUN35..PHL,SA,TH;GGN15,25,35,KUN10,15,2#,36,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 51035 - PLATE SUB-ASSY, FRAME SIDE RAIL, RH | ||||
| 51035-0K010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 51036 - PLATE SUB-ASSY, FRAME SIDE RAIL, LH | ||||
| 51036-0K010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 51071 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH | ||||
| 51071-0K020 |
GGN15,KUN15,16,2#,3#,LAN15,25,TGN15,16,26,36..SCB,THSCB |
1 | ||
| 51072 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH | ||||
| 51071-0K020 |
GGN15,KUN15,16,2#,3#,LAN15,25,TGN15,16,26,36..SCB,THSCB |
1 | ||
| 51073 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH | ||||
| 51073-0K010 |
GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,SMT,THSCB,XTR |
1 | ||
| 51074 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH | ||||
| 51074-0K010 |
GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,SMT,THSCB,XTR |
1 | ||
| 51075 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.3 RH | ||||
| 51075-0K010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
2 | ||
| 51075 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.3 RH | ||||
| 51075-0K010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
2 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51001-0KF90 |
KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 51001-0KF31 |
KUN25..(SCB,THSCB)..(GEN,PKN) |
1 | ||
| 51110 - EXTENSION ASSY, SIDE RAIL, RH | ||||
| 51110-0K020 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 51120 - EXTENSION ASSY, SIDE RAIL, LH | ||||
| 51120-0K020 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1 | ||||
| 51201-0K031 |
GGN25,KUN2#,3#,TGN26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH) |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-0K030 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-0K080 |
KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 51203-0K090 |
GGN25,KUN3#..RHD..5FC;KUN2#..ARL,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-0K042 |
KUN26..DCB..5F..TH;KUN26..(SCB,SMT)..(LA,SA,TH);KUN26..(DCB,SADCB,THDCB,XTR)..(ARL,CO,GEN,LA,MA,PHL,SA);GGN25,KUN25,LAN25,TGN26..(4FC,5F)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,SA,TH) |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51205-0K030 |
GGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51209-0K010 |
KUN35..LHD..GEN;TGN26..SCB..ANCOM;KUN35..CO,LA,PHL,TH;TGN26..(DCB,THDCB)..(ANCOM,CO,GEN,LA);GGN25,KUN1#,2#,36,TGN10,16,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ANCOM,CO,GEN,IDN,LA,MA,PHL,TH) |
1 | ||
| 51209-0K030 |
KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 51257 - REINFORCEMENT, FRAME NO.5 CROSSMEMBER, RH | ||||
| 51257-0K010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 51365 - STOPPER, REAR BUMPER | ||||
| 57081-0K020 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
2 | ||
| 51365 - STOPPER, REAR BUMPER | ||||
| 57081-0K020 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
2 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-0K050 |
KUN1#,2#,3#..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH |
1 | ||
| 51401-0K040 |
GGN15,25,35 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-0K040 |
GGN15,25,35 |
1 | ||
| 51402-0K050 |
KUN1#,2#,3#..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH |
1 | ||
| 51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH | ||||
| 51501-0K020 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ARL,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH | ||||
| 51502-0K020 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ARL,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH | ||||
| 51701-0K020 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 |
1 | ||
| 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH | ||||
| 51701-0K020 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 |
1 | ||
| 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH | ||||
| 51703-0K010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH | ||||
| 51704-0K010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 51705B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH | ||||
| 51731-0K010 |
GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,THSCB |
1 | ||
| 51706B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH | ||||
| 51731-0K010 |
GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,THSCB |
1 | ||
| 51757 - BRACKET, BODY SUPPORT, NO.4 RH | ||||
| 51077-0K011 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 51758A - BRACKET, BODY SUPPORT, NO.4 LH | ||||
| 51077-0K011 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 58062A - BRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR | ||||
| 58062-0K010 |
GGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 77501U - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-0K020 |
GGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| Common parts | ||||
| 90105-T0060 | ||||
| 90119-T0205 | ||||
| 90178-T0015 | ||||
(1205- )THSCB
CHILE SPEC(EURO 5 REGULATION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17578H - BRACKET, EXHAUST PIPE SUPPORT, NO.10 | ||||
| 17505-0L010 |
1GRFE..GGN15,25,35;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48404-0K020 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48407-0K020 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48405-0K010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48405-0K010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-0K010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH | ||||
| 48505-0K010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-0K020 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-0K020 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 51021B - CROSSMEMBER SUB-ASSY, FRAME AUXILIARY | ||||
| 51021-0K020 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 51025A - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, RH | ||||
| 51025-0K020 |
KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 51025-0K030 |
KUN16..4FC,5F;KUN35..LHD..GEN;KUN35..PHL,SA,TH;GGN15,25,35,KUN10,15,2#,36,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 51026 - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, LH | ||||
| 51026-0K020 |
KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 51026-0K030 |
KUN16..4FC,5F;KUN35..LHD..GEN;KUN35..PHL,SA,TH;GGN15,25,35,KUN10,15,2#,36,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 51035 - PLATE SUB-ASSY, FRAME SIDE RAIL, RH | ||||
| 51035-0K010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 51036 - PLATE SUB-ASSY, FRAME SIDE RAIL, LH | ||||
| 51036-0K010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 51071 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH | ||||
| 51071-0K020 |
GGN15,KUN15,16,2#,3#,LAN15,25,TGN15,16,26,36..SCB,THSCB |
1 | ||
| 51072 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH | ||||
| 51071-0K020 |
GGN15,KUN15,16,2#,3#,LAN15,25,TGN15,16,26,36..SCB,THSCB |
1 | ||
| 51073 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH | ||||
| 51073-0K010 |
GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,SMT,THSCB,XTR |
1 | ||
| 51074 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH | ||||
| 51074-0K010 |
GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,SMT,THSCB,XTR |
1 | ||
| 51075 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.3 RH | ||||
| 51075-0K010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
2 | ||
| 51075 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.3 RH | ||||
| 51075-0K010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
2 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51001-0KF90 |
KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 51001-0KF31 |
KUN25..(SCB,THSCB)..(GEN,PKN) |
1 | ||
| 51103A - REINFORCEMENT SUB-ASSY, INNER CHANNEL, REAR RH | ||||
| 510C3-0K010 |
KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 51104A - REINFORCEMENT SUB-ASSY, INNER CHANNEL, REAR LH | ||||
| 511A2-0K010 |
KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 51110 - EXTENSION ASSY, SIDE RAIL, RH | ||||
| 51110-0K020 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 51120 - EXTENSION ASSY, SIDE RAIL, LH | ||||
| 51120-0K020 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1 | ||||
| 51201-0K031 |
GGN25,KUN2#,3#,TGN26,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,TH) |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-0K030 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-0K080 |
KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 51203-0K090 |
GGN25,KUN3#..RHD..5FC;KUN2#..ARL,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-0K042 |
KUN26..DCB..5F..TH;KUN26..(SCB,SMT)..(LA,SA,TH);KUN26..(DCB,SADCB,THDCB,XTR)..(ARL,CO,GEN,LA,MA,PHL,SA);GGN25,KUN25,LAN25,TGN26..(4FC,5F)..(ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,SA,TH) |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51205-0K030 |
GGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51209-0K010 |
KUN35..LHD..GEN;TGN26..SCB..ANCOM;KUN35..CO,LA,PHL,TH;TGN26..(DCB,THDCB)..(ANCOM,CO,GEN,LA);GGN25,KUN1#,2#,36,TGN10,16,36..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ANCOM,CO,GEN,IDN,LA,MA,PHL,TH) |
1 | ||
| 51209-0K030 |
KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 51257 - REINFORCEMENT, FRAME NO.5 CROSSMEMBER, RH | ||||
| 51257-0K010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 51365 - STOPPER, REAR BUMPER | ||||
| 57081-0K020 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
2 | ||
| 51365 - STOPPER, REAR BUMPER | ||||
| 57081-0K020 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
2 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-0K050 |
KUN1#,2#,3#..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH |
1 | ||
| 51401-0K040 |
GGN15,25,35 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-0K040 |
GGN15,25,35 |
1 | ||
| 51402-0K050 |
KUN1#,2#,3#..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH |
1 | ||
| 51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH | ||||
| 51501-0K020 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ARL,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH | ||||
| 51502-0K020 |
GGN25,35,KUN2#,3#,LAN25,35,TGN26,36..ARL,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH | ||||
| 51701-0K020 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 |
1 | ||
| 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH | ||||
| 51701-0K020 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 |
1 | ||
| 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH | ||||
| 51703-0K010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH | ||||
| 51704-0K010 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 51705B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH | ||||
| 51731-0K010 |
GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,THSCB |
1 | ||
| 51706B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH | ||||
| 51731-0K010 |
GGN15,KUN1#,2#,3#,LAN15,25,TGN1#,26,36..SCB,THSCB |
1 | ||
| 51757 - BRACKET, BODY SUPPORT, NO.4 RH | ||||
| 51077-0K011 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 51758A - BRACKET, BODY SUPPORT, NO.4 LH | ||||
| 51077-0K011 |
GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 58062A - BRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR | ||||
| 58062-0K010 |
GGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 77501U - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-0K020 |
GGN15,25,35,KUN15,16,2#,3#,LAN15,25,35,TGN15,16,26,36..ANCOM,ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| Common parts | ||||
| 90105-T0060 | ||||
| 90119-T0205 | ||||
| 90178-T0015 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
