KUN25L-FRMDH (2011)
Toyota Hilux

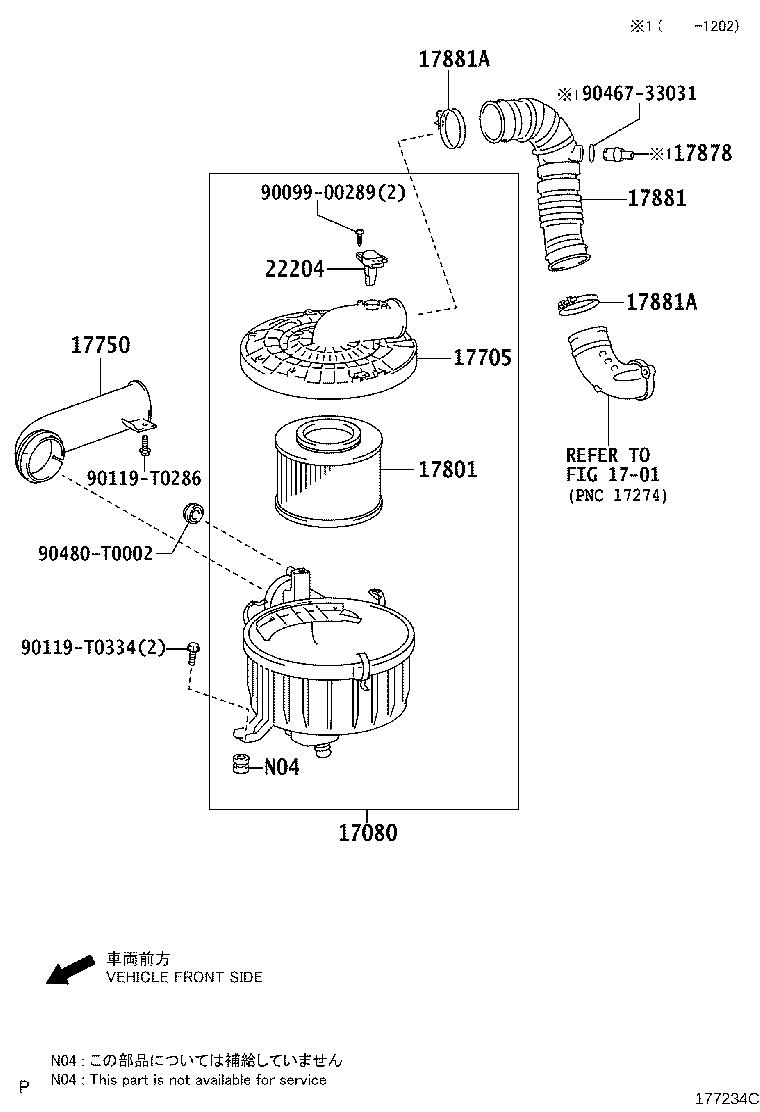

ILLUST NO. 1 OF 2(1107- )1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB..5F ; (1308- )2KDFTV..KUN35..DCB
EURO 5 REGULATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17080 - CLEANER ASSY, AIR W/AIR FLOW METER | ||||
| 17080-0L081 |
2KDFTV..KUN15..SR..GEN;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN10,15..DCR..(IDN,PHL,TH) |
1 | ||
| 17080-0L101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17080-0L051 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17080-0L051 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17080-0L190 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17080-0L101 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH |
1 | ||
| 17080-0L081 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0L020 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17705-0L050 |
2KDFTV..KUN25..THSCB;2KDFTV..KUN35..THDCB HIGH ALTITUDE COUNTRY SPEC |
1 | ||
| 17705-0L100 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 17705-0L130 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17705-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17705-0L050 |
2KDFTV..KUN25,35..THDCB,THSCB LATIN AMERICA SPEC |
1 | ||
| 17705-0L130 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH |
1 | ||
| 17705-0L220 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17705-0L100 |
2KDFTV..KUN15..SR..GEN;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN10,15..DCR..(IDN,PHL,TH) |
1 | ||
| 17705-0L050 |
2KDFTV..KUN15..XTR..GEN;2KDFTV..KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);2KDFTV..KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN) |
1 | ||
| 17750 - COVER ASSY, AIR CLEANER INLET, SEAL | ||||
| 17751-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,PKN,TH) |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0C010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17801-0C010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17801-0C010 |
1KDFTV,2KDFTV..KUN26,3#..(4FC,5FC)..TH;1KDFTV,2KDFTV..KUN1#..DCR..(ARL,GCC,GEN,IDN,PHL,PKN,TH);2KDFTV..KUN15,25,35..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,PKN);1KDFTV..KUN26,36..(DCB,SCB,THDCB,XTR)..(ARL,CO,GEN,LA,MA,PHL) |
1 | ||
| 17878 - PIPE, INTAKE AIR CONNECTOR, NO.3 | ||||
| 17878-0L040 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17878-0L011 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0L180 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17881-0L110 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17881-0L030 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17881-0L052 |
2KDFTV..KUN25..THSCB;2KDFTV..KUN35..THDCB HIGH ALTITUDE COUNTRY SPEC |
1 | ||
| 17881-0L082 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 17881-0L030 |
1KDFTV,2KDFTV..KUN15,2#,35..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17881-0L110 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17881-0L052 |
2KDFTV..KUN25,35..THDCB,THSCB LATIN AMERICA SPEC |
1 | ||
| 17881-0L110 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH |
1 | ||
| 17881-0L082 |
2KDFTV..KUN25..RHD..SA;2KDFTV..KUN35..SR..GEN;2KDFTV..KUN15..DLX..PHL;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN15..SR..(GEN,PHL);2KDFTV..KUN10,15..RHD..DCR..(IDN,SA,TH);2KDFTV..KUN35..(SCB,THDCB,XTR)..(GEN,SA);2KDFTV..KUN15..(SCB,XTR)..(SR,STD)..(PHL,SA) |
1 | ||
| 17881-0L052 |
2KDFTV..KUN15..XTR..GEN;2KDFTV..KUN15,25..LHD..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);2KDFTV..KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN) |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90460-T0005 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
2 | ||
| 90460-T0004 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.1 |
1 | ||
| 90460-T0005 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.2 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90460-T0005 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
2 | ||
| 90460-T0004 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.1 |
1 | ||
| 90460-T0005 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.2 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 22204-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 22204-0L010 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 22204-0L010 |
2KDFTV..KUN25..IDN,MA;2KDFTV..KUN15..DCR..(PHL,TH);1KDFTV,2KDFTV..KUN10,16..RHD;2KDFTV..KUN35..LHD..(GEN,PHL);1KDFTV..KUN26,36..(4FC,5FC)..TH;1KDFTV,2KDFTV..KUN15,36..SR..GEN;2KDFTV..KUN15,25..LHD..(SCB,THDCB,THSCB)..HDCR..GEN;1KDFTV..KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,MA,PHL) |
1 | ||
| 22204-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-T0286 | ||||
| 90119-T0334 | ||||
| 90467-33031 | ||||
| 90480-T0002 | ||||
| Linked diagrams | ||||
| 1701 | ||||

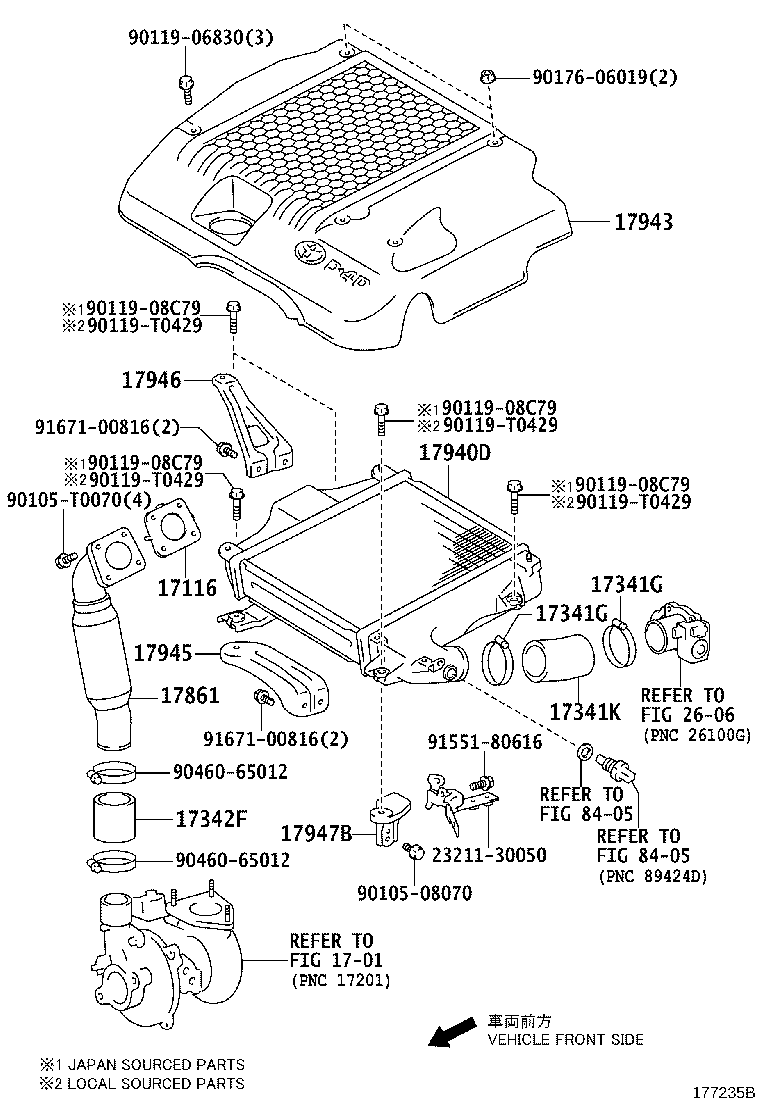

ILLUST NO. 2 OF 2(1107- )1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB..5F
EURO 5 REGULATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17116 - GASKET, INTAKE FLANGE | ||||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17116-0L010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 17341K - HOSE, AIR, NO.1(FOR INTERCOOLER) | ||||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341-30060 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17342-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17342-30010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..DCB..DLX..GEN;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17860-30040 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-30030 |
1KDFTV..KUN36..5FC;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN26..4FC..LA;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN16,26,36..ARL,CO,GEN,PHL,SA |
1 | ||
| 17860-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17860-0L030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-0L060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 17943 - PROTECTOR, INTERCOOLER | ||||
| 12601-0L050 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 12601-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945 - BRACKET, INTERCOOLER SUPPORT | ||||
| 17945-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17945-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17946 - BRACKET, INTERCOOLER SUPPORT, NO.2 | ||||
| 17946-30070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17946-30040 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17946-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17947B - BRACKET, INTERCOOLER SUPPORT, NO.3 | ||||
| 17947-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17947-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17947-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| Common parts | ||||
| 23211-30050 | ||||
| 90105-08070 | ||||
| 90105-T0070 | ||||
| 90119-06830 | ||||
| 90119-08C79 | ||||
| 90119-T0429 | ||||
| 90176-06019 | ||||
| 90460-65012 | ||||
| 91551-80616 | ||||
| 91671-00816 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2606 | ||||
| 8405 | ||||

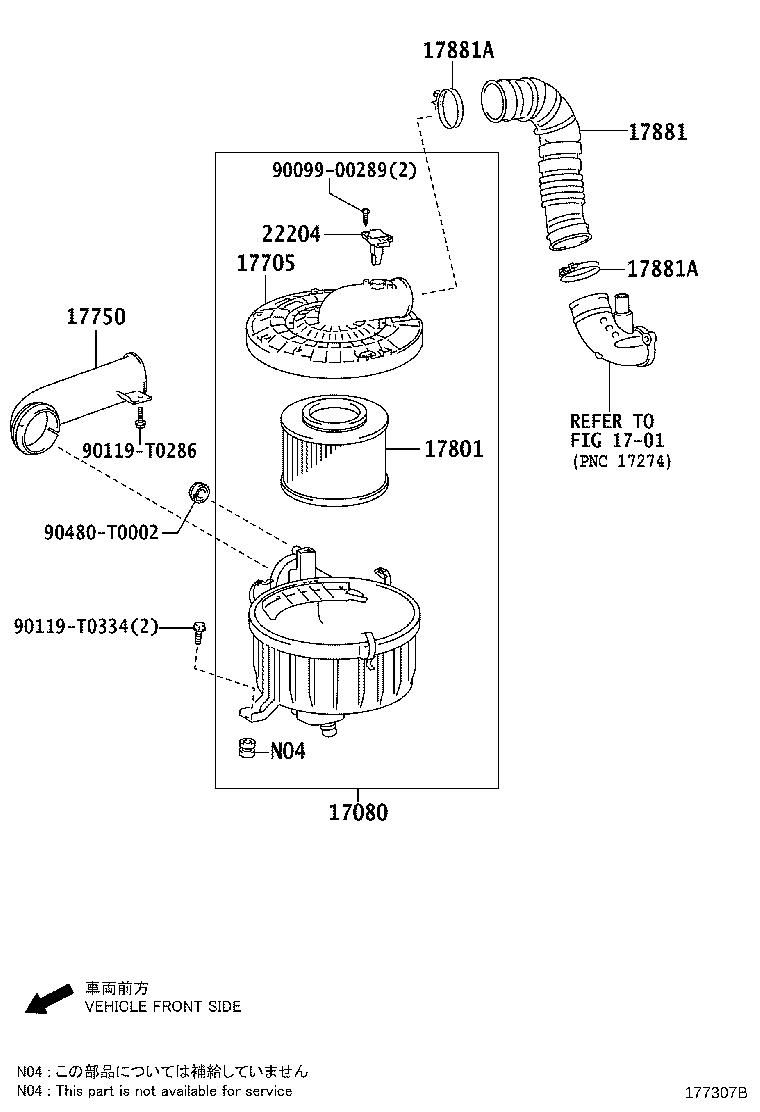

ILLUST NO. 1 OF 2(1107- )2KDFTV..KUN15,25,35..4FC,5F..HDCR..IDN,TH ; (1107- )1KDFTV..DCB,SCB,S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17080 - CLEANER ASSY, AIR W/AIR FLOW METER | ||||
| 17080-0L081 |
2KDFTV..KUN15..SR..GEN;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN10,15..DCR..(IDN,PHL,TH) |
1 | ||
| 17080-0L081 |
2KDFTV..KUN15..SR..GEN;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN10,15..DCR..(IDN,PHL,TH) |
1 | ||
| 17080-0L101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17080-0L101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17080-0L051 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17080-0L051 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17080-0L051 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17080-0L051 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17080-0L190 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17080-0L190 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17080-0L101 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH |
1 | ||
| 17080-0L101 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH |
1 | ||
| 17080-0L081 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 17080-0L081 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-0L051 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17700-0L051 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17700-0L082 |
2KDFTV..KUN25..THSCB;2KDFTV..KUN35..THDCB HIGH ALTITUDE COUNTRY SPEC |
1 | ||
| 17700-0L082 |
2KDFTV..KUN25..THSCB;2KDFTV..KUN35..THDCB HIGH ALTITUDE COUNTRY SPEC |
1 | ||
| 17700-0L051 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17700-0L051 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17700-0L082 |
2KDFTV..KUN25,35..THDCB,THSCB LATIN AMERICA SPEC |
1 | ||
| 17700-0L082 |
2KDFTV..KUN25,35..THDCB,THSCB LATIN AMERICA SPEC |
1 | ||
| 17700-0L082 |
2KDFTV..KUN15..XTR..GEN;2KDFTV..KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);2KDFTV..KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN) |
1 | ||
| 17700-0L082 |
2KDFTV..KUN15..XTR..GEN;2KDFTV..KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);2KDFTV..KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN) |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0L020 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17705-0L020 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17705-0L050 |
2KDFTV..KUN25..THSCB;2KDFTV..KUN35..THDCB HIGH ALTITUDE COUNTRY SPEC |
1 | ||
| 17705-0L050 |
2KDFTV..KUN25..THSCB;2KDFTV..KUN35..THDCB HIGH ALTITUDE COUNTRY SPEC |
1 | ||
| 17705-0L100 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 17705-0L100 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 17705-0L130 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17705-0L130 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17705-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17705-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17705-0L050 |
2KDFTV..KUN25,35..THDCB,THSCB LATIN AMERICA SPEC |
1 | ||
| 17705-0L050 |
2KDFTV..KUN25,35..THDCB,THSCB LATIN AMERICA SPEC |
1 | ||
| 17705-0L130 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH |
1 | ||
| 17705-0L130 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH |
1 | ||
| 17705-0L220 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17705-0L220 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17705-0L100 |
2KDFTV..KUN15..SR..GEN;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN10,15..DCR..(IDN,PHL,TH) |
1 | ||
| 17705-0L100 |
2KDFTV..KUN15..SR..GEN;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN10,15..DCR..(IDN,PHL,TH) |
1 | ||
| 17705-0L050 |
2KDFTV..KUN15..XTR..GEN;2KDFTV..KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);2KDFTV..KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN) |
1 | ||
| 17705-0L050 |
2KDFTV..KUN15..XTR..GEN;2KDFTV..KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);2KDFTV..KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN) |
1 | ||
| 17750 - COVER ASSY, AIR CLEANER INLET, SEAL | ||||
| 17751-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,PKN,TH) |
1 | ||
| 17751-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,PKN,TH) |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0C010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17801-0C010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17801-0C010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17801-0C010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17801-0C010 |
1KDFTV,2KDFTV..KUN26,3#..(4FC,5FC)..TH;1KDFTV,2KDFTV..KUN1#..DCR..(ARL,GCC,GEN,IDN,PHL,PKN,TH);2KDFTV..KUN15,25,35..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,PKN);1KDFTV..KUN26,36..(DCB,SCB,THDCB,XTR)..(ARL,CO,GEN,LA,MA,PHL) |
1 | ||
| 17801-0C010 |
1KDFTV,2KDFTV..KUN26,3#..(4FC,5FC)..TH;1KDFTV,2KDFTV..KUN1#..DCR..(ARL,GCC,GEN,IDN,PHL,PKN,TH);2KDFTV..KUN15,25,35..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,PKN);1KDFTV..KUN26,36..(DCB,SCB,THDCB,XTR)..(ARL,CO,GEN,LA,MA,PHL) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0L180 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17881-0L180 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17881-0L110 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17881-0L110 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17881-0L030 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17881-0L030 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17881-0L052 |
2KDFTV..KUN25..THSCB;2KDFTV..KUN35..THDCB HIGH ALTITUDE COUNTRY SPEC |
1 | ||
| 17881-0L052 |
2KDFTV..KUN25..THSCB;2KDFTV..KUN35..THDCB HIGH ALTITUDE COUNTRY SPEC |
1 | ||
| 17881-0L082 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 17881-0L082 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 17881-0L030 |
1KDFTV,2KDFTV..KUN15,2#,35..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17881-0L030 |
1KDFTV,2KDFTV..KUN15,2#,35..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17881-0L110 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17881-0L110 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17881-0L052 |
2KDFTV..KUN25,35..THDCB,THSCB LATIN AMERICA SPEC |
1 | ||
| 17881-0L052 |
2KDFTV..KUN25,35..THDCB,THSCB LATIN AMERICA SPEC |
1 | ||
| 17881-0L110 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH |
1 | ||
| 17881-0L110 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH |
1 | ||
| 17881-0L082 |
2KDFTV..KUN25..RHD..SA;2KDFTV..KUN35..SR..GEN;2KDFTV..KUN15..DLX..PHL;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN15..SR..(GEN,PHL);2KDFTV..KUN10,15..RHD..DCR..(IDN,SA,TH);2KDFTV..KUN35..(SCB,THDCB,XTR)..(GEN,SA);2KDFTV..KUN15..(SCB,XTR)..(SR,STD)..(PHL,SA) |
1 | ||
| 17881-0L082 |
2KDFTV..KUN25..RHD..SA;2KDFTV..KUN35..SR..GEN;2KDFTV..KUN15..DLX..PHL;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN15..SR..(GEN,PHL);2KDFTV..KUN10,15..RHD..DCR..(IDN,SA,TH);2KDFTV..KUN35..(SCB,THDCB,XTR)..(GEN,SA);2KDFTV..KUN15..(SCB,XTR)..(SR,STD)..(PHL,SA) |
1 | ||
| 17881-0L052 |
2KDFTV..KUN15..XTR..GEN;2KDFTV..KUN15,25..LHD..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);2KDFTV..KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN) |
1 | ||
| 17881-0L052 |
2KDFTV..KUN15..XTR..GEN;2KDFTV..KUN15,25..LHD..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);2KDFTV..KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN) |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90460-T0005 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
2 | ||
| 90460-T0005 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
2 | ||
| 90460-T0005 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
2 | ||
| 90460-T0005 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0004 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.1 |
1 | ||
| 90460-T0004 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.1 |
1 | ||
| 90460-T0005 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.2 |
1 | ||
| 90460-T0005 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.2 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90460-T0005 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
2 | ||
| 90460-T0005 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
2 | ||
| 90460-T0005 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
2 | ||
| 90460-T0005 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0004 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.1 |
1 | ||
| 90460-T0004 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.1 |
1 | ||
| 90460-T0005 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.2 |
1 | ||
| 90460-T0005 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.2 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 22204-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 22204-0L010 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 22204-0L010 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 22204-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 22204-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 22204-0L010 |
2KDFTV..KUN25..IDN,MA;2KDFTV..KUN15..DCR..(PHL,TH);1KDFTV,2KDFTV..KUN10,16..RHD;2KDFTV..KUN35..LHD..(GEN,PHL);1KDFTV..KUN26,36..(4FC,5FC)..TH;1KDFTV,2KDFTV..KUN15,36..SR..GEN;2KDFTV..KUN15,25..LHD..(SCB,THDCB,THSCB)..HDCR..GEN;1KDFTV..KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,MA,PHL) |
1 | ||
| 22204-0L010 |
2KDFTV..KUN25..IDN,MA;2KDFTV..KUN15..DCR..(PHL,TH);1KDFTV,2KDFTV..KUN10,16..RHD;2KDFTV..KUN35..LHD..(GEN,PHL);1KDFTV..KUN26,36..(4FC,5FC)..TH;1KDFTV,2KDFTV..KUN15,36..SR..GEN;2KDFTV..KUN15,25..LHD..(SCB,THDCB,THSCB)..HDCR..GEN;1KDFTV..KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,MA,PHL) |
1 | ||
| 22204-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 22204-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-T0286 | ||||
| 90119-T0334 | ||||
| 90480-T0002 | ||||
| Linked diagrams | ||||
| 1701 | ||||

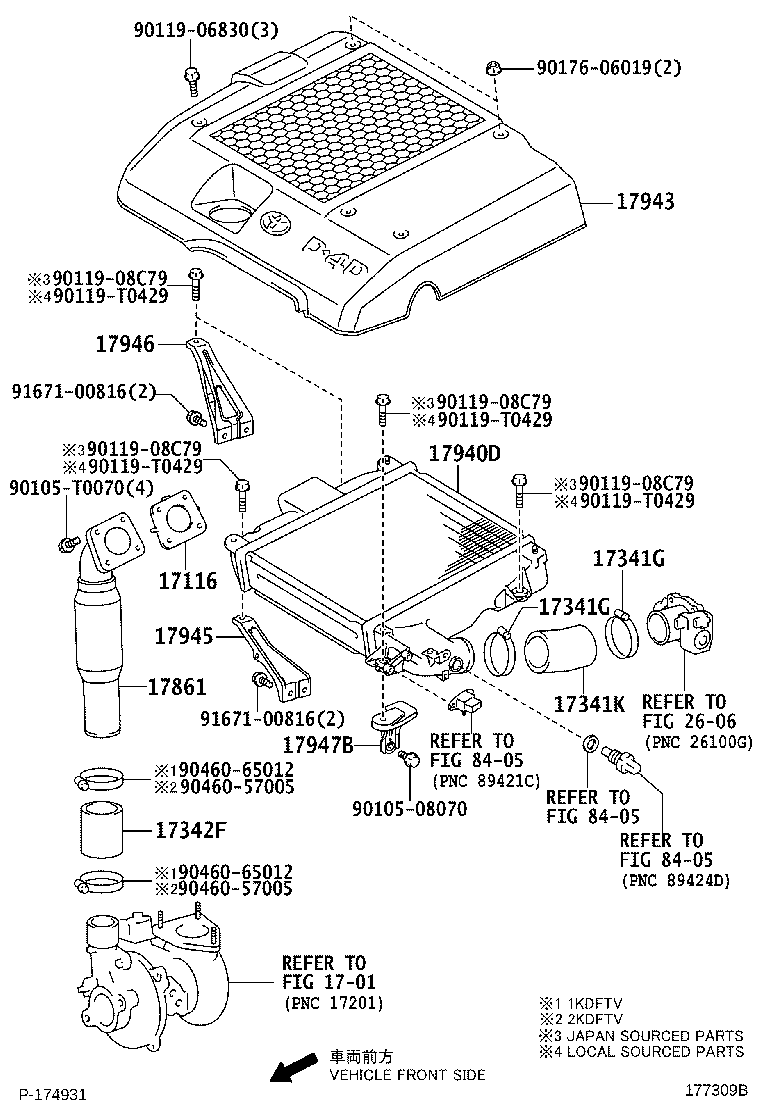

ILLUST NO. 2 OF 2(1107- )1KDFTV..KUN16,26..ARL ; (1107- )2KDFTV..KUN25..5F..IDN,TH ; (1107-
EURO 4 REGULATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17116 - GASKET, INTAKE FLANGE | ||||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17116-0L010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17116-0L010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17116-0L010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17116-0L010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17116-0L010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17116-0L010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 17341K - HOSE, AIR, NO.1(FOR INTERCOOLER) | ||||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341-30060 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17341-30060 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17341-30060 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17341-30060 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17341-30060 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17341-30060 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17342-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17342-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17342-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17342-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17342-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17342-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17342-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17342-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17342-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17342-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17342-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17342-30010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..DCB..DLX..GEN;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA |
1 | ||
| 17342-30010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..DCB..DLX..GEN;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA |
1 | ||
| 17342-30010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..DCB..DLX..GEN;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA |
1 | ||
| 17342-30010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..DCB..DLX..GEN;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA |
1 | ||
| 17342-30010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..DCB..DLX..GEN;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA |
1 | ||
| 17342-30010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..DCB..DLX..GEN;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17860-30040 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-30040 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-30040 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-30040 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-30040 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-30040 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-30030 |
1KDFTV..KUN36..5FC;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN26..4FC..LA;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN16,26,36..ARL,CO,GEN,PHL,SA |
1 | ||
| 17860-30030 |
1KDFTV..KUN36..5FC;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN26..4FC..LA;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN16,26,36..ARL,CO,GEN,PHL,SA |
1 | ||
| 17860-30030 |
1KDFTV..KUN36..5FC;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN26..4FC..LA;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN16,26,36..ARL,CO,GEN,PHL,SA |
1 | ||
| 17860-30030 |
1KDFTV..KUN36..5FC;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN26..4FC..LA;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN16,26,36..ARL,CO,GEN,PHL,SA |
1 | ||
| 17860-30030 |
1KDFTV..KUN36..5FC;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN26..4FC..LA;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN16,26,36..ARL,CO,GEN,PHL,SA |
1 | ||
| 17860-30030 |
1KDFTV..KUN36..5FC;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN26..4FC..LA;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN16,26,36..ARL,CO,GEN,PHL,SA |
1 | ||
| 17860-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17860-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17860-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17860-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17860-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17860-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17860-0L030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-0L030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-0L030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-0L030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-0L030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-0L030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-0L060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17940-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17940-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17940-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17940-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17940-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 17943 - PROTECTOR, INTERCOOLER | ||||
| 12601-0L050 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 12601-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 12601-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 12601-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 12601-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 12601-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 12601-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945 - BRACKET, INTERCOOLER SUPPORT | ||||
| 17945-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17945-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17945-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17945-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17945-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17945-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17945-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17945-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17945-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17945-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17945-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17945-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17946 - BRACKET, INTERCOOLER SUPPORT, NO.2 | ||||
| 17946-30070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17946-30070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17946-30070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17946-30070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17946-30070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17946-30070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17946-30040 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17946-30040 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17946-30040 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17946-30040 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17946-30040 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17946-30040 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17946-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17946-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17946-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17946-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17946-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17946-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17947B - BRACKET, INTERCOOLER SUPPORT, NO.3 | ||||
| 17947-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17947-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17947-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17947-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17947-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17947-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17947-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17947-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17947-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17947-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17947-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17947-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17947-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17947-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17947-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17947-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17947-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17947-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| Common parts | ||||
| 90105-08070 | ||||
| 90105-T0070 | ||||
| 90119-06830 | ||||
| 90119-08C79 | ||||
| 90119-T0429 | ||||
| 90176-06019 | ||||
| 90460-57005 | ||||
| 90460-65012 | ||||
| 91671-00816 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2606 | ||||
| 8405 | ||||
ILLUST NO. 2 OF 2(1107- )2KDFTV..KUN15..DCB..SR..TH ; (1208-)2KDFTV..KUN35..PHL ; (1208- )
EURO 4 REGULATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17116 - GASKET, INTAKE FLANGE | ||||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17116-0L010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17116-0L010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17116-0L010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17116-0L010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17116-0L010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17116-0L010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 17341K - HOSE, AIR, NO.1(FOR INTERCOOLER) | ||||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341-30060 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17341-30060 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17341-30060 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17341-30060 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17341-30060 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17341-30060 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17342-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17342-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17342-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17342-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17342-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17342-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17342-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17342-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17342-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17342-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17342-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17342-30010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..DCB..DLX..GEN;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA |
1 | ||
| 17342-30010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..DCB..DLX..GEN;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA |
1 | ||
| 17342-30010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..DCB..DLX..GEN;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA |
1 | ||
| 17342-30010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..DCB..DLX..GEN;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA |
1 | ||
| 17342-30010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..DCB..DLX..GEN;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA |
1 | ||
| 17342-30010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..DCB..DLX..GEN;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17860-30040 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-30040 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-30040 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-30040 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-30040 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-30040 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-30030 |
1KDFTV..KUN36..5FC;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN26..4FC..LA;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN16,26,36..ARL,CO,GEN,PHL,SA |
1 | ||
| 17860-30030 |
1KDFTV..KUN36..5FC;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN26..4FC..LA;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN16,26,36..ARL,CO,GEN,PHL,SA |
1 | ||
| 17860-30030 |
1KDFTV..KUN36..5FC;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN26..4FC..LA;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN16,26,36..ARL,CO,GEN,PHL,SA |
1 | ||
| 17860-30030 |
1KDFTV..KUN36..5FC;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN26..4FC..LA;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN16,26,36..ARL,CO,GEN,PHL,SA |
1 | ||
| 17860-30030 |
1KDFTV..KUN36..5FC;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN26..4FC..LA;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN16,26,36..ARL,CO,GEN,PHL,SA |
1 | ||
| 17860-30030 |
1KDFTV..KUN36..5FC;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN26..4FC..LA;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN16,26,36..ARL,CO,GEN,PHL,SA |
1 | ||
| 17860-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17860-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17860-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17860-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17860-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17860-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17860-0L030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-0L030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-0L030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-0L030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-0L030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-0L030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-0L060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17940-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17940-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17940-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17940-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17940-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 17943 - PROTECTOR, INTERCOOLER | ||||
| 12601-0L050 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 12601-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 12601-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 12601-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 12601-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 12601-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 12601-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945 - BRACKET, INTERCOOLER SUPPORT | ||||
| 17945-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17945-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17945-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17945-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17945-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17945-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17945-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17945-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17945-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17945-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17945-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17945-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17946 - BRACKET, INTERCOOLER SUPPORT, NO.2 | ||||
| 17946-30070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17946-30070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17946-30070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17946-30070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17946-30070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17946-30070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17946-30040 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17946-30040 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17946-30040 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17946-30040 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17946-30040 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17946-30040 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17946-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17946-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17946-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17946-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17946-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17946-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17947B - BRACKET, INTERCOOLER SUPPORT, NO.3 | ||||
| 17947-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17947-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17947-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17947-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17947-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17947-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17947-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17947-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17947-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17947-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17947-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17947-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17947-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17947-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17947-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17947-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17947-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17947-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| Common parts | ||||
| 90105-08070 | ||||
| 90105-T0070 | ||||
| 90119-06830 | ||||
| 90119-08C79 | ||||
| 90119-T0429 | ||||
| 90176-06019 | ||||
| 90460-57005 | ||||
| 90460-65012 | ||||
| 91671-00816 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2606 | ||||
| 8405 | ||||
ILLUST NO. 2 OF 2(1210- )2KDFTV..KUN35..SR..SA ; (1308- )2KDFTV..KUN25..LHD..DCB..GEN ; (1311-
EURO 4 REGULATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17116 - GASKET, INTAKE FLANGE | ||||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17116-0L010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17116-0L010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17116-0L010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17116-0L010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17116-0L010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17116-0L010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 17341K - HOSE, AIR, NO.1(FOR INTERCOOLER) | ||||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341-30060 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17341-30060 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17341-30060 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17341-30060 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17341-30060 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17341-30060 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17342-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17342-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17342-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17342-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17342-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17342-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17342-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17342-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17342-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17342-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17342-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17342-30010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..DCB..DLX..GEN;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA |
1 | ||
| 17342-30010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..DCB..DLX..GEN;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA |
1 | ||
| 17342-30010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..DCB..DLX..GEN;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA |
1 | ||
| 17342-30010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..DCB..DLX..GEN;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA |
1 | ||
| 17342-30010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..DCB..DLX..GEN;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA |
1 | ||
| 17342-30010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..DCB..DLX..GEN;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17860-30040 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-30040 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-30040 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-30040 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-30040 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-30040 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-30030 |
1KDFTV..KUN36..5FC;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN26..4FC..LA;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN16,26,36..ARL,CO,GEN,PHL,SA |
1 | ||
| 17860-30030 |
1KDFTV..KUN36..5FC;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN26..4FC..LA;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN16,26,36..ARL,CO,GEN,PHL,SA |
1 | ||
| 17860-30030 |
1KDFTV..KUN36..5FC;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN26..4FC..LA;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN16,26,36..ARL,CO,GEN,PHL,SA |
1 | ||
| 17860-30030 |
1KDFTV..KUN36..5FC;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN26..4FC..LA;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN16,26,36..ARL,CO,GEN,PHL,SA |
1 | ||
| 17860-30030 |
1KDFTV..KUN36..5FC;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN26..4FC..LA;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN16,26,36..ARL,CO,GEN,PHL,SA |
1 | ||
| 17860-30030 |
1KDFTV..KUN36..5FC;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN26..4FC..LA;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN16,26,36..ARL,CO,GEN,PHL,SA |
1 | ||
| 17860-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17860-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17860-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17860-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17860-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17860-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17860-0L030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-0L030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-0L030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-0L030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-0L030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-0L030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-0L060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17940-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17940-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17940-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17940-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17940-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 17943 - PROTECTOR, INTERCOOLER | ||||
| 12601-0L050 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 12601-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 12601-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 12601-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 12601-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 12601-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 12601-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945 - BRACKET, INTERCOOLER SUPPORT | ||||
| 17945-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17945-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17945-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17945-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17945-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17945-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17945-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17945-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17945-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17945-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17945-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17945-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17946 - BRACKET, INTERCOOLER SUPPORT, NO.2 | ||||
| 17946-30070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17946-30070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17946-30070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17946-30070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17946-30070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17946-30070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17946-30040 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17946-30040 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17946-30040 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17946-30040 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17946-30040 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17946-30040 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17946-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17946-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17946-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17946-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17946-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17946-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17947B - BRACKET, INTERCOOLER SUPPORT, NO.3 | ||||
| 17947-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17947-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17947-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17947-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17947-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17947-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17947-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17947-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17947-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17947-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17947-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17947-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17947-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17947-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17947-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17947-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17947-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17947-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| Common parts | ||||
| 90105-08070 | ||||
| 90105-T0070 | ||||
| 90119-06830 | ||||
| 90119-08C79 | ||||
| 90119-T0429 | ||||
| 90176-06019 | ||||
| 90460-57005 | ||||
| 90460-65012 | ||||
| 91671-00816 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2606 | ||||
| 8405 | ||||
ILLUST NO. 2 OF 2(1311- )2KDFTV..KUN15,35..DLX..TH ; (1408-)2KDFTV..KUN25,35..THDCB ; (1408-
EURO 4 REGULATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17116 - GASKET, INTAKE FLANGE | ||||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17116-0L010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17116-0L010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17116-0L010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17116-0L010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17116-0L010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17116-0L010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 17341K - HOSE, AIR, NO.1(FOR INTERCOOLER) | ||||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341-30060 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17341-30060 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17341-30060 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17341-30060 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17341-30060 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17341-30060 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17342-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17342-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17342-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17342-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17342-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17342-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17342-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17342-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17342-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17342-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17342-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17342-30010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..DCB..DLX..GEN;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA |
1 | ||
| 17342-30010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..DCB..DLX..GEN;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA |
1 | ||
| 17342-30010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..DCB..DLX..GEN;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA |
1 | ||
| 17342-30010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..DCB..DLX..GEN;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA |
1 | ||
| 17342-30010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..DCB..DLX..GEN;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA |
1 | ||
| 17342-30010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..DCB..DLX..GEN;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17860-30040 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-30040 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-30040 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-30040 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-30040 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-30040 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-30030 |
1KDFTV..KUN36..5FC;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN26..4FC..LA;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN16,26,36..ARL,CO,GEN,PHL,SA |
1 | ||
| 17860-30030 |
1KDFTV..KUN36..5FC;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN26..4FC..LA;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN16,26,36..ARL,CO,GEN,PHL,SA |
1 | ||
| 17860-30030 |
1KDFTV..KUN36..5FC;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN26..4FC..LA;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN16,26,36..ARL,CO,GEN,PHL,SA |
1 | ||
| 17860-30030 |
1KDFTV..KUN36..5FC;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN26..4FC..LA;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN16,26,36..ARL,CO,GEN,PHL,SA |
1 | ||
| 17860-30030 |
1KDFTV..KUN36..5FC;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN26..4FC..LA;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN16,26,36..ARL,CO,GEN,PHL,SA |
1 | ||
| 17860-30030 |
1KDFTV..KUN36..5FC;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN26..4FC..LA;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN16,26,36..ARL,CO,GEN,PHL,SA |
1 | ||
| 17860-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17860-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17860-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17860-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17860-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17860-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17860-0L030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-0L030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-0L030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-0L030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-0L030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-0L030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-0L060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17940-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17940-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17940-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17940-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17940-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 17943 - PROTECTOR, INTERCOOLER | ||||
| 12601-0L050 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 12601-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 12601-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 12601-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 12601-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 12601-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 12601-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945 - BRACKET, INTERCOOLER SUPPORT | ||||
| 17945-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17945-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17945-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17945-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17945-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17945-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17945-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17945-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17945-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17945-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17945-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17945-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17946 - BRACKET, INTERCOOLER SUPPORT, NO.2 | ||||
| 17946-30070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17946-30070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17946-30070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17946-30070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17946-30070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17946-30070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17946-30040 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17946-30040 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17946-30040 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17946-30040 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17946-30040 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17946-30040 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17946-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17946-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17946-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17946-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17946-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17946-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17947B - BRACKET, INTERCOOLER SUPPORT, NO.3 | ||||
| 17947-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17947-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17947-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17947-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17947-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17947-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17947-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17947-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17947-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17947-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17947-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17947-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17947-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17947-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17947-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17947-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17947-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17947-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| Common parts | ||||
| 90105-08070 | ||||
| 90105-T0070 | ||||
| 90119-06830 | ||||
| 90119-08C79 | ||||
| 90119-T0429 | ||||
| 90176-06019 | ||||
| 90460-57005 | ||||
| 90460-65012 | ||||
| 91671-00816 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2606 | ||||
| 8405 | ||||
ILLUST NO. 1 OF 2(1107- )1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB..4FC,5F
CHILE SPEC(EURO 4 REGULATION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17080 - CLEANER ASSY, AIR W/AIR FLOW METER | ||||
| 17080-0L081 |
2KDFTV..KUN15..SR..GEN;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN10,15..DCR..(IDN,PHL,TH) |
1 | ||
| 17080-0L101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17080-0L051 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17080-0L051 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17080-0L190 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17080-0L101 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH |
1 | ||
| 17080-0L081 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0L020 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17705-0L050 |
2KDFTV..KUN25..THSCB;2KDFTV..KUN35..THDCB HIGH ALTITUDE COUNTRY SPEC |
1 | ||
| 17705-0L100 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 17705-0L130 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17705-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17705-0L050 |
2KDFTV..KUN25,35..THDCB,THSCB LATIN AMERICA SPEC |
1 | ||
| 17705-0L130 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH |
1 | ||
| 17705-0L220 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17705-0L100 |
2KDFTV..KUN15..SR..GEN;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN10,15..DCR..(IDN,PHL,TH) |
1 | ||
| 17705-0L050 |
2KDFTV..KUN15..XTR..GEN;2KDFTV..KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);2KDFTV..KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN) |
1 | ||
| 17750 - COVER ASSY, AIR CLEANER INLET, SEAL | ||||
| 17751-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,PKN,TH) |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0C010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17801-0C010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17801-0C010 |
1KDFTV,2KDFTV..KUN26,3#..(4FC,5FC)..TH;1KDFTV,2KDFTV..KUN1#..DCR..(ARL,GCC,GEN,IDN,PHL,PKN,TH);2KDFTV..KUN15,25,35..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,PKN);1KDFTV..KUN26,36..(DCB,SCB,THDCB,XTR)..(ARL,CO,GEN,LA,MA,PHL) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0L180 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17881-0L110 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17881-0L030 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17881-0L052 |
2KDFTV..KUN25..THSCB;2KDFTV..KUN35..THDCB HIGH ALTITUDE COUNTRY SPEC |
1 | ||
| 17881-0L082 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 17881-0L030 |
1KDFTV,2KDFTV..KUN15,2#,35..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17881-0L110 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17881-0L052 |
2KDFTV..KUN25,35..THDCB,THSCB LATIN AMERICA SPEC |
1 | ||
| 17881-0L110 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH |
1 | ||
| 17881-0L082 |
2KDFTV..KUN25..RHD..SA;2KDFTV..KUN35..SR..GEN;2KDFTV..KUN15..DLX..PHL;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN15..SR..(GEN,PHL);2KDFTV..KUN10,15..RHD..DCR..(IDN,SA,TH);2KDFTV..KUN35..(SCB,THDCB,XTR)..(GEN,SA);2KDFTV..KUN15..(SCB,XTR)..(SR,STD)..(PHL,SA) |
1 | ||
| 17881-0L052 |
2KDFTV..KUN15..XTR..GEN;2KDFTV..KUN15,25..LHD..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);2KDFTV..KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN) |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90460-T0005 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
2 | ||
| 90460-T0004 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.1 |
1 | ||
| 90460-T0005 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.2 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90460-T0005 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
2 | ||
| 90460-T0004 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.1 |
1 | ||
| 90460-T0005 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.2 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 22204-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 22204-0L010 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 22204-0L010 |
2KDFTV..KUN25..IDN,MA;2KDFTV..KUN15..DCR..(PHL,TH);1KDFTV,2KDFTV..KUN10,16..RHD;2KDFTV..KUN35..LHD..(GEN,PHL);1KDFTV..KUN26,36..(4FC,5FC)..TH;1KDFTV,2KDFTV..KUN15,36..SR..GEN;2KDFTV..KUN15,25..LHD..(SCB,THDCB,THSCB)..HDCR..GEN;1KDFTV..KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,MA,PHL) |
1 | ||
| 22204-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-T0286 | ||||
| 90119-T0334 | ||||
| 90480-T0002 | ||||
| Linked diagrams | ||||
| 1701 | ||||
ILLUST NO. 2 OF 2(1107- )1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB..4FC,5F
CHILE SPEC(EURO 4 REGULATION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17116 - GASKET, INTAKE FLANGE | ||||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17116-0L010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17116-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 17341K - HOSE, AIR, NO.1(FOR INTERCOOLER) | ||||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17341-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17341-30060 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN25..IDN,LA,TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA;2KDFTV..KUN15,35..(DCB,SCB)..DLX..HDCR..(GEN,LA) |
1 | ||
| 17342F - HOSE, AIR, NO.2(FOR INTERCOOLER) | ||||
| 17342-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17342-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17342-30010 |
1KDFTV..KUN16;2KDFTV..KUN35..4FC;2KDFTV..KUN35..SR..TH;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN35..DCB..DLX..GEN;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);1KDFTV..KUN26..ARL,CO,GEN,LA,MA,PHL,SA |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17860-30040 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17860-30030 |
1KDFTV..KUN36..5FC;2KDFTV..KUN25..IDN,TH;1KDFTV..KUN26..4FC..LA;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN16,26,36..ARL,CO,GEN,PHL,SA |
1 | ||
| 17860-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17860-0L030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-0L060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17940-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17940-0L060 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 17943 - PROTECTOR, INTERCOOLER | ||||
| 12601-0L050 |
2KDFTV..KUN35..4FC;1KDFTV..KUN16,26..ARL;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN16,26,36..5FC..(GEN,TH) |
1 | ||
| 12601-0L050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 12601-0L070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945 - BRACKET, INTERCOOLER SUPPORT | ||||
| 17945-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17945-30100 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17945-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17946 - BRACKET, INTERCOOLER SUPPORT, NO.2 | ||||
| 17946-30070 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17946-30040 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17946-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| 17947B - BRACKET, INTERCOOLER SUPPORT, NO.3 | ||||
| 17947-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 17947-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17947-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV..KUN16,26,36..5FC..TH *130 |
1 | ||
| Common parts | ||||
| 90105-08070 | ||||
| 90105-T0070 | ||||
| 90119-06830 | ||||
| 90119-08C79 | ||||
| 90119-T0429 | ||||
| 90176-06019 | ||||
| 90460-57005 | ||||
| 90460-65012 | ||||
| 91671-00816 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2606 | ||||
| 8405 | ||||
(1107- )2KDFTV..KUN35..DLX..CO,LA,SA ; (1107-)2KDFTV..KUN25..CO,GCC,GEN,LA,P
W/O(INTERCOOLER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17080 - CLEANER ASSY, AIR W/AIR FLOW METER | ||||
| 17080-0L081 |
2KDFTV..KUN15..SR..GEN;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN10,15..DCR..(IDN,PHL,TH) |
1 | ||
| 17080-0L081 |
2KDFTV..KUN15..SR..GEN;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN10,15..DCR..(IDN,PHL,TH) |
1 | ||
| 17080-0L081 |
2KDFTV..KUN15..SR..GEN;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN10,15..DCR..(IDN,PHL,TH) |
1 | ||
| 17080-0L101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17080-0L101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17080-0L101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17080-0L051 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17080-0L051 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17080-0L051 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17080-0L051 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17080-0L051 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17080-0L051 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17080-0L190 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17080-0L190 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17080-0L190 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17080-0L101 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH |
1 | ||
| 17080-0L101 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH |
1 | ||
| 17080-0L101 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH |
1 | ||
| 17080-0L081 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 17080-0L081 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 17080-0L081 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 17138 - STAY, INTAKE PIPE OR HOSE | ||||
| 17138-0L010 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17138-0L010 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17138-0L010 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-30060 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17341-30060 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17341-30060 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 17342D - HOSE, AIR, NO.2 | ||||
| 17342-30050 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17342-30050 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17342-30050 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-0L051 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17700-0L051 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17700-0L051 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17700-0L082 |
2KDFTV..KUN25..THSCB;2KDFTV..KUN35..THDCB HIGH ALTITUDE COUNTRY SPEC |
1 | ||
| 17700-0L082 |
2KDFTV..KUN25..THSCB;2KDFTV..KUN35..THDCB HIGH ALTITUDE COUNTRY SPEC |
1 | ||
| 17700-0L082 |
2KDFTV..KUN25..THSCB;2KDFTV..KUN35..THDCB HIGH ALTITUDE COUNTRY SPEC |
1 | ||
| 17700-0L051 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17700-0L051 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17700-0L051 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17700-0L082 |
2KDFTV..KUN25,35..THDCB,THSCB LATIN AMERICA SPEC |
1 | ||
| 17700-0L082 |
2KDFTV..KUN25,35..THDCB,THSCB LATIN AMERICA SPEC |
1 | ||
| 17700-0L082 |
2KDFTV..KUN25,35..THDCB,THSCB LATIN AMERICA SPEC |
1 | ||
| 17700-0L082 |
2KDFTV..KUN15..XTR..GEN;2KDFTV..KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);2KDFTV..KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN) |
1 | ||
| 17700-0L082 |
2KDFTV..KUN15..XTR..GEN;2KDFTV..KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);2KDFTV..KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN) |
1 | ||
| 17700-0L082 |
2KDFTV..KUN15..XTR..GEN;2KDFTV..KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);2KDFTV..KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN) |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0L020 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17705-0L020 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17705-0L020 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17705-0L050 |
2KDFTV..KUN25..THSCB;2KDFTV..KUN35..THDCB HIGH ALTITUDE COUNTRY SPEC |
1 | ||
| 17705-0L050 |
2KDFTV..KUN25..THSCB;2KDFTV..KUN35..THDCB HIGH ALTITUDE COUNTRY SPEC |
1 | ||
| 17705-0L050 |
2KDFTV..KUN25..THSCB;2KDFTV..KUN35..THDCB HIGH ALTITUDE COUNTRY SPEC |
1 | ||
| 17705-0L100 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 17705-0L100 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 17705-0L100 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 17705-0L130 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17705-0L130 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17705-0L130 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17705-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17705-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17705-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17705-0L050 |
2KDFTV..KUN25,35..THDCB,THSCB LATIN AMERICA SPEC |
1 | ||
| 17705-0L050 |
2KDFTV..KUN25,35..THDCB,THSCB LATIN AMERICA SPEC |
1 | ||
| 17705-0L050 |
2KDFTV..KUN25,35..THDCB,THSCB LATIN AMERICA SPEC |
1 | ||
| 17705-0L130 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH |
1 | ||
| 17705-0L130 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH |
1 | ||
| 17705-0L130 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH |
1 | ||
| 17705-0L220 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17705-0L220 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17705-0L220 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17705-0L100 |
2KDFTV..KUN15..SR..GEN;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN10,15..DCR..(IDN,PHL,TH) |
1 | ||
| 17705-0L100 |
2KDFTV..KUN15..SR..GEN;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN10,15..DCR..(IDN,PHL,TH) |
1 | ||
| 17705-0L100 |
2KDFTV..KUN15..SR..GEN;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN10,15..DCR..(IDN,PHL,TH) |
1 | ||
| 17705-0L050 |
2KDFTV..KUN15..XTR..GEN;2KDFTV..KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);2KDFTV..KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN) |
1 | ||
| 17705-0L050 |
2KDFTV..KUN15..XTR..GEN;2KDFTV..KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);2KDFTV..KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN) |
1 | ||
| 17705-0L050 |
2KDFTV..KUN15..XTR..GEN;2KDFTV..KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);2KDFTV..KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN) |
1 | ||
| 17750 - COVER ASSY, AIR CLEANER INLET, SEAL | ||||
| 17751-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,PKN,TH) |
1 | ||
| 17751-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,PKN,TH) |
1 | ||
| 17751-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,PKN,TH) |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0C010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17801-0C010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17801-0C010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17801-0C010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17801-0C010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17801-0C010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17801-0C010 |
1KDFTV,2KDFTV..KUN26,3#..(4FC,5FC)..TH;1KDFTV,2KDFTV..KUN1#..DCR..(ARL,GCC,GEN,IDN,PHL,PKN,TH);2KDFTV..KUN15,25,35..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,PKN);1KDFTV..KUN26,36..(DCB,SCB,THDCB,XTR)..(ARL,CO,GEN,LA,MA,PHL) |
1 | ||
| 17801-0C010 |
1KDFTV,2KDFTV..KUN26,3#..(4FC,5FC)..TH;1KDFTV,2KDFTV..KUN1#..DCR..(ARL,GCC,GEN,IDN,PHL,PKN,TH);2KDFTV..KUN15,25,35..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,PKN);1KDFTV..KUN26,36..(DCB,SCB,THDCB,XTR)..(ARL,CO,GEN,LA,MA,PHL) |
1 | ||
| 17801-0C010 |
1KDFTV,2KDFTV..KUN26,3#..(4FC,5FC)..TH;1KDFTV,2KDFTV..KUN1#..DCR..(ARL,GCC,GEN,IDN,PHL,PKN,TH);2KDFTV..KUN15,25,35..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,PKN);1KDFTV..KUN26,36..(DCB,SCB,THDCB,XTR)..(ARL,CO,GEN,LA,MA,PHL) |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17113-0L020 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17113-0L020 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17113-0L020 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17878 - PIPE, INTAKE AIR CONNECTOR, NO.3 | ||||
| 17878-0L040 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17878-0L040 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17878-0L040 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17878-0L011 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17878-0L011 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17878-0L011 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0L180 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17881-0L180 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17881-0L180 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17881-0L110 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17881-0L110 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17881-0L110 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17881-0L030 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17881-0L030 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17881-0L030 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17881-0L052 |
2KDFTV..KUN25..THSCB;2KDFTV..KUN35..THDCB HIGH ALTITUDE COUNTRY SPEC |
1 | ||
| 17881-0L052 |
2KDFTV..KUN25..THSCB;2KDFTV..KUN35..THDCB HIGH ALTITUDE COUNTRY SPEC |
1 | ||
| 17881-0L052 |
2KDFTV..KUN25..THSCB;2KDFTV..KUN35..THDCB HIGH ALTITUDE COUNTRY SPEC |
1 | ||
| 17881-0L082 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 17881-0L082 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 17881-0L082 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 17881-0L030 |
1KDFTV,2KDFTV..KUN15,2#,35..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17881-0L030 |
1KDFTV,2KDFTV..KUN15,2#,35..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17881-0L030 |
1KDFTV,2KDFTV..KUN15,2#,35..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17881-0L110 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17881-0L110 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17881-0L110 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17881-0L052 |
2KDFTV..KUN25,35..THDCB,THSCB LATIN AMERICA SPEC |
1 | ||
| 17881-0L052 |
2KDFTV..KUN25,35..THDCB,THSCB LATIN AMERICA SPEC |
1 | ||
| 17881-0L052 |
2KDFTV..KUN25,35..THDCB,THSCB LATIN AMERICA SPEC |
1 | ||
| 17881-0L110 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH |
1 | ||
| 17881-0L110 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH |
1 | ||
| 17881-0L110 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH |
1 | ||
| 17881-0L082 |
2KDFTV..KUN25..RHD..SA;2KDFTV..KUN35..SR..GEN;2KDFTV..KUN15..DLX..PHL;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN15..SR..(GEN,PHL);2KDFTV..KUN10,15..RHD..DCR..(IDN,SA,TH);2KDFTV..KUN35..(SCB,THDCB,XTR)..(GEN,SA);2KDFTV..KUN15..(SCB,XTR)..(SR,STD)..(PHL,SA) |
1 | ||
| 17881-0L082 |
2KDFTV..KUN25..RHD..SA;2KDFTV..KUN35..SR..GEN;2KDFTV..KUN15..DLX..PHL;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN15..SR..(GEN,PHL);2KDFTV..KUN10,15..RHD..DCR..(IDN,SA,TH);2KDFTV..KUN35..(SCB,THDCB,XTR)..(GEN,SA);2KDFTV..KUN15..(SCB,XTR)..(SR,STD)..(PHL,SA) |
1 | ||
| 17881-0L082 |
2KDFTV..KUN25..RHD..SA;2KDFTV..KUN35..SR..GEN;2KDFTV..KUN15..DLX..PHL;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN15..SR..(GEN,PHL);2KDFTV..KUN10,15..RHD..DCR..(IDN,SA,TH);2KDFTV..KUN35..(SCB,THDCB,XTR)..(GEN,SA);2KDFTV..KUN15..(SCB,XTR)..(SR,STD)..(PHL,SA) |
1 | ||
| 17881-0L052 |
2KDFTV..KUN15..XTR..GEN;2KDFTV..KUN15,25..LHD..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);2KDFTV..KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN) |
1 | ||
| 17881-0L052 |
2KDFTV..KUN15..XTR..GEN;2KDFTV..KUN15,25..LHD..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);2KDFTV..KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN) |
1 | ||
| 17881-0L052 |
2KDFTV..KUN15..XTR..GEN;2KDFTV..KUN15,25..LHD..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);2KDFTV..KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN) |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90460-T0005 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
2 | ||
| 90460-T0005 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
2 | ||
| 90460-T0005 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
2 | ||
| 90460-T0005 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
2 | ||
| 90460-T0005 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
2 | ||
| 90460-T0004 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.1 |
1 | ||
| 90460-T0004 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.1 |
1 | ||
| 90460-T0004 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.1 |
1 | ||
| 90460-T0005 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.2 |
1 | ||
| 90460-T0005 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.2 |
1 | ||
| 90460-T0005 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.2 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90460-T0005 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
2 | ||
| 90460-T0005 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
2 | ||
| 90460-T0005 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
2 | ||
| 90460-T0005 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
2 | ||
| 90460-T0005 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
2 | ||
| 90460-T0004 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.1 |
1 | ||
| 90460-T0004 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.1 |
1 | ||
| 90460-T0004 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.1 |
1 | ||
| 90460-T0005 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.2 |
1 | ||
| 90460-T0005 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.2 |
1 | ||
| 90460-T0005 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.2 |
1 | ||
| 17882B - CLAMP(FOR COOL AIR INTAKE) | ||||
| 90467-31110 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN35..DLX..(CO,SA);2KDFTV..KUN25..CO,GCC,GEN,PKN,SA |
1 | ||
| 90467-31110 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN35..DLX..(CO,SA);2KDFTV..KUN25..CO,GCC,GEN,PKN,SA |
1 | ||
| 90467-31110 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN35..DLX..(CO,SA);2KDFTV..KUN25..CO,GCC,GEN,PKN,SA |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-0L010 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17883-0L010 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17883-0L010 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 22204-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 22204-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 22204-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 22204-0L010 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 22204-0L010 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 22204-0L010 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 22204-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 22204-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 22204-0L010 |
2KDFTV..KUN25..IDN,MA;2KDFTV..KUN15..DCR..(PHL,TH);1KDFTV,2KDFTV..KUN10,16..RHD;2KDFTV..KUN35..LHD..(GEN,PHL);1KDFTV..KUN26,36..(4FC,5FC)..TH;1KDFTV,2KDFTV..KUN15,36..SR..GEN;2KDFTV..KUN15,25..LHD..(SCB,THDCB,THSCB)..HDCR..GEN;1KDFTV..KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,MA,PHL) |
1 | ||
| 22204-0L010 |
2KDFTV..KUN25..IDN,MA;2KDFTV..KUN15..DCR..(PHL,TH);1KDFTV,2KDFTV..KUN10,16..RHD;2KDFTV..KUN35..LHD..(GEN,PHL);1KDFTV..KUN26,36..(4FC,5FC)..TH;1KDFTV,2KDFTV..KUN15,36..SR..GEN;2KDFTV..KUN15,25..LHD..(SCB,THDCB,THSCB)..HDCR..GEN;1KDFTV..KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,MA,PHL) |
1 | ||
| 22204-0L010 |
2KDFTV..KUN25..IDN,MA;2KDFTV..KUN15..DCR..(PHL,TH);1KDFTV,2KDFTV..KUN10,16..RHD;2KDFTV..KUN35..LHD..(GEN,PHL);1KDFTV..KUN26,36..(4FC,5FC)..TH;1KDFTV,2KDFTV..KUN15,36..SR..GEN;2KDFTV..KUN15,25..LHD..(SCB,THDCB,THSCB)..HDCR..GEN;1KDFTV..KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,MA,PHL) |
1 | ||
| 22204-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 22204-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 22204-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| Common parts | ||||
| 25761-0L010 | ||||
| 90099-00289 | ||||
| 90105-T0054 | ||||
| 90119-T0286 | ||||
| 90119-T0334 | ||||
| 90460-57005 | ||||
| 90480-T0002 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1708 | ||||
| 2606 | ||||
| 8405 | ||||
(1107-1208)2KDFTV..KUN35..PHL ; (1107- )2KDFTV..KUN10,15..DCR ; (1107- )2KDFT
W/O(INTERCOOLER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17080 - CLEANER ASSY, AIR W/AIR FLOW METER | ||||
| 17080-0L081 |
2KDFTV..KUN15..SR..GEN;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN10,15..DCR..(IDN,PHL,TH) |
1 | ||
| 17080-0L081 |
2KDFTV..KUN15..SR..GEN;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN10,15..DCR..(IDN,PHL,TH) |
1 | ||
| 17080-0L081 |
2KDFTV..KUN15..SR..GEN;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN10,15..DCR..(IDN,PHL,TH) |
1 | ||
| 17080-0L101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17080-0L101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17080-0L101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17080-0L051 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17080-0L051 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17080-0L051 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17080-0L051 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17080-0L051 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17080-0L051 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17080-0L190 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17080-0L190 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17080-0L190 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17080-0L101 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH |
1 | ||
| 17080-0L101 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH |
1 | ||
| 17080-0L101 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH |
1 | ||
| 17080-0L081 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 17080-0L081 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 17080-0L081 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 17138 - STAY, INTAKE PIPE OR HOSE | ||||
| 17138-0L010 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17138-0L010 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17138-0L010 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-30060 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17341-30060 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17341-30060 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 90460-80006 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN36..4FC,5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN15..HDCR..GEN;1KDFTV,2KDFTV..KUN10,16,25;1KDFTV..KUN26..(4FC,5FC)..TH;1KDFTV..KUN36..5F..(GEN,LA,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV,2KDFTV..KUN26,35..ARL,CO,GEN,LA,MA,PHL,SA |
2 | ||
| 17342D - HOSE, AIR, NO.2 | ||||
| 17342-30050 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17342-30050 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17342-30050 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-0L051 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17700-0L051 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17700-0L051 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17700-0L082 |
2KDFTV..KUN25..THSCB;2KDFTV..KUN35..THDCB HIGH ALTITUDE COUNTRY SPEC |
1 | ||
| 17700-0L082 |
2KDFTV..KUN25..THSCB;2KDFTV..KUN35..THDCB HIGH ALTITUDE COUNTRY SPEC |
1 | ||
| 17700-0L082 |
2KDFTV..KUN25..THSCB;2KDFTV..KUN35..THDCB HIGH ALTITUDE COUNTRY SPEC |
1 | ||
| 17700-0L051 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17700-0L051 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17700-0L051 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17700-0L082 |
2KDFTV..KUN25,35..THDCB,THSCB LATIN AMERICA SPEC |
1 | ||
| 17700-0L082 |
2KDFTV..KUN25,35..THDCB,THSCB LATIN AMERICA SPEC |
1 | ||
| 17700-0L082 |
2KDFTV..KUN25,35..THDCB,THSCB LATIN AMERICA SPEC |
1 | ||
| 17700-0L082 |
2KDFTV..KUN15..XTR..GEN;2KDFTV..KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);2KDFTV..KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN) |
1 | ||
| 17700-0L082 |
2KDFTV..KUN15..XTR..GEN;2KDFTV..KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);2KDFTV..KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN) |
1 | ||
| 17700-0L082 |
2KDFTV..KUN15..XTR..GEN;2KDFTV..KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);2KDFTV..KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN) |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0L020 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17705-0L020 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17705-0L020 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17705-0L050 |
2KDFTV..KUN25..THSCB;2KDFTV..KUN35..THDCB HIGH ALTITUDE COUNTRY SPEC |
1 | ||
| 17705-0L050 |
2KDFTV..KUN25..THSCB;2KDFTV..KUN35..THDCB HIGH ALTITUDE COUNTRY SPEC |
1 | ||
| 17705-0L050 |
2KDFTV..KUN25..THSCB;2KDFTV..KUN35..THDCB HIGH ALTITUDE COUNTRY SPEC |
1 | ||
| 17705-0L100 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 17705-0L100 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 17705-0L100 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 17705-0L130 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17705-0L130 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17705-0L130 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17705-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17705-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17705-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17705-0L050 |
2KDFTV..KUN25,35..THDCB,THSCB LATIN AMERICA SPEC |
1 | ||
| 17705-0L050 |
2KDFTV..KUN25,35..THDCB,THSCB LATIN AMERICA SPEC |
1 | ||
| 17705-0L050 |
2KDFTV..KUN25,35..THDCB,THSCB LATIN AMERICA SPEC |
1 | ||
| 17705-0L130 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH |
1 | ||
| 17705-0L130 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH |
1 | ||
| 17705-0L130 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH |
1 | ||
| 17705-0L220 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17705-0L220 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17705-0L220 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17705-0L100 |
2KDFTV..KUN15..SR..GEN;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN10,15..DCR..(IDN,PHL,TH) |
1 | ||
| 17705-0L100 |
2KDFTV..KUN15..SR..GEN;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN10,15..DCR..(IDN,PHL,TH) |
1 | ||
| 17705-0L100 |
2KDFTV..KUN15..SR..GEN;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN10,15..DCR..(IDN,PHL,TH) |
1 | ||
| 17705-0L050 |
2KDFTV..KUN15..XTR..GEN;2KDFTV..KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);2KDFTV..KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN) |
1 | ||
| 17705-0L050 |
2KDFTV..KUN15..XTR..GEN;2KDFTV..KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);2KDFTV..KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN) |
1 | ||
| 17705-0L050 |
2KDFTV..KUN15..XTR..GEN;2KDFTV..KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);2KDFTV..KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN) |
1 | ||
| 17750 - COVER ASSY, AIR CLEANER INLET, SEAL | ||||
| 17751-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,PKN,TH) |
1 | ||
| 17751-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,PKN,TH) |
1 | ||
| 17751-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,PKN,TH) |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-0C010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17801-0C010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17801-0C010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17801-0C010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17801-0C010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17801-0C010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17801-0C010 |
1KDFTV,2KDFTV..KUN26,3#..(4FC,5FC)..TH;1KDFTV,2KDFTV..KUN1#..DCR..(ARL,GCC,GEN,IDN,PHL,PKN,TH);2KDFTV..KUN15,25,35..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,PKN);1KDFTV..KUN26,36..(DCB,SCB,THDCB,XTR)..(ARL,CO,GEN,LA,MA,PHL) |
1 | ||
| 17801-0C010 |
1KDFTV,2KDFTV..KUN26,3#..(4FC,5FC)..TH;1KDFTV,2KDFTV..KUN1#..DCR..(ARL,GCC,GEN,IDN,PHL,PKN,TH);2KDFTV..KUN15,25,35..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,PKN);1KDFTV..KUN26,36..(DCB,SCB,THDCB,XTR)..(ARL,CO,GEN,LA,MA,PHL) |
1 | ||
| 17801-0C010 |
1KDFTV,2KDFTV..KUN26,3#..(4FC,5FC)..TH;1KDFTV,2KDFTV..KUN1#..DCR..(ARL,GCC,GEN,IDN,PHL,PKN,TH);2KDFTV..KUN15,25,35..HDCR..(CO,GCC,GEN,IDN,LA,MA,PHL,PKN);1KDFTV..KUN26,36..(DCB,SCB,THDCB,XTR)..(ARL,CO,GEN,LA,MA,PHL) |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17113-0L020 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17113-0L020 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17113-0L020 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17878 - PIPE, INTAKE AIR CONNECTOR, NO.3 | ||||
| 17878-0L040 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17878-0L040 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17878-0L040 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17878-0L011 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17878-0L011 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17878-0L011 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0L180 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17881-0L180 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17881-0L180 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17881-0L110 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17881-0L110 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17881-0L110 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17881-0L030 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17881-0L030 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17881-0L030 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 17881-0L052 |
2KDFTV..KUN25..THSCB;2KDFTV..KUN35..THDCB HIGH ALTITUDE COUNTRY SPEC |
1 | ||
| 17881-0L052 |
2KDFTV..KUN25..THSCB;2KDFTV..KUN35..THDCB HIGH ALTITUDE COUNTRY SPEC |
1 | ||
| 17881-0L052 |
2KDFTV..KUN25..THSCB;2KDFTV..KUN35..THDCB HIGH ALTITUDE COUNTRY SPEC |
1 | ||
| 17881-0L082 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 17881-0L082 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 17881-0L082 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 17881-0L030 |
1KDFTV,2KDFTV..KUN15,2#,35..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17881-0L030 |
1KDFTV,2KDFTV..KUN15,2#,35..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17881-0L030 |
1KDFTV,2KDFTV..KUN15,2#,35..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17881-0L110 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17881-0L110 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17881-0L110 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17881-0L052 |
2KDFTV..KUN25,35..THDCB,THSCB LATIN AMERICA SPEC |
1 | ||
| 17881-0L052 |
2KDFTV..KUN25,35..THDCB,THSCB LATIN AMERICA SPEC |
1 | ||
| 17881-0L052 |
2KDFTV..KUN25,35..THDCB,THSCB LATIN AMERICA SPEC |
1 | ||
| 17881-0L110 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH |
1 | ||
| 17881-0L110 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH |
1 | ||
| 17881-0L110 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH |
1 | ||
| 17881-0L082 |
2KDFTV..KUN25..RHD..SA;2KDFTV..KUN35..SR..GEN;2KDFTV..KUN15..DLX..PHL;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN15..SR..(GEN,PHL);2KDFTV..KUN10,15..RHD..DCR..(IDN,SA,TH);2KDFTV..KUN35..(SCB,THDCB,XTR)..(GEN,SA);2KDFTV..KUN15..(SCB,XTR)..(SR,STD)..(PHL,SA) |
1 | ||
| 17881-0L082 |
2KDFTV..KUN25..RHD..SA;2KDFTV..KUN35..SR..GEN;2KDFTV..KUN15..DLX..PHL;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN15..SR..(GEN,PHL);2KDFTV..KUN10,15..RHD..DCR..(IDN,SA,TH);2KDFTV..KUN35..(SCB,THDCB,XTR)..(GEN,SA);2KDFTV..KUN15..(SCB,XTR)..(SR,STD)..(PHL,SA) |
1 | ||
| 17881-0L082 |
2KDFTV..KUN25..RHD..SA;2KDFTV..KUN35..SR..GEN;2KDFTV..KUN15..DLX..PHL;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN15..SR..(GEN,PHL);2KDFTV..KUN10,15..RHD..DCR..(IDN,SA,TH);2KDFTV..KUN35..(SCB,THDCB,XTR)..(GEN,SA);2KDFTV..KUN15..(SCB,XTR)..(SR,STD)..(PHL,SA) |
1 | ||
| 17881-0L052 |
2KDFTV..KUN15..XTR..GEN;2KDFTV..KUN15,25..LHD..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);2KDFTV..KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN) |
1 | ||
| 17881-0L052 |
2KDFTV..KUN15..XTR..GEN;2KDFTV..KUN15,25..LHD..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);2KDFTV..KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN) |
1 | ||
| 17881-0L052 |
2KDFTV..KUN15..XTR..GEN;2KDFTV..KUN15,25..LHD..SA;2KDFTV..KUN35..DCB..DLX..SA;2KDFTV..KUN25..(DCB,SCB,XTR)..(GCC,GEN,PKN);2KDFTV..KUN10,15..(DLX,STD)..DCR..(GCC,GEN,PKN) |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90460-T0005 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
2 | ||
| 90460-T0005 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
2 | ||
| 90460-T0005 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
2 | ||
| 90460-T0005 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
2 | ||
| 90460-T0005 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
2 | ||
| 90460-T0004 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.1 |
1 | ||
| 90460-T0004 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.1 |
1 | ||
| 90460-T0004 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.1 |
1 | ||
| 90460-T0005 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.2 |
1 | ||
| 90460-T0005 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.2 |
1 | ||
| 90460-T0005 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.2 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90460-T0005 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
2 | ||
| 90460-T0005 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
2 | ||
| 90460-T0005 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90460-T0005 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
2 | ||
| 90460-T0005 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
2 | ||
| 90460-T0005 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
2 | ||
| 90460-T0004 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.1 |
1 | ||
| 90460-T0004 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.1 |
1 | ||
| 90460-T0004 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.1 |
1 | ||
| 90460-T0005 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.2 |
1 | ||
| 90460-T0005 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.2 |
1 | ||
| 90460-T0005 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA NO.2 |
1 | ||
| 17882B - CLAMP(FOR COOL AIR INTAKE) | ||||
| 90467-31110 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN35..DLX..(CO,SA);2KDFTV..KUN25..CO,GCC,GEN,PKN,SA |
1 | ||
| 90467-31110 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN35..DLX..(CO,SA);2KDFTV..KUN25..CO,GCC,GEN,PKN,SA |
1 | ||
| 90467-31110 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN35..DLX..(CO,SA);2KDFTV..KUN25..CO,GCC,GEN,PKN,SA |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-0L010 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17883-0L010 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17883-0L010 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 22204-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 22204-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 22204-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH |
1 | ||
| 22204-0L010 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 22204-0L010 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 22204-0L010 |
2KDFTV..KUN25..SCB..GEN;2KDFTV..KUN15..RHD..DCB..GEN PAKISTAN SPEC(EURO 2 REGULATION) |
1 | ||
| 22204-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 22204-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 22204-0L010 |
2KDFTV..KUN25..IDN,MA;2KDFTV..KUN15..DCR..(PHL,TH);1KDFTV,2KDFTV..KUN10,16..RHD;2KDFTV..KUN35..LHD..(GEN,PHL);1KDFTV..KUN26,36..(4FC,5FC)..TH;1KDFTV,2KDFTV..KUN15,36..SR..GEN;2KDFTV..KUN15,25..LHD..(SCB,THDCB,THSCB)..HDCR..GEN;1KDFTV..KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,MA,PHL) |
1 | ||
| 22204-0L010 |
2KDFTV..KUN25..IDN,MA;2KDFTV..KUN15..DCR..(PHL,TH);1KDFTV,2KDFTV..KUN10,16..RHD;2KDFTV..KUN35..LHD..(GEN,PHL);1KDFTV..KUN26,36..(4FC,5FC)..TH;1KDFTV,2KDFTV..KUN15,36..SR..GEN;2KDFTV..KUN15,25..LHD..(SCB,THDCB,THSCB)..HDCR..GEN;1KDFTV..KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,MA,PHL) |
1 | ||
| 22204-0L010 |
2KDFTV..KUN25..IDN,MA;2KDFTV..KUN15..DCR..(PHL,TH);1KDFTV,2KDFTV..KUN10,16..RHD;2KDFTV..KUN35..LHD..(GEN,PHL);1KDFTV..KUN26,36..(4FC,5FC)..TH;1KDFTV,2KDFTV..KUN15,36..SR..GEN;2KDFTV..KUN15,25..LHD..(SCB,THDCB,THSCB)..HDCR..GEN;1KDFTV..KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,MA,PHL) |
1 | ||
| 22204-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 22204-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 22204-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| Common parts | ||||
| 25761-0L010 | ||||
| 90099-00289 | ||||
| 90105-T0054 | ||||
| 90119-T0286 | ||||
| 90119-T0334 | ||||
| 90460-57005 | ||||
| 90480-T0002 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1708 | ||||
| 2606 | ||||
| 8405 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
