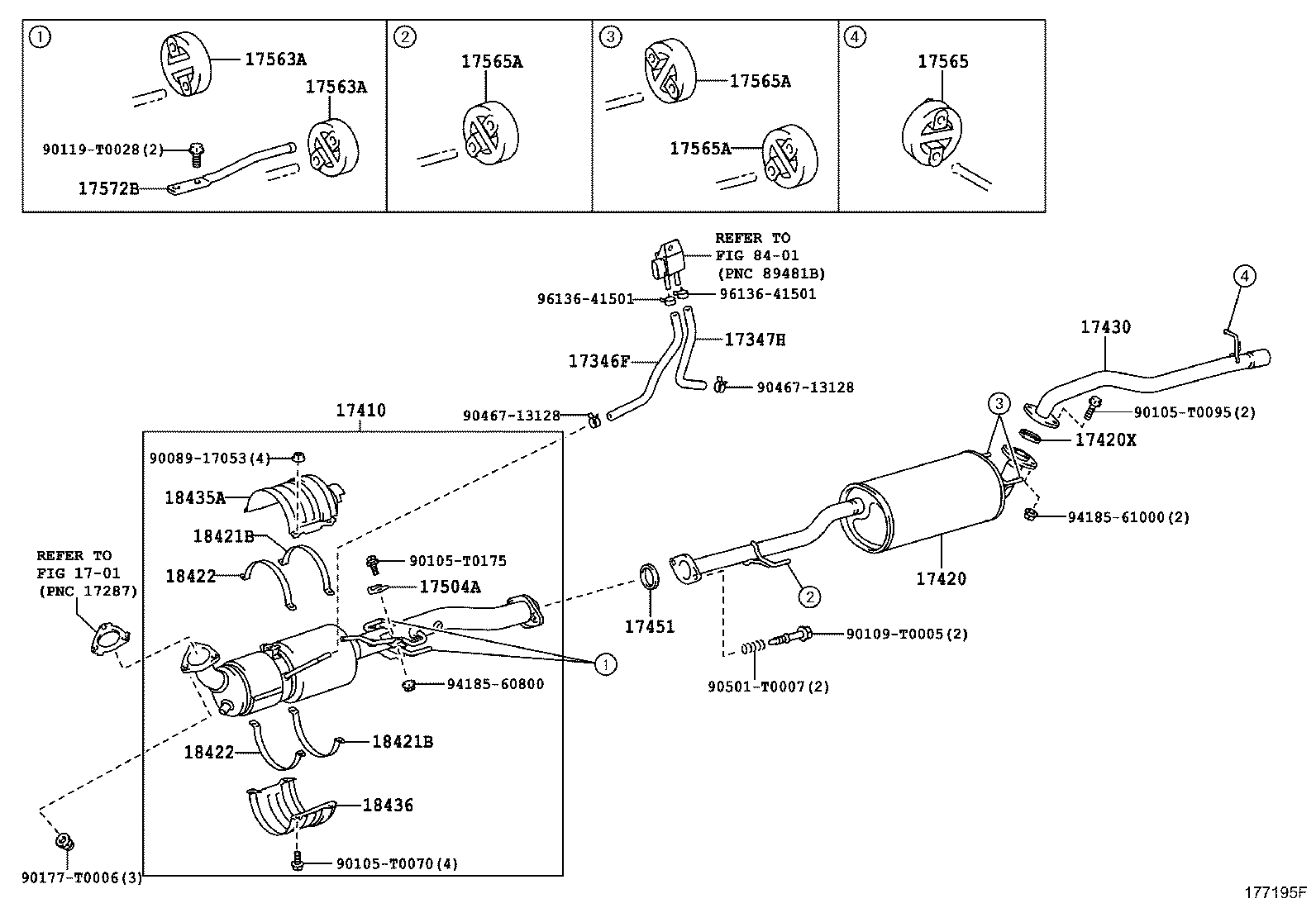

KUN25L-FRMDH (2011)
Toyota Hilux
(1205- )2KDFTV..KUN35..DLX..GEN ; (1205- )1KDFTV,2KDFTV..KUN2#..THDCB,THSCB..
EURO 5 REGULATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17346F - HOSE, AIR, NO.6 | ||||
| 17346-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17347H - HOSE, AIR, NO.7 | ||||
| 17347-30040 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-0L030 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH *114=TOYOTA/AB5/Y |
1 | ||
| 17401-0L030 |
2KDFTV..KUN25..THSCB;2KDFTV..KUN35..THDCB *114=TOYOTA/AB5/Y,HIGH ALTITUDE COUNTRY SPEC |
1 | ||
| 17401-0L120 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17410-0L040 |
2KDFTV..KUN25..THSCB *114=TOYOTA/ZB3/Y,CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17401-0L030 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *114=TOYOTA/AB5/Y,THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17401-0L060 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17403-0L101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17403-0L061 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17403-0L120 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17403-0L061 |
2KDFTV..KUN15..SMT..SR;1KDFTV..KUN26..4FC..ARL;1KDFTV..KUN26..5FC..GEN;2KDFTV..KUN15..DCB..HDCR;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN26..(5F,5FC)..(ARL,TH);1KDFTV,2KDFTV..KUN16,25,3#..ARL,TH |
1 | ||
| 17403-0L081 |
2KDFTV..KUN15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV,5LE..KUN25,LAN15,25,35..GCC,GEN,PKN,SA |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-T6002 |
1GRFE..GGN15,25;1GRFE,1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..GGN35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-0L141 |
2KDFTV..KUN35..DLX..GEN;1KDFTV,2KDFTV..KUN2#..THDCB,THSCB |
1 | ||
| 17405-0L111 |
2KDFTV..KUN35..SR..GEN;2KDFTV..KUN35..PHL,SA,TH;1KDFTV,2KDFTV,5LE..KUN1#,2#,36,LAN15,25,35..(DCB,SADCB,SCB,SMT,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH) |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-T6002 |
2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN35..PHL,SA,TH;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KUN1#,2#,36,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 17451-0C010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17504A - CLAMP SUB-ASSY, EXHAUST PIPE | ||||
| 17504-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17565-0M010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 17565-0M010 |
2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN35..PHL,SA,TH;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KUN1#,2#,36,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH |
1 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17565-0M010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 17565-0M010 |
2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN35..PHL,SA,TH;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KUN1#,2#,36,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH |
1 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-0M010 |
1GRFE..GGN15;1GRFE,1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..GGN25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-0M010 |
1GRFE..GGN15;1GRFE,1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..GGN25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH |
3 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-0M010 |
1GRFE..GGN15;1GRFE,1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..GGN25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH |
3 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-0M010 |
1GRFE..GGN15;1GRFE,1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..GGN25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH |
3 | ||
| 17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17572-0L020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 18421B - STAY, CONVERTER PROTECTOR, NO.2 | ||||
| 18422-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 18421B - STAY, CONVERTER PROTECTOR, NO.2 | ||||
| 18422-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 18422 - STAY, CONVERTER PROTECTOR, NO.2 | ||||
| 18421-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 18422 - STAY, CONVERTER PROTECTOR, NO.2 | ||||
| 18421-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 18435A - PROTECTOR, MONOLITHIC CONVERTER | ||||
| 18435-0L020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 18436 - PROTECTOR, MONOLITHIC CONVERTER, NO.1 | ||||
| 18445-0L010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| Common parts | ||||
| 90089-17053 | ||||
| 90105-T0070 | ||||
| 90105-T0095 | ||||
| 90105-T0175 | ||||
| 90109-T0005 | ||||
| 90119-T0028 | ||||
| 90177-T0006 | ||||
| 90467-13128 | ||||
| 90501-T0007 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| 96136-41501 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 8401 | ||||
(1107- )2KDFTV..KUN35..LHD..GEN ; (1107- )1KDFTV,2KDFTV..KUN1#,2#,36 ; (1107-
EXCEPT EURO 5 REGULATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-0L030 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH *114=TOYOTA/AB5/Y |
1 | ||
| 17401-0L030 |
2KDFTV..KUN25..THSCB;2KDFTV..KUN35..THDCB *114=TOYOTA/AB5/Y,HIGH ALTITUDE COUNTRY SPEC |
1 | ||
| 17401-0L120 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17410-0L040 |
2KDFTV..KUN25..THSCB *114=TOYOTA/ZB3/Y,CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17401-0L030 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *114=TOYOTA/AB5/Y,THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17401-0L060 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV..KUN25..GCC,GEN,PKN,SA |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-0L010 |
2KDFTV..KUN35..LHD..GEN;1KDFTV,2KDFTV..KUN1#,2#,36;2KDFTV..KUN35..CO,LA,PHL,SA,TH |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17403-0L101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17403-0L061 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 17403-0L120 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION) |
1 | ||
| 17403-0L061 |
2KDFTV..KUN15..SMT..SR;1KDFTV..KUN26..4FC..ARL;1KDFTV..KUN26..5FC..GEN;2KDFTV..KUN15..DCB..HDCR;2KDFTV..KUN15..SCB..HDCR..GEN;1KDFTV..KUN26..(5F,5FC)..(ARL,TH);1KDFTV,2KDFTV..KUN16,25,3#..ARL,TH |
1 | ||
| 17403-0L081 |
2KDFTV..KUN15..DCR;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;2KDFTV,5LE..KUN25,LAN15,25,35..GCC,GEN,PKN,SA |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-T6002 |
1GRFE..GGN15,25;1GRFE,1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..GGN35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-0L141 |
2KDFTV..KUN35..DLX..GEN;1KDFTV,2KDFTV..KUN2#..THDCB,THSCB |
1 | ||
| 17405-0L111 |
2KDFTV..KUN35..SR..GEN;2KDFTV..KUN35..PHL,SA,TH;1KDFTV,2KDFTV,5LE..KUN1#,2#,36,LAN15,25,35..(DCB,SADCB,SCB,SMT,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH) |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-T6002 |
2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN35..PHL,SA,TH;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KUN1#,2#,36,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 17451-0C010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17565-0M010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 17565-0M010 |
2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN35..PHL,SA,TH;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KUN1#,2#,36,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH |
1 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-0M010 |
1GRFE..GGN15;1GRFE,1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..GGN25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-0M010 |
1GRFE..GGN15;1GRFE,1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..GGN25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH |
3 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-0M010 |
1GRFE..GGN15;1GRFE,1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..GGN25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH |
3 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-0M010 |
1GRFE..GGN15;1GRFE,1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..GGN25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH |
3 | ||
| Common parts | ||||
| 90080-50392 | ||||
| 90105-T0095 | ||||
| 90109-T0005 | ||||
| 94185-61000 | ||||
