KUN25L-FRMDH (2011)
Toyota Hilux
ILLUST NO. 1 OF 2(1107- )1KDFTV,2KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,3#..ARL,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0046 |
1KDFTV,2KDFTV..KUN1#,2#,3# |
2 | ||
| 90466-T0033 |
1KDFTV,2KDFTV..KUN1#,2#,3# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0046 |
1KDFTV,2KDFTV..KUN1#,2#,3# |
2 | ||
| 90466-T0033 |
1KDFTV,2KDFTV..KUN1#,2#,3# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,3#..ARL,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-T0030 |
2KDFTV..KUN15..HDCR;1KDFTV..KUN36..5F..TH;1KDFTV,2KDFTV..KUN2#,35;1KDFTV,2KDFTV..KUN1#,36..DCR..(ARL,GCC,GEN,IDN,LA,PHL,PKN,SA) |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-T0030 |
2KDFTV..KUN15..HDCR;1KDFTV..KUN36..5F..TH;1KDFTV,2KDFTV..KUN2#,35;1KDFTV,2KDFTV..KUN1#,36..DCR..(ARL,GCC,GEN,IDN,LA,PHL,PKN,SA) |
2 | ||
| 16361 - FAN | ||||
| 16361-0L020 |
1KDFTV,2KDFTV..KUN1#,2#,3#..ARL,CO,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0L120 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..5F..(ARL,GEN,IDN,PHL,TH) |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-75180 |
2KDFTV..KUN25..4FC..MA;1KDFTV,2KDFTV..KUN1#,25,3#..ARL,GCC,GEN,IDN,PHL,PKN,TH;1KDFTV..KUN26..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GEN,MA,PHL,TH) |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-0C180 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,TH) |
2 | ||
| 16407A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 16407-67240 |
1KDFTV,2KDFTV..KUN1#,2#,3#..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH |
1 | ||
| 16417 - COCK | ||||
| 16417-0C180 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,PKN,TH) |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-0L120 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,PKN,TH) |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-0L120 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,PKN,TH) |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 91651-B0820 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,CO,GCC,GEN,IDN,LA,MA,PHL,PKN,TH) |
4 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-0L012 |
1KDFTV..KUN26..4FC..(GEN,MA,PHL,SA,TH);1KDFTV..KUN26..(5F,5FC)..(ARL,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN1#,25,3#..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH |
1 | ||
| 16470-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,3# |
1 | ||
| 16470-0L011 |
1KDFTV,2KDFTV..KUN1#,2#,3#..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH |
1 | ||
| 16470M - GROMMET | ||||
| 90480-T0004 |
1KDFTV,2KDFTV..KUN1#,2#,3# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16401-30011 |
1KDFTV,2KDFTV..KUN1#,2#,3#..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH |
1 | ||
| 16401-30012 |
2KDFTV..KUN15..GCC..IV3;2KDFTV..KUN15..SCB..DCR..CBU;2KDFTV..KUN25..4FC..(MA,PKN);1KDFTV,2KDFTV..KUN2#..RHD..5F;2KDFTV..KUN15..RHD..(DCB,XTR);1KDFTV..KUN36..(4FC,5F)..(SA,TH);1KDFTV..KUN26..RHD..4FC..(GEN,SA,TH);1KDFTV,2KDFTV..KUN15,26..DCB..(GCC,PHL);1KDFTV..KUN26..LHD..(SADCB,THDCB)..(4FC,5F);2KDFTV..KUN15..(SCB,SMT)..(SR,STD)..(PHL,TH);2KDFTV..KUN15,35..LHD..(DCB,THDCB)..DLX..(GEN,SA);1KDFTV,2KDFTV..KUN10,16,35..5F..(ARL,GCC,IDN,PHL,SA,TH);2KDFTV..KUN25..LHD..(DCB,SCB,THDCB,THSCB)..5F..DLX..(GCC,GEN,SA) |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-0L030 |
1KDFTV,2KDFTV..KUN1#,2#,3#..ARL,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-T0012 |
2KDFTV..KUN15..HDCR;1KDFTV,2KDFTV..KUN2#,35;1KDFTV..KUN36..(5F,5FC)..TH;1KDFTV,2KDFTV..KUN1#,36..DCR..(ARL,GCC,GEN,IDN,LA,PHL,PKN,SA) |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-T0012 |
2KDFTV..KUN15..HDCR;1KDFTV,2KDFTV..KUN2#,35;1KDFTV..KUN36..(5F,5FC)..TH;1KDFTV,2KDFTV..KUN1#,36..DCR..(ARL,GCC,GEN,IDN,LA,PHL,PKN,SA) |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-0L030 |
1KDFTV,2KDFTV..KUN1#,2#,3#..ARL,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-T0012 |
2KDFTV..KUN15..HDCR;1KDFTV,2KDFTV..KUN2#,35;1KDFTV..KUN36..(5F,5FC)..TH;1KDFTV,2KDFTV..KUN1#,36..DCR..(ARL,GCC,GEN,IDN,LA,PHL,PKN,SA) |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-T0012 |
2KDFTV..KUN15..HDCR;1KDFTV,2KDFTV..KUN2#,35;1KDFTV..KUN36..(5F,5FC)..TH;1KDFTV,2KDFTV..KUN1#,36..DCR..(ARL,GCC,GEN,IDN,LA,PHL,PKN,SA) |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0L050 |
1KDFTV,2KDFTV..KUN1#,2#,3#..(DCB,SCB,SMT,THDCB,THSCB,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) |
1 | ||
| Common parts | ||||
| 88899-0K020 | ||||
| 88899-52050 | ||||
| 90119-T0254 | ||||
| 90119-T0347 | ||||
| 90179-06293 | ||||

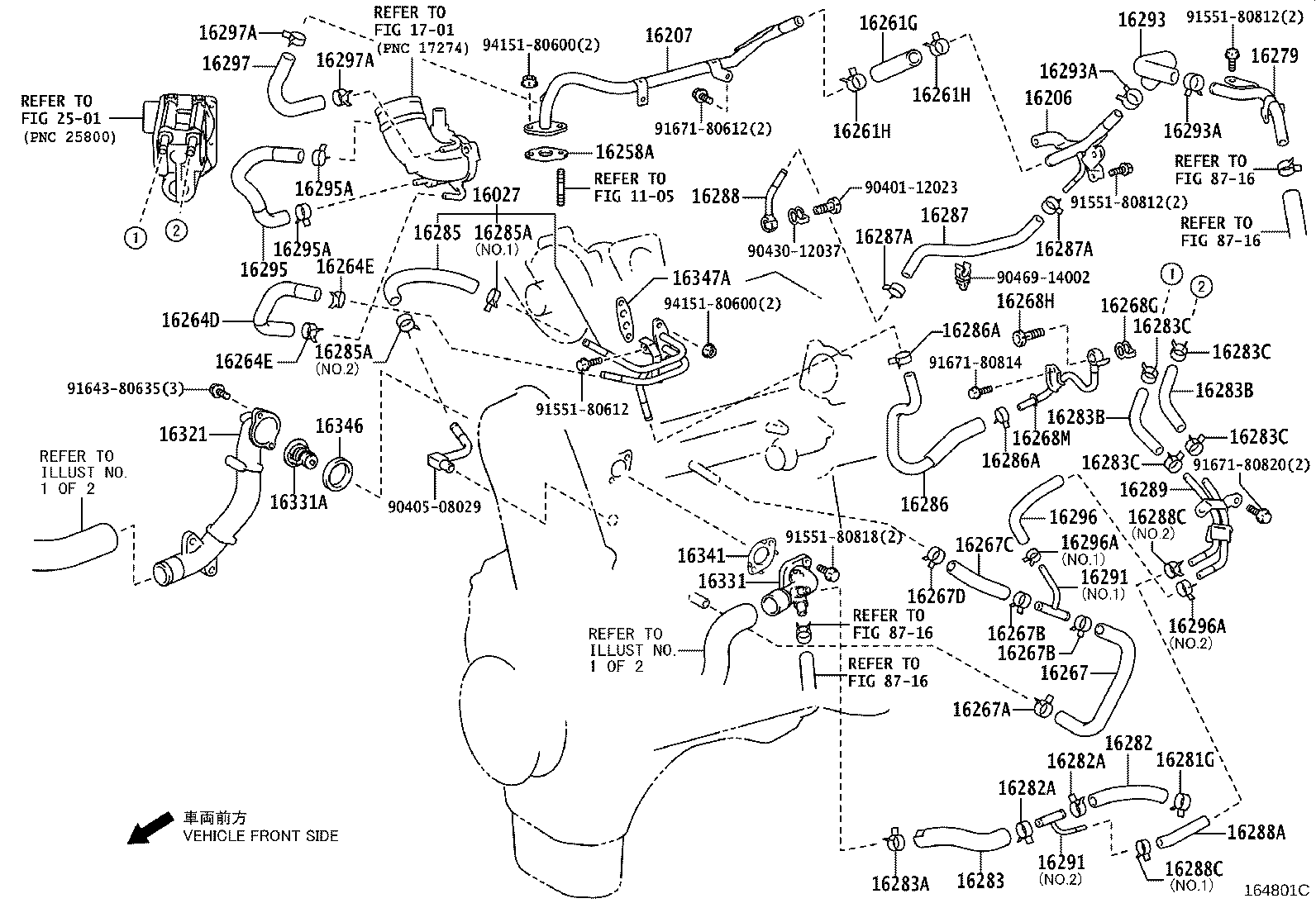

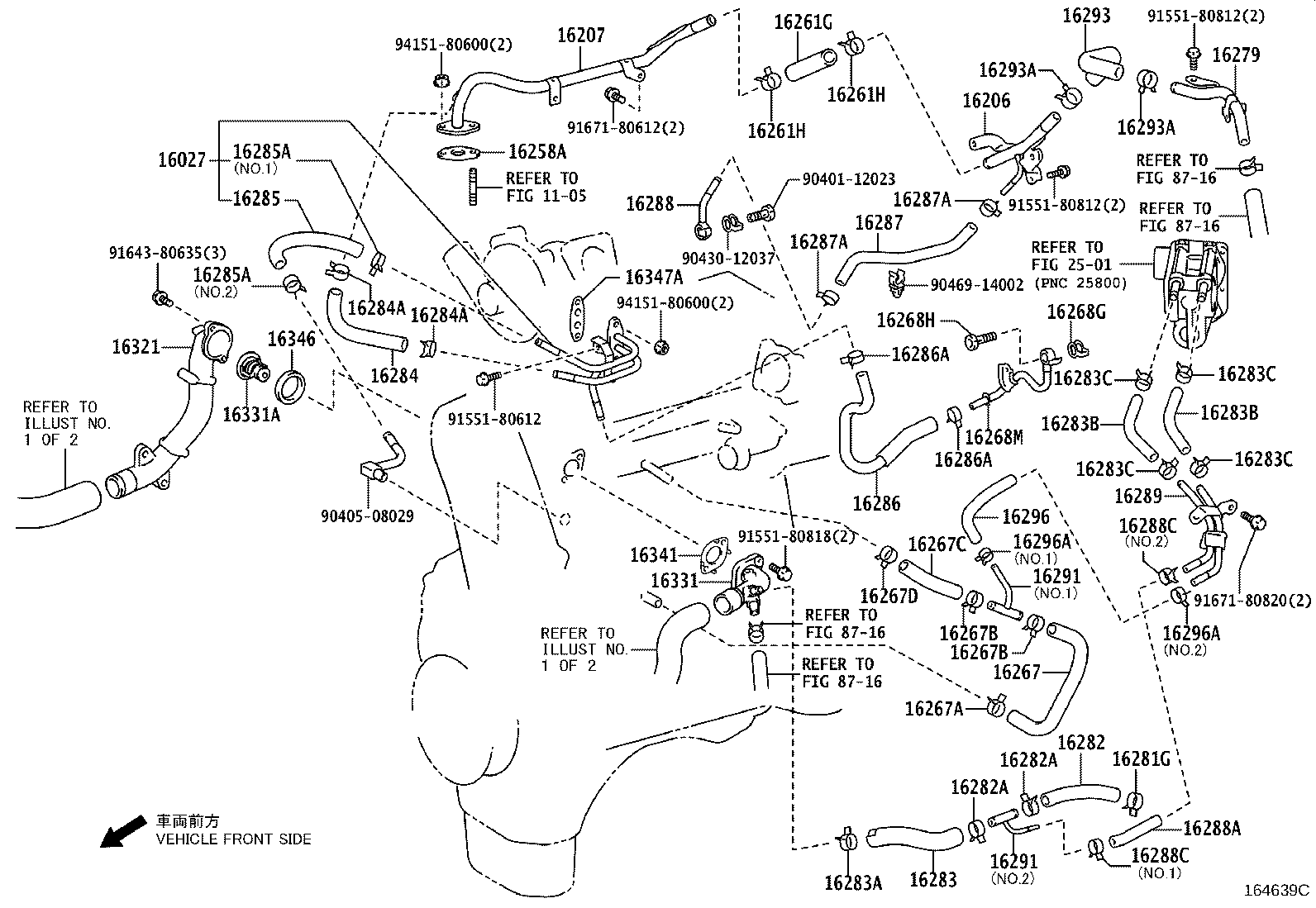

ILLUST NO. 2 OF 2(1107- )2KDFTV..KUN25..IDN,TH ; (1107- )2KDFTV..KUN35..5F..SR..TH ; (1107-
EXCEPT EURO 4 REGULATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-30150 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16027-30150 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16027-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH *130 |
1 | ||
| 16027-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH *130 |
1 | ||
| 16029 - PIPE SUB-ASSY, TURBO WATER, NO.3 | ||||
| 16029-0L010 |
2KDFTV..KUN35..4FC;1KDFTV..KUN26..MA,PHL,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25,36..IDN,TH *130 |
1 | ||
| 16029-0L010 |
2KDFTV..KUN35..4FC;1KDFTV..KUN26..MA,PHL,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25,36..IDN,TH *130 |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-30050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16206-30050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16206-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16206-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16206-30061 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16206-30061 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16206-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16206-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16206-30050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16206-30050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16206-30060 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16206-30060 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16206-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16206-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16206-0L010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
1 | ||
| 16206-0L010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
1 | ||
| 16206-30050 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
1 | ||
| 16206-30050 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-0L020 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16207-0L020 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16207-0L020 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16207-0L020 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16207-30120 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16207-30120 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16207-30120 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16207-30120 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16207-30180 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16207-30180 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16207-30120 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16207-30120 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16207-0L020 |
2KDFTV..KUN35..DLX..SA;2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN10,15,25..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN *130 |
1 | ||
| 16207-0L020 |
2KDFTV..KUN35..DLX..SA;2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN10,15,25..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN *130 |
1 | ||
| 16207-30120 |
2KDFTV..KUN35..DLX..SA;2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN10,15,25..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN *360 |
1 | ||
| 16207-30120 |
2KDFTV..KUN35..DLX..SA;2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN10,15,25..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN *360 |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16258-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN35..4FC,5FC;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN15..RHD..(DLX,STD);2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15..LHD..SCB..DLX..DCR;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN3#..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15..(SCB,SMT,XTR)..(SR,STD)..(PHL,SA,TH) *360 |
1 | ||
| 16258-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN35..4FC,5FC;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN15..RHD..(DLX,STD);2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15..LHD..SCB..DLX..DCR;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN3#..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15..(SCB,SMT,XTR)..(SR,STD)..(PHL,SA,TH) *360 |
1 | ||
| 16258-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| 16258-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16258-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN35..4FC,5FC;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN15..RHD..(DLX,STD);2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15..LHD..SCB..DLX..DCR;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN3#..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15..(SCB,SMT,XTR)..(SR,STD)..(PHL,SA,TH) *360 |
1 | ||
| 16258-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN35..4FC,5FC;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN15..RHD..(DLX,STD);2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15..LHD..SCB..DLX..DCR;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN3#..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15..(SCB,SMT,XTR)..(SR,STD)..(PHL,SA,TH) *360 |
1 | ||
| 16258-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| 16258-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
2 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-30070 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130,(J) |
2 | ||
| 16284-30070 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130,(J) |
2 | ||
| 16284-0L010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
2 | ||
| 16284-0L010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
2 | ||
| 16284-30070 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16284-30070 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-30070 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130,(J) |
2 | ||
| 16284-30070 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130,(J) |
2 | ||
| 16284-0L010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
2 | ||
| 16284-0L010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
2 | ||
| 16284-30070 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16284-30070 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96137-41501 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 96137-41501 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 96137-41501 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130 |
4 | ||
| 96137-41501 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130 |
4 | ||
| 90466-T0014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
4 | ||
| 90466-T0014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
4 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96137-41501 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 96137-41501 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 96137-41501 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130 |
4 | ||
| 96137-41501 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130 |
4 | ||
| 90466-T0014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
4 | ||
| 90466-T0014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
4 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96137-41501 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 96137-41501 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 96137-41501 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130 |
4 | ||
| 96137-41501 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130 |
4 | ||
| 90466-T0014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
4 | ||
| 90466-T0014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
4 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96137-41501 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 96137-41501 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 96137-41501 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130 |
4 | ||
| 96137-41501 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130 |
4 | ||
| 90466-T0014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
4 | ||
| 90466-T0014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
4 | ||
| 16321 - INLET, WATER | ||||
| 16321-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16321-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16321-30040 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16321-30040 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130,(J) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..RHD..GEN;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..HDCR..(GEN,TH) *130,(L) |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..RHD..GEN;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..HDCR..(GEN,TH) *130,(L) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH) *360 |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH) *360 |
1 | ||
| 16331-0L030 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130,(L) |
1 | ||
| 16331-0L030 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130,(L) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16331-30100 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16331-30100 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16304-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *130 |
1 | ||
| 16304-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *130 |
1 | ||
| 16304-0L020 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16304-0L020 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..(4FC,5F)..(GCC,GEN,SA) *360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..(4FC,5F)..(GCC,GEN,SA) *360 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130,(J) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..RHD..GEN;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..HDCR..(GEN,TH) *130,(L) |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..RHD..GEN;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..HDCR..(GEN,TH) *130,(L) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH) *360 |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH) *360 |
1 | ||
| 16331-0L030 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130,(L) |
1 | ||
| 16331-0L030 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130,(L) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16331-30100 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16331-30100 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16304-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *130 |
1 | ||
| 16304-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *130 |
1 | ||
| 16304-0L020 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16304-0L020 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..(4FC,5F)..(GCC,GEN,SA) *360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..(4FC,5F)..(GCC,GEN,SA) *360 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03118 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *WAX 82-95,*360 |
1 | ||
| 90916-03118 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *WAX 82-95,*360 |
1 | ||
| 90916-03118 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *WAX 82-95,*130 |
1 | ||
| 90916-03118 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *WAX 82-95,*130 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130 |
1 | ||
| 16341-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130 |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16341-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH *130 |
1 | ||
| 16341-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH *130 |
1 | ||
| 16341-0L010 |
2KDFTV..KUN15..DCR;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26,36..5F..(PHL,SA);1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA;1KDFTV..KUN26,36..(4FC,5FC)..(MA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN *130 |
1 | ||
| 16341-0L010 |
2KDFTV..KUN15..DCR;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26,36..5F..(PHL,SA);1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA;1KDFTV..KUN26,36..(4FC,5FC)..(MA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN *130 |
1 | ||
| 16341-30020 |
2KDFTV..KUN15,25,35..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN15,25,35..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN2#..(4FC,5F)..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN2#..(4FC,5F)..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-0K010 |
1KDFTV..KUN26..THDCB;1KDFTV..KUN26..PHL,SA,TH;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16346-0K010 |
1KDFTV..KUN26..THDCB;1KDFTV..KUN26..PHL,SA,TH;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16346-0K010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(L) |
1 | ||
| 16346-0K010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(L) |
1 | ||
| 16346-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(J) |
1 | ||
| 16346-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(J) |
1 | ||
| 16346-67010 |
1KDFTV..KUN26..PHL,SA,TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,PKN,SA,TH *130,(J) |
1 | ||
| 16346-67010 |
1KDFTV..KUN26..PHL,SA,TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,PKN,SA,TH *130,(J) |
1 | ||
| 16347A - GASKET(FOR TURBO WATER PIPE) | ||||
| 16347-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16347-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16347-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..DCR..(CO,LA,MA,PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| 16347-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..DCR..(CO,LA,MA,PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| Common parts | ||||
| 90105-T0053 | ||||
| 90105-T0066 | ||||
| 90105-T0119 | ||||
| 90119-T0067 | ||||
| 90119-T0134 | ||||
| 90178-T0018 | ||||
| 90405-08029 | ||||
| 90405-T0002 | ||||
| 91551-80612 | ||||
| 91551-80812 | ||||
| 91551-80818 | ||||
| 91643-80635 | ||||
| 91671-80612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(1107- )2KDFTV..KUN15..LHD..SCB..DLX..DCR ; (1107- )2KDFTV..KUN25..CO,GCC,GEN
EXCEPT EURO 4 REGULATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11492D - PLATE, SEAL, NO.1 | ||||
| 11492-30010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..SCB..(GEN,MA);2KDFTV..KUN25,35..DCB..(GEN,PHL) *360 |
1 | ||
| 11492-30010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..SCB..(GEN,MA);2KDFTV..KUN25,35..DCB..(GEN,PHL) *360 |
1 | ||
| 11492-30010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..SCB..(GEN,MA);2KDFTV..KUN25,35..DCB..(GEN,PHL) *360 |
1 | ||
| 11492-30010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..SCB..(GEN,MA);2KDFTV..KUN25,35..DCB..(GEN,PHL) *360 |
1 | ||
| 11492-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25,35..(DCB,SCB)..(GEN,PHL) *130 |
1 | ||
| 11492-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25,35..(DCB,SCB)..(GEN,PHL) *130 |
1 | ||
| 11492-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25,35..(DCB,SCB)..(GEN,PHL) *130 |
1 | ||
| 11492-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25,35..(DCB,SCB)..(GEN,PHL) *130 |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-30050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16206-30050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16206-30050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16206-30050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16206-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16206-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16206-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16206-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16206-30061 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16206-30061 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16206-30061 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16206-30061 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16206-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16206-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16206-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16206-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16206-30050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16206-30050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16206-30050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16206-30050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16206-30060 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16206-30060 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16206-30060 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16206-30060 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16206-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16206-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16206-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16206-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16206-0L010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
1 | ||
| 16206-0L010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
1 | ||
| 16206-0L010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
1 | ||
| 16206-0L010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
1 | ||
| 16206-30050 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
1 | ||
| 16206-30050 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
1 | ||
| 16206-30050 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
1 | ||
| 16206-30050 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-0L020 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16207-0L020 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16207-0L020 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16207-0L020 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16207-0L020 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16207-0L020 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16207-0L020 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16207-0L020 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16207-30120 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16207-30120 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16207-30120 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16207-30120 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16207-30120 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16207-30120 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16207-30120 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16207-30120 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16207-30180 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16207-30180 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16207-30180 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16207-30180 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16207-30120 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16207-30120 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16207-30120 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16207-30120 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16207-0L020 |
2KDFTV..KUN35..DLX..SA;2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN10,15,25..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN *130 |
1 | ||
| 16207-0L020 |
2KDFTV..KUN35..DLX..SA;2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN10,15,25..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN *130 |
1 | ||
| 16207-0L020 |
2KDFTV..KUN35..DLX..SA;2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN10,15,25..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN *130 |
1 | ||
| 16207-0L020 |
2KDFTV..KUN35..DLX..SA;2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN10,15,25..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN *130 |
1 | ||
| 16207-30120 |
2KDFTV..KUN35..DLX..SA;2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN10,15,25..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN *360 |
1 | ||
| 16207-30120 |
2KDFTV..KUN35..DLX..SA;2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN10,15,25..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN *360 |
1 | ||
| 16207-30120 |
2KDFTV..KUN35..DLX..SA;2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN10,15,25..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN *360 |
1 | ||
| 16207-30120 |
2KDFTV..KUN35..DLX..SA;2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN10,15,25..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN *360 |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16258-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN35..4FC,5FC;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN15..RHD..(DLX,STD);2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15..LHD..SCB..DLX..DCR;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN3#..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15..(SCB,SMT,XTR)..(SR,STD)..(PHL,SA,TH) *360 |
1 | ||
| 16258-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN35..4FC,5FC;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN15..RHD..(DLX,STD);2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15..LHD..SCB..DLX..DCR;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN3#..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15..(SCB,SMT,XTR)..(SR,STD)..(PHL,SA,TH) *360 |
1 | ||
| 16258-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN35..4FC,5FC;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN15..RHD..(DLX,STD);2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15..LHD..SCB..DLX..DCR;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN3#..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15..(SCB,SMT,XTR)..(SR,STD)..(PHL,SA,TH) *360 |
1 | ||
| 16258-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN35..4FC,5FC;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN15..RHD..(DLX,STD);2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15..LHD..SCB..DLX..DCR;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN3#..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15..(SCB,SMT,XTR)..(SR,STD)..(PHL,SA,TH) *360 |
1 | ||
| 16258-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| 16258-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| 16258-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| 16258-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16258-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN35..4FC,5FC;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN15..RHD..(DLX,STD);2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15..LHD..SCB..DLX..DCR;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN3#..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15..(SCB,SMT,XTR)..(SR,STD)..(PHL,SA,TH) *360 |
1 | ||
| 16258-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN35..4FC,5FC;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN15..RHD..(DLX,STD);2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15..LHD..SCB..DLX..DCR;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN3#..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15..(SCB,SMT,XTR)..(SR,STD)..(PHL,SA,TH) *360 |
1 | ||
| 16258-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN35..4FC,5FC;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN15..RHD..(DLX,STD);2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15..LHD..SCB..DLX..DCR;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN3#..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15..(SCB,SMT,XTR)..(SR,STD)..(PHL,SA,TH) *360 |
1 | ||
| 16258-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN35..4FC,5FC;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN15..RHD..(DLX,STD);2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15..LHD..SCB..DLX..DCR;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN3#..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15..(SCB,SMT,XTR)..(SR,STD)..(PHL,SA,TH) *360 |
1 | ||
| 16258-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| 16258-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| 16258-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| 16258-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16321-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16321-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16321-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16321-30040 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16321-30040 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16321-30040 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16321-30040 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130,(J) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130,(J) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130,(J) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..RHD..GEN;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..HDCR..(GEN,TH) *130,(L) |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..RHD..GEN;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..HDCR..(GEN,TH) *130,(L) |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..RHD..GEN;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..HDCR..(GEN,TH) *130,(L) |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..RHD..GEN;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..HDCR..(GEN,TH) *130,(L) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH) *360 |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH) *360 |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH) *360 |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH) *360 |
1 | ||
| 16331-30100 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16331-0L030 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130,(L) |
1 | ||
| 16331-0L030 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130,(L) |
1 | ||
| 16331-0L030 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130,(L) |
1 | ||
| 16331-0L030 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130,(L) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16331-30100 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16331-30100 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16331-30100 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16304-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *130 |
1 | ||
| 16304-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *130 |
1 | ||
| 16304-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *130 |
1 | ||
| 16304-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *130 |
1 | ||
| 16304-0L020 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16304-0L020 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16304-0L020 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16304-0L020 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..(4FC,5F)..(GCC,GEN,SA) *360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..(4FC,5F)..(GCC,GEN,SA) *360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..(4FC,5F)..(GCC,GEN,SA) *360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..(4FC,5F)..(GCC,GEN,SA) *360 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130,(J) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130,(J) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130,(J) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..RHD..GEN;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..HDCR..(GEN,TH) *130,(L) |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..RHD..GEN;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..HDCR..(GEN,TH) *130,(L) |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..RHD..GEN;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..HDCR..(GEN,TH) *130,(L) |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..RHD..GEN;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..HDCR..(GEN,TH) *130,(L) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH) *360 |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH) *360 |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH) *360 |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH) *360 |
1 | ||
| 16331-0L030 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130,(L) |
1 | ||
| 16331-0L030 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130,(L) |
1 | ||
| 16331-0L030 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130,(L) |
1 | ||
| 16331-0L030 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130,(L) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16331-30100 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16331-30100 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16331-30100 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16331-30100 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16304-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *130 |
1 | ||
| 16304-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *130 |
1 | ||
| 16304-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *130 |
1 | ||
| 16304-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *130 |
1 | ||
| 16304-0L020 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16304-0L020 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16304-0L020 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16304-0L020 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..(4FC,5F)..(GCC,GEN,SA) *360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..(4FC,5F)..(GCC,GEN,SA) *360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..(4FC,5F)..(GCC,GEN,SA) *360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..(4FC,5F)..(GCC,GEN,SA) *360 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03118 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *WAX 82-95,*360 |
1 | ||
| 90916-03118 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *WAX 82-95,*360 |
1 | ||
| 90916-03118 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *WAX 82-95,*360 |
1 | ||
| 90916-03118 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *WAX 82-95,*360 |
1 | ||
| 90916-03118 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *WAX 82-95,*130 |
1 | ||
| 90916-03118 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *WAX 82-95,*130 |
1 | ||
| 90916-03118 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *WAX 82-95,*130 |
1 | ||
| 90916-03118 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *WAX 82-95,*130 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16341-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130 |
1 | ||
| 16341-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130 |
1 | ||
| 16341-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130 |
1 | ||
| 16341-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130 |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN15,25,35..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16341-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH *130 |
1 | ||
| 16341-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH *130 |
1 | ||
| 16341-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH *130 |
1 | ||
| 16341-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH *130 |
1 | ||
| 16341-0L010 |
2KDFTV..KUN15..DCR;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26,36..5F..(PHL,SA);1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA;1KDFTV..KUN26,36..(4FC,5FC)..(MA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN *130 |
1 | ||
| 16341-0L010 |
2KDFTV..KUN15..DCR;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26,36..5F..(PHL,SA);1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA;1KDFTV..KUN26,36..(4FC,5FC)..(MA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN *130 |
1 | ||
| 16341-0L010 |
2KDFTV..KUN15..DCR;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26,36..5F..(PHL,SA);1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA;1KDFTV..KUN26,36..(4FC,5FC)..(MA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN *130 |
1 | ||
| 16341-0L010 |
2KDFTV..KUN15..DCR;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26,36..5F..(PHL,SA);1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA;1KDFTV..KUN26,36..(4FC,5FC)..(MA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN *130 |
1 | ||
| 16341-30020 |
2KDFTV..KUN15,25,35..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN15,25,35..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN15,25,35..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN2#..(4FC,5F)..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN2#..(4FC,5F)..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN2#..(4FC,5F)..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN2#..(4FC,5F)..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130 |
1 | ||
| 16341-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130 |
1 | ||
| 16341-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130 |
1 | ||
| 16341-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130 |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN15,25,35..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16341-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH *130 |
1 | ||
| 16341-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH *130 |
1 | ||
| 16341-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH *130 |
1 | ||
| 16341-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH *130 |
1 | ||
| 16341-30020 |
2KDFTV..KUN15,25,35..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16341-0L010 |
2KDFTV..KUN15..DCR;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26,36..5F..(PHL,SA);1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA;1KDFTV..KUN26,36..(4FC,5FC)..(MA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN *130 |
1 | ||
| 16341-0L010 |
2KDFTV..KUN15..DCR;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26,36..5F..(PHL,SA);1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA;1KDFTV..KUN26,36..(4FC,5FC)..(MA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN *130 |
1 | ||
| 16341-0L010 |
2KDFTV..KUN15..DCR;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26,36..5F..(PHL,SA);1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA;1KDFTV..KUN26,36..(4FC,5FC)..(MA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN *130 |
1 | ||
| 16341-0L010 |
2KDFTV..KUN15..DCR;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26,36..5F..(PHL,SA);1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA;1KDFTV..KUN26,36..(4FC,5FC)..(MA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN *130 |
1 | ||
| 16341-30020 |
2KDFTV..KUN15,25,35..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN15,25,35..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN2#..(4FC,5F)..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN2#..(4FC,5F)..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN2#..(4FC,5F)..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN2#..(4FC,5F)..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-0K010 |
1KDFTV..KUN26..THDCB;1KDFTV..KUN26..PHL,SA,TH;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16346-0K010 |
1KDFTV..KUN26..THDCB;1KDFTV..KUN26..PHL,SA,TH;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16346-0K010 |
1KDFTV..KUN26..THDCB;1KDFTV..KUN26..PHL,SA,TH;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16346-0K010 |
1KDFTV..KUN26..THDCB;1KDFTV..KUN26..PHL,SA,TH;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16346-0K010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(L) |
1 | ||
| 16346-0K010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(L) |
1 | ||
| 16346-0K010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(L) |
1 | ||
| 16346-0K010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(L) |
1 | ||
| 16346-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(J) |
1 | ||
| 16346-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(J) |
1 | ||
| 16346-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(J) |
1 | ||
| 16346-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(J) |
1 | ||
| 16346-67010 |
1KDFTV..KUN26..PHL,SA,TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,PKN,SA,TH *130,(J) |
1 | ||
| 16346-67010 |
1KDFTV..KUN26..PHL,SA,TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,PKN,SA,TH *130,(J) |
1 | ||
| 16346-67010 |
1KDFTV..KUN26..PHL,SA,TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,PKN,SA,TH *130,(J) |
1 | ||
| 16346-67010 |
1KDFTV..KUN26..PHL,SA,TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,PKN,SA,TH *130,(J) |
1 | ||
| Common parts | ||||
| 90105-T0053 | ||||
| 90105-T0119 | ||||
| 90119-T0067 | ||||
| 90119-T0134 | ||||
| 90178-T0018 | ||||
| 91551-80812 | ||||
| 91551-80818 | ||||
| 91643-80635 | ||||
| 91671-80612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(1107-1208)2KDFTV..KUN35..PHL ; (1107- )2KDFTV..KUN35..LHD..GEN ; (1107- )2KD
EXCEPT EURO 4 REGULATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11492D - PLATE, SEAL, NO.1 | ||||
| 11492-30010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..SCB..(GEN,MA);2KDFTV..KUN25,35..DCB..(GEN,PHL) *360 |
1 | ||
| 11492-30010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..SCB..(GEN,MA);2KDFTV..KUN25,35..DCB..(GEN,PHL) *360 |
1 | ||
| 11492-30010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..SCB..(GEN,MA);2KDFTV..KUN25,35..DCB..(GEN,PHL) *360 |
1 | ||
| 11492-30010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..SCB..(GEN,MA);2KDFTV..KUN25,35..DCB..(GEN,PHL) *360 |
1 | ||
| 11492-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25,35..(DCB,SCB)..(GEN,PHL) *130 |
1 | ||
| 11492-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25,35..(DCB,SCB)..(GEN,PHL) *130 |
1 | ||
| 11492-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25,35..(DCB,SCB)..(GEN,PHL) *130 |
1 | ||
| 11492-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25,35..(DCB,SCB)..(GEN,PHL) *130 |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-30050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16206-30050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16206-30050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16206-30050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16206-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16206-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16206-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16206-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16206-30061 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16206-30061 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16206-30061 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16206-30061 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16206-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16206-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16206-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16206-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16206-30050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16206-30050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16206-30050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16206-30050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16206-30060 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16206-30060 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16206-30060 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16206-30060 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16206-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16206-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16206-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16206-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16206-0L010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
1 | ||
| 16206-0L010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
1 | ||
| 16206-0L010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
1 | ||
| 16206-0L010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
1 | ||
| 16206-30050 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
1 | ||
| 16206-30050 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
1 | ||
| 16206-30050 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
1 | ||
| 16206-30050 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-0L020 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16207-0L020 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16207-0L020 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16207-0L020 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16207-0L020 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16207-0L020 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16207-0L020 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16207-0L020 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16207-30120 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16207-30120 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16207-30120 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16207-30120 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16207-30120 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16207-30120 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16207-30120 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16207-30120 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16207-30180 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16207-30180 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16207-30180 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16207-30180 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16207-30120 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16207-30120 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16207-30120 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16207-30120 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16207-0L020 |
2KDFTV..KUN35..DLX..SA;2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN10,15,25..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN *130 |
1 | ||
| 16207-0L020 |
2KDFTV..KUN35..DLX..SA;2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN10,15,25..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN *130 |
1 | ||
| 16207-0L020 |
2KDFTV..KUN35..DLX..SA;2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN10,15,25..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN *130 |
1 | ||
| 16207-0L020 |
2KDFTV..KUN35..DLX..SA;2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN10,15,25..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN *130 |
1 | ||
| 16207-30120 |
2KDFTV..KUN35..DLX..SA;2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN10,15,25..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN *360 |
1 | ||
| 16207-30120 |
2KDFTV..KUN35..DLX..SA;2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN10,15,25..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN *360 |
1 | ||
| 16207-30120 |
2KDFTV..KUN35..DLX..SA;2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN10,15,25..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN *360 |
1 | ||
| 16207-30120 |
2KDFTV..KUN35..DLX..SA;2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN10,15,25..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN *360 |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16258-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN35..4FC,5FC;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN15..RHD..(DLX,STD);2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15..LHD..SCB..DLX..DCR;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN3#..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15..(SCB,SMT,XTR)..(SR,STD)..(PHL,SA,TH) *360 |
1 | ||
| 16258-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN35..4FC,5FC;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN15..RHD..(DLX,STD);2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15..LHD..SCB..DLX..DCR;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN3#..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15..(SCB,SMT,XTR)..(SR,STD)..(PHL,SA,TH) *360 |
1 | ||
| 16258-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN35..4FC,5FC;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN15..RHD..(DLX,STD);2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15..LHD..SCB..DLX..DCR;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN3#..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15..(SCB,SMT,XTR)..(SR,STD)..(PHL,SA,TH) *360 |
1 | ||
| 16258-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN35..4FC,5FC;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN15..RHD..(DLX,STD);2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15..LHD..SCB..DLX..DCR;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN3#..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15..(SCB,SMT,XTR)..(SR,STD)..(PHL,SA,TH) *360 |
1 | ||
| 16258-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| 16258-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| 16258-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| 16258-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16258-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN35..4FC,5FC;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN15..RHD..(DLX,STD);2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15..LHD..SCB..DLX..DCR;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN3#..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15..(SCB,SMT,XTR)..(SR,STD)..(PHL,SA,TH) *360 |
1 | ||
| 16258-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN35..4FC,5FC;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN15..RHD..(DLX,STD);2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15..LHD..SCB..DLX..DCR;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN3#..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15..(SCB,SMT,XTR)..(SR,STD)..(PHL,SA,TH) *360 |
1 | ||
| 16258-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN35..4FC,5FC;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN15..RHD..(DLX,STD);2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15..LHD..SCB..DLX..DCR;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN3#..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15..(SCB,SMT,XTR)..(SR,STD)..(PHL,SA,TH) *360 |
1 | ||
| 16258-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN35..4FC,5FC;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN15..RHD..(DLX,STD);2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15..LHD..SCB..DLX..DCR;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN3#..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15..(SCB,SMT,XTR)..(SR,STD)..(PHL,SA,TH) *360 |
1 | ||
| 16258-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| 16258-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| 16258-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| 16258-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16321-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16321-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16321-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16321-30040 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16321-30040 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16321-30040 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16321-30040 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130,(J) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130,(J) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130,(J) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..RHD..GEN;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..HDCR..(GEN,TH) *130,(L) |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..RHD..GEN;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..HDCR..(GEN,TH) *130,(L) |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..RHD..GEN;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..HDCR..(GEN,TH) *130,(L) |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..RHD..GEN;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..HDCR..(GEN,TH) *130,(L) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH) *360 |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH) *360 |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH) *360 |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH) *360 |
1 | ||
| 16331-30100 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16331-0L030 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130,(L) |
1 | ||
| 16331-0L030 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130,(L) |
1 | ||
| 16331-0L030 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130,(L) |
1 | ||
| 16331-0L030 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130,(L) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16331-30100 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16331-30100 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16331-30100 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16304-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *130 |
1 | ||
| 16304-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *130 |
1 | ||
| 16304-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *130 |
1 | ||
| 16304-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *130 |
1 | ||
| 16304-0L020 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16304-0L020 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16304-0L020 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16304-0L020 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..(4FC,5F)..(GCC,GEN,SA) *360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..(4FC,5F)..(GCC,GEN,SA) *360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..(4FC,5F)..(GCC,GEN,SA) *360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..(4FC,5F)..(GCC,GEN,SA) *360 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130,(J) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130,(J) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130,(J) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..RHD..GEN;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..HDCR..(GEN,TH) *130,(L) |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..RHD..GEN;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..HDCR..(GEN,TH) *130,(L) |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..RHD..GEN;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..HDCR..(GEN,TH) *130,(L) |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..RHD..GEN;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..HDCR..(GEN,TH) *130,(L) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH) *360 |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH) *360 |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH) *360 |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH) *360 |
1 | ||
| 16331-0L030 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130,(L) |
1 | ||
| 16331-0L030 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130,(L) |
1 | ||
| 16331-0L030 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130,(L) |
1 | ||
| 16331-0L030 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130,(L) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16331-30100 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16331-30100 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16331-30100 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16331-30100 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16304-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *130 |
1 | ||
| 16304-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *130 |
1 | ||
| 16304-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *130 |
1 | ||
| 16304-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *130 |
1 | ||
| 16304-0L020 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16304-0L020 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16304-0L020 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16304-0L020 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..(4FC,5F)..(GCC,GEN,SA) *360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..(4FC,5F)..(GCC,GEN,SA) *360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..(4FC,5F)..(GCC,GEN,SA) *360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..(4FC,5F)..(GCC,GEN,SA) *360 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03118 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *WAX 82-95,*360 |
1 | ||
| 90916-03118 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *WAX 82-95,*360 |
1 | ||
| 90916-03118 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *WAX 82-95,*360 |
1 | ||
| 90916-03118 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *WAX 82-95,*360 |
1 | ||
| 90916-03118 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *WAX 82-95,*130 |
1 | ||
| 90916-03118 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *WAX 82-95,*130 |
1 | ||
| 90916-03118 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *WAX 82-95,*130 |
1 | ||
| 90916-03118 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *WAX 82-95,*130 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16341-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130 |
1 | ||
| 16341-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130 |
1 | ||
| 16341-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130 |
1 | ||
| 16341-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130 |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN15,25,35..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16341-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH *130 |
1 | ||
| 16341-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH *130 |
1 | ||
| 16341-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH *130 |
1 | ||
| 16341-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH *130 |
1 | ||
| 16341-0L010 |
2KDFTV..KUN15..DCR;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26,36..5F..(PHL,SA);1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA;1KDFTV..KUN26,36..(4FC,5FC)..(MA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN *130 |
1 | ||
| 16341-0L010 |
2KDFTV..KUN15..DCR;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26,36..5F..(PHL,SA);1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA;1KDFTV..KUN26,36..(4FC,5FC)..(MA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN *130 |
1 | ||
| 16341-0L010 |
2KDFTV..KUN15..DCR;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26,36..5F..(PHL,SA);1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA;1KDFTV..KUN26,36..(4FC,5FC)..(MA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN *130 |
1 | ||
| 16341-0L010 |
2KDFTV..KUN15..DCR;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26,36..5F..(PHL,SA);1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA;1KDFTV..KUN26,36..(4FC,5FC)..(MA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN *130 |
1 | ||
| 16341-30020 |
2KDFTV..KUN15,25,35..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN15,25,35..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN15,25,35..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN2#..(4FC,5F)..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN2#..(4FC,5F)..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN2#..(4FC,5F)..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN2#..(4FC,5F)..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130 |
1 | ||
| 16341-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130 |
1 | ||
| 16341-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130 |
1 | ||
| 16341-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130 |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN15,25,35..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16341-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH *130 |
1 | ||
| 16341-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH *130 |
1 | ||
| 16341-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH *130 |
1 | ||
| 16341-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH *130 |
1 | ||
| 16341-30020 |
2KDFTV..KUN15,25,35..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16341-0L010 |
2KDFTV..KUN15..DCR;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26,36..5F..(PHL,SA);1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA;1KDFTV..KUN26,36..(4FC,5FC)..(MA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN *130 |
1 | ||
| 16341-0L010 |
2KDFTV..KUN15..DCR;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26,36..5F..(PHL,SA);1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA;1KDFTV..KUN26,36..(4FC,5FC)..(MA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN *130 |
1 | ||
| 16341-0L010 |
2KDFTV..KUN15..DCR;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26,36..5F..(PHL,SA);1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA;1KDFTV..KUN26,36..(4FC,5FC)..(MA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN *130 |
1 | ||
| 16341-0L010 |
2KDFTV..KUN15..DCR;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26,36..5F..(PHL,SA);1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA;1KDFTV..KUN26,36..(4FC,5FC)..(MA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN *130 |
1 | ||
| 16341-30020 |
2KDFTV..KUN15,25,35..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN15,25,35..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN2#..(4FC,5F)..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN2#..(4FC,5F)..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN2#..(4FC,5F)..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN2#..(4FC,5F)..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-0K010 |
1KDFTV..KUN26..THDCB;1KDFTV..KUN26..PHL,SA,TH;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16346-0K010 |
1KDFTV..KUN26..THDCB;1KDFTV..KUN26..PHL,SA,TH;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16346-0K010 |
1KDFTV..KUN26..THDCB;1KDFTV..KUN26..PHL,SA,TH;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16346-0K010 |
1KDFTV..KUN26..THDCB;1KDFTV..KUN26..PHL,SA,TH;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16346-0K010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(L) |
1 | ||
| 16346-0K010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(L) |
1 | ||
| 16346-0K010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(L) |
1 | ||
| 16346-0K010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(L) |
1 | ||
| 16346-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(J) |
1 | ||
| 16346-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(J) |
1 | ||
| 16346-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(J) |
1 | ||
| 16346-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(J) |
1 | ||
| 16346-67010 |
1KDFTV..KUN26..PHL,SA,TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,PKN,SA,TH *130,(J) |
1 | ||
| 16346-67010 |
1KDFTV..KUN26..PHL,SA,TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,PKN,SA,TH *130,(J) |
1 | ||
| 16346-67010 |
1KDFTV..KUN26..PHL,SA,TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,PKN,SA,TH *130,(J) |
1 | ||
| 16346-67010 |
1KDFTV..KUN26..PHL,SA,TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,PKN,SA,TH *130,(J) |
1 | ||
| Common parts | ||||
| 90105-T0053 | ||||
| 90105-T0119 | ||||
| 90119-T0067 | ||||
| 90119-T0134 | ||||
| 90178-T0018 | ||||
| 91551-80812 | ||||
| 91551-80818 | ||||
| 91643-80635 | ||||
| 91671-80612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(1107- )2KDFTV..KUN15,25,35..LHD..SCB,THDCB,THSCB..HDCR..GEN ; (1110- )2KDFTV
EURO 4 REGULATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-30050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16206-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16206-30061 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16206-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16206-30050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16206-30060 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16206-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16206-0L010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
1 | ||
| 16206-30050 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-0L020 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16207-0L020 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16207-30120 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16207-30120 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16207-30180 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16207-30120 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16207-0L020 |
2KDFTV..KUN35..DLX..SA;2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN10,15,25..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN *130 |
1 | ||
| 16207-30120 |
2KDFTV..KUN35..DLX..SA;2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN10,15,25..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN *360 |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16258-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN35..4FC,5FC;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN15..RHD..(DLX,STD);2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15..LHD..SCB..DLX..DCR;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN3#..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15..(SCB,SMT,XTR)..(SR,STD)..(PHL,SA,TH) *360 |
1 | ||
| 16258-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 16267-30080 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16267-30120 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN15,25,35..5F..TH *360 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN15,25,35..5F..TH *360 |
2 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16208-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16208-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 16281-30080 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN15,25,35..5F..TH *360 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN15,25,35..5F..TH *360 |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-30040 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16282-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16282-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90467-19022 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90467-19022 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16321-30040 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..RHD..GEN;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..HDCR..(GEN,TH) *130,(L) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH) *360 |
1 | ||
| 16331-0L030 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130,(L) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16331-30100 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16304-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *130 |
1 | ||
| 16304-0L020 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..(4FC,5F)..(GCC,GEN,SA) *360 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03118 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *WAX 82-95,*360 |
1 | ||
| 90916-03118 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *WAX 82-95,*130 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130 |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16341-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH *130 |
1 | ||
| 16341-0L010 |
2KDFTV..KUN15..DCR;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26,36..5F..(PHL,SA);1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA;1KDFTV..KUN26,36..(4FC,5FC)..(MA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN *130 |
1 | ||
| 16341-30020 |
2KDFTV..KUN15,25,35..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN2#..(4FC,5F)..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-0K010 |
1KDFTV..KUN26..THDCB;1KDFTV..KUN26..PHL,SA,TH;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16346-0K010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(L) |
1 | ||
| 16346-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(J) |
1 | ||
| 16346-67010 |
1KDFTV..KUN26..PHL,SA,TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,PKN,SA,TH *130,(J) |
1 | ||
| Common parts | ||||
| 90105-T0053 | ||||
| 90105-T0119 | ||||
| 90119-T0067 | ||||
| 90119-T0134 | ||||
| 90178-T0018 | ||||
| 90464-00574 | ||||
| 91551-80812 | ||||
| 91551-80818 | ||||
| 91643-80635 | ||||
| 91671-80612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(1107-1203)2KDFTV..KUN25,35..THDCB,THSCB
EURO 5 REGULATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-30150 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16027-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH *130 |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-30050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16206-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16206-30061 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16206-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16206-30050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16206-30060 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16206-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16206-0L010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
1 | ||
| 16206-30050 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-0L020 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16207-0L020 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16207-30120 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16207-30120 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16207-30180 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16207-30120 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16207-0L020 |
2KDFTV..KUN35..DLX..SA;2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN10,15,25..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN *130 |
1 | ||
| 16207-30120 |
2KDFTV..KUN35..DLX..SA;2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN10,15,25..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN *360 |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16258-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN35..4FC,5FC;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN15..RHD..(DLX,STD);2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15..LHD..SCB..DLX..DCR;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN3#..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15..(SCB,SMT,XTR)..(SR,STD)..(PHL,SA,TH) *360 |
1 | ||
| 16258-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16261-0L050 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 16267-30080 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16267-30120 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN15,25,35..5F..TH *360 |
2 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-19022 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-19022 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16267C - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-30140 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 90430-12037 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16268H - BOLT, UNION(FOR WATER BY-PASS PIPE) | ||||
| 90401-12023 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16268M - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16208-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16208-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-30040 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16282-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16282-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90467-19022 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90467-19022 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-30041 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16283-30040 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16283B - HOSE, WATER BY-PASS | ||||
| 99555-10080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16283B - HOSE, WATER BY-PASS | ||||
| 99555-10080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
4 | ||
| 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
4 | ||
| 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
4 | ||
| 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
4 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-30070 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130,(J) |
2 | ||
| 16284-0L010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
2 | ||
| 16284-30070 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96137-41501 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 96137-41501 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130 |
4 | ||
| 90466-T0014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
4 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96137-41501 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 96137-41501 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130 |
4 | ||
| 90466-T0014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
4 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16284-30120 |
2KDFTV..KUN25..THSCB L=160,CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.1 |
1 | ||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.2 |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.1 |
1 | ||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.2 |
1 | ||
| 16286 - HOSE, TURBO WATER, NO.3 | ||||
| 16286-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16287 - HOSE, TURBO WATER, NO.4 | ||||
| 16287-30040 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16287A - CLIP(FOR TURBO WATER HOSE NO.4) | ||||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16287A - CLIP(FOR TURBO WATER HOSE NO.4) | ||||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16288 - PIPE, WATER BY-PASS, NO.4 | ||||
| 16288-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16288A - HOSE(FOR WATER BY-PASS PIPE NO.4) | ||||
| 16294-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 99555-10200 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16288C - CLIP(FOR WATER BY-PASS PIPE NO.4) | ||||
| 90467-13073 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION),NO.1 |
1 | ||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.2 |
1 | ||
| 90467-13128 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.1 |
1 | ||
| 16288C - CLIP(FOR WATER BY-PASS PIPE NO.4) | ||||
| 90467-13073 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION),NO.1 |
1 | ||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.2 |
1 | ||
| 90467-13128 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.1 |
1 | ||
| 16289 - PIPE, WATER BY-PASS, NO.5 | ||||
| 16289-30011 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16289-30010 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.2 |
1 | ||
| 16291-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.1 |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.2 |
1 | ||
| 16291-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.1 |
1 | ||
| 16293 - HOSE, WATER BY-PASS, NO.10 | ||||
| 16293-30031 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16293-30030 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16293A - CLIP(FOR WATER BY-PASS HOSE NO.10) | ||||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16293A - CLIP(FOR WATER BY-PASS HOSE NO.10) | ||||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 90467-13128 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.1 |
1 | ||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.2 |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 90467-13128 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.1 |
1 | ||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.2 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16321-30040 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..RHD..GEN;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..HDCR..(GEN,TH) *130,(L) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH) *360 |
1 | ||
| 16331-0L030 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130,(L) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16331-30100 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16304-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *130 |
1 | ||
| 16304-0L020 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..(4FC,5F)..(GCC,GEN,SA) *360 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03118 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *WAX 82-95,*360 |
1 | ||
| 90916-03118 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *WAX 82-95,*130 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130 |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16341-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH *130 |
1 | ||
| 16341-0L010 |
2KDFTV..KUN15..DCR;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26,36..5F..(PHL,SA);1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA;1KDFTV..KUN26,36..(4FC,5FC)..(MA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN *130 |
1 | ||
| 16341-30020 |
2KDFTV..KUN15,25,35..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN2#..(4FC,5F)..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-0K010 |
1KDFTV..KUN26..THDCB;1KDFTV..KUN26..PHL,SA,TH;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16346-0K010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(L) |
1 | ||
| 16346-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(J) |
1 | ||
| 16346-67010 |
1KDFTV..KUN26..PHL,SA,TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,PKN,SA,TH *130,(J) |
1 | ||
| 16347A - GASKET(FOR TURBO WATER PIPE) | ||||
| 16347-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16347-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..DCR..(CO,LA,MA,PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| Common parts | ||||
| 90401-12023 | ||||
| 90405-08029 | ||||
| 90430-12037 | ||||
| 90469-14002 | ||||
| 91551-80612 | ||||
| 91551-80812 | ||||
| 91551-80818 | ||||
| 91643-80635 | ||||
| 91671-80612 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 2501 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(1208- )2KDFTV..KUN35..5F..SR..TH ; (1208-)2KDFTV..KUN15..DCB..SR..TH ; (120
WATER COOLING TURBO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-30150 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16027-30150 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16027-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH *130 |
1 | ||
| 16027-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH *130 |
1 | ||
| 16029 - PIPE SUB-ASSY, TURBO WATER, NO.3 | ||||
| 16029-0L010 |
2KDFTV..KUN35..4FC;1KDFTV..KUN26..MA,PHL,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25,36..IDN,TH *130 |
1 | ||
| 16029-0L010 |
2KDFTV..KUN35..4FC;1KDFTV..KUN26..MA,PHL,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25,36..IDN,TH *130 |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16258-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN35..4FC,5FC;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN15..RHD..(DLX,STD);2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15..LHD..SCB..DLX..DCR;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN3#..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15..(SCB,SMT,XTR)..(SR,STD)..(PHL,SA,TH) *360 |
1 | ||
| 16258-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN35..4FC,5FC;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN15..RHD..(DLX,STD);2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15..LHD..SCB..DLX..DCR;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN3#..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15..(SCB,SMT,XTR)..(SR,STD)..(PHL,SA,TH) *360 |
1 | ||
| 16258-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| 16258-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 16267-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 16267-30080 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16267-30080 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16267-30120 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16267-30120 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN15,25,35..5F..TH *360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN15,25,35..5F..TH *360 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN15,25,35..5F..TH *360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN15,25,35..5F..TH *360 |
2 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 16281-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 16281-30080 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16281-30080 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN15,25,35..5F..TH *360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN15,25,35..5F..TH *360 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN15,25,35..5F..TH *360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN15,25,35..5F..TH *360 |
2 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-30070 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130,(J) |
2 | ||
| 16284-30070 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130,(J) |
2 | ||
| 16284-0L010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
2 | ||
| 16284-0L010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
2 | ||
| 16284-30070 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16284-30070 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-30070 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130,(J) |
2 | ||
| 16284-30070 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130,(J) |
2 | ||
| 16284-0L010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
2 | ||
| 16284-0L010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
2 | ||
| 16284-30070 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16284-30070 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96137-41501 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 96137-41501 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 96137-41501 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130 |
4 | ||
| 96137-41501 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130 |
4 | ||
| 90466-T0014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
4 | ||
| 90466-T0014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
4 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96137-41501 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 96137-41501 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 96137-41501 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130 |
4 | ||
| 96137-41501 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130 |
4 | ||
| 90466-T0014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
4 | ||
| 90466-T0014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
4 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96137-41501 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 96137-41501 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 96137-41501 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130 |
4 | ||
| 96137-41501 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130 |
4 | ||
| 90466-T0014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
4 | ||
| 90466-T0014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
4 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96137-41501 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 96137-41501 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 96137-41501 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130 |
4 | ||
| 96137-41501 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130 |
4 | ||
| 90466-T0014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
4 | ||
| 90466-T0014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
4 | ||
| 16321 - INLET, WATER | ||||
| 16321-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16321-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16321-30040 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16321-30040 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130,(J) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..RHD..GEN;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..HDCR..(GEN,TH) *130,(L) |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..RHD..GEN;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..HDCR..(GEN,TH) *130,(L) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH) *360 |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH) *360 |
1 | ||
| 16331-0L030 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130,(L) |
1 | ||
| 16331-0L030 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130,(L) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16331-30100 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16331-30100 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16304-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *130 |
1 | ||
| 16304-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *130 |
1 | ||
| 16304-0L020 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16304-0L020 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..(4FC,5F)..(GCC,GEN,SA) *360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..(4FC,5F)..(GCC,GEN,SA) *360 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03118 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *WAX 82-95,*360 |
1 | ||
| 90916-03118 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *WAX 82-95,*360 |
1 | ||
| 90916-03118 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *WAX 82-95,*130 |
1 | ||
| 90916-03118 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *WAX 82-95,*130 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130 |
1 | ||
| 16341-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130 |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16341-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH *130 |
1 | ||
| 16341-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH *130 |
1 | ||
| 16341-0L010 |
2KDFTV..KUN15..DCR;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26,36..5F..(PHL,SA);1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA;1KDFTV..KUN26,36..(4FC,5FC)..(MA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN *130 |
1 | ||
| 16341-0L010 |
2KDFTV..KUN15..DCR;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26,36..5F..(PHL,SA);1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA;1KDFTV..KUN26,36..(4FC,5FC)..(MA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN *130 |
1 | ||
| 16341-30020 |
2KDFTV..KUN15,25,35..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN15,25,35..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN2#..(4FC,5F)..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN2#..(4FC,5F)..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-67010 |
1KDFTV..KUN26..PHL,SA,TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,PKN,SA,TH *130,(J) |
1 | ||
| 16346-0K010 |
1KDFTV..KUN26..THDCB;1KDFTV..KUN26..PHL,SA,TH;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16346-0K010 |
1KDFTV..KUN26..THDCB;1KDFTV..KUN26..PHL,SA,TH;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16346-67010 |
1KDFTV..KUN26..PHL,SA,TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,PKN,SA,TH *130,(J) |
1 | ||
| 16346-0K010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(L) |
1 | ||
| 16346-0K010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(L) |
1 | ||
| 16346-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(J) |
1 | ||
| 16346-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(J) |
1 | ||
| 16347A - GASKET(FOR TURBO WATER PIPE) | ||||
| 16347-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16347-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16347-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..DCR..(CO,LA,MA,PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| 16347-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..DCR..(CO,LA,MA,PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| Common parts | ||||
| 90105-T0066 | ||||
| 90105-T0119 | ||||
| 90119-T0067 | ||||
| 90178-T0018 | ||||
| 90405-08029 | ||||
| 90405-T0002 | ||||
| 90464-00574 | ||||
| 91551-80612 | ||||
| 91551-80818 | ||||
| 91643-80635 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(1208- )2KDFTV..KUN35..PHL ; (1208- )2KDFTV..KUN15..SMT..SR ; (1210- )2KDF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-30150 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16027-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH *130 |
1 | ||
| 16029 - PIPE SUB-ASSY, TURBO WATER, NO.3 | ||||
| 16029-0L010 |
2KDFTV..KUN35..4FC;1KDFTV..KUN26..MA,PHL,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25,36..IDN,TH *130 |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-30050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16206-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16206-30061 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16206-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16206-30050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16206-30060 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16206-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16206-0L010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
1 | ||
| 16206-30050 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-0L020 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16207-0L020 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16207-30120 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16207-30120 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16207-30180 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16207-30120 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16207-0L020 |
2KDFTV..KUN35..DLX..SA;2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN10,15,25..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN *130 |
1 | ||
| 16207-30120 |
2KDFTV..KUN35..DLX..SA;2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN10,15,25..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN *360 |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16258-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN35..4FC,5FC;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN15..RHD..(DLX,STD);2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15..LHD..SCB..DLX..DCR;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN3#..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15..(SCB,SMT,XTR)..(SR,STD)..(PHL,SA,TH) *360 |
1 | ||
| 16258-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16258-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN35..4FC,5FC;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN15..RHD..(DLX,STD);2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15..LHD..SCB..DLX..DCR;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN3#..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15..(SCB,SMT,XTR)..(SR,STD)..(PHL,SA,TH) *360 |
1 | ||
| 16258-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
2 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16208-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16208-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-30040 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16282-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16282-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90467-19022 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90467-19022 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-30070 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130,(J) |
2 | ||
| 16284-0L010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
2 | ||
| 16284-30070 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-30070 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130,(J) |
2 | ||
| 16284-0L010 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
2 | ||
| 16284-30070 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96137-41501 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 96137-41501 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130 |
4 | ||
| 90466-T0014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
4 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96137-41501 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 96137-41501 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130 |
4 | ||
| 90466-T0014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
4 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96137-41501 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 96137-41501 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130 |
4 | ||
| 90466-T0014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
4 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96137-41501 |
2KDFTV..KUN25,35..THDCB,THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 96137-41501 |
2KDFTV..KUN35..SR..TH;1KDFTV..KUN26..THDCB..5F;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26,36..DCR..(CO,LA,PHL,SA,TH) *130 |
4 | ||
| 90466-T0014 |
1KDFTV..KUN26..THDCB;2KDFTV..KUN35..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..CO,LA,PHL,SA,TH *130 |
4 | ||
| 16321 - INLET, WATER | ||||
| 16321-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16321-30040 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..RHD..GEN;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..HDCR..(GEN,TH) *130,(L) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH) *360 |
1 | ||
| 16331-0L030 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130,(L) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16331-30100 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16304-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *130 |
1 | ||
| 16304-0L020 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..(4FC,5F)..(GCC,GEN,SA) *360 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..RHD..GEN;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..HDCR..(GEN,TH) *130,(L) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH) *360 |
1 | ||
| 16331-0L030 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130,(L) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16331-30100 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16304-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *130 |
1 | ||
| 16304-0L020 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..(4FC,5F)..(GCC,GEN,SA) *360 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03118 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *WAX 82-95,*360 |
1 | ||
| 90916-03118 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *WAX 82-95,*130 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16341-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130 |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16341-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH *130 |
1 | ||
| 16341-0L010 |
2KDFTV..KUN15..DCR;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26,36..5F..(PHL,SA);1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA;1KDFTV..KUN26,36..(4FC,5FC)..(MA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN *130 |
1 | ||
| 16341-30020 |
2KDFTV..KUN15,25,35..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN2#..(4FC,5F)..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-0K010 |
1KDFTV..KUN26..THDCB;1KDFTV..KUN26..PHL,SA,TH;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16346-0K010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(L) |
1 | ||
| 16346-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(J) |
1 | ||
| 16346-67010 |
1KDFTV..KUN26..PHL,SA,TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,PKN,SA,TH *130,(J) |
1 | ||
| 16347A - GASKET(FOR TURBO WATER PIPE) | ||||
| 16347-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16347-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..DCR..(CO,LA,MA,PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| Common parts | ||||
| 90105-T0053 | ||||
| 90105-T0066 | ||||
| 90105-T0119 | ||||
| 90119-T0067 | ||||
| 90119-T0134 | ||||
| 90178-T0018 | ||||
| 90405-08029 | ||||
| 90405-T0002 | ||||
| 91551-80612 | ||||
| 91551-80812 | ||||
| 91551-80818 | ||||
| 91643-80635 | ||||
| 91671-80612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(1208- )2KDFTV..KUN15..SCB,SMT..DLX..TH ; (1210- )2KDFTV..KUN35..DLX..TH ; (1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11492D - PLATE, SEAL, NO.1 | ||||
| 11492-30010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..SCB..(GEN,MA);2KDFTV..KUN25,35..DCB..(GEN,PHL) *360 |
1 | ||
| 11492-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25,35..(DCB,SCB)..(GEN,PHL) *130 |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16258-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN35..4FC,5FC;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN15..RHD..(DLX,STD);2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15..LHD..SCB..DLX..DCR;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN3#..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15..(SCB,SMT,XTR)..(SR,STD)..(PHL,SA,TH) *360 |
1 | ||
| 16258-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 16267-30080 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16267-30120 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN15,25,35..5F..TH *360 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN15,25,35..5F..TH *360 |
2 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 16281-30080 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN15,25,35..5F..TH *360 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN15,25,35..5F..TH *360 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16321-30040 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..RHD..GEN;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..HDCR..(GEN,TH) *130,(L) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH) *360 |
1 | ||
| 16331-0L030 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130,(L) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16331-30100 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16304-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *130 |
1 | ||
| 16304-0L020 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..(4FC,5F)..(GCC,GEN,SA) *360 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03118 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *WAX 82-95,*360 |
1 | ||
| 90916-03118 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *WAX 82-95,*130 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16341-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130 |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16341-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH *130 |
1 | ||
| 16341-0L010 |
2KDFTV..KUN15..DCR;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26,36..5F..(PHL,SA);1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA;1KDFTV..KUN26,36..(4FC,5FC)..(MA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN *130 |
1 | ||
| 16341-30020 |
2KDFTV..KUN15,25,35..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN2#..(4FC,5F)..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-0K010 |
1KDFTV..KUN26..THDCB;1KDFTV..KUN26..PHL,SA,TH;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16346-0K010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(L) |
1 | ||
| 16346-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(J) |
1 | ||
| 16346-67010 |
1KDFTV..KUN26..PHL,SA,TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,PKN,SA,TH *130,(J) |
1 | ||
| Common parts | ||||
| 90105-T0119 | ||||
| 90119-T0067 | ||||
| 90178-T0018 | ||||
| 90464-00574 | ||||
| 91551-80818 | ||||
| 91643-80635 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
ILLUST NO. 2 OF 2(1203- )2KDFTV..KUN35..DLX..GEN ; (1203- )2KDFTV..KUN25..THDCB,THSCB
EURO 5 REGULATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-30150 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16027-0L020 |
2KDFTV..KUN35..4FC;2KDFTV..KUN25..IDN,TH;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH *130 |
1 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-30050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16206-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16206-30061 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16206-0L010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16206-30050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16206-30060 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16206-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16206-0L010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
1 | ||
| 16206-30050 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
1 | ||
| 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| 16207-0L020 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16207-0L020 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16207-30120 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16207-30120 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16207-30180 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16207-30120 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16207-0L020 |
2KDFTV..KUN35..DLX..SA;2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN10,15,25..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN *130 |
1 | ||
| 16207-30120 |
2KDFTV..KUN35..DLX..SA;2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN10,15,25..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN *360 |
1 | ||
| 16258A - GASKET(FOR HEATER RETURN) | ||||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16258-67010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16258-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN35..4FC,5FC;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN15..RHD..(DLX,STD);2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15..LHD..SCB..DLX..DCR;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN3#..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15..(SCB,SMT,XTR)..(SR,STD)..(PHL,SA,TH) *360 |
1 | ||
| 16258-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16261-0L050 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16261-0L050 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16261-30060 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16261-30060 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90466-T0010 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
2 | ||
| 90466-T0010 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN25..5F..(GCC,PKN,SA);1KDFTV,2KDFTV..KUN10,15,26,3#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26,35..LHD..(DCB,THDCB,XTR)..(4FC,5F)..GEN *130 |
2 | ||
| 90466-21001 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..ARL,GCC,GEN,SA *360 |
2 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-30030 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16264-30031 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
1 | ||
| 16267-30080 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16267-30120 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..THDCB,THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION),*360 |
2 | ||
| 96136-42101 |
2KDFTV..KUN15,25,35..5F..TH *360 |
2 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-19022 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 90467-19022 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16267C - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-30140 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 90430-12037 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16268H - BOLT, UNION(FOR WATER BY-PASS PIPE) | ||||
| 90401-12023 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16268M - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16208-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16208-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-30040 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16282-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16282-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90467-19022 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
2 | ||
| 90467-19022 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-30041 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16283-30040 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-19022 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 96136-42101 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16283B - HOSE, WATER BY-PASS | ||||
| 99555-10080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16283B - HOSE, WATER BY-PASS | ||||
| 99555-10080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
4 | ||
| 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
4 | ||
| 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
4 | ||
| 16283C - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
4 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16284-30120 |
2KDFTV..KUN25..THSCB L=160,CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.1 |
1 | ||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.2 |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-13128 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.1 |
1 | ||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.2 |
1 | ||
| 16286 - HOSE, TURBO WATER, NO.3 | ||||
| 16286-30080 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16287 - HOSE, TURBO WATER, NO.4 | ||||
| 16287-30040 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16287A - CLIP(FOR TURBO WATER HOSE NO.4) | ||||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16287A - CLIP(FOR TURBO WATER HOSE NO.4) | ||||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16288 - PIPE, WATER BY-PASS, NO.4 | ||||
| 16288-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16288A - HOSE(FOR WATER BY-PASS PIPE NO.4) | ||||
| 16294-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 99555-10200 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16288C - CLIP(FOR WATER BY-PASS PIPE NO.4) | ||||
| 90467-13073 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION),NO.1 |
1 | ||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.2 |
1 | ||
| 90467-13128 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.1 |
1 | ||
| 16288C - CLIP(FOR WATER BY-PASS PIPE NO.4) | ||||
| 90467-13073 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION),NO.1 |
1 | ||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.2 |
1 | ||
| 90467-13128 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.1 |
1 | ||
| 16289 - PIPE, WATER BY-PASS, NO.5 | ||||
| 16289-30011 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16289-30010 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.2 |
1 | ||
| 16291-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.1 |
1 | ||
| 16291 - JOINT, WATER HOSE | ||||
| 16291-30030 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.2 |
1 | ||
| 16291-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.1 |
1 | ||
| 16293 - HOSE, WATER BY-PASS, NO.10 | ||||
| 16293-30031 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16293-30030 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16293A - CLIP(FOR WATER BY-PASS HOSE NO.10) | ||||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16293A - CLIP(FOR WATER BY-PASS HOSE NO.10) | ||||
| 90466-21001 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-30050 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 90467-13128 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.1 |
1 | ||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.2 |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 90467-13128 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.1 |
1 | ||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION),NO.2 |
1 | ||
| 16297 - HOSE, WATER BY-PASS, NO.9 | ||||
| 16297-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96137-41501 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16321-30040 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(J) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV,2KDFTV..KUN15,2#..GCC,SA;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..GEN *130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130 |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130 |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(J) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130,(J) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*360 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..PHL;2KDFTV..KUN15..RHD..(GEN,TH);2KDFTV..KUN15..LHD..SCB..GEN;1KDFTV,2KDFTV..KUN10,16,26,3#..IDN,PHL,TH;2KDFTV..KUN25..(DCB,SCB,SMT)..(GEN,IDN,MA,TH) *130 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..THDCB,THSCB;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,3#..GCC,GEN,SA;1KDFTV,2KDFTV..KUN15,2#..GCC,PKN,SA;1KDFTV,2KDFTV..KUN15,26..LHD..(DCB,THDCB)..5F..GEN *130,(J) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH(EVAPORATOR),*130,(L) |
1 | ||
| 16331-0L040 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*130,(L) |
1 | ||
| 16331-30110 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN25..(DCB,SCB)..GEN FRONT HEATER-WITH,*360 |
1 | ||
| 16331-0L030 |
2KDFTV..KUN15..RHD..GEN;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..HDCR..(GEN,TH) *130,(L) |
1 | ||
| 16331-30100 |
2KDFTV..KUN15..RHD..GEN;2KDFTV..KUN15..SMT..HDCR;1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15..LHD..SCB..GEN;2KDFTV..KUN15,25,35..(DCB,SCB,SMT)..DLX..HDCR..(GEN,TH) *360 |
1 | ||
| 16331-0L030 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130,(L) |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16331-30100 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16304-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16304-0L020 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH *130 |
1 | ||
| 16304-0L020 |
2KDFTV..KUN15,25,35..5F..TH *360 |
1 | ||
| 16331-30110 |
2KDFTV..KUN25..4FC..DLX;2KDFTV..KUN25..THDCB,THSCB,XTR;2KDFTV..KUN15,25,35..5F..(GCC,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..(4FC,5F)..(GCC,GEN,SA) *360 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03118 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *WAX 82-95,*360 |
1 | ||
| 90916-03118 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *WAX 82-95,*130 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-0L010 |
1KDFTV,2KDFTV..KUN15,2#,3#..5F..TH THAI SPEC(EURO 3 REGULATION),*130 |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 4 REGULATION) |
1 | ||
| 16341-30020 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16341-0L010 |
1KDFTV..KUN26,36..5F..TH;2KDFTV..KUN15,25,35..HDCR..TH *130 |
1 | ||
| 16341-0L010 |
2KDFTV..KUN15..DCR;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26,36..5F..(PHL,SA);1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA;1KDFTV..KUN26,36..(4FC,5FC)..(MA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN *130 |
1 | ||
| 16341-30020 |
2KDFTV..KUN15,25,35..5F..TH THAI SPEC(EURO 3 REGULATION),*360 |
1 | ||
| 16341-30020 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN2#..(4FC,5F)..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-0K010 |
1KDFTV..KUN26..THDCB;1KDFTV..KUN26..PHL,SA,TH;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16346-0K010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(L) |
1 | ||
| 16346-67010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360,(J) |
1 | ||
| 16346-67010 |
1KDFTV..KUN26..PHL,SA,TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,PKN,SA,TH *130,(J) |
1 | ||
| 16347A - GASKET(FOR TURBO WATER PIPE) | ||||
| 16347-30010 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16347-0L010 |
2KDFTV..KUN35..4FC;2KDFTV..KUN35..5F..SR..TH;2KDFTV..KUN15..DCB..SR..TH;1KDFTV,2KDFTV..KUN16,25..IDN,TH;1KDFTV..KUN26,36..DCR..(CO,LA,MA,PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..(4FC,5F)..GEN *130 |
1 | ||
| Common parts | ||||
| 90401-12023 | ||||
| 90405-08029 | ||||
| 90430-12037 | ||||
| 90469-14002 | ||||
| 91551-80612 | ||||
| 91551-80812 | ||||
| 91551-80818 | ||||
| 91643-80635 | ||||
| 91671-80612 | ||||
| 91671-80814 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1701 | ||||
| 2501 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(1302-1503)2TRFE..TGN26..DCB..5F..GEN ; (1302-1504)2TRFE..TGN26..GCC ; (1302-1504)2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,3#..ARL,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 16261-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,3#..ARL,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0046 |
1KDFTV,2KDFTV..KUN1#,2#,3# |
2 | ||
| 90466-T0046 |
1KDFTV,2KDFTV..KUN1#,2#,3# |
2 | ||
| 90466-T0033 |
1KDFTV,2KDFTV..KUN1#,2#,3# |
2 | ||
| 90466-T0033 |
1KDFTV,2KDFTV..KUN1#,2#,3# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-T0046 |
1KDFTV,2KDFTV..KUN1#,2#,3# |
2 | ||
| 90466-T0046 |
1KDFTV,2KDFTV..KUN1#,2#,3# |
2 | ||
| 90466-T0033 |
1KDFTV,2KDFTV..KUN1#,2#,3# |
2 | ||
| 90466-T0033 |
1KDFTV,2KDFTV..KUN1#,2#,3# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,3#..ARL,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 16264-0L010 |
1KDFTV,2KDFTV..KUN1#,2#,3#..ARL,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-T0030 |
2KDFTV..KUN15..HDCR;1KDFTV..KUN36..5F..TH;1KDFTV,2KDFTV..KUN2#,35;1KDFTV,2KDFTV..KUN1#,36..DCR..(ARL,GCC,GEN,IDN,LA,PHL,PKN,SA) |
2 | ||
| 90466-T0030 |
2KDFTV..KUN15..HDCR;1KDFTV..KUN36..5F..TH;1KDFTV,2KDFTV..KUN2#,35;1KDFTV,2KDFTV..KUN1#,36..DCR..(ARL,GCC,GEN,IDN,LA,PHL,PKN,SA) |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-T0030 |
2KDFTV..KUN15..HDCR;1KDFTV..KUN36..5F..TH;1KDFTV,2KDFTV..KUN2#,35;1KDFTV,2KDFTV..KUN1#,36..DCR..(ARL,GCC,GEN,IDN,LA,PHL,PKN,SA) |
2 | ||
| 90466-T0030 |
2KDFTV..KUN15..HDCR;1KDFTV..KUN36..5F..TH;1KDFTV,2KDFTV..KUN2#,35;1KDFTV,2KDFTV..KUN1#,36..DCR..(ARL,GCC,GEN,IDN,LA,PHL,PKN,SA) |
2 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 90430-12037 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 90430-12037 |
2KDFTV..KUN25..THSCB CHILE SPEC(EURO 5 REGULATION) |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16321-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 16321-30040 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16321-30040 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03118 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *WAX 82-95,*360 |
1 | ||
| 90916-03118 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *WAX 82-95,*360 |
1 | ||
| 90916-03118 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *WAX 82-95,*130 |
1 | ||
| 90916-03118 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *WAX 82-95,*130 |
1 | ||
| Common parts | ||||
| 90105-T0120 | ||||
| 90119-T0237 | ||||
| 90178-T0019 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 8716 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
