KUN15R-TRMRYP (2010)
Toyota Hilux

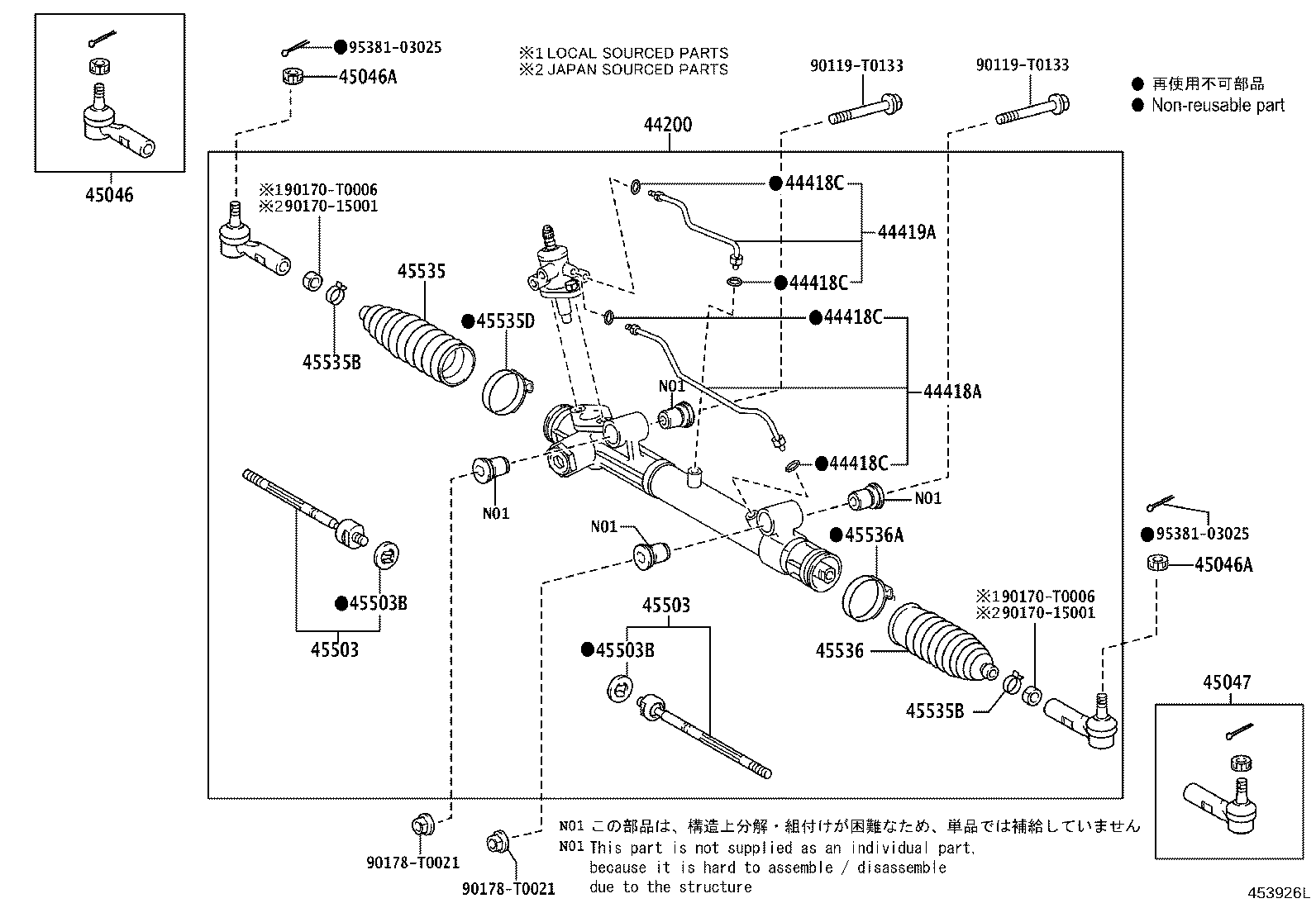

ILLUST NO. 1 OF 2(0408- )KUN15,TGN10..RHD..CBU ; (0408- )GGN15,KUN16,LAN15,TGN15,16..RHD
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44200 - LINK ASSY, POWER STEERING | ||||
| 44200-0K240 |
KUN15..PKN |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-T0004 |
KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-T0004 |
KUN16,TGN16..XTR..TH;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,KUN10,LAN15,TGN11,15,16..(5F,5FC)..(ARL,GCC,GEN,PKN,SA) |
2 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-0K010 |
KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;TGN26..ANCOM,GCC,GEN,SA,TH;KUN15,16,36,TGN16..XTR..SR..TH;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN35,TGN36..DCB..5F..DLX..(LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,TGN36..DCB..(ANCOM,GCC,GEN,PHL,SA,TH);KUN15,35,TGN36..(SCB,THDCB)..(ANCOM,GCC,GEN,LA,PKN,SA);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-T0001 |
KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN35..DCB..DLX..SA;KUN25..(DCB,XTR)..SR;KUN36..RHD..(DCB,SCB)..5F;KUN15,16,36,TGN16..XTR..SR..TH;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,TGN16..5F..(ARL,GCC,GEN,SA);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,35..(SCB,THDCB)..(ANCOM,GCC,GEN,PKN,SA);GGN15,25,KUN10,LAN15,25,35,TGN11,15,26,36..ANCOM,ARL,GCC,GEN,PHL,PKN,SA,TH |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-0K010 |
KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;TGN26..DCB..DLX..LA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN25..GCC,GEN,LA,SA;TGN26..ANCOM,GCC,GEN,SA,TH;KUN15,16,36,TGN16..XTR..SR..TH;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN35,TGN36..DCB..5F..DLX..(LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,TGN36..DCB..(ANCOM,GCC,GEN,PHL,SA,TH);KUN15,35,TGN36..(SCB,THDCB)..(ANCOM,GCC,GEN,LA,PKN,SA);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-T0001 |
KUN15..DCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN35..DCB..DLX..SA;KUN25..(DCB,XTR)..SR;KUN36..RHD..(DCB,SCB)..5F;KUN15,16,36,TGN16..XTR..SR..TH;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,TGN16..5F..(ARL,GCC,GEN,SA);KUN26..(DCB,SCB,XTR)..(ARL,PHL,TH);KUN15,35..(SCB,THDCB)..(ANCOM,GCC,GEN,PKN,SA);GGN15,25,KUN10,LAN15,25,35,TGN11,15,26,36..ANCOM,ARL,GCC,GEN,PHL,PKN,SA,TH |
1 | ||
| Common parts | ||||
| 90119-T0133 | ||||
| 90170-15001 | ||||
| 90170-T0006 | ||||
| 90178-T0021 | ||||
| 95381-03025 | ||||
ILLUST NO. 1 OF 2(1107- )GGN15,KUN1#,LAN15,TGN10,15,16..RHD
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0133 | ||||
| 90170-15001 | ||||
| 90170-T0006 | ||||
| 90178-T0021 | ||||
| 95381-03025 | ||||
ILLUST NO. 2 OF 2(1107- )
| Part # | Description | Qty | Price |
|---|
