KUN15R-TRMRYP (2010)

Toyota Hilux

Production Oct 2010 - Feb 2012
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )2KDFTV..KUN10,15..DCR ; (0501- )2KDFTV..KUN25,35..ANCOM,GCC,GEN,LA,MA

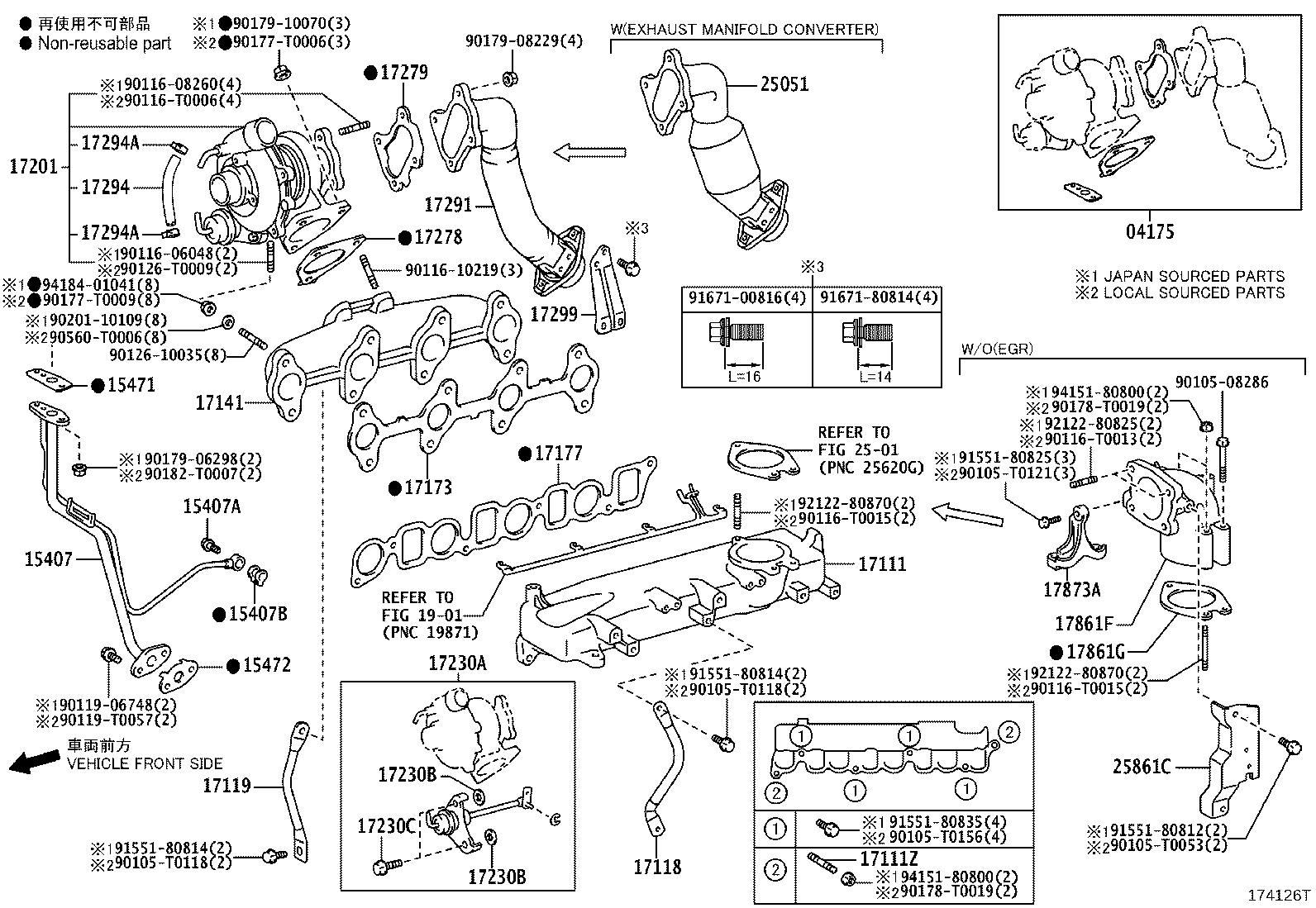

Click highlighted areas on diagram

diagram 04175 15407 15407A 15407B 15471 15472 17111 17111Z 17118 17119 17141 17173 17177 17201 17230A 17230B 17230B 17230C 17278 17279 17291 17294 17294A 17294A 17299 17861F 17861G 17873A 1901 2501 25051 25861C 9010508286 90105T0053 90105T0118 90105T0118 90105T0121 90105T0156 9011606048 9011608260 9011610219 90116T0006 90116T0013 90116T0015 90116T0015 9011906748 90119T0057 9012610035 90126T0009 90177T0006 90177T0009 90178T0019 90178T0019 9017906298 9017908229 9017910070 90182T0007 9020110109 90560T0006 9155180812 9155180814 9155180814 9155180825 9155180835 9167100816 9167180814 9212280825 9212280870 9212280870 9415180800 9415180800 9418401041
Part # Description Qty Price
04175 - GASKET KIT, TURBOCHARGER
04175-0L011

2KDFTV..KUN15..PKN

 1
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-0L010

2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN);2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

*130

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-T0004

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-T0006

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
15471 - GASKET, TURBO OIL INLET
15471-0L011

2KDFTV..KUN15..PKN

*130

 1
15471-30011

2KDFTV..KUN15..PKN

*163 OR *184

 1
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-0L010

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
15472-30010

2KDFTV..KUN15..PKN

*163 OR *184

 1
17111 - MANIFOLD, INTAKE
17111-0L020

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN)

*130

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90116-T0011

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 2
17118 - STAY, MANIFOLD
17118-0L030

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
17119 - STAY, MANIFOLD, NO.2
17118-0L040

2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

*130

 1
17141 - MANIFOLD, EXHAUST
17141-0L010

2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN);2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

*130

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-0L010

2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

*130

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-0L011

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
17201 - TURBOCHARGER SUB-ASSY
17201-0L030

2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

*130

 1
17230A - REPAIR ACTUAOR ASSY, W/BRACKET
17230-39085

2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

 1
17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET)
90201-06043

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

T=1.0

 2
90201-06042

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

T=0.5

 2
90201-06044

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

T=2.0

 2
90201-06045

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

T=3.0

 2
17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET)
90201-06043

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

T=1.0

 2
90201-06042

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

T=0.5

 2
90201-06044

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

T=2.0

 2
90201-06045

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

T=3.0

 2
17230C - BOLT, W/WASHER(FOR REPAIR ACTUATOR SET)
91621-60620

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 2
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-0L010

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-0L020

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA)

*130

 1
17294 - HOSE, ACTUATOR
90445-T0010

2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

*130

 1
17294A - CLIP(FOR ACTUATOR HOSE)
90466-T0008

2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

*130

 2
17294A - CLIP(FOR ACTUATOR HOSE)
90466-T0008

2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

*130

 2
17299 - STAY, TURBINE OUTLET ELBOW
17299-0L010

2KDFTV..KUN25..SR..MA;2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN);2KDFTV..KUN15..(DCB,SCB,XTR)..DCR..(GCC,GEN,PKN,TH)

*130

 1
25861C - BRACKET, VACUUM SWITCHING VALVE
25861-30051

2KDFTV..KUN15..PKN

*130

 1
25861-30051

2KDFTV..KUN15..PKN

*163 OR *184

 1
Common parts
90105-08286
90105-T0053
90105-T0118
90105-T0121
90105-T0156
90116-06048
90116-08260
90116-10219
90116-T0006
90116-T0013
90116-T0015
90119-06748
90119-T0057
90126-10035
90126-T0009
90177-T0006
90177-T0009
90178-T0019
90179-06298
90179-08229
90179-10070
90182-T0007
90201-10109
90560-T0006
91551-80812
91551-80814
91551-80825
91551-80835
91671-00816
91671-80814
92122-80825
92122-80870
94151-80800
94184-01041
Linked diagrams
1901
2501

ILLUST NO. 1 OF 2(1505- )2KDFTV..DCR

Click highlighted areas on diagram

MANIFOLD

diagram 15407 15407A 15407B 15471 15472 17111 17111Z 17118 17119 17141 17141G 17141K 17173 17177 17230A 17230B 17230B 17230C 17278 17279 17291 17299 17861F 17861G 17873A 2501 25051 25861C 9010508286 90105T0053 90105T0118 90105T0118 90105T0118 90105T0121 90105T0156 90116T0015 90119T0057 90177T0006 90177T0009 90178T0019 90178T0019 9017908229 90182T0007 90560T0006 9167100816
Part # Description Qty Price
Common parts
90105-08286
90105-T0053
90105-T0118
90105-T0121
90105-T0156
90116-T0015
90119-T0057
90177-T0006
90177-T0009
90178-T0019
90179-08229
90182-T0007
90560-T0006
91671-00816
Linked diagrams
2501

ILLUST NO. 2 OF 2(1505- )2KDFTV..DCR

Click highlighted areas on diagram

TURBOCHARGER

diagram 04175 17201 17294 17294A 17294A 90116T0006 90126T0009
Part # Description Qty Price
Common parts
90116-T0006
90126-T0009
