KUN15L-TRMDYV (2008)

Toyota Hilux

Production Aug 2008 - Jul 2011
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0808- )KUN15,TGN16..DCB,SCB,XTR..DLX,SR..ARL,GCC,GEN,PHL,TH ; (0808- )GGN15,

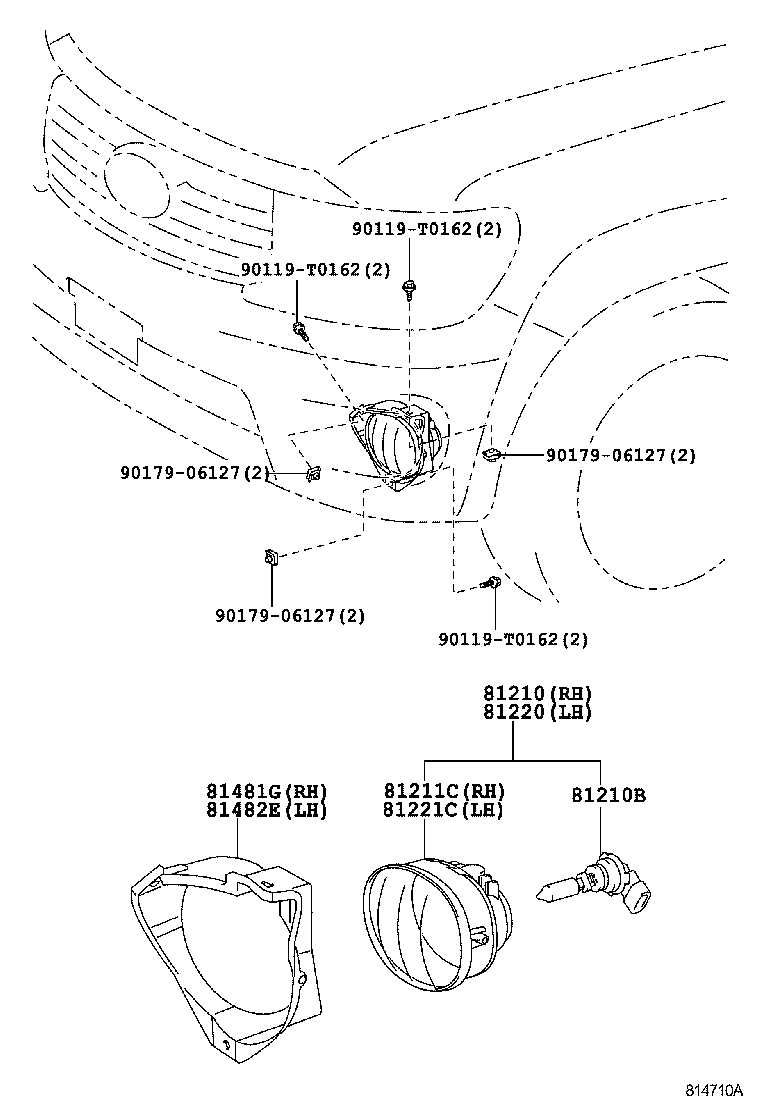

Click highlighted areas on diagram

diagram 81210 81210B 81211C 81220 81221C 81481G 81482E 90119T0162 90119T0162 90119T0162 9017906127 9017906127 9017906127
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81210-0K080

KUN16..SMT;TGN36..DLX..LA..CBU;KUN26..DCB..4FC..GEN;KUN15,35,TGN16..DLX..(GCC,PHL);KUN26,35..RHD..5F..SR..(GEN,TH);KUN15,TGN16..5F..SR..(GCC,PHL,TH);KUN10,25,36,TGN10,11,15,26..GCC,TH

FRONT FOG LAMP-WITH

 1
81210-0K080

KUN16..SMT;TGN36..DLX..LA..CBU;KUN26..DCB..4FC..GEN;KUN15,35,TGN16..DLX..(GCC,PHL);KUN26,35..RHD..5F..SR..(GEN,TH);KUN15,TGN16..5F..SR..(GCC,PHL,TH);KUN10,25,36,TGN10,11,15,26..GCC,TH

FRONT FOG LAMP-WITH

 1
81210-0K080

KUN16..SMT;TGN36..DLX..LA..CBU;KUN26..DCB..4FC..GEN;KUN15,35,TGN16..DLX..(GCC,PHL);KUN26,35..RHD..5F..SR..(GEN,TH);KUN15,TGN16..5F..SR..(GCC,PHL,TH);KUN10,25,36,TGN10,11,15,26..GCC,TH

FRONT FOG LAMP-WITH

 1
81210B - BULB, FOG LAMP
90981-13047

KUN15..SCB..GCC;TGN26..4FC..GCC;KUN26,36..(DCB,XTR)..5F..TH;KUN15,16,TGN16..(SCB,XTR)..5F..SR

12V 51W,HALOGEN,FRONT FOG LAMP-WITH

 2
90981-13047

KUN15..SCB..GCC;TGN26..4FC..GCC;KUN26,36..(DCB,XTR)..5F..TH;KUN15,16,TGN16..(SCB,XTR)..5F..SR

12V 51W,HALOGEN,FRONT FOG LAMP-WITH

 2
90981-13047

KUN15..SCB..GCC;TGN26..4FC..GCC;KUN26,36..(DCB,XTR)..5F..TH;KUN15,16,TGN16..(SCB,XTR)..5F..SR

12V 51W,HALOGEN,FRONT FOG LAMP-WITH

 2
90981-13047

KUN16..SMT;TGN36..DLX..LA..CBU;KUN26..DCB..4FC..GEN;KUN15,35,TGN16..DLX..(GCC,PHL);KUN26,35..RHD..5F..SR..(GEN,TH);KUN15,TGN16..5F..SR..(GCC,PHL,TH);KUN10,25,36,TGN10,11,15,26..GCC,TH

12V 51W,HALOGEN,FRONT FOG LAMP-WITH

 2
90981-13047

KUN16..SMT;TGN36..DLX..LA..CBU;KUN26..DCB..4FC..GEN;KUN15,35,TGN16..DLX..(GCC,PHL);KUN26,35..RHD..5F..SR..(GEN,TH);KUN15,TGN16..5F..SR..(GCC,PHL,TH);KUN10,25,36,TGN10,11,15,26..GCC,TH

12V 51W,HALOGEN,FRONT FOG LAMP-WITH

 2
90981-13047

KUN16..SMT;TGN36..DLX..LA..CBU;KUN26..DCB..4FC..GEN;KUN15,35,TGN16..DLX..(GCC,PHL);KUN26,35..RHD..5F..SR..(GEN,TH);KUN15,TGN16..5F..SR..(GCC,PHL,TH);KUN10,25,36,TGN10,11,15,26..GCC,TH

12V 51W,HALOGEN,FRONT FOG LAMP-WITH

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-0D070

KUN15..SCB..GCC;TGN26..4FC..GCC;KUN26,36..(DCB,XTR)..5F..TH;KUN15,16,TGN16..(SCB,XTR)..5F..SR

FRONT FOG LAMP-WITH

 1
81211-0D070

KUN15..SCB..GCC;TGN26..4FC..GCC;KUN26,36..(DCB,XTR)..5F..TH;KUN15,16,TGN16..(SCB,XTR)..5F..SR

FRONT FOG LAMP-WITH

 1
81211-0D070

KUN15..SCB..GCC;TGN26..4FC..GCC;KUN26,36..(DCB,XTR)..5F..TH;KUN15,16,TGN16..(SCB,XTR)..5F..SR

FRONT FOG LAMP-WITH

 1
81211-0D070

KUN16..SMT;TGN36..DLX..LA..CBU;KUN26..DCB..4FC..GEN;KUN15,35,TGN16..DLX..(GCC,PHL);KUN26,35..RHD..5F..SR..(GEN,TH);KUN15,TGN16..5F..SR..(GCC,PHL,TH);KUN10,25,36,TGN10,11,15,26..GCC,TH

FRONT FOG LAMP-WITH

 1
81211-0D070

KUN16..SMT;TGN36..DLX..LA..CBU;KUN26..DCB..4FC..GEN;KUN15,35,TGN16..DLX..(GCC,PHL);KUN26,35..RHD..5F..SR..(GEN,TH);KUN15,TGN16..5F..SR..(GCC,PHL,TH);KUN10,25,36,TGN10,11,15,26..GCC,TH

FRONT FOG LAMP-WITH

 1
81211-0D070

KUN16..SMT;TGN36..DLX..LA..CBU;KUN26..DCB..4FC..GEN;KUN15,35,TGN16..DLX..(GCC,PHL);KUN26,35..RHD..5F..SR..(GEN,TH);KUN15,TGN16..5F..SR..(GCC,PHL,TH);KUN10,25,36,TGN10,11,15,26..GCC,TH

FRONT FOG LAMP-WITH

 1
81220 - LAMP ASSY, FOG, LH
81220-0K020

KUN15..SCB..GCC;TGN26..4FC..GCC;KUN26,36..(DCB,XTR)..5F..TH;KUN15,16,TGN16..(SCB,XTR)..5F..SR

FRONT FOG LAMP-WITH

 1
81220-0K020

KUN15..SCB..GCC;TGN26..4FC..GCC;KUN26,36..(DCB,XTR)..5F..TH;KUN15,16,TGN16..(SCB,XTR)..5F..SR

FRONT FOG LAMP-WITH

 1
81220-0K020

KUN15..SCB..GCC;TGN26..4FC..GCC;KUN26,36..(DCB,XTR)..5F..TH;KUN15,16,TGN16..(SCB,XTR)..5F..SR

FRONT FOG LAMP-WITH

 1
81220-0K080

KUN16..SMT;TGN36..DLX..LA..CBU;KUN26..DCB..4FC..GEN;KUN15,35,TGN16..DLX..(GCC,PHL);KUN26,35..RHD..5F..SR..(GEN,TH);KUN15,TGN16..5F..SR..(GCC,PHL,TH);KUN10,25,36,TGN10,11,15,26..GCC,TH

FRONT FOG LAMP-WITH

 1
81220-0K080

KUN16..SMT;TGN36..DLX..LA..CBU;KUN26..DCB..4FC..GEN;KUN15,35,TGN16..DLX..(GCC,PHL);KUN26,35..RHD..5F..SR..(GEN,TH);KUN15,TGN16..5F..SR..(GCC,PHL,TH);KUN10,25,36,TGN10,11,15,26..GCC,TH

FRONT FOG LAMP-WITH

 1
81220-0K080

KUN16..SMT;TGN36..DLX..LA..CBU;KUN26..DCB..4FC..GEN;KUN15,35,TGN16..DLX..(GCC,PHL);KUN26,35..RHD..5F..SR..(GEN,TH);KUN15,TGN16..5F..SR..(GCC,PHL,TH);KUN10,25,36,TGN10,11,15,26..GCC,TH

FRONT FOG LAMP-WITH

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-0D070

KUN15..SCB..GCC;TGN26..4FC..GCC;KUN26,36..(DCB,XTR)..5F..TH;KUN15,16,TGN16..(SCB,XTR)..5F..SR

FRONT FOG LAMP-WITH

 1
81221-0D070

KUN15..SCB..GCC;TGN26..4FC..GCC;KUN26,36..(DCB,XTR)..5F..TH;KUN15,16,TGN16..(SCB,XTR)..5F..SR

FRONT FOG LAMP-WITH

 1
81221-0D070

KUN15..SCB..GCC;TGN26..4FC..GCC;KUN26,36..(DCB,XTR)..5F..TH;KUN15,16,TGN16..(SCB,XTR)..5F..SR

FRONT FOG LAMP-WITH

 1
81221-0D070

KUN16..SMT;TGN36..DLX..LA..CBU;KUN26..DCB..4FC..GEN;KUN15,35,TGN16..DLX..(GCC,PHL);KUN26,35..RHD..5F..SR..(GEN,TH);KUN15,TGN16..5F..SR..(GCC,PHL,TH);KUN10,25,36,TGN10,11,15,26..GCC,TH

FRONT FOG LAMP-WITH

 1
81221-0D070

KUN16..SMT;TGN36..DLX..LA..CBU;KUN26..DCB..4FC..GEN;KUN15,35,TGN16..DLX..(GCC,PHL);KUN26,35..RHD..5F..SR..(GEN,TH);KUN15,TGN16..5F..SR..(GCC,PHL,TH);KUN10,25,36,TGN10,11,15,26..GCC,TH

FRONT FOG LAMP-WITH

 1
81221-0D070

KUN16..SMT;TGN36..DLX..LA..CBU;KUN26..DCB..4FC..GEN;KUN15,35,TGN16..DLX..(GCC,PHL);KUN26,35..RHD..5F..SR..(GEN,TH);KUN15,TGN16..5F..SR..(GCC,PHL,TH);KUN10,25,36,TGN10,11,15,26..GCC,TH

FRONT FOG LAMP-WITH

 1
81481G - BRACKET, FOG LAMP, RH
81481-0K070

KUN16..SMT;TGN36..DLX..LA..CBU;KUN26..DCB..4FC..GEN;KUN15,35,TGN16..DLX..(GCC,PHL);KUN26,35..RHD..5F..SR..(GEN,TH);KUN15,TGN16..5F..SR..(GCC,PHL,TH);KUN10,25,36,TGN10,11,15,26..GCC,TH

FRONT FOG LAMP-WITH

 1
81481-0K070

KUN16..SMT;TGN36..DLX..LA..CBU;KUN26..DCB..4FC..GEN;KUN15,35,TGN16..DLX..(GCC,PHL);KUN26,35..RHD..5F..SR..(GEN,TH);KUN15,TGN16..5F..SR..(GCC,PHL,TH);KUN10,25,36,TGN10,11,15,26..GCC,TH

FRONT FOG LAMP-WITH

 1
81481-0K070

KUN16..SMT;TGN36..DLX..LA..CBU;KUN26..DCB..4FC..GEN;KUN15,35,TGN16..DLX..(GCC,PHL);KUN26,35..RHD..5F..SR..(GEN,TH);KUN15,TGN16..5F..SR..(GCC,PHL,TH);KUN10,25,36,TGN10,11,15,26..GCC,TH

FRONT FOG LAMP-WITH

 1
81482E - BRACKET, FOG LAMP, LH
81482-0K070

KUN16..SMT;TGN36..DLX..LA..CBU;KUN26..DCB..4FC..GEN;KUN15,35,TGN16..DLX..(GCC,PHL);KUN26,35..RHD..5F..SR..(GEN,TH);KUN15,TGN16..5F..SR..(GCC,PHL,TH);KUN10,25,36,TGN10,11,15,26..GCC,TH

FRONT FOG LAMP-WITH

 1
81482-0K070

KUN16..SMT;TGN36..DLX..LA..CBU;KUN26..DCB..4FC..GEN;KUN15,35,TGN16..DLX..(GCC,PHL);KUN26,35..RHD..5F..SR..(GEN,TH);KUN15,TGN16..5F..SR..(GCC,PHL,TH);KUN10,25,36,TGN10,11,15,26..GCC,TH

FRONT FOG LAMP-WITH

 1
81482-0K070

KUN16..SMT;TGN36..DLX..LA..CBU;KUN26..DCB..4FC..GEN;KUN15,35,TGN16..DLX..(GCC,PHL);KUN26,35..RHD..5F..SR..(GEN,TH);KUN15,TGN16..5F..SR..(GCC,PHL,TH);KUN10,25,36,TGN10,11,15,26..GCC,TH

FRONT FOG LAMP-WITH

 1
Common parts
90119-T0162
90179-06127

(1107-1404)

Click highlighted areas on diagram

51W OR 55W

diagram 5252 81210 81210B 81211C 81220 81221C
Part # Description Qty Price
Linked diagrams
5252

(1505- )ARL,BZAGT,GCC,GEN,IDN,KEN,LA,MA,PH,PKN,SA,TAIW,TH,VN

Click highlighted areas on diagram

diagram 5252 81210A 81210A 81210B 81220 81220 9016750063 9016750063
Part # Description Qty Price
Common parts
90167-50063
Linked diagrams
5252
