KUN15L-TRMDYV (2008)

Toyota Hilux

Production Aug 2008 - Jul 2011
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )1KDFTV,2KDFTV

Click highlighted areas on diagram

diagram 11401 11415A 11416 11425 11431A 11431B 11431C 11431C 11431D 11431E 11431F 11431F 11431G 11432R 11432U 11434A 11434D 11434G 11434J 11444 11448 11452 12101 12101A 12101B 12584 1301 15301 15301A 15605 15708 90105T0042 9011606138 9011606140 9011606171 90116T0008 90116T0020 9011906754 90119T0147 9017906298 90182T0007 9030109018 90301T0012 9048013034 90480T0005 91511B0616 9155180610 9212280614 9672124014
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-09360

2KDFTV..KUN10,15,25..GCC

 1
11401-39795

2KDFTV..KUN35..GEN,SA;2KDFTV..KUN25..THDCB,THSCB;2KDFTV..KUN10,15,25..GCC,SA

 1
11401-39796

2KDFTV..KUN10,15..GCC

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90334-14002

2KDFTV..KUN35..SR..PHL;2KDFTV..KUN35..DLX..(ANCOM,LA,PHL,TH);2KDFTV..KUN10,15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,LA,MA,PKN)

*130,(J)

 1
90339-T0002

2KDFTV..KUN35..SR..PHL;2KDFTV..KUN35..DLX..(ANCOM,LA,PHL,TH);2KDFTV..KUN10,15..DCR..(GCC,GEN,PHL,TH);2KDFTV..KUN25..(DCB,SCB)..(ANCOM,GCC,GEN,LA,MA,PKN)

*130,(L)

 1
90334-14002

2KDFTV..KUN15..XTR..TH;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);2KDFTV..KUN10,25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN15..(DCB,SCB,SMT)..DCR..(GCC,GEN,PHL,SA,TH)

*163 OR *184

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-T2003

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

*130

 10
90910-T2003

1KDFTV..KUN16..4FC;1KDFTV..KUN26..PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,PHL,TH)

*130

 10
90910-02113

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV..KUN26,36..ARL,GEN,PHL,SA,TH;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN,MA,PKN,SA)..CBU

*163 OR *184

 10
11425 - BOLT, STUD(FOR OIL FILTER)
90116-T0012

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 2
90116-T0012

1KDFTV..KUN16..4FC;1KDFTV..KUN26..PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,PHL,TH)

*130

 2
90116-06171

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV..KUN26,36..ARL,GEN,PHL,SA,TH;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN,MA,PKN,SA)..CBU

*163 OR *184

 2
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
90331-T0008

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

*130

 1
90331-T0008

1KDFTV..KUN16..4FC;1KDFTV..KUN26..PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,PHL,TH)

*130

 1
96411-64500

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV..KUN26,36..ARL,GEN,PHL,SA,TH;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN,MA,PKN,SA)..CBU

*163 OR *184

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
90331-T0005

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

*130

 3
90331-T0005

1KDFTV..KUN16..4FC;1KDFTV..KUN26..PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,PHL,TH)

*130

 3
96411-63500

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV..KUN26,36..ARL,GEN,PHL,SA,TH;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN,MA,PKN,SA)..CBU

*163 OR *184

 3
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
90331-T0007

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

*130

 2
96411-64000

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV..KUN26,36..ARL,GEN,PHL,SA,TH;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN,MA,PKN,SA)..CBU

*163 OR *184

 2
90331-T0007

1KDFTV..KUN16..4FC;1KDFTV..KUN26..PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,PHL,TH)

*130

 2
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
90331-T0007

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

*130

 2
96411-64000

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV..KUN26,36..ARL,GEN,PHL,SA,TH;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN,MA,PKN,SA)..CBU

*163 OR *184

 2
90331-T0007

1KDFTV..KUN16..4FC;1KDFTV..KUN26..PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,PHL,TH)

*130

 2
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
90331-T0002

1KDFTV..KUN16..4FC;1KDFTV..KUN26..PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,PHL,TH)

*130

 3
90331-T0002

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

*130

 3
90331-35004

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV..KUN26,36..ARL,GEN,PHL,SA,TH;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN,MA,PKN,SA)..CBU

*163 OR *184

 3
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
90331-T0003

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

*130

 1
90331-T0003

1KDFTV..KUN16..4FC;1KDFTV..KUN26..PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,PHL,TH)

*130

 1
96411-62000

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV..KUN26,36..ARL,GEN,PHL,SA,TH;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN,MA,PKN,SA)..CBU

*163 OR *184

 1
11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)
96411-61800

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV..KUN26,36..ARL,GEN,PHL,SA,TH;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN,MA,PKN,SA)..CBU

*163 OR *184

 2
90331-T0006

1KDFTV..KUN16..4FC;1KDFTV..KUN26..PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,PHL,TH)

*130

 2
90331-T0006

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

*130

 2
11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)
96411-61800

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV..KUN26,36..ARL,GEN,PHL,SA,TH;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN,MA,PKN,SA)..CBU

*163 OR *184

 2
90331-T0006

1KDFTV..KUN16..4FC;1KDFTV..KUN26..PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,PHL,TH)

*130

 2
90331-T0006

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

*130

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-T0007

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

L=18,OD=8,*130

 2
90250-08120

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV..KUN26,36..ARL,GEN,PHL,SA,TH;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN,MA,PKN,SA)..CBU

L=18,OD=8,*163 OR *184

 2
90250-T0007

1KDFTV..KUN16..4FC;1KDFTV..KUN26..PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,PHL,TH)

L=18,OD=8,*130

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-T0012

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

L=11,OD=6,*130

 2
90250-06068

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV..KUN26,36..ARL,GEN,PHL,SA,TH;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN,MA,PKN,SA)..CBU

L=11,OD=6,*163 OR *184

 2
90250-T0012

1KDFTV..KUN16..4FC;1KDFTV..KUN26..PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,PHL,TH)

L=11,OD=6,*130

 2
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-T0008

1KDFTV..KUN16..4FC;1KDFTV..KUN26..PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,PHL,TH)

*130

 2
90250-T0008

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 2
90250-10192

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV..KUN26,36..ARL,GEN,PHL,SA,TH;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN,MA,PKN,SA)..CBU

*163 OR *184

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-T0002

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 2
90253-T0002

1KDFTV..KUN16..4FC;1KDFTV..KUN26,36..PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);2KDFTV..KUN10,15,35..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH)

*130

 2
90253-15016

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV..KUN26,36..ARL,GEN,PHL,SA,TH;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN,MA,PKN,SA)..CBU

*163 OR *184

 2
11448 - ORIFICE, CYLINDER BLOCK OIL
11448-0L010

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
11448-0L010

1KDFTV..KUN16..4FC;1KDFTV..KUN26..PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,PHL,TH)

*130

 1
11448-67010

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV..KUN26,36..ARL,GEN,PHL,SA,TH;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN,MA,PKN,SA)..CBU

*163 OR *184

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-0L010

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

*130

 1
12101 - PAN SUB-ASSY, OIL
12101-0L030

2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
12101-30100

1KDFTV..KUN16..4FC;2KDFTV..KUN35..SR..PHL;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN35..DLX..(GEN,PHL,TH);1KDFTV,2KDFTV..KUN10,15,26,36..ARL,GCC,GEN,PHL,TH;1KDFTV,2KDFTV..KUN16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN,MA,PKN)..CBU

*163 OR *184

 1
12101-0L030

1KDFTV..KUN16..4FC;2KDFTV..KUN35..SR..PHL;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN35..DLX..(GEN,PHL,TH);1KDFTV,2KDFTV..KUN10,15,26,36..ARL,GCC,GEN,PHL,TH;1KDFTV,2KDFTV..KUN16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN,MA,PKN)..CBU

ENGINE NO.=9XXXXXX

 1
12101-0L030

1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH)

*130

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-T0004

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
90341-T0004

1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH)

*130

 1
90341-12012

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV..KUN26,36..ARL,GEN,PHL,SA,TH;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN,MA,PKN,SA)..CBU

*163 OR *184

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90080-43030

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
12584 - INSULATOR, CYLINDER BROCK, NO.4
12584-0L010

1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN10,15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

 1
12584-0L010

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;1KDFTV..KUN16..DCB..ARL;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN10,2#,3#..ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-0L030

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN);1KDFTV,2KDFTV..KUN2#..(DCB,XTR)..SR..(MA,PHL,TH);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH)

*130

 1
15301-30070

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV..KUN26,36..ARL,GEN,PHL,SA,TH;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN,MA,PKN,SA)..CBU

*163 OR *184

 1
15301-0L030

1KDFTV..KUN16..4FC;1KDFTV..KUN26..PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,PHL,TH)

*130

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
90301-T0018

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 1
90301-T0018

1KDFTV..KUN16..4FC;1KDFTV..KUN26..PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,PHL,TH)

*130

 1
96741-19005

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV..KUN26,36..ARL,GEN,PHL,SA,TH;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN,MA,PKN,SA)..CBU

*163 OR *184

 1
15605 - VALVE SUB-ASSY, OIL CHECK
15605-0L010

2KDFTV..KUN25..SCB..MA;2KDFTV..KUN15..PHL..CBU;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN26..(DCB,XTR)..(LA,PHL,TH);2KDFTV..KUN10,25,35..(DCB,SCB)..(ANCOM,GCC,GEN,LA);1KDFTV,2KDFTV..KUN15,16,36..(DCB,SCB,XTR)..(GCC,GEN,LA,PKN,TH)

*130

 4
15605-17030

1KDFTV..KUN16..4FC;2KDFTV..KUN15..XTR..TH;1KDFTV..KUN16..SCB,SMT,XTR;2KDFTV..KUN35..SR..(PHL,SA);2KDFTV..KUN35..DLX..(GEN,PHL,SA,TH);1KDFTV..KUN26,36..ARL,GEN,PHL,SA,TH;2KDFTV..KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16,25..(DCB,SCB,THDCB,THSCB)..(ARL,GCC,GEN,MA,PKN,SA)..CBU

*163 OR *184

 4
15605-0L010

1KDFTV..KUN16..4FC;1KDFTV..KUN26..LA,PHL,TH;1KDFTV..KUN26,36..XTR..SA;1KDFTV..KUN16..(SCB,SMT)..CBU;2KDFTV..KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,LA,MA,PKN,TH);1KDFTV,2KDFTV..KUN10,15,3#..(DCB,SCB,SMT,XTR)..(ANCOM,GCC,GEN,LA,PHL,TH)

*130

 4
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-0L010

1KDFTV,2KDFTV..KUN1#,2#

*130

 4
Common parts
90105-T0042
90116-06138
90116-06140
90116-06171
90116-T0008
90116-T0020
90119-06754
90119-T0147
90179-06298
90182-T0007
90301-09018
90301-T0012
90480-13034
90480-T0005
91511-B0616
91551-80610
92122-80614
96721-24014
Linked diagrams
1301

ILLUST NO. 2 OF 2(1107- )1KDFTV,2KDFTV

Click highlighted areas on diagram

diagram 11415A 11431A 11431B 11431C 11431F 11434D 11434G 90116T0008 9212280614
Part # Description Qty Price
Common parts
90116-T0008
92122-80614

ILLUST NO. 1 OF 2(1107- )1KDFTV,2KDFTV

Click highlighted areas on diagram

diagram 11401 11416 11425 11431D 11431E 11431F 11434A 11434A 11434J 11434J 11448 11452 12101 12101A 12101B 12584 1301 15301 15301A 1536830010 15605 15708 90105T0069 9011606138 9011606140 9011606171 90116T0020 9011906754 90119T0147 9017906298 90182T0007 9030109018 90301T0012 9048013034 90480T0005 9155180610
Part # Description Qty Price
Common parts
15368-30010
90105-T0069
90116-06138
90116-06140
90116-06171
90116-T0020
90119-06754
90119-T0147
90179-06298
90182-T0007
90301-09018
90301-T0012
90480-13034
90480-T0005
91551-80610
Linked diagrams
1301

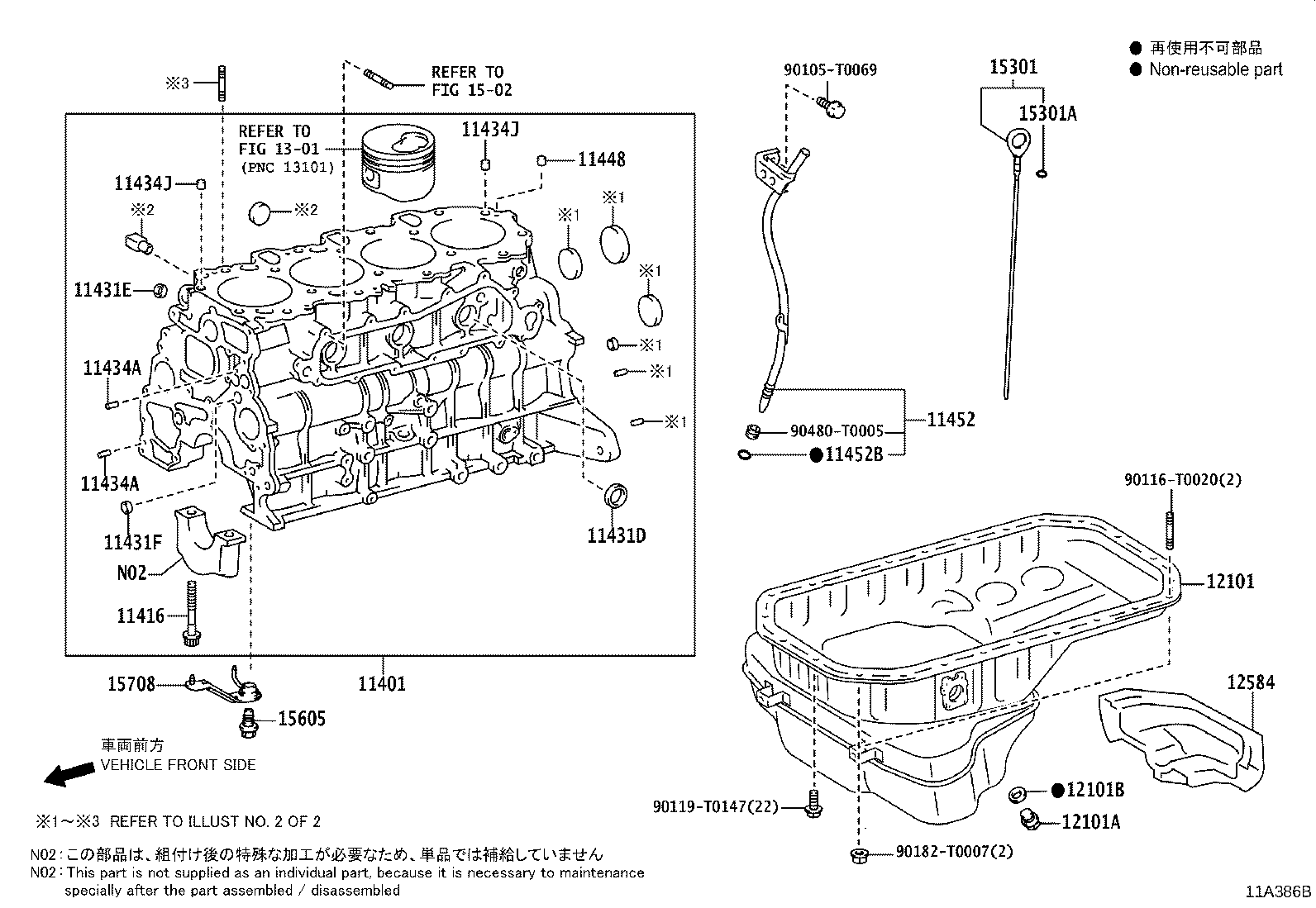

ILLUST NO. 1 OF 2(1505- )1KDFTV,2KDFTV

Click highlighted areas on diagram

CYLINDER BLOCK

diagram 11401 11416 11431D 11431E 11431F 11434A 11434A 11434J 11434J 11448 11452 11452B 12101 12101A 12101B 12584 1301 1502 15301 15301A 15605 15708 90105T0069 90116T0020 90119T0147 90182T0007 90480T0005
Part # Description Qty Price
Common parts
90105-T0069
90116-T0020
90119-T0147
90182-T0007
90480-T0005
Linked diagrams
1301
1502

ILLUST NO. 2 OF 2(1505- )1KDFTV,2KDFTV

Click highlighted areas on diagram

FITTING PARTS

diagram 11415A 11431A 11431B 11431C 11431F 11434D 11434G 1603
Part # Description Qty Price
Linked diagrams
1603
