KUN15L-PRMSYM (2011)
Toyota Hilux
ILLUST NO. 1 OF 2(1107- )KUN25..DCB..SA ; (1107- )KUN26,TGN36..LHD..IV3 ; (1107- )KUN15..LH
MANUAL HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0K341 |
KUN15,26,35..PHL |
1 | ||
| 87050-0K341 |
KUN15,26,35..PHL |
1 | ||
| 87050-0K020 |
KUN15,26,35..SR..PHL;KUN15,25..LHD..(SCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 87050-0K020 |
KUN15,26,35..SR..PHL;KUN15,25..LHD..(SCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0K092 |
KUN15,26,35..PHL |
1 | ||
| 87103-0K092 |
KUN15,26,35..PHL |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-02290 |
KUN15,26,35..SR..PHL AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 87107-02290 |
KUN15,26,35..SR..PHL AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0K012 |
KUN15,26,35..PHL |
1 | ||
| 87130-0K012 |
KUN15,26,35..PHL |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0K110 |
KUN15..LHD..DLX..SA;TGN26..LHD..(GEN,SA);KUN15,26,35..LHD..(4FC,5F)..(GEN,PHL);KUN25,LAN15,25,TGN16,36..LHD..DLX..(GEN,SA) |
1 | ||
| 87138-0K110 |
KUN15..LHD..DLX..SA;TGN26..LHD..(GEN,SA);KUN15,26,35..LHD..(4FC,5F)..(GEN,PHL);KUN25,LAN15,25,TGN16,36..LHD..DLX..(GEN,SA) |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50100 |
KUN15..HDCR;KUN26..5F,5FC;KUN36..(5F,5FC)..TH;KUN25,LAN15,25..LHD..SA;GGN15..(DCB,XTR)..5FC..DLX;GGN35,KUN10,35,TGN1#,26,36;GGN15,25,KUN16..DCB..5FC..SR;KUN25..CO,GCC,GEN,IDN,LA,PKN,TH;KUN26..4FC..(CO,GEN,LA,MA,PHL,SA,TH);KUN15,16,36..DCR..(ARL,GCC,GEN,LA,PHL,PKN,SA) *DPF |
1 | ||
| 87139-50100 |
KUN15..HDCR;KUN26..5F,5FC;KUN36..(5F,5FC)..TH;KUN25,LAN15,25..LHD..SA;GGN15..(DCB,XTR)..5FC..DLX;GGN35,KUN10,35,TGN1#,26,36;GGN15,25,KUN16..DCB..5FC..SR;KUN25..CO,GCC,GEN,IDN,LA,PKN,TH;KUN26..4FC..(CO,GEN,LA,MA,PHL,SA,TH);KUN15,16,36..DCR..(ARL,GCC,GEN,LA,PHL,PKN,SA) *DPF |
1 | ||
| 87139-06080 |
KUN26..MA,PHL,TH;KUN1#,25,3#,TGN10,16..IDN,PHL,PKN,TH STANDARD |
1 | ||
| 87139-06080 |
KUN26..MA,PHL,TH;KUN1#,25,3#,TGN10,16..IDN,PHL,PKN,TH STANDARD |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0K010 |
KUN10,15,2#,35,TGN1#,26,36..LHD..(DCB,SCB,THDCB,THSCB,XTR)..(GCC,GEN,PHL) |
1 | ||
| 88539-0K010 |
KUN10,15,2#,35,TGN1#,26,36..LHD..(DCB,SCB,THDCB,THSCB,XTR)..(GCC,GEN,PHL) |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0K020 |
GGN25,KUN10,15,2#,35,LAN15,25,TGN1#,26,36..LHD..(ANCOM,GCC,GEN,PHL,SA) |
1 | ||
| 88548-0K020 |
GGN25,KUN10,15,2#,35,LAN15,25,TGN1#,26,36..LHD..(ANCOM,GCC,GEN,PHL,SA) |
1 | ||
| Common parts | ||||
| 90119-T0209 | ||||
| 90119-T0294 | ||||
| 90159-T0005 | ||||
| 90178-T0065 | ||||
| 90480-26022 | ||||
| Linked diagrams | ||||
| 5355 | ||||
| 8715 | ||||
ILLUST NO. 1 OF 2(1107- )PHL

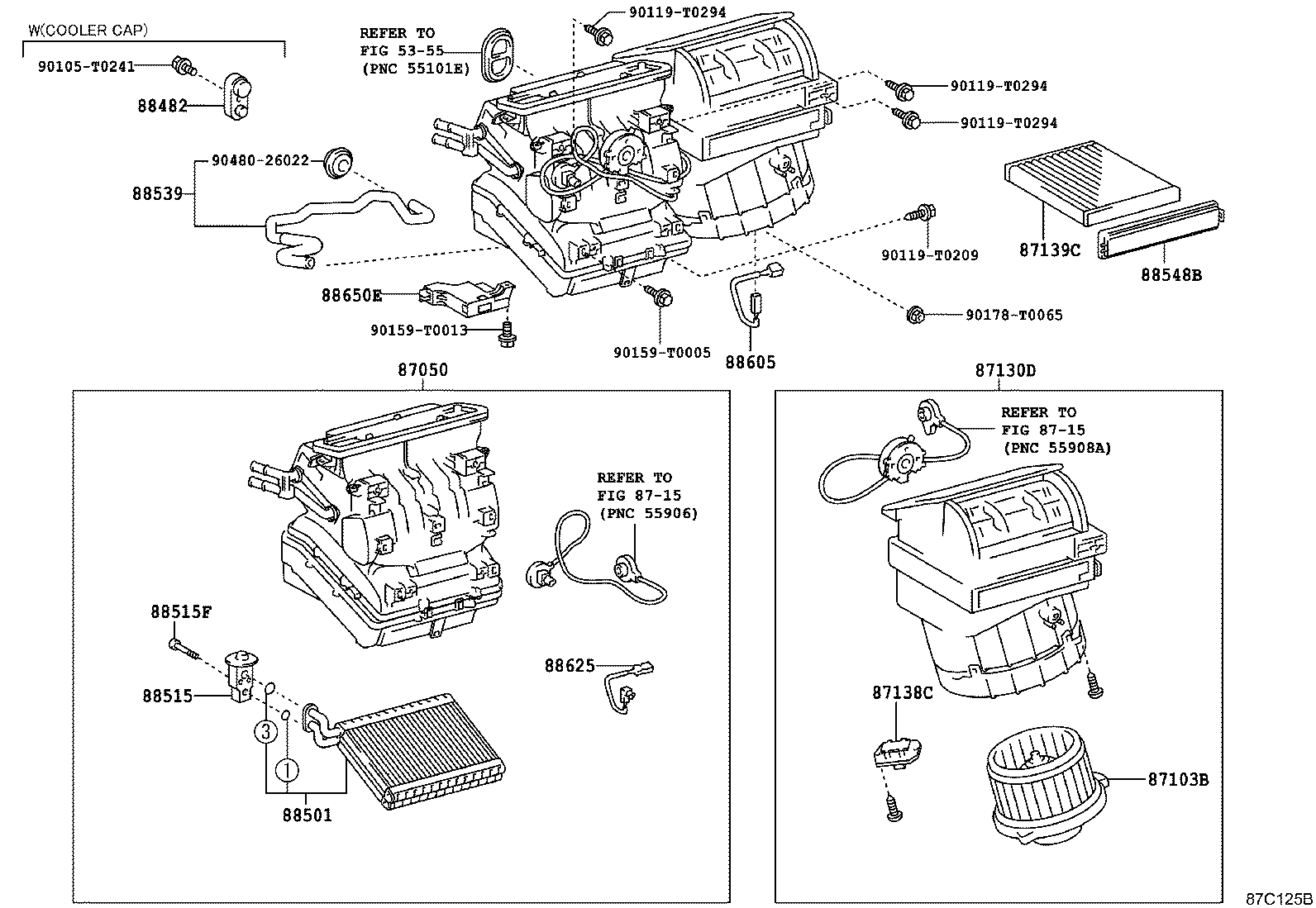

MANUAL COOLER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0K341 |
KUN15,26,35..PHL |
1 | ||
| 87050-0K020 |
KUN15,26,35..SR..PHL;KUN15,25..LHD..(SCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0K092 |
KUN15,26,35..PHL |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0K012 |
KUN15,26,35..PHL |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0K110 |
KUN15..LHD..DLX..SA;TGN26..LHD..(GEN,SA);KUN15,26,35..LHD..(4FC,5F)..(GEN,PHL);KUN25,LAN15,25,TGN16,36..LHD..DLX..(GEN,SA) |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50100 |
KUN15..HDCR;KUN26..5F,5FC;KUN36..(5F,5FC)..TH;KUN25,LAN15,25..LHD..SA;GGN15..(DCB,XTR)..5FC..DLX;GGN35,KUN10,35,TGN1#,26,36;GGN15,25,KUN16..DCB..5FC..SR;KUN25..CO,GCC,GEN,IDN,LA,PKN,TH;KUN26..4FC..(CO,GEN,LA,MA,PHL,SA,TH);KUN15,16,36..DCR..(ARL,GCC,GEN,LA,PHL,PKN,SA) *DPF |
1 | ||
| 87139-06080 |
KUN26..MA,PHL,TH;KUN1#,25,3#,TGN10,16..IDN,PHL,PKN,TH STANDARD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0K090 |
TGN26..4FC..GEN;KUN15..LHD..DCB..GEN;KUN15,25,TGN26..GCC,IDN,MA,PHL,TH;KUN25,TGN26..LHD..(SCB,THDCB)..GEN;GGN15,25,KUN10,16,26,3#,TGN1#,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,MA,PHL,TH) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K180 |
KUN25,TGN26..THDCB;KUN15,2#,TGN26..GCC,IDN,PHL,TH;KUN15,26..LHD..(DCB,THDCB)..GEN;KUN10,16,3#,TGN1#,36..GCC,GEN,PHL,TH |
1 | ||
| 88515-0K180 |
TGN16..XTR;KUN15..SMT..SR;KUN15..LHD..DCB..DLX..GEN;KUN2#,TGN26..THDCB..(4FC,5F);KUN15..(DCB,XTR)..(GCC,PHL,TH);KUN25,35..5F..(GCC,IDN,PHL,TH);KUN15..(SCB,SMT)..DCR..(GCC,PHL,TH);KUN10,35,TGN10,11,15,36..LHD..DLX..(GCC,GEN);KUN16,26,36,TGN16,26..(4FC,5F)..(DCR,HTWC)..(GCC,PHL,TH) |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
TGN26..4FC..GEN;KUN15..LHD..DCB..GEN;KUN15,25,TGN26..GCC,IDN,PHL,TH;KUN25,TGN26..LHD..(SCB,THDCB)..GEN;GGN15,25,KUN10,16,26,3#,TGN1#,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,MA,PHL,TH) |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0K010 |
KUN10,15,2#,35,TGN1#,26,36..LHD..(DCB,SCB,THDCB,THSCB,XTR)..(GCC,GEN,PHL) |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0K020 |
GGN25,KUN10,15,2#,35,LAN15,25,TGN1#,26,36..LHD..(ANCOM,GCC,GEN,PHL,SA) |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-0K090 |
KUN1#,2#,3#,TGN10,16..IDN,PHL,TH |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-02110 |
TGN26..4FC..GEN;KUN15..LHD..DCB..GEN;KUN15,25,TGN26..GCC,IDN,PHL,TH;KUN25,TGN26..LHD..(SCB,THDCB)..GEN;GGN15,25,KUN10,16,26,3#,TGN1#,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,MA,PHL,TH) |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-0K170 |
KUN15,16,2#,3#,TGN16..IDN,PHL,TH |
1 | ||
| 88650-0K010 |
KUN25..THSCB;KUN15,26,35..SR..PHL AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 90105-T0241 | ||||
| 90119-T0209 | ||||
| 90119-T0294 | ||||
| 90159-T0005 | ||||
| 90159-T0013 | ||||
| 90178-T0065 | ||||
| 90480-26022 | ||||
| Linked diagrams | ||||
| 5355 | ||||
| 8715 | ||||

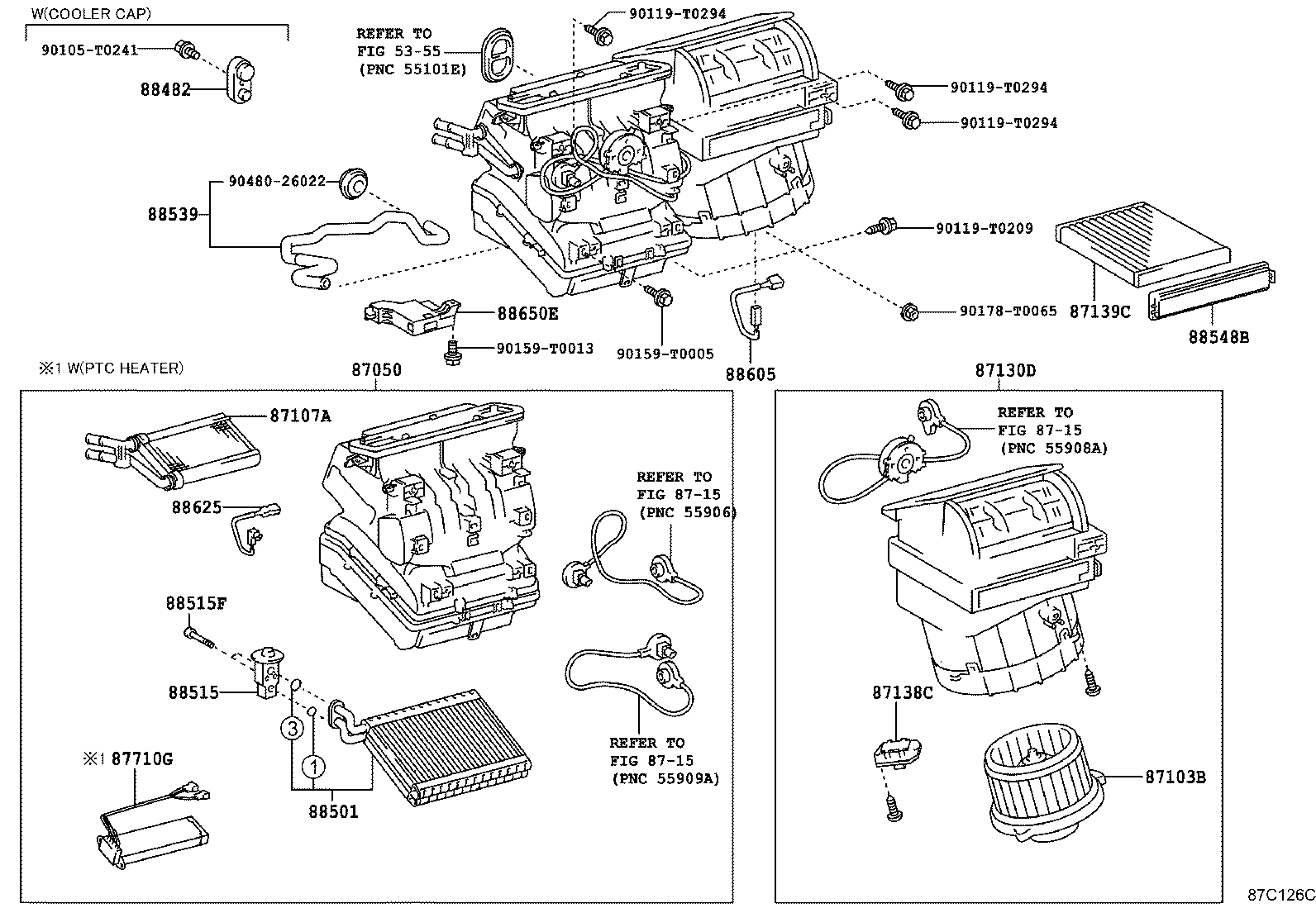

ILLUST NO. 1 OF 2(1107- )KUN35..SR..PHL ; (1107- )KUN35..LHD..GEN ; (1107- )KUN15..SR..GEN,
MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0K341 |
KUN15,26,35..PHL |
1 | ||
| 87050-0K341 |
KUN15,26,35..PHL |
1 | ||
| 87050-0K020 |
KUN15,26,35..SR..PHL;KUN15,25..LHD..(SCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 87050-0K020 |
KUN15,26,35..SR..PHL;KUN15,25..LHD..(SCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0K092 |
KUN15,26,35..PHL |
1 | ||
| 87103-0K092 |
KUN15,26,35..PHL |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-02290 |
KUN15,26,35..SR..PHL AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 87107-02290 |
KUN15,26,35..SR..PHL AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0K012 |
KUN15,26,35..PHL |
1 | ||
| 87130-0K012 |
KUN15,26,35..PHL |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0K110 |
KUN15..LHD..DLX..SA;TGN26..LHD..(GEN,SA);KUN15,26,35..LHD..(4FC,5F)..(GEN,PHL);KUN25,LAN15,25,TGN16,36..LHD..DLX..(GEN,SA) |
1 | ||
| 87138-0K110 |
KUN15..LHD..DLX..SA;TGN26..LHD..(GEN,SA);KUN15,26,35..LHD..(4FC,5F)..(GEN,PHL);KUN25,LAN15,25,TGN16,36..LHD..DLX..(GEN,SA) |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50100 |
KUN15..HDCR;KUN26..5F,5FC;KUN36..(5F,5FC)..TH;KUN25,LAN15,25..LHD..SA;GGN15..(DCB,XTR)..5FC..DLX;GGN35,KUN10,35,TGN1#,26,36;GGN15,25,KUN16..DCB..5FC..SR;KUN25..CO,GCC,GEN,IDN,LA,PKN,TH;KUN26..4FC..(CO,GEN,LA,MA,PHL,SA,TH);KUN15,16,36..DCR..(ARL,GCC,GEN,LA,PHL,PKN,SA) *DPF |
1 | ||
| 87139-50100 |
KUN15..HDCR;KUN26..5F,5FC;KUN36..(5F,5FC)..TH;KUN25,LAN15,25..LHD..SA;GGN15..(DCB,XTR)..5FC..DLX;GGN35,KUN10,35,TGN1#,26,36;GGN15,25,KUN16..DCB..5FC..SR;KUN25..CO,GCC,GEN,IDN,LA,PKN,TH;KUN26..4FC..(CO,GEN,LA,MA,PHL,SA,TH);KUN15,16,36..DCR..(ARL,GCC,GEN,LA,PHL,PKN,SA) *DPF |
1 | ||
| 87139-06080 |
KUN26..MA,PHL,TH;KUN1#,25,3#,TGN10,16..IDN,PHL,PKN,TH STANDARD |
1 | ||
| 87139-06080 |
KUN26..MA,PHL,TH;KUN1#,25,3#,TGN10,16..IDN,PHL,PKN,TH STANDARD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0K090 |
TGN26..4FC..GEN;KUN15..LHD..DCB..GEN;KUN15,25,TGN26..GCC,IDN,MA,PHL,TH;KUN25,TGN26..LHD..(SCB,THDCB)..GEN;GGN15,25,KUN10,16,26,3#,TGN1#,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,MA,PHL,TH) |
1 | ||
| 88501-0K090 |
TGN26..4FC..GEN;KUN15..LHD..DCB..GEN;KUN15,25,TGN26..GCC,IDN,MA,PHL,TH;KUN25,TGN26..LHD..(SCB,THDCB)..GEN;GGN15,25,KUN10,16,26,3#,TGN1#,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,MA,PHL,TH) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K180 |
KUN25,TGN26..THDCB;KUN15,2#,TGN26..GCC,IDN,PHL,TH;KUN15,26..LHD..(DCB,THDCB)..GEN;KUN10,16,3#,TGN1#,36..GCC,GEN,PHL,TH |
1 | ||
| 88515-0K180 |
KUN25,TGN26..THDCB;KUN15,2#,TGN26..GCC,IDN,PHL,TH;KUN15,26..LHD..(DCB,THDCB)..GEN;KUN10,16,3#,TGN1#,36..GCC,GEN,PHL,TH |
1 | ||
| 88515-0K180 |
TGN16..XTR;KUN15..SMT..SR;KUN15..LHD..DCB..DLX..GEN;KUN2#,TGN26..THDCB..(4FC,5F);KUN15..(DCB,XTR)..(GCC,PHL,TH);KUN25,35..5F..(GCC,IDN,PHL,TH);KUN15..(SCB,SMT)..DCR..(GCC,PHL,TH);KUN10,35,TGN10,11,15,36..LHD..DLX..(GCC,GEN);KUN16,26,36,TGN16,26..(4FC,5F)..(DCR,HTWC)..(GCC,PHL,TH) |
1 | ||
| 88515-0K180 |
TGN16..XTR;KUN15..SMT..SR;KUN15..LHD..DCB..DLX..GEN;KUN2#,TGN26..THDCB..(4FC,5F);KUN15..(DCB,XTR)..(GCC,PHL,TH);KUN25,35..5F..(GCC,IDN,PHL,TH);KUN15..(SCB,SMT)..DCR..(GCC,PHL,TH);KUN10,35,TGN10,11,15,36..LHD..DLX..(GCC,GEN);KUN16,26,36,TGN16,26..(4FC,5F)..(DCR,HTWC)..(GCC,PHL,TH) |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
TGN26..4FC..GEN;KUN15..LHD..DCB..GEN;KUN15,25,TGN26..GCC,IDN,PHL,TH;KUN25,TGN26..LHD..(SCB,THDCB)..GEN;GGN15,25,KUN10,16,26,3#,TGN1#,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,MA,PHL,TH) |
2 | ||
| 90099-04542 |
TGN26..4FC..GEN;KUN15..LHD..DCB..GEN;KUN15,25,TGN26..GCC,IDN,PHL,TH;KUN25,TGN26..LHD..(SCB,THDCB)..GEN;GGN15,25,KUN10,16,26,3#,TGN1#,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,MA,PHL,TH) |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0K010 |
KUN10,15,2#,35,TGN1#,26,36..LHD..(DCB,SCB,THDCB,THSCB,XTR)..(GCC,GEN,PHL) |
1 | ||
| 88539-0K010 |
KUN10,15,2#,35,TGN1#,26,36..LHD..(DCB,SCB,THDCB,THSCB,XTR)..(GCC,GEN,PHL) |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0K020 |
GGN25,KUN10,15,2#,35,LAN15,25,TGN1#,26,36..LHD..(ANCOM,GCC,GEN,PHL,SA) |
1 | ||
| 88548-0K020 |
GGN25,KUN10,15,2#,35,LAN15,25,TGN1#,26,36..LHD..(ANCOM,GCC,GEN,PHL,SA) |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-0K090 |
KUN1#,2#,3#,TGN10,16..IDN,PHL,TH |
1 | ||
| 88605-0K090 |
KUN1#,2#,3#,TGN10,16..IDN,PHL,TH |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-02110 |
TGN26..4FC..GEN;KUN15..LHD..DCB..GEN;KUN15,25,TGN26..GCC,IDN,PHL,TH;KUN25,TGN26..LHD..(SCB,THDCB)..GEN;GGN15,25,KUN10,16,26,3#,TGN1#,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,MA,PHL,TH) |
1 | ||
| 88620-02110 |
TGN26..4FC..GEN;KUN15..LHD..DCB..GEN;KUN15,25,TGN26..GCC,IDN,PHL,TH;KUN25,TGN26..LHD..(SCB,THDCB)..GEN;GGN15,25,KUN10,16,26,3#,TGN1#,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,MA,PHL,TH) |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-0K170 |
KUN15,16,2#,3#,TGN16..IDN,PHL,TH |
1 | ||
| 88650-0K170 |
KUN15,16,2#,3#,TGN16..IDN,PHL,TH |
1 | ||
| 88650-0K010 |
KUN25..THSCB;KUN15,26,35..SR..PHL AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88650-0K010 |
KUN25..THSCB;KUN15,26,35..SR..PHL AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 90105-T0241 | ||||
| 90119-T0209 | ||||
| 90119-T0294 | ||||
| 90159-T0005 | ||||
| 90159-T0013 | ||||
| 90178-T0065 | ||||
| 90480-26022 | ||||
| Linked diagrams | ||||
| 5355 | ||||
| 8715 | ||||
ILLUST NO. 1 OF 2(1107- )KUN26..SCB,XTR..5F..ARL..IV3 ; (1107-)GGN15,25,KUN15,25,35,TGN16,26.
MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0K341 |
KUN15,26,35..PHL |
1 | ||
| 87050-0K341 |
KUN15,26,35..PHL |
1 | ||
| 87050-0K020 |
KUN15,26,35..SR..PHL;KUN15,25..LHD..(SCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 87050-0K020 |
KUN15,26,35..SR..PHL;KUN15,25..LHD..(SCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0K092 |
KUN15,26,35..PHL |
1 | ||
| 87103-0K092 |
KUN15,26,35..PHL |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-02290 |
KUN15,26,35..SR..PHL AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 87107-02290 |
KUN15,26,35..SR..PHL AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0K012 |
KUN15,26,35..PHL |
1 | ||
| 87130-0K012 |
KUN15,26,35..PHL |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0K110 |
KUN15..LHD..DLX..SA;TGN26..LHD..(GEN,SA);KUN15,26,35..LHD..(4FC,5F)..(GEN,PHL);KUN25,LAN15,25,TGN16,36..LHD..DLX..(GEN,SA) |
1 | ||
| 87138-0K110 |
KUN15..LHD..DLX..SA;TGN26..LHD..(GEN,SA);KUN15,26,35..LHD..(4FC,5F)..(GEN,PHL);KUN25,LAN15,25,TGN16,36..LHD..DLX..(GEN,SA) |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50100 |
KUN15..HDCR;KUN26..5F,5FC;KUN36..(5F,5FC)..TH;KUN25,LAN15,25..LHD..SA;GGN15..(DCB,XTR)..5FC..DLX;GGN35,KUN10,35,TGN1#,26,36;GGN15,25,KUN16..DCB..5FC..SR;KUN25..CO,GCC,GEN,IDN,LA,PKN,TH;KUN26..4FC..(CO,GEN,LA,MA,PHL,SA,TH);KUN15,16,36..DCR..(ARL,GCC,GEN,LA,PHL,PKN,SA) *DPF |
1 | ||
| 87139-50100 |
KUN15..HDCR;KUN26..5F,5FC;KUN36..(5F,5FC)..TH;KUN25,LAN15,25..LHD..SA;GGN15..(DCB,XTR)..5FC..DLX;GGN35,KUN10,35,TGN1#,26,36;GGN15,25,KUN16..DCB..5FC..SR;KUN25..CO,GCC,GEN,IDN,LA,PKN,TH;KUN26..4FC..(CO,GEN,LA,MA,PHL,SA,TH);KUN15,16,36..DCR..(ARL,GCC,GEN,LA,PHL,PKN,SA) *DPF |
1 | ||
| 87139-06080 |
KUN26..MA,PHL,TH;KUN1#,25,3#,TGN10,16..IDN,PHL,PKN,TH STANDARD |
1 | ||
| 87139-06080 |
KUN26..MA,PHL,TH;KUN1#,25,3#,TGN10,16..IDN,PHL,PKN,TH STANDARD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0K090 |
TGN26..4FC..GEN;KUN15..LHD..DCB..GEN;KUN15,25,TGN26..GCC,IDN,MA,PHL,TH;KUN25,TGN26..LHD..(SCB,THDCB)..GEN;GGN15,25,KUN10,16,26,3#,TGN1#,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,MA,PHL,TH) |
1 | ||
| 88501-0K090 |
TGN26..4FC..GEN;KUN15..LHD..DCB..GEN;KUN15,25,TGN26..GCC,IDN,MA,PHL,TH;KUN25,TGN26..LHD..(SCB,THDCB)..GEN;GGN15,25,KUN10,16,26,3#,TGN1#,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,MA,PHL,TH) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K180 |
KUN25,TGN26..THDCB;KUN15,2#,TGN26..GCC,IDN,PHL,TH;KUN15,26..LHD..(DCB,THDCB)..GEN;KUN10,16,3#,TGN1#,36..GCC,GEN,PHL,TH |
1 | ||
| 88515-0K180 |
KUN25,TGN26..THDCB;KUN15,2#,TGN26..GCC,IDN,PHL,TH;KUN15,26..LHD..(DCB,THDCB)..GEN;KUN10,16,3#,TGN1#,36..GCC,GEN,PHL,TH |
1 | ||
| 88515-0K180 |
TGN16..XTR;KUN15..SMT..SR;KUN15..LHD..DCB..DLX..GEN;KUN2#,TGN26..THDCB..(4FC,5F);KUN15..(DCB,XTR)..(GCC,PHL,TH);KUN25,35..5F..(GCC,IDN,PHL,TH);KUN15..(SCB,SMT)..DCR..(GCC,PHL,TH);KUN10,35,TGN10,11,15,36..LHD..DLX..(GCC,GEN);KUN16,26,36,TGN16,26..(4FC,5F)..(DCR,HTWC)..(GCC,PHL,TH) |
1 | ||
| 88515-0K180 |
TGN16..XTR;KUN15..SMT..SR;KUN15..LHD..DCB..DLX..GEN;KUN2#,TGN26..THDCB..(4FC,5F);KUN15..(DCB,XTR)..(GCC,PHL,TH);KUN25,35..5F..(GCC,IDN,PHL,TH);KUN15..(SCB,SMT)..DCR..(GCC,PHL,TH);KUN10,35,TGN10,11,15,36..LHD..DLX..(GCC,GEN);KUN16,26,36,TGN16,26..(4FC,5F)..(DCR,HTWC)..(GCC,PHL,TH) |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
TGN26..4FC..GEN;KUN15..LHD..DCB..GEN;KUN15,25,TGN26..GCC,IDN,PHL,TH;KUN25,TGN26..LHD..(SCB,THDCB)..GEN;GGN15,25,KUN10,16,26,3#,TGN1#,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,MA,PHL,TH) |
2 | ||
| 90099-04542 |
TGN26..4FC..GEN;KUN15..LHD..DCB..GEN;KUN15,25,TGN26..GCC,IDN,PHL,TH;KUN25,TGN26..LHD..(SCB,THDCB)..GEN;GGN15,25,KUN10,16,26,3#,TGN1#,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,MA,PHL,TH) |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0K010 |
KUN10,15,2#,35,TGN1#,26,36..LHD..(DCB,SCB,THDCB,THSCB,XTR)..(GCC,GEN,PHL) |
1 | ||
| 88539-0K010 |
KUN10,15,2#,35,TGN1#,26,36..LHD..(DCB,SCB,THDCB,THSCB,XTR)..(GCC,GEN,PHL) |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0K020 |
GGN25,KUN10,15,2#,35,LAN15,25,TGN1#,26,36..LHD..(ANCOM,GCC,GEN,PHL,SA) |
1 | ||
| 88548-0K020 |
GGN25,KUN10,15,2#,35,LAN15,25,TGN1#,26,36..LHD..(ANCOM,GCC,GEN,PHL,SA) |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-02110 |
TGN26..4FC..GEN;KUN15..LHD..DCB..GEN;KUN15,25,TGN26..GCC,IDN,PHL,TH;KUN25,TGN26..LHD..(SCB,THDCB)..GEN;GGN15,25,KUN10,16,26,3#,TGN1#,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,MA,PHL,TH) |
1 | ||
| 88620-02110 |
TGN26..4FC..GEN;KUN15..LHD..DCB..GEN;KUN15,25,TGN26..GCC,IDN,PHL,TH;KUN25,TGN26..LHD..(SCB,THDCB)..GEN;GGN15,25,KUN10,16,26,3#,TGN1#,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,MA,PHL,TH) |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-0K170 |
KUN15,16,2#,3#,TGN16..IDN,PHL,TH |
1 | ||
| 88650-0K170 |
KUN15,16,2#,3#,TGN16..IDN,PHL,TH |
1 | ||
| 88650-0K010 |
KUN25..THSCB;KUN15,26,35..SR..PHL AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 88650-0K010 |
KUN25..THSCB;KUN15,26,35..SR..PHL AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 90105-T0241 | ||||
| 90119-T0209 | ||||
| 90119-T0294 | ||||
| 90159-T0005 | ||||
| 90159-T0013 | ||||
| 90178-T0065 | ||||
| 90480-26022 | ||||
| Linked diagrams | ||||
| 5355 | ||||
| 8715 | ||||
ILLUST NO. 1 OF 2(1108- )RHD..SADCB ; (1108- )KUN35..DCB,SCB..SA ; (1108- )GGN25,35,KUN15,2
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0K341 |
KUN15,26,35..PHL |
1 | ||
| 87050-0K020 |
KUN15,26,35..SR..PHL;KUN15,25..LHD..(SCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0K092 |
KUN15,26,35..PHL |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-02290 |
KUN15,26,35..SR..PHL AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0K012 |
KUN15,26,35..PHL |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50100 |
KUN15..HDCR;KUN26..5F,5FC;KUN36..(5F,5FC)..TH;KUN25,LAN15,25..LHD..SA;GGN15..(DCB,XTR)..5FC..DLX;GGN35,KUN10,35,TGN1#,26,36;GGN15,25,KUN16..DCB..5FC..SR;KUN25..CO,GCC,GEN,IDN,LA,PKN,TH;KUN26..4FC..(CO,GEN,LA,MA,PHL,SA,TH);KUN15,16,36..DCR..(ARL,GCC,GEN,LA,PHL,PKN,SA) *DPF |
1 | ||
| 87139-06080 |
KUN26..MA,PHL,TH;KUN1#,25,3#,TGN10,16..IDN,PHL,PKN,TH STANDARD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0K090 |
TGN26..4FC..GEN;KUN15..LHD..DCB..GEN;KUN15,25,TGN26..GCC,IDN,MA,PHL,TH;KUN25,TGN26..LHD..(SCB,THDCB)..GEN;GGN15,25,KUN10,16,26,3#,TGN1#,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,MA,PHL,TH) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K180 |
KUN25,TGN26..THDCB;KUN15,2#,TGN26..GCC,IDN,PHL,TH;KUN15,26..LHD..(DCB,THDCB)..GEN;KUN10,16,3#,TGN1#,36..GCC,GEN,PHL,TH |
1 | ||
| 88515-0K180 |
TGN16..XTR;KUN15..SMT..SR;KUN15..LHD..DCB..DLX..GEN;KUN2#,TGN26..THDCB..(4FC,5F);KUN15..(DCB,XTR)..(GCC,PHL,TH);KUN25,35..5F..(GCC,IDN,PHL,TH);KUN15..(SCB,SMT)..DCR..(GCC,PHL,TH);KUN10,35,TGN10,11,15,36..LHD..DLX..(GCC,GEN);KUN16,26,36,TGN16,26..(4FC,5F)..(DCR,HTWC)..(GCC,PHL,TH) |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
TGN26..4FC..GEN;KUN15..LHD..DCB..GEN;KUN15,25,TGN26..GCC,IDN,PHL,TH;KUN25,TGN26..LHD..(SCB,THDCB)..GEN;GGN15,25,KUN10,16,26,3#,TGN1#,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,MA,PHL,TH) |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0K010 |
KUN10,15,2#,35,TGN1#,26,36..LHD..(DCB,SCB,THDCB,THSCB,XTR)..(GCC,GEN,PHL) |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0K020 |
GGN25,KUN10,15,2#,35,LAN15,25,TGN1#,26,36..LHD..(ANCOM,GCC,GEN,PHL,SA) |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-02110 |
TGN26..4FC..GEN;KUN15..LHD..DCB..GEN;KUN15,25,TGN26..GCC,IDN,PHL,TH;KUN25,TGN26..LHD..(SCB,THDCB)..GEN;GGN15,25,KUN10,16,26,3#,TGN1#,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,MA,PHL,TH) |
1 | ||
| Common parts | ||||
| 90069-32033 | ||||
| 90099-00318 | ||||
| 90119-T0209 | ||||
| 90119-T0294 | ||||
| 90159-T0005 | ||||
| 90178-T0065 | ||||
| 90480-26022 | ||||
| Linked diagrams | ||||
| 5355 | ||||
ILLUST NO. 2 OF 2(1107- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90068-14022 | ||||
| 90068-14023 | ||||
| 90068-14024 | ||||
| 90068-14033 | ||||
| 90068-14034 | ||||
| 90068-14035 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
ILLUST NO. 1 OF 2(1107- )TGN26..SR..LA ; (1107- )TGN26..DCB..5F..GEN ; (1107- )KUN15,2#,36,
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0K341 |
KUN15,26,35..PHL |
1 | ||
| 87050-0K341 |
KUN15,26,35..PHL |
1 | ||
| 87050-0K020 |
KUN15,26,35..SR..PHL;KUN15,25..LHD..(SCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 87050-0K020 |
KUN15,26,35..SR..PHL;KUN15,25..LHD..(SCB,THSCB,XTR)..HDCR..GEN AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0K092 |
KUN15,26,35..PHL |
1 | ||
| 87103-0K092 |
KUN15,26,35..PHL |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-02290 |
KUN15,26,35..SR..PHL AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 87107-02290 |
KUN15,26,35..SR..PHL AIR CONDITIONER-SINGLE AIR CONDITIONER |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0K012 |
KUN15,26,35..PHL |
1 | ||
| 87130-0K012 |
KUN15,26,35..PHL |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50100 |
KUN15..HDCR;KUN26..5F,5FC;KUN36..(5F,5FC)..TH;KUN25,LAN15,25..LHD..SA;GGN15..(DCB,XTR)..5FC..DLX;GGN35,KUN10,35,TGN1#,26,36;GGN15,25,KUN16..DCB..5FC..SR;KUN25..CO,GCC,GEN,IDN,LA,PKN,TH;KUN26..4FC..(CO,GEN,LA,MA,PHL,SA,TH);KUN15,16,36..DCR..(ARL,GCC,GEN,LA,PHL,PKN,SA) *DPF |
1 | ||
| 87139-50100 |
KUN15..HDCR;KUN26..5F,5FC;KUN36..(5F,5FC)..TH;KUN25,LAN15,25..LHD..SA;GGN15..(DCB,XTR)..5FC..DLX;GGN35,KUN10,35,TGN1#,26,36;GGN15,25,KUN16..DCB..5FC..SR;KUN25..CO,GCC,GEN,IDN,LA,PKN,TH;KUN26..4FC..(CO,GEN,LA,MA,PHL,SA,TH);KUN15,16,36..DCR..(ARL,GCC,GEN,LA,PHL,PKN,SA) *DPF |
1 | ||
| 87139-06080 |
KUN26..MA,PHL,TH;KUN1#,25,3#,TGN10,16..IDN,PHL,PKN,TH STANDARD |
1 | ||
| 87139-06080 |
KUN26..MA,PHL,TH;KUN1#,25,3#,TGN10,16..IDN,PHL,PKN,TH STANDARD |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0K090 |
TGN26..4FC..GEN;KUN15..LHD..DCB..GEN;KUN15,25,TGN26..GCC,IDN,MA,PHL,TH;KUN25,TGN26..LHD..(SCB,THDCB)..GEN;GGN15,25,KUN10,16,26,3#,TGN1#,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,MA,PHL,TH) |
1 | ||
| 88501-0K090 |
TGN26..4FC..GEN;KUN15..LHD..DCB..GEN;KUN15,25,TGN26..GCC,IDN,MA,PHL,TH;KUN25,TGN26..LHD..(SCB,THDCB)..GEN;GGN15,25,KUN10,16,26,3#,TGN1#,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,MA,PHL,TH) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K180 |
KUN25,TGN26..THDCB;KUN15,2#,TGN26..GCC,IDN,PHL,TH;KUN15,26..LHD..(DCB,THDCB)..GEN;KUN10,16,3#,TGN1#,36..GCC,GEN,PHL,TH |
1 | ||
| 88515-0K180 |
KUN25,TGN26..THDCB;KUN15,2#,TGN26..GCC,IDN,PHL,TH;KUN15,26..LHD..(DCB,THDCB)..GEN;KUN10,16,3#,TGN1#,36..GCC,GEN,PHL,TH |
1 | ||
| 88515-0K180 |
TGN16..XTR;KUN15..SMT..SR;KUN15..LHD..DCB..DLX..GEN;KUN2#,TGN26..THDCB..(4FC,5F);KUN15..(DCB,XTR)..(GCC,PHL,TH);KUN25,35..5F..(GCC,IDN,PHL,TH);KUN15..(SCB,SMT)..DCR..(GCC,PHL,TH);KUN10,35,TGN10,11,15,36..LHD..DLX..(GCC,GEN);KUN16,26,36,TGN16,26..(4FC,5F)..(DCR,HTWC)..(GCC,PHL,TH) |
1 | ||
| 88515-0K180 |
TGN16..XTR;KUN15..SMT..SR;KUN15..LHD..DCB..DLX..GEN;KUN2#,TGN26..THDCB..(4FC,5F);KUN15..(DCB,XTR)..(GCC,PHL,TH);KUN25,35..5F..(GCC,IDN,PHL,TH);KUN15..(SCB,SMT)..DCR..(GCC,PHL,TH);KUN10,35,TGN10,11,15,36..LHD..DLX..(GCC,GEN);KUN16,26,36,TGN16,26..(4FC,5F)..(DCR,HTWC)..(GCC,PHL,TH) |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
TGN26..4FC..GEN;KUN15..LHD..DCB..GEN;KUN15,25,TGN26..GCC,IDN,PHL,TH;KUN25,TGN26..LHD..(SCB,THDCB)..GEN;GGN15,25,KUN10,16,26,3#,TGN1#,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,MA,PHL,TH) |
2 | ||
| 90099-04542 |
TGN26..4FC..GEN;KUN15..LHD..DCB..GEN;KUN15,25,TGN26..GCC,IDN,PHL,TH;KUN25,TGN26..LHD..(SCB,THDCB)..GEN;GGN15,25,KUN10,16,26,3#,TGN1#,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,MA,PHL,TH) |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-0K010 |
KUN10,15,2#,35,TGN1#,26,36..LHD..(DCB,SCB,THDCB,THSCB,XTR)..(GCC,GEN,PHL) |
1 | ||
| 88539-0K010 |
KUN10,15,2#,35,TGN1#,26,36..LHD..(DCB,SCB,THDCB,THSCB,XTR)..(GCC,GEN,PHL) |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0K020 |
GGN25,KUN10,15,2#,35,LAN15,25,TGN1#,26,36..LHD..(ANCOM,GCC,GEN,PHL,SA) |
1 | ||
| 88548-0K020 |
GGN25,KUN10,15,2#,35,LAN15,25,TGN1#,26,36..LHD..(ANCOM,GCC,GEN,PHL,SA) |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-02110 |
TGN26..4FC..GEN;KUN15..LHD..DCB..GEN;KUN15,25,TGN26..GCC,IDN,PHL,TH;KUN25,TGN26..LHD..(SCB,THDCB)..GEN;GGN15,25,KUN10,16,26,3#,TGN1#,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,MA,PHL,TH) |
1 | ||
| 88620-02110 |
TGN26..4FC..GEN;KUN15..LHD..DCB..GEN;KUN15,25,TGN26..GCC,IDN,PHL,TH;KUN25,TGN26..LHD..(SCB,THDCB)..GEN;GGN15,25,KUN10,16,26,3#,TGN1#,36..(DCB,SCB,SMT,THDCB,XTR)..(ARL,GCC,GEN,MA,PHL,TH) |
1 | ||
| Common parts | ||||
| 90068-00034 | ||||
| 90094-90426 | ||||
| 90119-T0209 | ||||
| 90119-T0294 | ||||
| 90159-T0005 | ||||
| 90178-T0065 | ||||
| 90480-26022 | ||||
| Linked diagrams | ||||
| 5355 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
