KUN15L-PRMSYM (2011)

Toyota Hilux

Production Jul 2011 - Apr 2015
Engine 2KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )2KDFTV..KUN35..LHD..GEN ; (1107- )1KDFTV,2KDFTV..KUN1#,2#,36..DCR,HDC

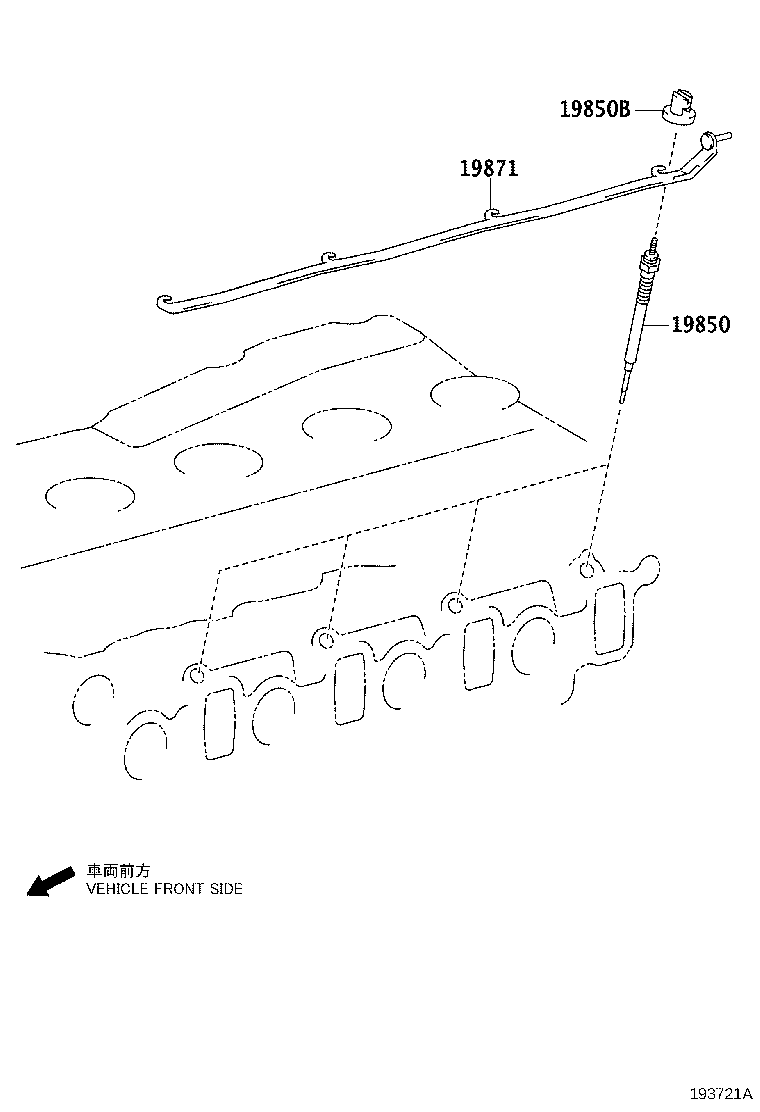

Click highlighted areas on diagram

diagram 19850 19850B 19871
Part # Description Qty Price
19850 - PLUG ASSY, GLOW
19850-0L010

2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(CO,LA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..DCR..(CO,GCC,IDN,LA,MA,PHL,SA,TH)

*BV-GV=12V-11V,*130

 4
19850-30010

1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN15..DLX,STD;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA

*BV-GV=12V-11V,*360

 4
19850B - GROMMET, SCREW(FOR GLOW PLUG)
90189-T0001

2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(CO,LA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..DCR..(CO,GCC,IDN,LA,MA,PHL,SA,TH)

*130

 4
90189-04024

1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN15..DLX,STD;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA

*360

 4
19871 - CONNECTOR, GLOW PLUG NO.1
19871-30031

1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN15..DLX,STD;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA

*360

 1
19871-0L011

1KDFTV..KUN26..4FC..TH;2KDFTV..KUN35..LHD..GEN;1KDFTV..KUN26,36..ARL,GEN,PHL,SA;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);1KDFTV,2KDFTV..KUN1#,25..(4FC,5F)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH)

*360

 1
19871-0L011

2KDFTV..KUN10,25;1KDFTV..KUN16..5FC;1KDFTV..KUN36..LA,SA;1KDFTV..KUN36..(5F,5FC)..TH;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..DCR..(CO,LA,PHL,SA,TH);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN15..DCR..(GCC,GEN,PHL,PKN,SA);2KDFTV..KUN15,35..LHD..(DCB,THDCB,XTR)..HDCR..GEN;2KDFTV..KUN15,35..(4FC,5F)..HDCR..(CO,LA,PHL,SA,TH)

*130

 1
