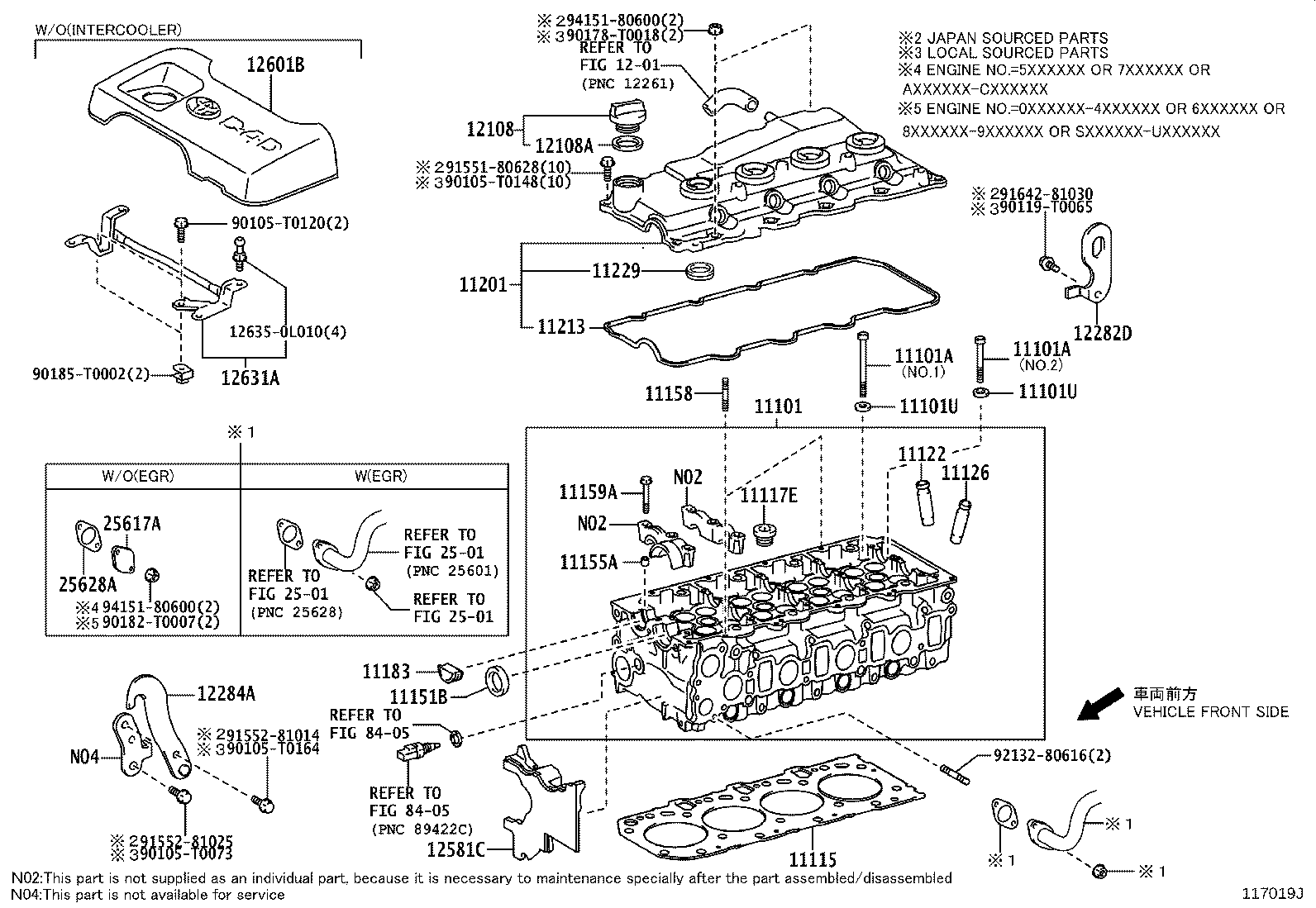

KUN15L-PRMSYM (2011)
Toyota Hilux
(1107- )2KDFTV..KUN35..LHD..GEN ; (1107- )1KDFTV,2KDFTV..KUN1#,2#,36..DCR,HDC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-0L051 |
2KDFTV..KUN15..RHD;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN10,25..GCC,GEN,IDN,MA,PKN,SA,TH *130 |
1 | ||
| 11101-0L051 |
2KDFTV..KUN15..(SMT,XTR)..SR;2KDFTV..KUN25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN25,35..(4FC,5FC)..(IDN,PHL,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);2KDFTV..KUN10,15,35..(DLX,STD)..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360,(L) |
1 | ||
| 11101-30071 |
2KDFTV..KUN15..(SMT,XTR)..SR;2KDFTV..KUN25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN25,35..(4FC,5FC)..(IDN,PHL,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);2KDFTV..KUN10,15,35..(DLX,STD)..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360,(J) |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-T2006 |
1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..4FC..TH;2KDFTV..KUN15..DLX..DCR;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN35..LA,PHL,SA;1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN10,25..GCC,GEN,IDN,LA,MA,PKN,SA,TH *130,NO.1 |
8 | ||
| 90910-T2005 |
1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..4FC..TH;2KDFTV..KUN15..DLX..DCR;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN35..LA,PHL,SA;1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN10,25..GCC,GEN,IDN,LA,MA,PKN,SA,TH *130,NO.2 |
10 | ||
| 90910-02146 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV..KUN26..(4FC,5F)..(GEN,MA,PHL,SA);2KDFTV..KUN15,25,35..HDCR..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360,NO.1 |
8 | ||
| 90910-02145 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV..KUN26..(4FC,5F)..(GEN,MA,PHL,SA);2KDFTV..KUN15,25,35..HDCR..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360,NO.2 |
10 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-T2006 |
1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..4FC..TH;2KDFTV..KUN15..DLX..DCR;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN35..LA,PHL,SA;1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN10,25..GCC,GEN,IDN,LA,MA,PKN,SA,TH *130,NO.1 |
8 | ||
| 90910-T2005 |
1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..4FC..TH;2KDFTV..KUN15..DLX..DCR;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN35..LA,PHL,SA;1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN10,25..GCC,GEN,IDN,LA,MA,PKN,SA,TH *130,NO.2 |
10 | ||
| 90910-02146 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV..KUN26..(4FC,5F)..(GEN,MA,PHL,SA);2KDFTV..KUN15,25,35..HDCR..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360,NO.1 |
8 | ||
| 90910-02145 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV..KUN26..(4FC,5F)..(GEN,MA,PHL,SA);2KDFTV..KUN15,25,35..HDCR..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360,NO.2 |
10 | ||
| 11101U - SPACER(FOR CYLINDER HEAD SET BOLT) | ||||
| 90560-T0005 |
1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..4FC..TH;2KDFTV..KUN15..DLX..DCR;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN35..LA,PHL,SA;1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN10,25..GCC,GEN,IDN,LA,MA,PKN,SA,TH *130 |
18 | ||
| 90560-13023 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV..KUN26..(4FC,5F)..(GEN,MA,PHL,SA);2KDFTV..KUN15,25,35..HDCR..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360 |
18 | ||
| 11101U - SPACER(FOR CYLINDER HEAD SET BOLT) | ||||
| 90560-T0005 |
1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..4FC..TH;2KDFTV..KUN15..DLX..DCR;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN35..LA,PHL,SA;1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN10,25..GCC,GEN,IDN,LA,MA,PKN,SA,TH *130 |
18 | ||
| 90560-13023 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV..KUN26..(4FC,5F)..(GEN,MA,PHL,SA);2KDFTV..KUN15,25,35..HDCR..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360 |
18 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-0L010B0 |
2KDFTV..KUN25..GCC,GEN,MA,SA;2KDFTV..KUN15..(SMT,XTR)..HDCR;2KDFTV..KUN15,35..DCB..SR..(PHL,SA);2KDFTV..KUN10,15,35..(DLX,STD)..(GCC,GEN,IDN,PHL,SA,TH) MARK B,*360,(L):REFER R/M |
1 | ||
| 11115-0L010B0 |
2KDFTV..KUN10,15,25,35..GCC,GEN,IDN,LA,MA,PHL,SA,TH MARK B,*130:REFER R/M |
1 | ||
| 11115-0L010C0 |
2KDFTV..KUN10,15,25,35..GCC,GEN,IDN,LA,MA,PHL,SA,TH MARK C,*130:REFER R/M |
1 | ||
| 11115-0L010A0 |
2KDFTV..KUN25..GCC,GEN,MA,SA;2KDFTV..KUN15..(SMT,XTR)..HDCR;2KDFTV..KUN15,35..DCB..SR..(PHL,SA);2KDFTV..KUN10,15,35..(DLX,STD)..(GCC,GEN,IDN,PHL,SA,TH) MARK A,*360,(L):REFER R/M |
1 | ||
| 11115-0L010D0 |
2KDFTV..KUN10,15,25,35..GCC,GEN,IDN,LA,MA,PHL,SA,TH MARK D,*130:REFER R/M |
1 | ||
| 11115-0L010E0 |
2KDFTV..KUN25..GCC,GEN,MA,SA;2KDFTV..KUN15..(SMT,XTR)..HDCR;2KDFTV..KUN15,35..DCB..SR..(PHL,SA);2KDFTV..KUN10,15,35..(DLX,STD)..(GCC,GEN,IDN,PHL,SA,TH) MARK E,*360,(L):REFER R/M |
1 | ||
| 11115-0L010A0 |
2KDFTV..KUN10,15,25,35..GCC,GEN,IDN,LA,MA,PHL,SA,TH MARK A,*130:REFER R/M |
1 | ||
| 11115-0L010C0 |
2KDFTV..KUN25..GCC,GEN,MA,SA;2KDFTV..KUN15..(SMT,XTR)..HDCR;2KDFTV..KUN15,35..DCB..SR..(PHL,SA);2KDFTV..KUN10,15,35..(DLX,STD)..(GCC,GEN,IDN,PHL,SA,TH) MARK C,*360,(L):REFER R/M |
1 | ||
| 11115-0L010E0 |
2KDFTV..KUN10,15,25,35..GCC,GEN,IDN,LA,MA,PHL,SA,TH MARK E,*130:REFER R/M |
1 | ||
| 11115-0L010D0 |
2KDFTV..KUN25..GCC,GEN,MA,SA;2KDFTV..KUN15..(SMT,XTR)..HDCR;2KDFTV..KUN15,35..DCB..SR..(PHL,SA);2KDFTV..KUN10,15,35..(DLX,STD)..(GCC,GEN,IDN,PHL,SA,TH) MARK D,*360,(L):REFER R/M |
1 | ||
| 11115-30041B0 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN25,35..(4FC,5FC)..(IDN,TH);2KDFTV..KUN15,25,35..HDCR..(GCC,GEN,MA,PHL,PKN,SA) MARKB,*360,(J):REFER R/M |
1 | ||
| 11115-30041E0 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN25,35..(4FC,5FC)..(IDN,TH);2KDFTV..KUN15,25,35..HDCR..(GCC,GEN,MA,PHL,PKN,SA) MARKE,*360,(J):REFER R/M |
1 | ||
| 11115-30041A0 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN25,35..(4FC,5FC)..(IDN,TH);2KDFTV..KUN15,25,35..HDCR..(GCC,GEN,MA,PHL,PKN,SA) MARKA,*360,(J):REFER R/M |
1 | ||
| 11115-30041C0 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN25,35..(4FC,5FC)..(IDN,TH);2KDFTV..KUN15,25,35..HDCR..(GCC,GEN,MA,PHL,PKN,SA) MARKC,*360,(J):REFER R/M |
1 | ||
| 11115-30041D0 |
2KDFTV..KUN10,15..DCR;2KDFTV..KUN25,35..(4FC,5FC)..(IDN,TH);2KDFTV..KUN15,25,35..HDCR..(GCC,GEN,MA,PHL,PKN,SA) MARKD,*360,(J):REFER R/M |
1 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-14015 |
2KDFTV..KUN15..(SMT,XTR)..SR;2KDFTV..KUN25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN25,35..(4FC,5FC)..(IDN,PHL,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);2KDFTV..KUN10,15,35..(DLX,STD)..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360,(J) |
4 | ||
| 90341-T0005 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *130 |
4 | ||
| 90341-T0005 |
2KDFTV..KUN15..(SMT,XTR)..SR;2KDFTV..KUN25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN25,35..(4FC,5FC)..(IDN,PHL,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);2KDFTV..KUN10,15,35..(DLX,STD)..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360,(L) |
4 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-30020 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH O/S 0.05,*130 |
8 | ||
| 11123-30020 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH STD,*130 |
8 | ||
| 11122-30020 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) O/S 0.05,*360 |
8 | ||
| 11123-30020 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) STD,*360 |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-30020 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH O/S 0.05,*130 |
8 | ||
| 11123-30020 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) STD,*360 |
8 | ||
| 11122-30020 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) O/S 0.05,*360 |
8 | ||
| 11123-30020 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH STD,*130 |
8 | ||
| 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) | ||||
| 90080-31097 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 90311-32019 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360 |
1 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-T0001 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *130 |
4 | ||
| 90253-10004 |
2KDFTV..KUN15..(SMT,XTR)..SR;2KDFTV..KUN25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN25,35..(4FC,5FC)..(IDN,PHL,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);2KDFTV..KUN10,15,35..(DLX,STD)..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360,(J) |
4 | ||
| 90253-T0001 |
2KDFTV..KUN15..(SMT,XTR)..SR;2KDFTV..KUN25..GCC,GEN,MA,PKN,SA;2KDFTV..KUN25,35..(4FC,5FC)..(IDN,PHL,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);2KDFTV..KUN10,15,35..(DLX,STD)..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360,(L) |
4 | ||
| 11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) | ||||
| 90116-06149 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH S=9 & 16,L=37,*130 |
2 | ||
| 90116-06149 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) S=9 & 16,L=37,*360 |
2 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07011 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360 |
15 | ||
| 90119-07011 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *130 |
15 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-67020 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360 |
1 | ||
| 11183-0L010 |
1KDFTV..KUN26..THDCB;1KDFTV..KUN26..PHL,SA,TH;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,SA,TH *130 |
1 | ||
| 11183-67020 |
1KDFTV..KUN26..PHL,SA,TH;1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN1#,25,3#..GCC,GEN,IDN,MA,PHL,PKN,SA,TH *130,(J) |
1 | ||
| 11183-0L010 |
2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(PHL,SA,TH);2KDFTV..KUN25..GCC,GEN,IDN,MA,PKN,SA,TH;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..GCC,IDN,MA,PHL,SA,TH *130,(L) |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11210-0L020 |
1KDFTV..KUN26..THDCB;1KDFTV..KUN26..CO,LA,PHL,SA,TH;1KDFTV,2KDFTV..KUN1#,25,3#..CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH *130 |
1 | ||
| 11210-30110 |
1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..DCR..(CO,LA,PHL,SA,TH);1KDFTV,2KDFTV..KUN1#,25,3#..CO,GCC,GEN,IDN,LA,MA,PHL,PKN,SA,TH *130,(J) |
1 | ||
| 11210-30110 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN15..DLX,STD;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA *360 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-30040 |
1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..DCR..(CO,LA,PHL,SA,TH);1KDFTV,2KDFTV..KUN1#,25,3#..CO,GCC,GEN,IDN,LA,MA,PHL,PKN,SA,TH *130,(J) |
1 | ||
| 11213-0L010 |
2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(CO,LA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..DCR..(CO,GCC,IDN,LA,MA,PHL,SA,TH) *130,(L) |
1 | ||
| 11213-0L010 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN15..DLX,STD;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA *360,(L) |
1 | ||
| 11213-30040 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN15..DLX,STD;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA *360,(J) |
1 | ||
| 11229 - GASKET, CYLINDER HEAD COVER, NO.3 | ||||
| 23682-0L010 |
2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(CO,LA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..DCR..(CO,GCC,IDN,LA,MA,PHL,SA,TH) *130,(L) |
4 | ||
| 23682-30020 |
1KDFTV..KUN26..THDCB..5F;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..DCR..(CO,LA,PHL,SA,TH);1KDFTV,2KDFTV..KUN1#,25,3#..CO,GCC,GEN,IDN,LA,MA,PHL,PKN,SA,TH *130,(J) |
4 | ||
| 23682-30020 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN15..DLX,STD;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA *360 |
4 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-21010 |
1KDFTV..KUN36..4FC;1KDFTV..KUN26..4FC..TH;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15,25,35..DCB..SR..(GEN,IDN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360 |
1 | ||
| 12180-0H020 |
2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(CO,LA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..DCR..(CO,GCC,IDN,LA,MA,PHL,SA,TH) *130 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
1KDFTV..KUN36..4FC;1KDFTV..KUN26..4FC..TH;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;2KDFTV..KUN15,25,35..DCB..SR..(GEN,IDN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) *360 |
1 | ||
| 90080-43027 |
2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(CO,LA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..DCR..(CO,GCC,IDN,LA,MA,PHL,SA,TH) *130 |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-67030 |
1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..4FC..TH;1KDFTV..KUN26..5FC..CO;2KDFTV..KUN15..DLX..DCR;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN35..LA,PHL,SA;1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;2KDFTV..KUN10,25..GCC,GEN,IDN,LA,MA,PKN,SA,TH *130 |
1 | ||
| 12282-67030 |
2KDFTV..KUN35..5FC;1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV..KUN26..(4FC,5F)..(GEN,MA,PHL,SA);2KDFTV..KUN15,25,35..HDCR..(GCC,GEN,MA,PHL,PKN,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360 |
1 | ||
| 12284A - HANGER, ENGINE, NO.1 UPPER | ||||
| 12284-30020 |
1KDFTV..KUN36..4FC;2KDFTV..KUN10,15..DCR;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..4FC..TH;2KDFTV..KUN35..DLX..SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26..MA,PHL,SA;1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN25..GCC,GEN,PKN,SA;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN *130 |
1 | ||
| 12284-30020 |
1KDFTV..KUN36..4FC;2KDFTV..KUN35..DLX..SA;1KDFTV..KUN26..4FC..TH;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN25..GCC,GEN,PKN,SA;1KDFTV..KUN26..(4FC,5F)..(GEN,MA,PHL,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) *360 |
1 | ||
| 12601B - COVER SUB-ASSY, ENGINE, NO.1 | ||||
| 12601-0L030 |
2KDFTV..KUN15..DCR..(PHL,TH)..CBU |
1 | ||
| 12631A - BRACKET, ENGINE COVER | ||||
| 12631-0L010 |
2KDFTV..KUN15..DCR..(PHL,TH)..CBU |
1 | ||
| Common parts | ||||
| 12635-0L010 | ||||
| 90105-T0073 | ||||
| 90105-T0120 | ||||
| 90105-T0148 | ||||
| 90105-T0164 | ||||
| 90119-T0065 | ||||
| 90178-T0018 | ||||
| 90182-T0007 | ||||
| 90185-T0002 | ||||
| 91551-80628 | ||||
| 91552-81014 | ||||
| 91552-81025 | ||||
| 91642-81030 | ||||
| 92132-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 2501 | ||||
| 8405 | ||||
