KUN126R-DTFHY (2015)

Toyota Hilux

Production May 2015 - Jul 2017
Engine 1KDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )ADC,KDC,MDC,PDC,SDC,TDC

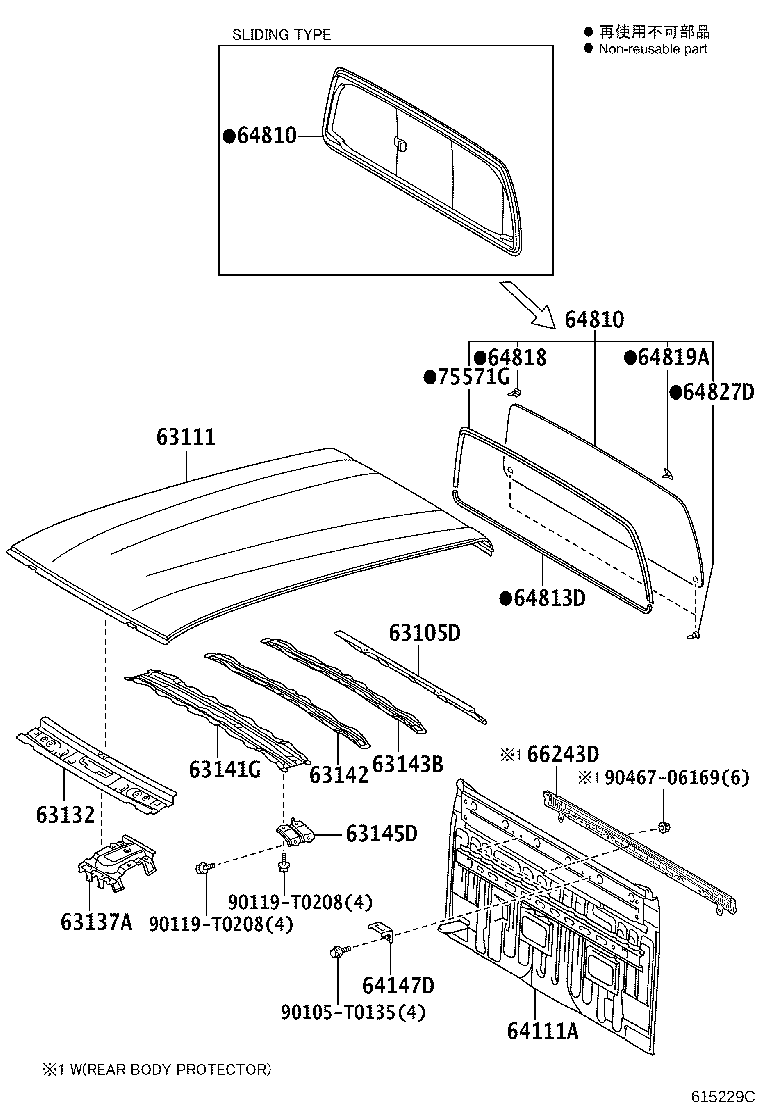

Click highlighted areas on diagram

diagram 63105D 63111 63132 63137A 63141G 63142 63143B 63145D 64111A 64147D 64810 64810 64813D 64818 64819A 64827D 66243D 75571G 90105T0135 90119T0208 90119T0208 9046706169
Part # Description Qty Price
63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER
63135-KK010

GUN125..TDC..6FC..ARL;GUN122..(SDC,TDC,TXT)..5F;GUN125..ADC,KDC,SDC,SXT,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135,KUN126..ADC,MDC,PDC,SDC,SXT,TDC,TXT;GGN12#,135,GUN123,126,136,KUN122,125,13#,LAN125,TGN120,121,126,128,13#..ADC,KDC,SDC,SXT,TDC,TXT

 1
63111 - PANEL, ROOF
63111-KK010

GUN122..(SDC,TDC)..5F;GUN125..TDC..6FC..ARL;GUN135..ADC,MDC,SDC,TDC;GUN125..(ADC,SDC,TDC)..(BZAGT,GCC,GEN,IDN,LA,PH,SA,TH,VN);GGN12#,135,GUN123,126,136,KUN12#,13#,LAN125,TGN120,121,126,128,13#..ADC,PDC,SDC,TDC

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-KK900

KUN125,126,13#;TGN136..ADC..M;GUN125,135..BZAGT..IV3;GUN135..(MDC,TDC,TXT)..6F..L;GUN125..KDC,KSC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);TGN136..(ASC,SDC,TDC,TSC,TXT)..(GEN,LA,SA,TH);GUN126,136,TGN126..MTM..(M,S)..(HTWC,IART)..BZAGT;GUN125,TGN138..(ADC,TDC)..6FC..(L,X)..(ARL,BZAGT);GUN135..(KSC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..(H,M,S,X);GGN12#,135,GUN112,120,122,123,126,136,KUN112,122,LAN125,TGN11#,120,121,126..KDC,SDC,SSC,SXT,TDC,TSC,TXT

 1
63137A - BRACKET, DOME LAMP, NO.1
63137-KK010

KUN125..H,M;GUN126..M..GCC;GUN122..RHD..SA;GUN125..TDC..TH;GUN125..TDC..IV3;GUN125,KUN122..TSC..M;TGN121..(TDC,TXT)..(L,S);GUN125,135..LHD..(ADC,TDC)..X;KUN122,TGN136..ADC,SDC,TDC,TXT;GUN122..(TDC,TXT)..(GCC,GEN,PH);KUN135,TGN120,126..ADC,SDC,SSC,TDC;GUN125..(ADC,SSC,TDC,TSC)..6FC..CBU;KUN125..(ADC,SDC,SSC,SXT,TDC,TXT)..(L,S,X);TGN121..(SDC,TDC,TSC)..(M,X)..(ARL,GCC,SA,TH);GUN125..(ADC,SDC,SXT,TSC,TXT)..(ARL,BZAGT,SA,TH);GUN112,122,LAN125..(SDC,TDC,TSC,TXT)..5F..(ARL,SA,TH);GUN122,135,LAN125..(ADC,SSC,TDC,TSC)..S..(DEFI,HDCR)..(GEN,LA,SA);GUN125..(ADC,SSC,TDC,TXT)..6F..(H,L,M,S)..(GCC,GEN,IDN,LA,PH,SA,VN);GUN135..(ADC,MDC,SDC,SXT,TDC,TSC,TXT)..(ARL,BZAGT,GEN,MA,PH,SA,TH,VN);GGN12#,135,GUN123,136,KUN126,136,TGN128,138..ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..(ARL,BZAGT,GEN,LA,PH,PKN,SA,TAIW,TH,VN)

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-KK020

GUN125..TDC..6FC..ARL;GUN125..ADC,SDC,SXT,TXT;GUN122..(SDC,TDC,TXT)..5F;GUN135..ADC,MDC,SDC,SXT,TDC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN123,126,136,KUN12#,13#,LAN125,TGN120,121,126,128,13#..ADC,PDC,SDC,SXT,TDC,TXT

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-KK010

GUN122..(SDC,TDC)..5F;GUN125..TDC..6FC..ARL;GUN135..ADC,MDC,SDC,TDC;GUN125..(ADC,SDC,TDC)..(BZAGT,GCC,GEN,IDN,LA,PH,SA,TH,VN);GGN12#,135,GUN123,126,136,KUN12#,13#,LAN125,TGN120,121,126,128,13#..ADC,PDC,SDC,TDC

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-KK010

GUN122..(SDC,TDC)..5F;GUN125..TDC..6FC..ARL;GUN135..ADC,MDC,SDC,TDC;GUN125..(ADC,SDC,TDC)..(BZAGT,GCC,GEN,IDN,LA,PH,SA,TH,VN);GGN12#,135,GUN123,126,136,KUN12#,13#,LAN125,TGN120,121,126,128,13#..ADC,PDC,SDC,TDC

 1
63145D - BRACKET, ROOF REINFORCEMENT
63145-KK010

GUN125..TDC..6FC..ARL;GUN122..(SDC,TDC,TXT)..5F;GUN125..ADC,KDC,SDC,SXT,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN135,KUN126..ADC,MDC,PDC,SDC,SXT,TDC,TXT;GGN12#,135,GUN123,126,136,KUN122,125,13#,LAN125,TGN120,121,126,128,13#..ADC,KDC,SDC,SXT,TDC,TXT

 2
64111A - PANEL, BACK
64101-KK010

TGN126..M..GEN;TGN126..TDC..LA;GUN125..TDC..6FC..GEN;GUN125,TGN121..TDC..(M,S,X)..(ARL,GEN,LA,TH);GGN12#,GUN122,123,126,13#,TGN136..TDC..(ARL,GEN,LA,TH)

 1
64101-KK010

KUN122,135..H;KUN126..GEN,VN;KUN126..LHD..SA;KUN125..M..(IDN,SA);KUN125..RHD..TDC..GEN;GUN126..LHD..M..(SA,VN);GUN125,KUN125..LHD..SDC..S;KUN125..LHD..TDC..(M,S)..GEN

REAR HEADREST-WITH(RH/LH/CENTER)

 1
64101-KK020

KUN126..TDC..H;GUN125..6F..M..GCC;GUN125..TDC..6F..L;TGN126..6FC..L..GEN;TGN126..6FC..(GCC,SA);KUN125..TDC..(GCC,GEN,IDN);GUN126,KUN122,125..LHD..SDC;GUN126..TDC..6FC..(GCC,GEN,PH,VN);GUN126,KUN122..LHD..TDC..MTM..(H,L);GUN126..TDC..6F..(M,S)..(GCC,GEN,PH,VN);GUN125,KUN126..LHD..ATM..(L,M)..(GCC,SA);GUN125..LHD..(SDC,TDC)..S..(GCC,PH,SA,VN);GUN125,KUN122..RHD..TDC..(H,M,S)..(GEN,IDN);TGN126..(SDC,TDC)..5F..(L,M,S)..(GCC,GEN,SA);GUN122,KUN126..(PDC,TDC)..(L,M,S,X)..DCR..(GCC,GEN,PH,PKN,VN);GGN125,GUN135,KUN135,LAN125,TGN120,121..LHD..(SDC,TDC)..(H,L,M,S)..(GCC,GEN,PH,SA,VN)

 1
64147D - PLATE, BACK PANEL CORNER, UPPER
64147-KK010

GUN125..TDC..6FC..ARL;GUN135..ADC,MDC,SDC,TDC;GUN125..(ADC,SDC,TDC)..(BZAGT,GCC,GEN,IDN,LA,PH,SA,TH,VN);GGN12#,135,GUN120,122,123,126,136,KUN12#,13#,LAN125,TGN120,121,126,128,13#..ADC,PDC,SDC,TDC

 2
64810 - WINDOW ASSY, BACK
64801-0K110

GUN125..ARL,TH;KUN125..TXT..GEN;KUN125..RHD..TDC..GEN;TGN121..TDC..(GEN,TH);GUN125,KUN125..TDC..LA;GUN125..6F..(L,M)..GEN;KUN126..TDC..5FC..S..LA;KUN126..TDC..5FC..(H,L,M,X);KUN125..LHD..TDC..(L,M)..GEN;GUN126..(TDC,TSC,TXT)..(H,S);KUN122..LHD..(TDC,TXT)..(M,X);KUN122..LHD..(TSC,TXT)..(L,S)..GEN;GUN122,KUN122..RHD..(TDC,TXT)..(H,M,S);GUN126..(TDC,TXT)..(M,X)..(LA,PH,TH,VN);GGN12#,GUN122,123,136,TGN121..(S,X)..ARL;GUN13#,KUN126,13#,TGN126,136..(TDC,TXT)..(5F,6F,6FC)..(H,M,S,X)..(GEN,LA,PH,TH,VN)

 1
64810 - WINDOW ASSY, BACK
64801-0K110

GUN125..ARL,TH;KUN125..TXT..GEN;KUN125..RHD..TDC..GEN;TGN121..TDC..(GEN,TH);GUN125,KUN125..TDC..LA;GUN125..6F..(L,M)..GEN;KUN126..TDC..5FC..S..LA;KUN126..TDC..5FC..(H,L,M,X);KUN125..LHD..TDC..(L,M)..GEN;GUN126..(TDC,TSC,TXT)..(H,S);KUN122..LHD..(TDC,TXT)..(M,X);KUN122..LHD..(TSC,TXT)..(L,S)..GEN;GUN122,KUN122..RHD..(TDC,TXT)..(H,M,S);GUN126..(TDC,TXT)..(M,X)..(LA,PH,TH,VN);GGN12#,GUN122,123,136,TGN121..(S,X)..ARL;GUN13#,KUN126,13#,TGN126,136..(TDC,TXT)..(5F,6F,6FC)..(H,M,S,X)..(GEN,LA,PH,TH,VN)

 1
64813D - DAM, BACK WINDOW GLASS ADHESIVE
56117-KK040

GUN125..TDC..6FC..ARL;GUN126,KUN126..LHD..SA;GUN122,KUN122..PKN..IV3;GUN135,KUN125..(M,X)..SA;GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125,KUN125..LHD..(SDC,SSC)..S;GUN125..TDC..S..(GEN,IDN,LA,PH,TH,VN);KUN125..(ADC,ASC,SXT,TDC,TSC,TXT)..(GEN,IDN,LA,SA);GUN125..(SDC,SSC,TDC)..(H,L,M,X)..(GEN,IDN,LA,SA,VN);GUN125..(ADC,ASC,SXT,TSC,TXT)..(ARL,BZAGT,GEN,IDN,LA,SA,TH);GUN122,KUN122,LAN125,TGN120,121,126..ARL,BZAGT,GEN,LA,PH,SA,TH;GGN12#,GUN112,120,123,126,136,KUN112,126,13#,TGN110,128,13#..ARL,BZAGT,GEN,IDN,LA,PH,TAIW,TH,VN

 1
64818 - SPACER, BACK WINDOW GLASS
64818-0K090

GUN125..TDC..6FC..ARL;GUN122,KUN122..PKN..IV3;GUN125..TDC..(GEN,IDN,LA,PH,TH,VN);GUN125..(TSC,TXT)..(ARL,GEN,IDN,LA,TH);GGN12#,GUN112,120,122,123,126,13#,KUN112,12#,13#,TGN110,121,126,136..(TDC,TSC,TXT)..(ARL,GEN,IDN,LA,PH,TAIW,TH,VN)

 1
64819A - SPACER, BACK WINDOW GLASS, NO.2
64819-0K110

GUN125..TDC..6FC..ARL;GUN122,KUN122..PKN..IV3;GUN125..TDC..(GEN,IDN,LA,PH,TH,VN);GUN125..(TSC,TXT)..(ARL,GEN,IDN,LA,TH);GGN12#,GUN112,120,122,123,126,13#,KUN112,12#,13#,TGN110,121,126,136..(TDC,TSC,TXT)..(ARL,GEN,IDN,LA,PH,TAIW,TH,VN)

 1
64827D - CLIP, BACK WINDOW GLASS
64827-0K110

GUN125..TDC..6FC..ARL;GUN122,KUN122..PKN..IV3;GUN125..TDC..(GEN,IDN,LA,PH,TH,VN);GUN125..(TSC,TXT)..(ARL,GEN,IDN,LA,TH);GGN12#,GUN112,120,122,123,126,13#,KUN112,12#,13#,TGN110,121,126,136..(TDC,TSC,TXT)..(ARL,GEN,IDN,LA,PH,TAIW,TH,VN)

 2
75571G - MOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1
75571-0K080

GUN125..TDC..6FC..ARL;GUN126,KUN126..LHD..SA;GUN122,KUN122..PKN..IV3;GUN135,KUN125..(M,X)..SA;GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125,KUN125..LHD..(SDC,SSC)..S;GUN125..TDC..S..(GEN,IDN,LA,PH,TH,VN);KUN125..(ADC,ASC,SXT,TDC,TSC,TXT)..(GEN,IDN,LA,SA);GUN125..(SDC,SSC,TDC)..(H,L,M,X)..(GEN,IDN,LA,SA,VN);GUN125..(ADC,ASC,SXT,TSC,TXT)..(ARL,BZAGT,GEN,IDN,LA,SA,TH);GUN122,KUN122,LAN125,TGN120,121,126..ARL,BZAGT,GEN,LA,PH,SA,TH;GGN12#,GUN112,120,123,126,136,KUN112,126,13#,TGN110,128,13#..ARL,BZAGT,GEN,IDN,LA,PH,TAIW,TH,VN

 1
Common parts
90105-T0135
90119-T0208
90467-06169
