KUN126R-DTAMY (2015)

Toyota Hilux

Production May 2015 - Jul 2017
Engine 1KDFTV
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1505- )5FC

Click highlighted areas on diagram

A750F

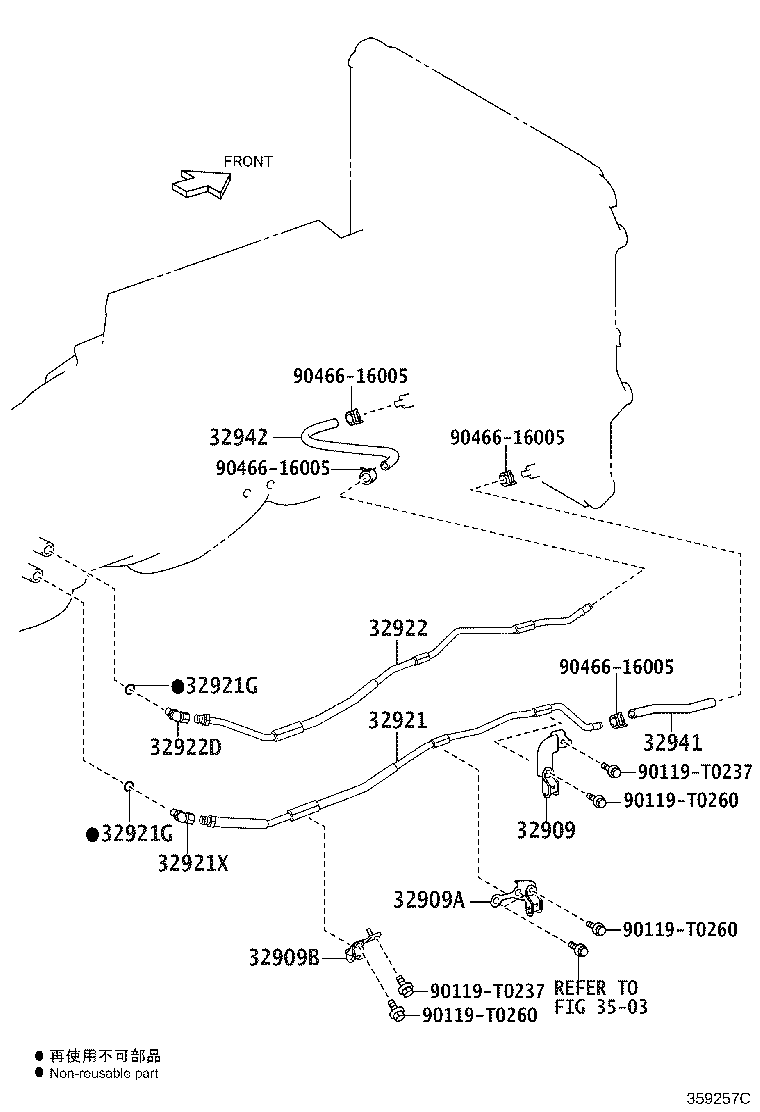

diagram 32909 32909A 32909B 32921 32921G 32921G 32921X 32922 32922D 32941 32942 3503 90119T0237 90119T0237 90119T0260 90119T0260 90119T0260 9046616005 9046616005 9046616005 9046616005
Part # Description Qty Price
32909 - CLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.1
32909-KK060

KUN125,126..5FC

 1
32909A - CLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.2
32909-KK050

KUN125,126..5FC

 1
32909B - CLAMP SUB-ASSY, TRANSMISSION OIL COOLER TUBE, NO.3
32909-KK040

KUN125,126..5FC

 1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-0K100

KUN125,126..5FC

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11030

GUN135..6FC..(MA,SA);GUN125,126,136,TGN126..(ADC,PDC,SDC,SSC,SXT)..6FC;GGN12#,135,KUN125,126,TGN128,138..ATM..(ARL,BZAGT,GEN,IDN,LA,PKN,SA,VN)

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11030

GUN135..6FC..(MA,SA);GUN125,126,136,TGN126..(ADC,PDC,SDC,SSC,SXT)..6FC;GGN12#,135,KUN125,126,TGN128,138..ATM..(ARL,BZAGT,GEN,IDN,LA,PKN,SA,VN)

 2
32921X - UNION OR ELBOW, OIL COOLER INLET
90407-16009

GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,KUN125,126,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..ATM

 1
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-0K100

KUN125,126..5FC

 1
32922D - UNION OR ELBOW, OIL COOLER OUTLET
90407-16009

GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,KUN125,126,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..ATM

 1
32941 - HOSE, OIL COOLER INLET, NO.1
32941-0K020

KUN125,126..5FC

 1
32942 - HOSE, OIL COOLER OUTLET, NO.1
32942-0K020

KUN125,126..5FC

 1
Common parts
90119-T0237
90119-T0260
90466-16005
Linked diagrams
3503
