KUN126L-DTFHY (2015)

Toyota Hilux

Production May 2015 - Jul 2017
Engine 1KDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

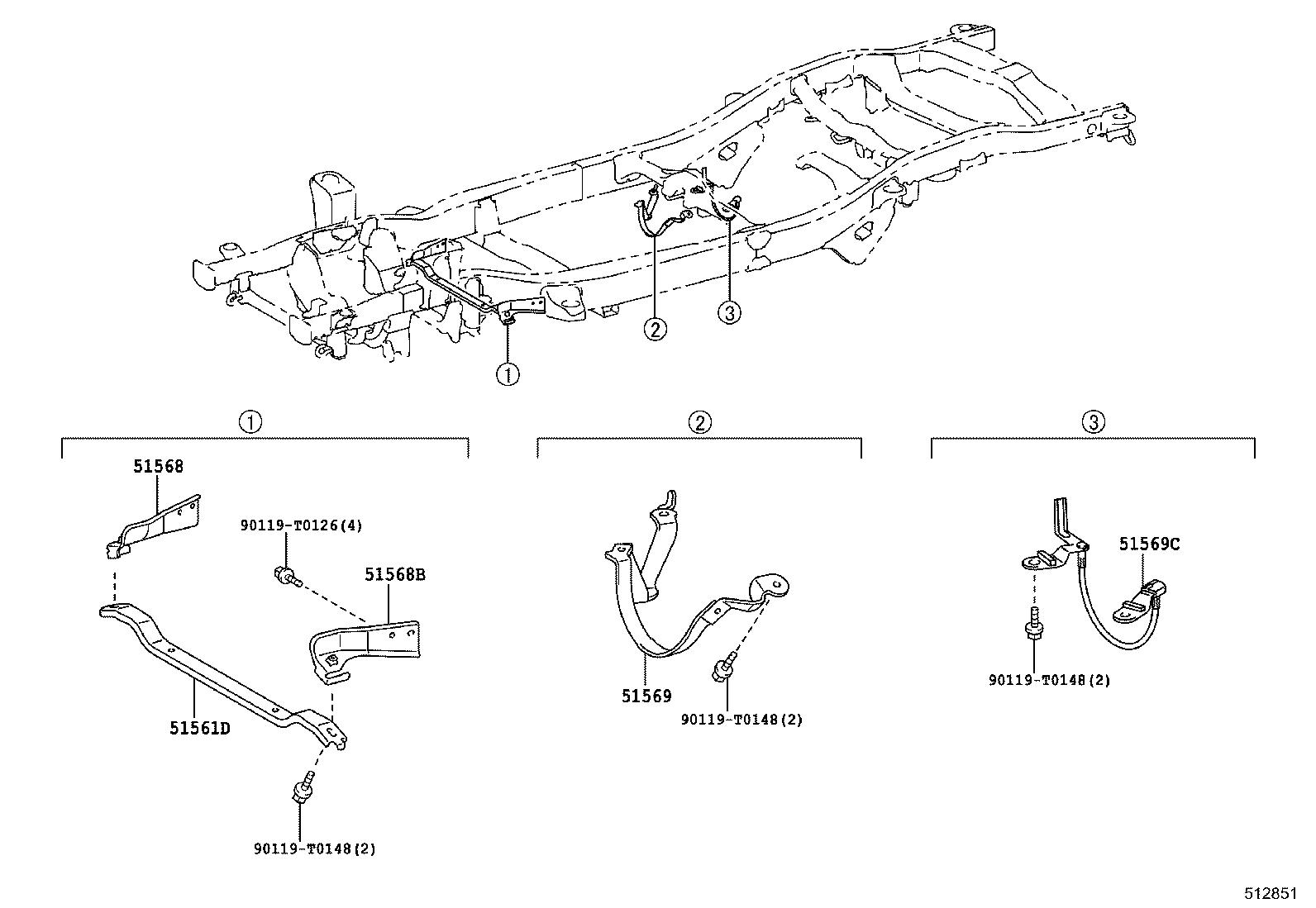

ILLUST NO. 2 OF 2(1505- )GGN125,GUN125,126,KUN125,126,LAN125,TGN126,128..ARL,BZAGT,GCC,GEN,IDN,KE

Click highlighted areas on diagram

PROPELLER SHAFT GUARD

diagram 51561D 51568 51568B 51569 51569C 90119T0126 90119T0148 90119T0148 90119T0148
Part # Description Qty Price
51561D - GUARD, PROPELLER SHAFT
51569-KK010

GGN125,GUN125,126,KUN125,126,TGN126..TDC,TSC,TXT

 1
51568 - BRACKET, PROPELLER SHAFT GUARD
51568-KK020

GUN125..TDC..6FC..ARL;GUN125..KDC,KSC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126..KDC,SDC,SSC,SXT,TDC,TSC,TXT

 1
51568B - BRACKET, PROPELLER SHAFT GUARD
51568-KK030

GUN125..TDC..6FC..ARL;GUN125..KDC,KSC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126..KDC,SDC,SSC,SXT,TDC,TSC,TXT

 1
51569 - GUARD, PROPELLER SHAFT
51569-KK020

GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
51569C - GUARD, PROPELLER SHAFT
51569-0K020

GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,KUN125,126,LAN125,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
Common parts
90119-T0126
90119-T0148

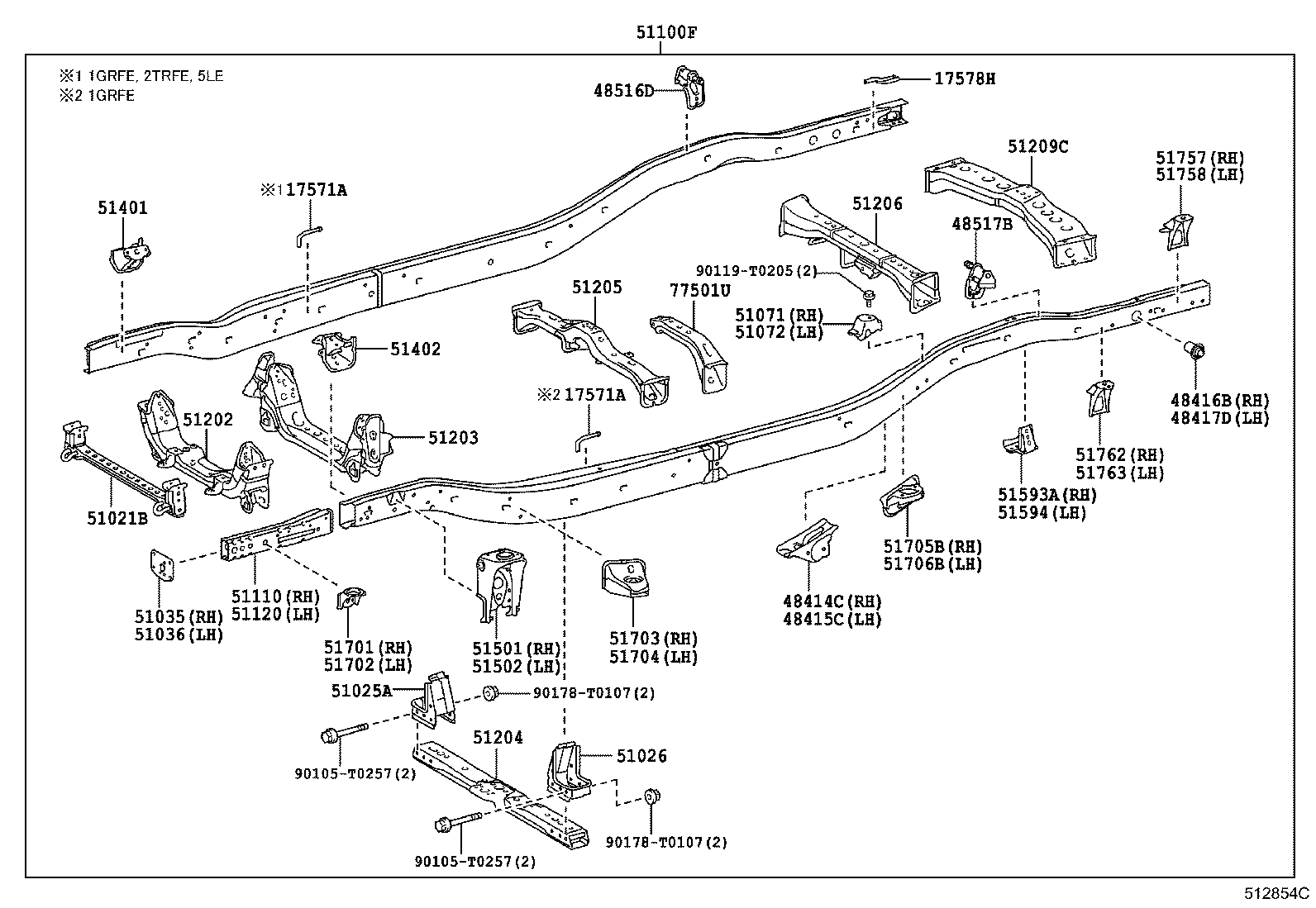

ILLUST NO. 1 OF 2(1505- )GGN125,135,GUN125,126,13#,KUN125,126,13#,LAN125,TGN126,128,13#..ADC,KDC,

Click highlighted areas on diagram

FRAME

diagram 17571A 17571A 17578H 48414C 48415C 48416B 48417D 48516D 48517B 51021B 51025A 51026 51035 51036 51071 51072 51100F 51110 51120 51202 51203 51204 51205 51206 51209C 51401 51402 51501 51502 51593A 51594 51701 51702 51703 51704 51705B 51706B 51757 51758 51762 51763 77501U 90105T0257 90105T0257 90119T0205 90178T0107 90178T0107
Part # Description Qty Price
17578H - BRACKET, EXHAUST PIPE SUPPORT, NO.10
17505-0L020

1GDFTV..GUN136..H,M;2GDFTV..GUN135..SSC..X;2GDFTV..GUN135..LHD..SA;2GDFTV..GUN135..6F..S..SA;2GDFTV..GUN125..LHD..TDC..X;2GDFTV..GUN125..TDC..6FC..ARL;1GDFTV..GUN136..S..(ARL,BZAGT);2GDFTV..GUN125..(SXT,TDC)..(H,L,M,S);2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT;2GDFTV..GUN135..ADC,ASC,MDC,TDC,TSC,TXT;2GDFTV..GUN125..ADC,ASC,SDC,SSC,TSC,TXT;1GDFTV..GUN126..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;1G#,2GDFTV,1KDFTV,2KDFTV..GGN12#,135,GUN112,120,122,123,KUN112,126..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KUN122,125,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,SDC,SSC,SXT,TDC,TSC,TXT

 1
48414C - BRACKET, SPRING, NO.3 RH
48404-KK040

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN125,135,KUN125,126,13#,LAN125..ARL,GCC,GEN,IDN,LA,PKN,SA,VN

 1
48415C - BRACKET, SPRING, NO.3 LH
48407-KK040

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN125,135,KUN125,126,13#,LAN125..ARL,GCC,GEN,IDN,LA,PKN,SA,VN

 1
48416B - BRACKET, SPRING, NO.4 RH
48405-KK010

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;KUN122..GCC,GEN,SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,125,126,13#,LAN125,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
48417D - BRACKET, SPRING, NO.4 LH
48405-KK010

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;KUN122..GCC,GEN,SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,125,126,13#,LAN125,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH
48505-KK010

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;KUN122..GCC,GEN,SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,125,126,13#,LAN125,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH
48506-KK010

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;KUN122..GCC,GEN,SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,125,126,13#,LAN125,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
51021B - CROSSMEMBER SUB-ASSY, FRAME AUXILIARY
51021-KK010

KUN126;GUN135..SSC..X;GUN136..S..ARL;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN125..SDC,SSC,TSC,TXT;GUN135..MDC,TDC,TSC,TXT;TGN136..SDC,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);GUN136..(SDC,SSC,SXT,TDC,TXT)..(H,M);KUN122,125,13#..GCC,GEN,IDN,LA,SA,VN;GGN12#,135,GUN112,120,122,123,126,KUN112,LAN125,TGN11#,120,121,126..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
51025A - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, RH
51025-KK010

GUN136..H,M;GUN135..SSC..X;TGN136..ADC..M;TGN136..ASC,TSC;GUN135..LHD..SA;GUN135..6F..S..SA;KUN122..GCC,GEN,SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);TGN136..(SDC,TDC,TXT)..(M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125,TGN138..(ADC,ASC,SDC,SSC,TSC,TXT)..(6F,6FC);GUN126,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,125,126,13#,LAN125,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
51026 - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, LH
51026-KK010

GUN136..H,M;GUN135..SSC..X;TGN136..ADC..M;TGN136..ASC,TSC;GUN135..LHD..SA;GUN135..6F..S..SA;KUN122..GCC,GEN,SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);TGN136..(SDC,TDC,TXT)..(M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125,TGN138..(ADC,ASC,SDC,SSC,TSC,TXT)..(6F,6FC);GUN126,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,125,126,13#,LAN125,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
51035 - PLATE SUB-ASSY, FRAME SIDE RAIL, RH
51035-KK010

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;KUN122..GCC,GEN,SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,125,126,13#,LAN125,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
51036 - PLATE SUB-ASSY, FRAME SIDE RAIL, LH
51036-KK010

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;KUN122..GCC,GEN,SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,125,126,13#,LAN125,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
51071 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH
51071-KK010

GUN135..LHD..SA;GUN135..SDC..6F..S;GUN135..ADC,MDC,TDC;GUN136..(ADC,TDC)..S;GUN125..TDC..6FC..ARL;GUN136..(ADC,SDC,TDC)..(H,M);GUN126,TGN126,128,13#..ADC,PDC,SDC,TDC;GUN125..(ADC,SDC,TDC)..(BZAGT,GCC,GEN,IDN,LA,PH,SA,TH,VN);GGN12#,135,GUN120,122,123,KUN12#,13#,LAN125,TGN120,121..(ADC,PDC,SDC,TDC)..(ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN)

 1
51072 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH
51072-KK010

GUN135..LHD..SA;GUN135..SDC..6F..S;GUN135..ADC,MDC,TDC;GUN136..(ADC,TDC)..S;GUN125..TDC..6FC..ARL;GUN136..(ADC,SDC,TDC)..(H,M);GUN126,TGN126,128,13#..ADC,PDC,SDC,TDC;GUN125..(ADC,SDC,TDC)..(BZAGT,GCC,GEN,IDN,LA,PH,SA,TH,VN);GGN12#,135,GUN120,122,123,KUN12#,13#,LAN125,TGN120,121..(ADC,PDC,SDC,TDC)..(ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN)

 1
51100F - FRAME SUB-ASSY
51001-KK700

GUN126..PDC,TDC;KUN125,126..ADC,PDC,TDC;GUN125..6F..M..(GCC,VN);GUN125..LHD..TDC..6F..(L,S,X);GUN125..RHD..TDC..(GEN,IDN,TH);GUN125..TDC..6FC..(ARL,GCC,LA)

 1
51110 - EXTENSION ASSY, SIDE RAIL, RH
51110-KK901

GUN125..6F..M..GCC;GUN135..(MDC,TDC)..6F;GUN125..6FC..(M,X)..CBU;GUN125..TDC..(L,S,X)..(GCC,GEN,LA,TH);GUN126,TGN126..TDC..(6F,6FC)..(H,M,S,X)..(ARL,GEN,LA,PH,TH,VN);GUN136,KUN125,126,13#..(ADC,PDC,TDC)..(5FC,6F)..(ARL,GCC,GEN,IDN,LA,PKN,VN)

 1
51110-KK907

TGN126..S..SA;GUN126..PDC,TDC;GUN13#..(MDC,TDC)..6F;TGN126..(M,X)..(GEN,SA);GUN125..6F..M..(GCC,VN);KUN125,126,13#..ADC,PDC,TDC;GUN125..LHD..TDC..6F..(L,S,X);GUN125..TDC..6FC..(ARL,GCC,LA);GUN125..RHD..TDC..(GEN,IDN,TH)

 1
51120 - EXTENSION ASSY, SIDE RAIL, LH
51122-KK901

GUN125..6F..M..GCC;GUN135..(MDC,TDC)..6F;GUN125..6FC..(M,X)..CBU;GUN125..TDC..(L,S,X)..(GCC,GEN,LA,TH);GUN126,TGN126..TDC..(6F,6FC)..(H,M,S,X)..(ARL,GEN,LA,PH,TH,VN);GUN136,KUN125,126,13#..(ADC,PDC,TDC)..(5FC,6F)..(ARL,GCC,GEN,IDN,LA,PKN,VN)

 1
51122-KK907

TGN126..S..SA;GUN126..PDC,TDC;GUN13#..(MDC,TDC)..6F;TGN126..(M,X)..(GEN,SA);GUN125..6F..M..(GCC,VN);KUN125,126,13#..ADC,PDC,TDC;GUN125..LHD..TDC..6F..(L,S,X);GUN125..TDC..6FC..(ARL,GCC,LA);GUN125..RHD..TDC..(GEN,IDN,TH)

 1
51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1
51201-KK020

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN125,135,KUN125,126,13#,LAN125..ARL,GCC,GEN,IDN,LA,PKN,SA,VN

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-KK010

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN125,135,KUN125,126,13#,LAN125..ARL,GCC,GEN,IDN,LA,PKN,SA,VN

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-KK040

KUN125,126;GUN125..BZAGT..IV3;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN125..SDC,SSC,TSC,TXT;GUN126..6F..(M,S)..IART;GUN125..(SXT,TDC)..(H,L,M,S);GUN126..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51204-KK030

GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN125..(SXT,TDC)..(H,L,M,S);GUN125..ADC,ASC,SDC,SSC,TSC,TXT;GGN125,KUN125,126,LAN125..ARL,GCC,GEN,IDN,LA,PKN,SA,VN;GUN126,TGN126,128..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-KK040

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;KUN122..GCC,GEN,SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN120,122,123,KUN125,126,13#,LAN125,TGN120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR
51209-KK010

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;KUN122..GCC,GEN,SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,125,126,13#,LAN125,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51401-KK040

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;KUN122..GCC,GEN,SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;GUN112,120,122,123,126,KUN112,125,126,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
51401-KK020

TGN11#,12#,138;TGN136..ADC,ASC,SDC,TDC,TSC,TXT

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51402-KK040

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;KUN122..GCC,GEN,SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;GUN112,120,122,123,126,KUN112,125,126,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 1
51402-KK020

TGN11#,12#,138;TGN136..ADC,ASC,SDC,TDC,TSC,TXT

 1
51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51501-KK020

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN125,135,KUN125,126,13#,LAN125..ARL,GCC,GEN,IDN,LA,PKN,SA,VN

 1
51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51502-KK020

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN125,135,KUN125,126,13#,LAN125..ARL,GCC,GEN,IDN,LA,PKN,SA,VN

 1
51593A - BRACKET, REAR SPRING BUMPER, RH
57081-KK020

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN125,135,KUN125,126,13#,LAN125..ARL,GCC,GEN,IDN,LA,PKN,SA,VN

 1
51594 - BRACKET, REAR SPRING BUMPER, LH
57082-KK010

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN125,135,KUN125,126,13#,LAN125..ARL,GCC,GEN,IDN,LA,PKN,SA,VN

 1
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-KK010

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;KUN122..GCC,GEN,SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,125,126,13#,LAN125,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51701-KK010

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;KUN122..GCC,GEN,SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,125,126,13#,LAN125,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703-KK010

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;KUN122..GCC,GEN,SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,125,126,13#,LAN125,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51704-KK010

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;KUN122..GCC,GEN,SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,125,126,13#,LAN125,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
51705B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH
51705-KK020

GUN135..LHD..SA;GUN135..SDC..6F..S;GUN135..ADC,MDC,TDC;GUN136..(ADC,TDC)..S;GUN125..TDC..6FC..ARL;GUN136..(ADC,SDC,TDC)..(H,M);GUN126,TGN126,128,13#..ADC,PDC,SDC,TDC;GUN125..(ADC,SDC,TDC)..(BZAGT,GCC,GEN,IDN,LA,PH,SA,TH,VN);GGN12#,135,GUN120,122,123,KUN12#,13#,LAN125,TGN120,121..(ADC,PDC,SDC,TDC)..(ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN)

 1
51706B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH
51706-KK020

GUN135..LHD..SA;GUN135..SDC..6F..S;GUN135..ADC,MDC,TDC;GUN136..(ADC,TDC)..S;GUN125..TDC..6FC..ARL;GUN136..(ADC,SDC,TDC)..(H,M);GUN126,TGN126,128,13#..ADC,PDC,SDC,TDC;GUN125..(ADC,SDC,TDC)..(BZAGT,GCC,GEN,IDN,LA,PH,SA,TH,VN);GGN12#,135,GUN120,122,123,KUN12#,13#,LAN125,TGN120,121..(ADC,PDC,SDC,TDC)..(ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN)

 1
51757 - BRACKET, BODY SUPPORT, NO.4 RH
51077-KK010

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;KUN122..GCC,GEN,SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,125,126,13#,LAN125,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
51758 - BRACKET, BODY SUPPORT, NO.4 LH
51078-KK010

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;KUN122..GCC,GEN,SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,125,126,13#,LAN125,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
51762 - BRACKET, BODY SUPPORT, NO.5 RH
51075-KK010

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;KUN122..GCC,GEN,SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,125,126,13#,LAN125,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
51763 - BRACKET, BODY SUPPORT, NO.5 LH
51076-KK010

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;KUN122..GCC,GEN,SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN112,120,122,123,KUN112,125,126,13#,LAN125,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
77501U - BRACKET SUB-ASSY, FUEL TANK
77501-0K020

GUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;KUN122..GCC,GEN,SA;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;GUN136..S..(ARL,BZAGT);GUN125..(SXT,TDC)..(H,L,M,S);GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN126,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN12#,135,GUN120,122,123,KUN125,126,13#,LAN125,TGN120,121..ARL,GCC,GEN,IDN,LA,PH,PKN,SA,TH,VN

 1
Common parts
90105-T0257
90119-T0205
90178-T0107
