KUN125R-BTFMY (2015)

Toyota Hilux

Production May 2015 - Jul 2017
Engine 2KDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )1KDFTV,2KDFTV

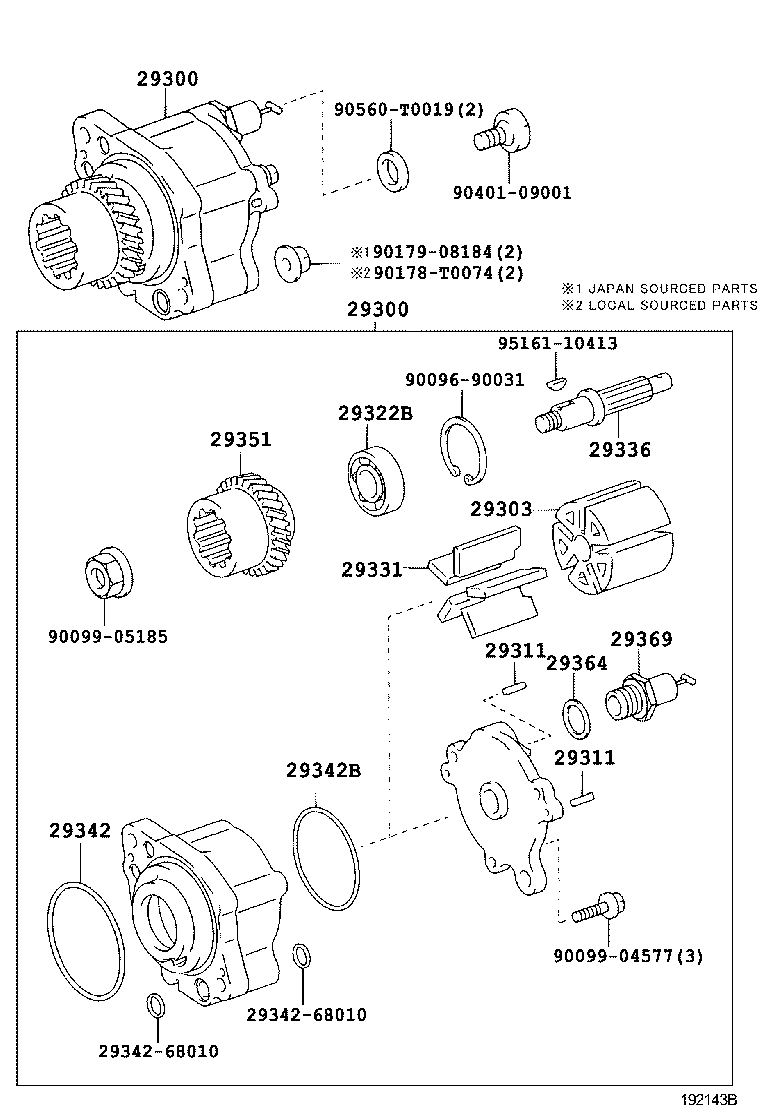

Click highlighted areas on diagram

diagram 29300 29300 29303 29311 29311 29322B 29331 29336 29342 2934268010 2934268010 29342B 29351 29364 29369 9009690031 9009904577 9009905185 90178T0074 9017908184 9040109001 90560T0019 9516110413
Part # Description Qty Price
Common parts
29342-68010
90096-90031
90099-04577
90099-05185
90178-T0074
90179-08184
90401-09001
90560-T0019
95161-10413

(1107- )1KDFTV,2KDFTV

Click highlighted areas on diagram

diagram 29300 29300 29303 29311 29311 29322B 29331 29336 29342 2934268010 2934268010 29342B 29351 29364 29369 9009690031 9009904577 9009905185 90178T0074 9017908184 9040109001 90560T0019 9516110413
Part # Description Qty Price
Common parts
29342-68010
90096-90031
90099-04577
90099-05185
90178-T0074
90179-08184
90401-09001
90560-T0019
95161-10413

(1505- )1KDFTV,2KDFTV

Click highlighted areas on diagram

diagram 1708 29300 29300 29300F 29303 29311 29311 29322B 29331 29336 29342 2934268010 2934268010 29342B 29351 29364 29369 4703 9009690031 9009904577 9009905185 9011608377 90178T0074 9040109001 90560T0019 90560T0019 9516110413
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-0L010

1KDFTV,2KDFTV..KUN112,12#,13#

 1
29300 - PUMP ASSY, VACUUM
29300-0L010

1KDFTV,2KDFTV..KUN112,12#,13#

 1
29300F - UNION
90405-T0003

1KDFTV,2KDFTV..KUN112,12#,13#

 1
29303 - ROTOR SUB-ASSY, VACUUM PUMP
29303-67020

1KDFTV,2KDFTV..KUN112,12#,13#

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

1KDFTV,2KDFTV..KUN112,12#,13#

 2
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

1KDFTV,2KDFTV..KUN112,12#,13#

 2
29322B - BEARING, VACUUM PUMP
90099-10185

1KDFTV,2KDFTV..KUN112,12#,13#

 1
29331 - BLADE, VACUUM PUMP, A
29331-67020

1KDFTV,2KDFTV..KUN112,12#,13#

 5
29336 - SHAFT, VACUUM PUMP
29336-58050

1KDFTV,2KDFTV..KUN112,12#,13#

 1
29342 - PACKING, VACUUM PUMP
29342-67020

1KDFTV,2KDFTV..KUN112,12#,13#

 1
29342B - RING, O
29342-58010

1KDFTV,2KDFTV..KUN112,12#,13#

 1
29351 - GEAR, VACUUM PUMP
29351-67020

1KDFTV,2KDFTV..KUN112,12#,13#

 1
29364 - WASHER, VACUUM PUMP
29364-66010

1KDFTV,2KDFTV,5LE..KUN112,12#,13#,LAN125

 1
29369 - VALVE SUB-ASSY, CHECK
29369-64030

1KDFTV,2KDFTV,5LE..KUN112,12#,13#,LAN125

 1
Common parts
29342-68010
90096-90031
90099-04577
90099-05185
90116-08377
90178-T0074
90401-09001
90560-T0019
95161-10413
Linked diagrams
1708
4703
