KUN125R-BTFLY (2015)

Toyota Hilux

Production May 2015 - Jul 2017

Engine 2KDFTV

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(1107- )GGN15,25,35

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
Common parts
90119-T0104
90182-T0021

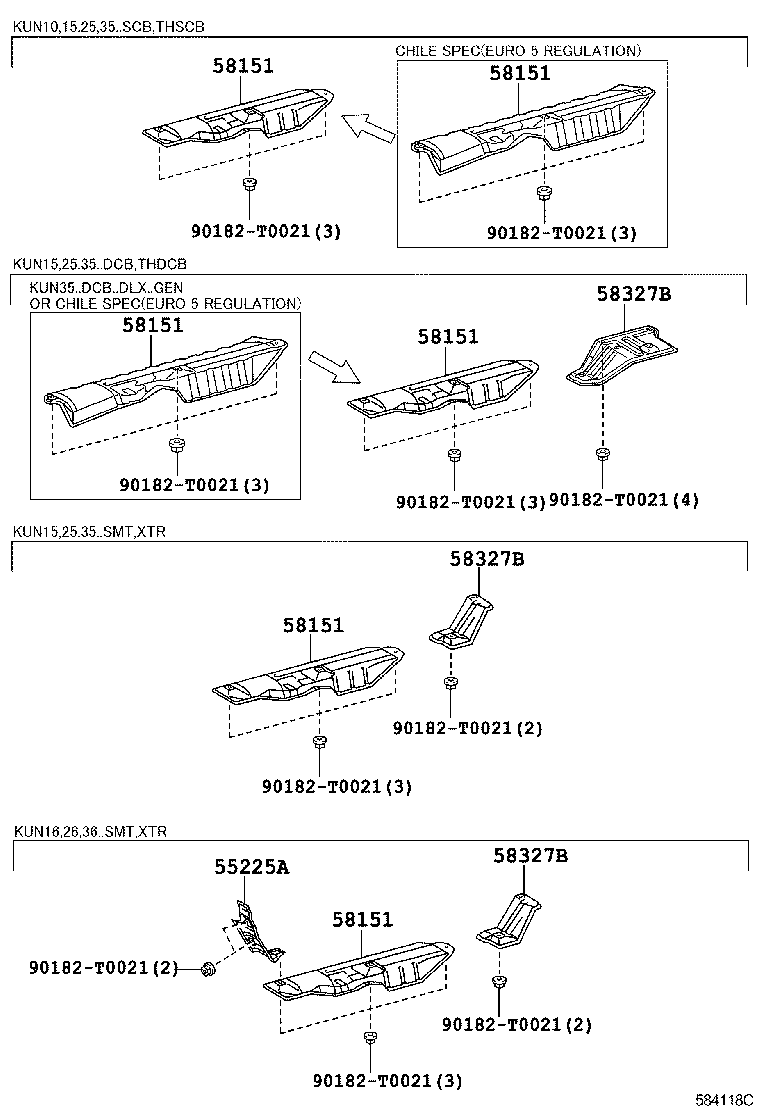

(1107- )KUN10,15,25,35 ; (1107- )KUN16,26,36..SMT,XTR

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
Common parts
90182-T0021

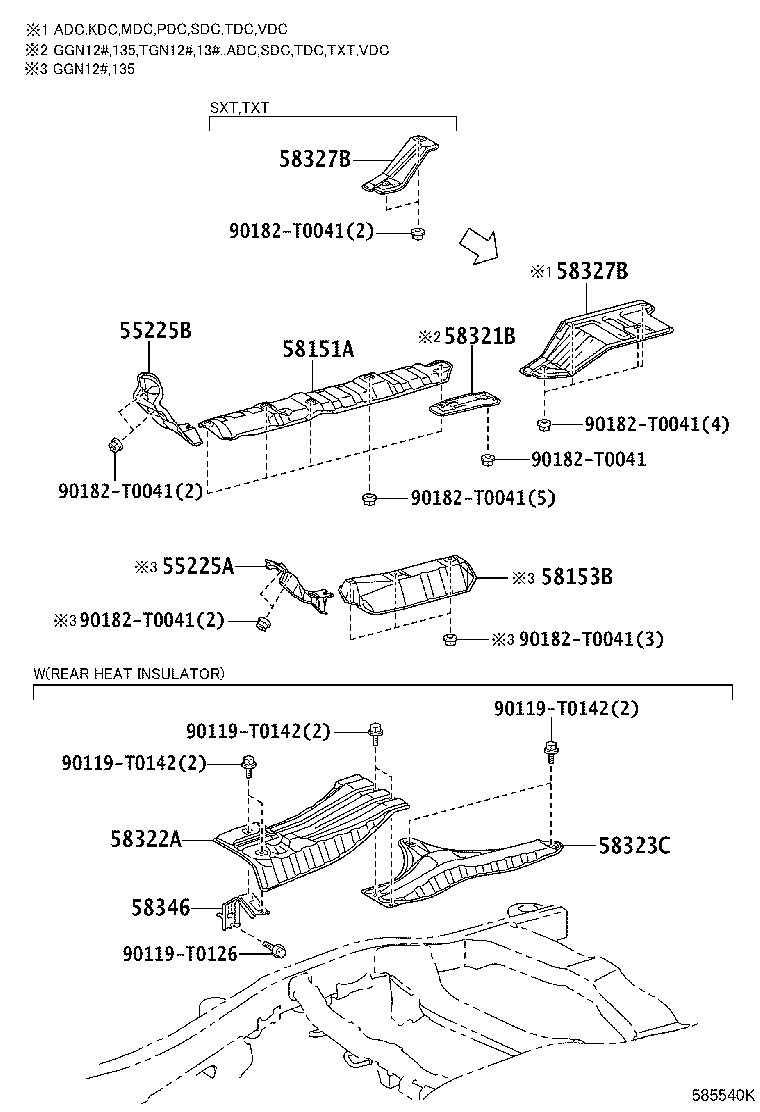

(1505- )ARL,BZAGT,GCC,GEN,IDN,KEN,LA,MA,PH,PKN,SA,TAIW,TH,VN

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
55225B - INSULATOR, DASH PANEL HEAT
55225-KK010	GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#	05/2015 - 02/2017	1
55225-KK011	GUN122..RHD..SA;GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,TGN136..ADC,ASC,PSC,SDC,TDC,TSC,TXT;GGN12#,135,GUN135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN112,120,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT	03/2017 - 12/2999	1
58151A - INSULATOR, FLOOR HEAT, NO.1
58151-KK010	GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#	05/2015 - 02/2017	1
58322A - INSULATOR, REAR FLOOR HEAT, REAR
58322-KK010	TGN11#,12#,136;GUN125..TSC..LA;GGN12#,GUN12#,13#..RHD..(L,M,S,X)..(ARL,GEN)	05/2015 - 08/2015	1
58323C - INSULATOR, REAR FLOOR HEAT, NO.3
58323-KK010	TGN11#,12#,136;GUN125..TSC..LA;GGN12#,GUN12#,13#..RHD..(L,M,S,X)..(ARL,GEN)	05/2015 - 09/2015	1
Common parts
90119-T0126
90119-T0142
90182-T0041
