KUN125R-BTFLY (2015)

Toyota Hilux

Production May 2015 - Jul 2017
Engine 2KDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1505- )2KDFTV..DCR

Click highlighted areas on diagram

MANIFOLD

diagram 15407 15407A 15407B 15471 15472 17111 17111Z 17118 17119 17141 17141G 17141K 17173 17177 17230A 17230B 17230B 17230C 17278 17279 17291 17299 17861F 17861G 17873A 2501 25051 25861C 9010508286 90105T0053 90105T0118 90105T0118 90105T0118 90105T0121 90105T0156 90116T0015 90119T0057 90177T0006 90177T0009 90178T0019 90178T0019 9017908229 90182T0007 90560T0006 9167100816
Part # Description Qty Price
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-0L012

2KDFTV..KUN112,122,125,135..DCR

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-T0004

1KDFTV,2KDFTV..KUN112,12#,13#

 1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-T0006

1KDFTV,2KDFTV..KUN112,12#,13#

 1
15471 - GASKET, TURBO OIL INLET
15471-0L011

1KDFTV,2KDFTV..KUN112,12#,13#

 1
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-0L010

1KDFTV,2KDFTV..KUN112,12#,13#

 1
17111 - MANIFOLD, INTAKE
17111-0L020

2KDFTV..KUN112,122,125,135..DCR

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90116-T0011

1KDFTV,2KDFTV..KUN112,12#,13#

 2
17118 - STAY, MANIFOLD
17118-0L030

1KDFTV,2KDFTV..KUN112,12#,13#..DCR

 1
17119 - STAY, MANIFOLD, NO.2
17118-0L040

2KDFTV..KUN112,122,125,135..DCR

 1
17141 - MANIFOLD, EXHAUST
17141-0L010

2KDFTV..KUN112,122,125,135..DCR

 1
17141G - BOLT, STUD(FOR TURBOCHARGER)
90116-10219

2KDFTV..KUN112,122,125,135..DCR

 3
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90126-10035

2KDFTV..KUN112,122,125,135..DCR

 8
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-0L011

2KDFTV..KUN112,122,125,135..DCR

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-0L011

1KDFTV,2KDFTV..KUN112,12#,13#

 1
17230A - REPAIR ACTUAOR ASSY, W/BRACKET
17230-39085

2KDFTV..KUN112,122,125,135..DCR

 1
17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET)
90201-06044

2KDFTV..KUN112,122,125,135..DCR

T=2.0

 2
90201-06043

2KDFTV..KUN112,122,125,135..DCR

T=1.0

 2
90201-06045

2KDFTV..KUN112,122,125,135..DCR

T=3.0

 2
90201-06042

2KDFTV..KUN112,122,125,135..DCR

T=0.5

 2
17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET)
90201-06044

2KDFTV..KUN112,122,125,135..DCR

T=2.0

 2
90201-06043

2KDFTV..KUN112,122,125,135..DCR

T=1.0

 2
90201-06045

2KDFTV..KUN112,122,125,135..DCR

T=3.0

 2
90201-06042

2KDFTV..KUN112,122,125,135..DCR

T=0.5

 2
17230C - BOLT, W/WASHER(FOR REPAIR ACTUATOR SET)
91621-60620

2KDFTV..KUN112,122,125,135..DCR

 2
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-0L010

1KDFTV,2KDFTV..KUN112,12#,13#

 1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-0L021

2KDFTV..KUN112,122,125,135..DCR

 1
17291 - ELBOW, TURBINE OUTLET
17291-0L030

2KDFTV..KUN122..H;2KDFTV..KUN125..DCR;2KDFTV..KUN122..LHD..SSC;2KDFTV..KUN122..RHD..(SSC,TSC)..(S,X);2KDFTV..KUN112,135..(H,S,X)..(GCC,GEN,LA,SA)

 1
17299 - STAY, TURBINE OUTLET ELBOW
17299-0L010

2KDFTV..KUN112,122,125,135..DCR

 1
17861F - CONNECTOR, INTAKE AIR
17861-0L020

2KDFTV..KUN122..H;2KDFTV..KUN122..LHD..SSC;2KDFTV..KUN122..RHD..(SSC,TSC)..(S,X);1KDFTV,2KDFTV..KUN125,126..GCC,GEN,LA,SA;1KDFTV,2KDFTV..KUN112,13#..(H,M,S,X)..(GCC,GEN,LA,SA)

 1
17861G - GASKET, INTAKE AIR CONNECTOR
26171-0L010

2KDFTV..KUN122..H;2KDFTV..KUN122..LHD..SSC;2KDFTV..KUN122..RHD..(SSC,TSC)..(S,X);1KDFTV,2KDFTV..KUN125,126..GCC,GEN,LA,SA;1KDFTV,2KDFTV..KUN112,13#..(H,M,S,X)..(GCC,GEN,LA,SA)

 1
17873A - BRACKET, INTAKE AIR CONNECTOR, NO.2
26127-0L010

2KDFTV..KUN122..H;2KDFTV..KUN125..DCR;2KDFTV..KUN122..LHD..SSC;2KDFTV..KUN122..RHD..(SSC,TSC)..(S,X);2KDFTV..KUN112,135..(H,S,X)..(GCC,GEN,LA,SA)

 1
25861C - BRACKET, VACUUM SWITCHING VALVE
25861-30051

2KDFTV..KUN122..H;2KDFTV..KUN122..LHD..SSC;2KDFTV..KUN122..RHD..(SSC,TSC)..(S,X);1KDFTV,2KDFTV..KUN125,126..GCC,GEN,LA,SA;1KDFTV,2KDFTV..KUN112,13#..(H,M,S,X)..(GCC,GEN,LA,SA)

 1
Common parts
90105-08286
90105-T0053
90105-T0118
90105-T0121
90105-T0156
90116-T0015
90119-T0057
90177-T0006
90177-T0009
90178-T0019
90179-08229
90182-T0007
90560-T0006
91671-00816
Linked diagrams
2501

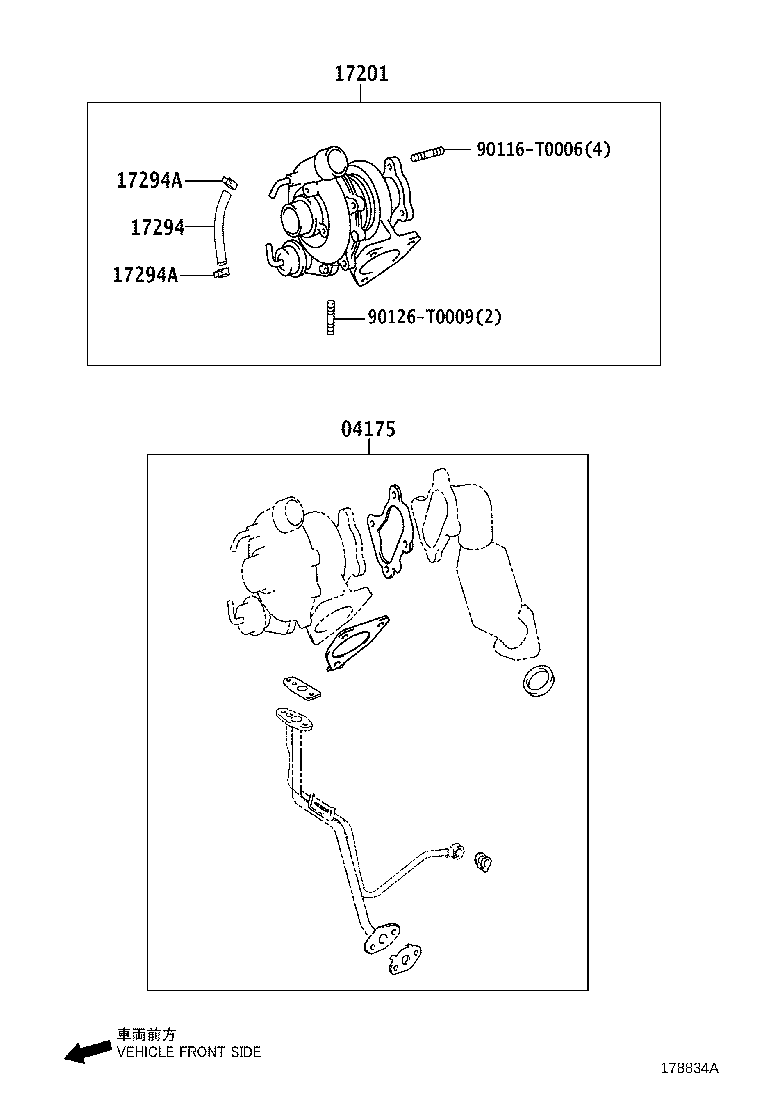

ILLUST NO. 2 OF 2(1505- )2KDFTV..DCR

Click highlighted areas on diagram

TURBOCHARGER

diagram 04175 17201 17294 17294A 17294A 90116T0006 90126T0009
Part # Description Qty Price
04175 - GASKET KIT, TURBOCHARGER
04175-0L012

2KDFTV..KUN112,122,125,135..DCR

 1
17201 - TURBOCHARGER SUB-ASSY
17201-0L030

2KDFTV..KUN112,122,125,135..DCR

 1
17294 - HOSE, ACTUATOR
90445-T0010

2KDFTV..KUN112,122,125,135..DCR

 1
17294A - CLIP(FOR ACTUATOR HOSE)
90466-T0008

2KDFTV..KUN112,122,125,135..DCR

 2
17294A - CLIP(FOR ACTUATOR HOSE)
90466-T0008

2KDFTV..KUN112,122,125,135..DCR

 2
Common parts
90116-T0006
90126-T0009
