KUN125L-DTFLY (2015)
Toyota Hilux
ILLUST NO. 1 OF 2(1107- )GGN25,KUN2#,35,LAN15,25,TGN26,36..LHD..ANCOM,GCC,GEN,PHL,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0133 | ||||
| 90170-15001 | ||||
| 90170-T0006 | ||||
| 90178-T0021 | ||||
| 95381-03225 | ||||
ILLUST NO. 2 OF 2(1107- )
| Part # | Description | Qty | Price |
|---|
(1505- )GGN125,GUN125,126,13#,KUN125,126,13#,LAN125,TGN126,128,13#..LHD..BZAGT,G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

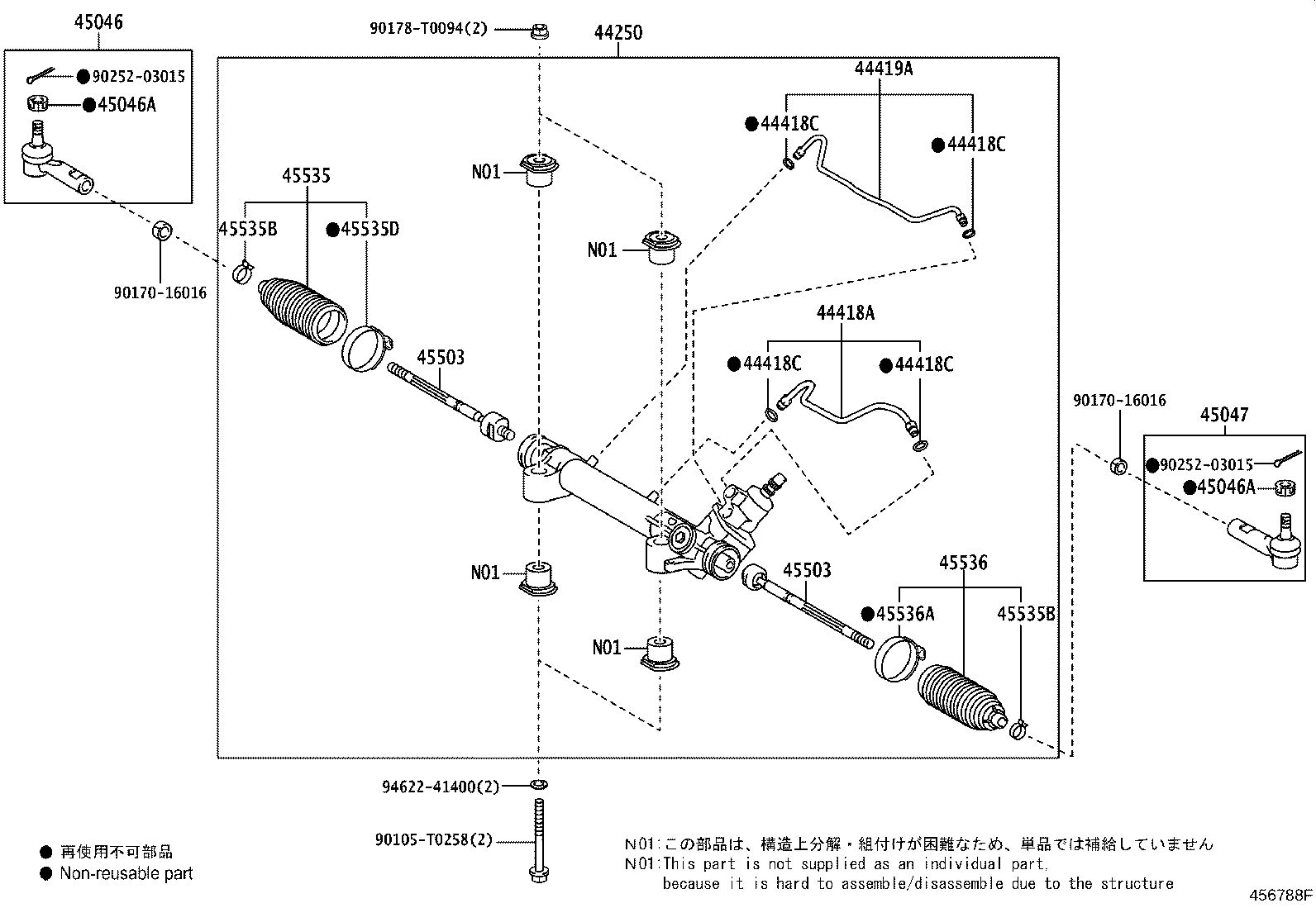

| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-0K730 |
GUN125,KUN125..LHD..TDC..L..GEN TIRE & DISC WHEEL-265/65R17 STEEL |
1 | ||
| 44250-0K730 |
TGN126..IV3;TGN126..TSC..LA;TGN126..5F..L..GEN;KUN125..TXT..L..GEN;GUN125..6FC..M..GCC;TGN126..TDC..(M,S,X);GUN125..TDC..6F..(M,S)..GCC;KUN125..LHD..(TDC,TSC,TXT)..(M,S,X);GGN125,GUN126,13#,KUN126,13#,TGN136..LHD..(TDC,TSC);GUN125..LHD..(TDC,TSC,TXT)..(M,S,X)..(GEN,LA,PH,VN) |
1 | ||
| 44250-0K680 |
GUN125..LHD..L..GEN;KUN125..LHD..TDC..L |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-0K270 |
TGN138..5F;GUN136..LA;GGN125..LHD;GUN136..H..BZAGT;GUN126..LHD..TDC..6FC..M;GUN126..LHD..6FC..S..HDCR;GUN125,136..ADC..6FC..(M,S);GUN126..LHD..(H,X)..(GEN,LA,VN);GUN126..LHD..(TDC,TSC)..6F..(M,S);GUN135..LHD..(ASC,TDC,TSC)..(GEN,LA,PH,VN);GUN125,KUN125,126,13#,TGN126,136..LHD..(TDC,TSC,TXT) |
1 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-T0032 |
KUN122..LHD..TSC..S;KUN122..TSC..(L,M,X);KUN122..PSC,SDC,SSC,TDC,TXT;GGN120,GUN112,120,122,123,LAN125,TGN11#,120,121;GGN125,GUN136,KUN112,136..(TDC,TSC)..(L,M,X)..(GCC,IDN,LA);GUN125,126,135,KUN125,126,135,TGN126,136..LHD..(SDC,SSC,SXT,TDC,TSC,TXT) |
4 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-T0032 |
KUN122..LHD..TSC..S;KUN122..TSC..(L,M,X);KUN122..PSC,SDC,SSC,TDC,TXT;GGN120,GUN112,120,122,123,LAN125,TGN11#,120,121;GGN125,GUN136,KUN112,136..(TDC,TSC)..(L,M,X)..(GCC,IDN,LA);GUN125,126,135,KUN125,126,135,TGN126,136..LHD..(SDC,SSC,SXT,TDC,TSC,TXT) |
4 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-T0032 |
KUN122..LHD..TSC..S;KUN122..TSC..(L,M,X);KUN122..PSC,SDC,SSC,TDC,TXT;GGN120,GUN112,120,122,123,LAN125,TGN11#,120,121;GGN125,GUN136,KUN112,136..(TDC,TSC)..(L,M,X)..(GCC,IDN,LA);GUN125,126,135,KUN125,126,135,TGN126,136..LHD..(SDC,SSC,SXT,TDC,TSC,TXT) |
4 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-T0032 |
KUN122..LHD..TSC..S;KUN122..TSC..(L,M,X);KUN122..PSC,SDC,SSC,TDC,TXT;GGN120,GUN112,120,122,123,LAN125,TGN11#,120,121;GGN125,GUN136,KUN112,136..(TDC,TSC)..(L,M,X)..(GCC,IDN,LA);GUN125,126,135,KUN125,126,135,TGN126,136..LHD..(SDC,SSC,SXT,TDC,TSC,TXT) |
4 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-0K270 |
TGN138..5F;GUN136..LA;GGN125..LHD;GUN136..H..BZAGT;GUN126..LHD..TDC..6FC..M;GUN126..LHD..6FC..S..HDCR;GUN125,136..ADC..6FC..(M,S);GUN126..LHD..(H,X)..(GEN,LA,VN);GUN126..LHD..(TDC,TSC)..6F..(M,S);GUN135..LHD..(ASC,TDC,TSC)..(GEN,LA,PH,VN);GUN125,KUN125,126,13#,TGN126,136..LHD..(TDC,TSC,TXT) |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-09800 |
GUN125..TDC..6FC..ARL;TGN136..SDC,TDC,TSC,TXT;GUN125..SDC,SSC,SXT,TSC,TXT;GUN135..MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,135,GUN126,136,KUN125,126,13#,LAN125,TGN126..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-T0002 |
KUN126..PDC..L;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GUN135,KUN126..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN125,135,GUN126,136,KUN125,13#,LAN125,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-T0002 |
KUN126..PDC..L;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GUN125,KUN126..(PDC,TDC)..ATM..(ARL,PKN);GUN135,KUN126..ADC,ASC,MDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT;GGN125,135,GUN126,136,KUN125,13#,LAN125,TGN126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-09800 |
GUN125..TDC..6FC..ARL;TGN136..SDC,TDC,TSC,TXT;GUN125..SDC,SSC,SXT,TSC,TXT;GUN135..MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,135,GUN126,136,KUN125,126,13#,LAN125,TGN126..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-0K130 |
GUN125..TSC,TXT;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;KUN125..SXT,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);LAN125,TGN126..SDC,SSC,TDC,TSC;GUN125,126,135,KUN125,126..LHD..(SDC,SSC);GGN125,GUN126,13#,KUN126,13#,TGN136..PDC,PSC,TDC,TSC,TXT |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-0K130 |
GUN125..TSC,TXT;GUN125..LHD..TDC..X;GUN125..TDC..6FC..ARL;KUN125..SXT,TDC,TSC,TXT;GUN125..(SXT,TDC)..(H,L,M,S);LAN125,TGN126..SDC,SSC,TDC,TSC;GUN125,126,135,KUN125,126..LHD..(SDC,SSC);GGN125,GUN126,13#,KUN126,13#,TGN136..PDC,PSC,TDC,TSC,TXT |
2 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-09390 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,13#,KUN125,126,13#,TGN126,136..PDC,PSC,TDC,TSC,TXT |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90466-T0004 |
GUN125..TSC,TXT;KUN122..PSC,TDC,TXT;KUN122..LHD..TSC..S;GUN125..TDC..6FC..ARL;KUN112,122..TSC..(L,M,X);GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,GUN112,120,122,123,126,13#,KUN125,126,13#,TGN11#,120,121,126,136..PDC,PSC,TDC,TSC,TXT |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90466-T0004 |
GUN125..TSC,TXT;KUN122..PSC,TDC,TXT;KUN122..LHD..TSC..S;GUN125..TDC..6FC..ARL;KUN112,122..TSC..(L,M,X);GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,GUN112,120,122,123,126,13#,KUN125,126,13#,TGN11#,120,121,126,136..PDC,PSC,TDC,TSC,TXT |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 45538-0K030 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,13#,KUN125,126,13#,TGN126,136..PDC,PSC,TDC,TSC,TXT |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-09390 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,13#,KUN125,126,13#,TGN126,136..PDC,PSC,TDC,TSC,TXT |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 45538-0K030 |
GUN125..TSC,TXT;GUN125..TDC..6FC..ARL;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN125,GUN126,13#,KUN125,126,13#,TGN126,136..PDC,PSC,TDC,TSC,TXT |
1 | ||
| Common parts | ||||
| 90105-T0258 | ||||
| 90170-16016 | ||||
| 90178-T0094 | ||||
| 90252-03015 | ||||
| 94622-41400 | ||||
