GUN136R-DTTSHQ (2015)
Toyota Hilux
(1505- )ADC,KDC,MDC,PDC,SDC,TDC

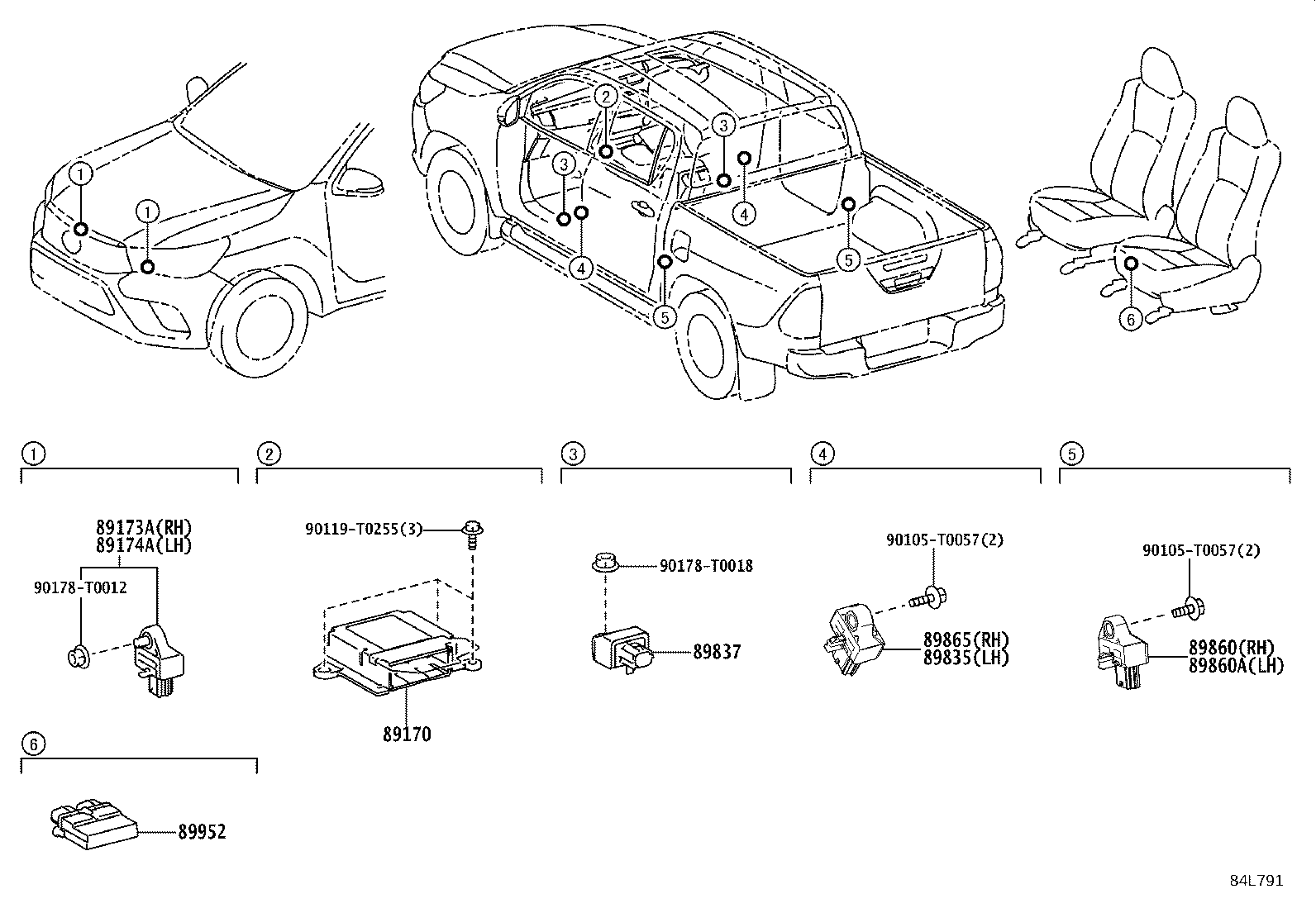

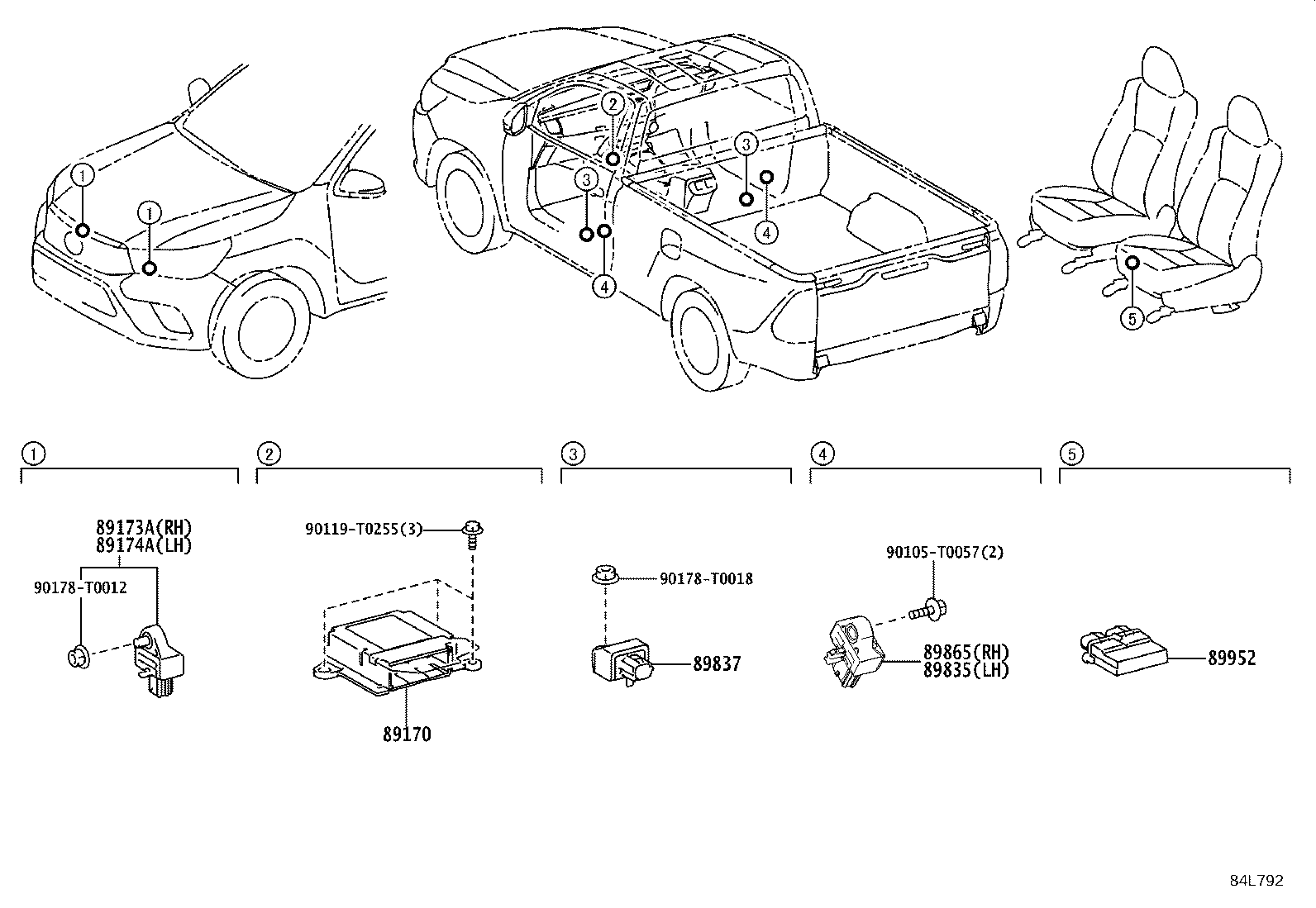

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89170 - SENSOR ASSY, AIR BAG | ||||
| 89170-0K600 |
GGN125,GUN125,126,136..TDC..ARL P/N LABEL=891700K600 |
1 | ||
| 89170-0KF70 |
GUN125,126,13#..TDC..ARL P/N LABEL=891700KF70 |
1 | ||
| 89170-0K851 |
GUN125,126,13#..TDC..ARL |
1 | ||
| 89173A - SENSOR, AIR BAG, FRONT RH | ||||
| 89173-09B20 |
GUN122..RHD..SA;GUN125..TDC..6FC..ARL;GUN122..PSC,TDC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN112,120,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 89174A - SENSOR, AIR BAG, FRONT LH | ||||
| 89173-09B20 |
GUN122..RHD..SA;GUN125..TDC..6FC..ARL;GUN122..PSC,TDC,TSC,TXT;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN112,120,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT |
1 | ||
| 89835 - SENSOR, DOOR SIDE AIR BAG, LH | ||||
| 89831-0K040 |
GUN126..6FC..PH;GUN125..ARL..IV3;GUN136..H..BZAGT;GUN125,126..SDC..M;GUN126..6F..H..BZAGT;GUN126..6FC..H..(BZAGT,TH,VN);GUN122,13#,TGN121..(S,X)..ARL;GGN12#,135,GUN123..ARL,BZAGT,LA,SA;GUN125,KUN126..ATM..(ARL,IDN,VN)..CBU;GUN126..(KDC,SXT,TDC,TSC,TXT)..(ARL,KEN,SA,TAIW);GUN136,KUN125,126..(SDC,SXT,TDC)..M..(ARL,IDN,SA) |
1 | ||
| 89837 - SENSOR, FRONT FLOOR SIDE AIR BAG | ||||
| 89837-0K010 |
GUN125,126,13#,TGN121..ARL |
2 | ||
| 89837 - SENSOR, FRONT FLOOR SIDE AIR BAG | ||||
| 89837-0K010 |
GUN125,126,13#,TGN121..ARL |
2 | ||
| 89860 - SENSOR ASSY, SIDE AIR BAG, RH | ||||
| 89831-0K050 |
GUN126..6FC..PH;GUN136..H..BZAGT;GUN125,126..SDC..M;GUN126..6F..H..BZAGT;GUN125..(TDC,TXT)..IV3;GUN13#..(S,X)..ARL..CBU;GUN126..6FC..H..(BZAGT,TH,VN);GGN12#,135,GUN123..(ARL,BZAGT,LA,SA)..CBU;GUN126..(KDC,SXT,TDC,TXT)..(ARL,KEN,SA,TAIW);GUN136,KUN125,126..(SDC,SXT,TDC)..M..(ARL,IDN,SA);GUN122,125,KUN126,TGN121..(5F,5FC,6FC)..(ARL,IDN,VN)..CBU |
1 | ||
| 89860A - SENSOR ASSY, SIDE AIR BAG, LH | ||||
| 89831-0K050 |
GUN126..6FC..PH;GUN136..H..BZAGT;GUN125,126..SDC..M;GUN126..6F..H..BZAGT;GUN125..(TDC,TXT)..IV3;GUN13#..(S,X)..ARL..CBU;GUN126..6FC..H..(BZAGT,TH,VN);GGN12#,135,GUN123..(ARL,BZAGT,LA,SA)..CBU;GUN126..(KDC,SXT,TDC,TXT)..(ARL,KEN,SA,TAIW);GUN136,KUN125,126..(SDC,SXT,TDC)..M..(ARL,IDN,SA);GUN122,125,KUN126,TGN121..(5F,5FC,6FC)..(ARL,IDN,VN)..CBU |
1 | ||
| 89865 - SENSOR, DOOR SIDE AIR BAG, RH | ||||
| 89831-0K040 |
GUN126..6FC..PH;GUN125..ARL..IV3;GUN136..H..BZAGT;GUN125,126..SDC..M;GUN126..6F..H..BZAGT;GUN126..6FC..H..(BZAGT,TH,VN);GUN122,13#,TGN121..(S,X)..ARL;GGN12#,135,GUN123..ARL,BZAGT,LA,SA;GUN125,KUN126..ATM..(ARL,IDN,VN)..CBU;GUN126..(KDC,SXT,TDC,TSC,TXT)..(ARL,KEN,SA,TAIW);GUN136,KUN125,126..(SDC,SXT,TDC)..M..(ARL,IDN,SA) |
1 | ||
| 89952 - COMPUTER, OCCUPANT DETECTION | ||||
| 89952-71010 |
GUN125,126,13#,TGN121..ARL |
1 | ||
| Common parts | ||||
| 90105-T0057 | ||||
| 90119-T0255 | ||||
| 90178-T0012 | ||||
| 90178-T0018 | ||||
(2006- )AD,KD,MD,MMD,PD,SD,TD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0057 | ||||
| 90119-T0255 | ||||
| 90178-T0012 | ||||
| 90178-T0018 | ||||
(2006- )AS,KS,MS,PS,SS,TS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0057 | ||||
| 90119-T0255 | ||||
| 90178-T0012 | ||||
| 90178-T0018 | ||||
