GUN136R-DTTSHQ (2015)

Toyota Hilux

Production May 2015 - May 2020
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(1505- )ARL,BZAGT,GCC,GEN,IDN,KEN,LA,MA,PH,PKN,SA,TAIW,TH,VN

Click highlighted areas on diagram

W(DIFFERENTIAL LOCK)

diagram 41039 412450K010 41302 41303E 41342 41342M 41342M 41343 41343 41351 41351 41351 41351 41361 41362 41363 41367 41417 41433A 41451H 41474A 90148T0021 90151A0006 90151T0004
Part # Description Qty Price
41039 - GEAR KIT, DIFFERENTIAL, REAR
41039-71070

TGN126..L..GEN;KUN126..TDC..(H,L,M);GUN136..(ARL,TH)..CBU;GUN125..LHD..(TSC,TXT);GUN126..TDC..6FC..M..LA;GUN125..LHD..(L,X)..GEN;GUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..M..DCR;GUN125..RHD..(H,L,S,X)..GEN;TGN126..(TDC,TSC)..(GCC,LA);GUN125..TDC..(GCC,LA,PH,VN);GUN126..6FC..(GCC,GEN,PH,VN);GUN126..LHD..(TDC,TSC)..6F..S;KUN126,TGN136..(5F,5FC)..S..(GEN,TH);KUN125..(TDC,TSC,TXT)..(H,L,S,X)..DCR;GUN126,TGN136..(TDC,TSC)..MTM..(H,M,X)..(GCC,GEN,LA,PH,VN);GGN125,GUN120,122,135..(MDC,TDC,TSC,TXT)..(6F,6FC)..(GCC,GEN,LA,MA,PH,TH,VN);GGN120,GUN112,122,123,KUN135,TGN111,121..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN)

 1
41342 - SHAFT, REAR DIFFERENTIAL PINION
41342-0K070

TGN126..L..GEN;KUN126..TDC..(H,L,M);GUN136..(ARL,TH)..CBU;GUN125..LHD..(TSC,TXT);GUN126..TDC..6FC..M..LA;GUN125..LHD..(L,X)..GEN;GUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..M..DCR;GUN125..RHD..(H,L,S,X)..GEN;TGN126..(TDC,TSC)..(GCC,LA);GUN125..TDC..(GCC,LA,PH,VN);GUN126..6FC..(GCC,GEN,PH,VN);GUN126..LHD..(TDC,TSC)..6F..S;KUN126,TGN136..(5F,5FC)..S..(GEN,TH);KUN125..(TDC,TSC,TXT)..(H,L,S,X)..DCR;GUN126,TGN136..(TDC,TSC)..MTM..(H,M,X)..(GCC,GEN,LA,PH,VN);GGN125,GUN120,122,135..(MDC,TDC,TSC,TXT)..(6F,6FC)..(GCC,GEN,LA,MA,PH,TH,VN);GGN120,GUN112,122,123,KUN135,TGN111,121..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN)

 1
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-0K040

TGN126..L..GEN;KUN126..TDC..(H,L,M);GUN136..(ARL,TH)..CBU;GUN125..LHD..(TSC,TXT);GUN126..TDC..6FC..M..LA;GUN125..LHD..(L,X)..GEN;GUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..M..DCR;GUN125..RHD..(H,L,S,X)..GEN;TGN126..(TDC,TSC)..(GCC,LA);GUN125..TDC..(GCC,LA,PH,VN);GUN126..6FC..(GCC,GEN,PH,VN);GUN126..LHD..(TDC,TSC)..6F..S;KUN126,TGN136..(5F,5FC)..S..(GEN,TH);KUN125..(TDC,TSC,TXT)..(H,L,S,X)..DCR;GUN126,TGN136..(TDC,TSC)..MTM..(H,M,X)..(GCC,GEN,LA,PH,VN);GGN125,GUN120,122,135..(MDC,TDC,TSC,TXT)..(6F,6FC)..(GCC,GEN,LA,MA,PH,TH,VN);GGN120,GUN112,122,123,KUN135,TGN111,121..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN)

 2
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-0K040

TGN126..L..GEN;KUN126..TDC..(H,L,M);GUN136..(ARL,TH)..CBU;GUN125..LHD..(TSC,TXT);GUN126..TDC..6FC..M..LA;GUN125..LHD..(L,X)..GEN;GUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..M..DCR;GUN125..RHD..(H,L,S,X)..GEN;TGN126..(TDC,TSC)..(GCC,LA);GUN125..TDC..(GCC,LA,PH,VN);GUN126..6FC..(GCC,GEN,PH,VN);GUN126..LHD..(TDC,TSC)..6F..S;KUN126,TGN136..(5F,5FC)..S..(GEN,TH);KUN125..(TDC,TSC,TXT)..(H,L,S,X)..DCR;GUN126,TGN136..(TDC,TSC)..MTM..(H,M,X)..(GCC,GEN,LA,PH,VN);GGN125,GUN120,122,135..(MDC,TDC,TSC,TXT)..(6F,6FC)..(GCC,GEN,LA,MA,PH,TH,VN);GGN120,GUN112,122,123,KUN135,TGN111,121..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN)

 2
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-0K040

TGN126..L..GEN;KUN126..TDC..(H,L,M);GUN136..(ARL,TH)..CBU;GUN125..LHD..(TSC,TXT);GUN126..TDC..6FC..M..LA;GUN125..LHD..(L,X)..GEN;GUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..M..DCR;GUN125..RHD..(H,L,S,X)..GEN;TGN126..(TDC,TSC)..(GCC,LA);GUN125..TDC..(GCC,LA,PH,VN);GUN126..6FC..(GCC,GEN,PH,VN);GUN126..LHD..(TDC,TSC)..6F..S;KUN126,TGN136..(5F,5FC)..S..(GEN,TH);KUN125..(TDC,TSC,TXT)..(H,L,S,X)..DCR;GUN126,TGN136..(TDC,TSC)..MTM..(H,M,X)..(GCC,GEN,LA,PH,VN);GGN125,GUN120,122,135..(MDC,TDC,TSC,TXT)..(6F,6FC)..(GCC,GEN,LA,MA,PH,TH,VN);GGN120,GUN112,122,123,KUN135,TGN111,121..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN)

 2
41351 - WASHER, REAR DIFFERENTIAL PINION THRUST
41351-0K040

TGN126..L..GEN;KUN126..TDC..(H,L,M);GUN136..(ARL,TH)..CBU;GUN125..LHD..(TSC,TXT);GUN126..TDC..6FC..M..LA;GUN125..LHD..(L,X)..GEN;GUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..M..DCR;GUN125..RHD..(H,L,S,X)..GEN;TGN126..(TDC,TSC)..(GCC,LA);GUN125..TDC..(GCC,LA,PH,VN);GUN126..6FC..(GCC,GEN,PH,VN);GUN126..LHD..(TDC,TSC)..6F..S;KUN126,TGN136..(5F,5FC)..S..(GEN,TH);KUN125..(TDC,TSC,TXT)..(H,L,S,X)..DCR;GUN126,TGN136..(TDC,TSC)..MTM..(H,M,X)..(GCC,GEN,LA,PH,VN);GGN125,GUN120,122,135..(MDC,TDC,TSC,TXT)..(6F,6FC)..(GCC,GEN,LA,MA,PH,TH,VN);GGN120,GUN112,122,123,KUN135,TGN111,121..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN)

 2
41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-0K310

TGN126..L..GEN;KUN126..TDC..(H,L,M);GUN136..(ARL,TH)..CBU;GUN125..LHD..(TSC,TXT);GUN126..TDC..6FC..M..LA;GUN125..LHD..(L,X)..GEN;GUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..M..DCR;GUN125..RHD..(H,L,S,X)..GEN;TGN126..(TDC,TSC)..(GCC,LA);GUN125..TDC..(GCC,LA,PH,VN);GUN126..6FC..(GCC,GEN,PH,VN);GUN126..LHD..(TDC,TSC)..6F..S;KUN126,TGN136..(5F,5FC)..S..(GEN,TH);KUN125..(TDC,TSC,TXT)..(H,L,S,X)..DCR;GUN126,TGN136..(TDC,TSC)..MTM..(H,M,X)..(GCC,GEN,LA,PH,VN);GGN125,GUN120,122,135..(MDC,TDC,TSC,TXT)..(6F,6FC)..(GCC,GEN,LA,MA,PH,TH,VN);GGN120,GUN112,122,123,KUN135,TGN111,121..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN)

T=1.55

 2
41361-0K370

TGN126..L..GEN;KUN126..TDC..(H,L,M);GUN136..(ARL,TH)..CBU;GUN125..LHD..(TSC,TXT);GUN126..TDC..6FC..M..LA;GUN125..LHD..(L,X)..GEN;GUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..M..DCR;GUN125..RHD..(H,L,S,X)..GEN;TGN126..(TDC,TSC)..(GCC,LA);GUN125..TDC..(GCC,LA,PH,VN);GUN126..6FC..(GCC,GEN,PH,VN);GUN126..LHD..(TDC,TSC)..6F..S;KUN126,TGN136..(5F,5FC)..S..(GEN,TH);KUN125..(TDC,TSC,TXT)..(H,L,S,X)..DCR;GUN126,TGN136..(TDC,TSC)..MTM..(H,M,X)..(GCC,GEN,LA,PH,VN);GGN125,GUN120,122,135..(MDC,TDC,TSC,TXT)..(6F,6FC)..(GCC,GEN,LA,MA,PH,TH,VN);GGN120,GUN112,122,123,KUN135,TGN111,121..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN)

T=1.85

 2
41361-0K300

TGN126..L..GEN;KUN126..TDC..(H,L,M);GUN136..(ARL,TH)..CBU;GUN125..LHD..(TSC,TXT);GUN126..TDC..6FC..M..LA;GUN125..LHD..(L,X)..GEN;GUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..M..DCR;GUN125..RHD..(H,L,S,X)..GEN;TGN126..(TDC,TSC)..(GCC,LA);GUN125..TDC..(GCC,LA,PH,VN);GUN126..6FC..(GCC,GEN,PH,VN);GUN126..LHD..(TDC,TSC)..6F..S;KUN126,TGN136..(5F,5FC)..S..(GEN,TH);KUN125..(TDC,TSC,TXT)..(H,L,S,X)..DCR;GUN126,TGN136..(TDC,TSC)..MTM..(H,M,X)..(GCC,GEN,LA,PH,VN);GGN125,GUN120,122,135..(MDC,TDC,TSC,TXT)..(6F,6FC)..(GCC,GEN,LA,MA,PH,TH,VN);GGN120,GUN112,122,123,KUN135,TGN111,121..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN)

T=1.50

 2
41361-0K110

TGN126..L..GEN;KUN126..TDC..(H,L,M);GUN136..(ARL,TH)..CBU;GUN125..LHD..(TSC,TXT);GUN126..TDC..6FC..M..LA;GUN125..LHD..(L,X)..GEN;GUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..M..DCR;GUN125..RHD..(H,L,S,X)..GEN;TGN126..(TDC,TSC)..(GCC,LA);GUN125..TDC..(GCC,LA,PH,VN);GUN126..6FC..(GCC,GEN,PH,VN);GUN126..LHD..(TDC,TSC)..6F..S;KUN126,TGN136..(5F,5FC)..S..(GEN,TH);KUN125..(TDC,TSC,TXT)..(H,L,S,X)..DCR;GUN126,TGN136..(TDC,TSC)..MTM..(H,M,X)..(GCC,GEN,LA,PH,VN);GGN125,GUN120,122,135..(MDC,TDC,TSC,TXT)..(6F,6FC)..(GCC,GEN,LA,MA,PH,TH,VN);GGN120,GUN112,122,123,KUN135,TGN111,121..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN)

T=1.45

 2
41361-0K350

TGN126..L..GEN;KUN126..TDC..(H,L,M);GUN136..(ARL,TH)..CBU;GUN125..LHD..(TSC,TXT);GUN126..TDC..6FC..M..LA;GUN125..LHD..(L,X)..GEN;GUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..M..DCR;GUN125..RHD..(H,L,S,X)..GEN;TGN126..(TDC,TSC)..(GCC,LA);GUN125..TDC..(GCC,LA,PH,VN);GUN126..6FC..(GCC,GEN,PH,VN);GUN126..LHD..(TDC,TSC)..6F..S;KUN126,TGN136..(5F,5FC)..S..(GEN,TH);KUN125..(TDC,TSC,TXT)..(H,L,S,X)..DCR;GUN126,TGN136..(TDC,TSC)..MTM..(H,M,X)..(GCC,GEN,LA,PH,VN);GGN125,GUN120,122,135..(MDC,TDC,TSC,TXT)..(6F,6FC)..(GCC,GEN,LA,MA,PH,TH,VN);GGN120,GUN112,122,123,KUN135,TGN111,121..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN)

T=1.75

 2
41361-0K320

TGN126..L..GEN;KUN126..TDC..(H,L,M);GUN136..(ARL,TH)..CBU;GUN125..LHD..(TSC,TXT);GUN126..TDC..6FC..M..LA;GUN125..LHD..(L,X)..GEN;GUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..M..DCR;GUN125..RHD..(H,L,S,X)..GEN;TGN126..(TDC,TSC)..(GCC,LA);GUN125..TDC..(GCC,LA,PH,VN);GUN126..6FC..(GCC,GEN,PH,VN);GUN126..LHD..(TDC,TSC)..6F..S;KUN126,TGN136..(5F,5FC)..S..(GEN,TH);KUN125..(TDC,TSC,TXT)..(H,L,S,X)..DCR;GUN126,TGN136..(TDC,TSC)..MTM..(H,M,X)..(GCC,GEN,LA,PH,VN);GGN125,GUN120,122,135..(MDC,TDC,TSC,TXT)..(6F,6FC)..(GCC,GEN,LA,MA,PH,TH,VN);GGN120,GUN112,122,123,KUN135,TGN111,121..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN)

T=1.60

 2
41361-0K330

TGN126..L..GEN;KUN126..TDC..(H,L,M);GUN136..(ARL,TH)..CBU;GUN125..LHD..(TSC,TXT);GUN126..TDC..6FC..M..LA;GUN125..LHD..(L,X)..GEN;GUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..M..DCR;GUN125..RHD..(H,L,S,X)..GEN;TGN126..(TDC,TSC)..(GCC,LA);GUN125..TDC..(GCC,LA,PH,VN);GUN126..6FC..(GCC,GEN,PH,VN);GUN126..LHD..(TDC,TSC)..6F..S;KUN126,TGN136..(5F,5FC)..S..(GEN,TH);KUN125..(TDC,TSC,TXT)..(H,L,S,X)..DCR;GUN126,TGN136..(TDC,TSC)..MTM..(H,M,X)..(GCC,GEN,LA,PH,VN);GGN125,GUN120,122,135..(MDC,TDC,TSC,TXT)..(6F,6FC)..(GCC,GEN,LA,MA,PH,TH,VN);GGN120,GUN112,122,123,KUN135,TGN111,121..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN)

T=1.65

 2
41361-0K360

TGN126..L..GEN;KUN126..TDC..(H,L,M);GUN136..(ARL,TH)..CBU;GUN125..LHD..(TSC,TXT);GUN126..TDC..6FC..M..LA;GUN125..LHD..(L,X)..GEN;GUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..M..DCR;GUN125..RHD..(H,L,S,X)..GEN;TGN126..(TDC,TSC)..(GCC,LA);GUN125..TDC..(GCC,LA,PH,VN);GUN126..6FC..(GCC,GEN,PH,VN);GUN126..LHD..(TDC,TSC)..6F..S;KUN126,TGN136..(5F,5FC)..S..(GEN,TH);KUN125..(TDC,TSC,TXT)..(H,L,S,X)..DCR;GUN126,TGN136..(TDC,TSC)..MTM..(H,M,X)..(GCC,GEN,LA,PH,VN);GGN125,GUN120,122,135..(MDC,TDC,TSC,TXT)..(6F,6FC)..(GCC,GEN,LA,MA,PH,TH,VN);GGN120,GUN112,122,123,KUN135,TGN111,121..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN)

T=1.80

 2
41361-0K340

TGN126..L..GEN;KUN126..TDC..(H,L,M);GUN136..(ARL,TH)..CBU;GUN125..LHD..(TSC,TXT);GUN126..TDC..6FC..M..LA;GUN125..LHD..(L,X)..GEN;GUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..M..DCR;GUN125..RHD..(H,L,S,X)..GEN;TGN126..(TDC,TSC)..(GCC,LA);GUN125..TDC..(GCC,LA,PH,VN);GUN126..6FC..(GCC,GEN,PH,VN);GUN126..LHD..(TDC,TSC)..6F..S;KUN126,TGN136..(5F,5FC)..S..(GEN,TH);KUN125..(TDC,TSC,TXT)..(H,L,S,X)..DCR;GUN126,TGN136..(TDC,TSC)..MTM..(H,M,X)..(GCC,GEN,LA,PH,VN);GGN125,GUN120,122,135..(MDC,TDC,TSC,TXT)..(6F,6FC)..(GCC,GEN,LA,MA,PH,TH,VN);GGN120,GUN112,122,123,KUN135,TGN111,121..(PSC,TDC,TSC,TXT)..(ARL,GCC,GEN,LA,PKN,VN)

T=1.70

 2
Common parts
41245-0K010
90148-T0021
90151-A0006
90151-T0004

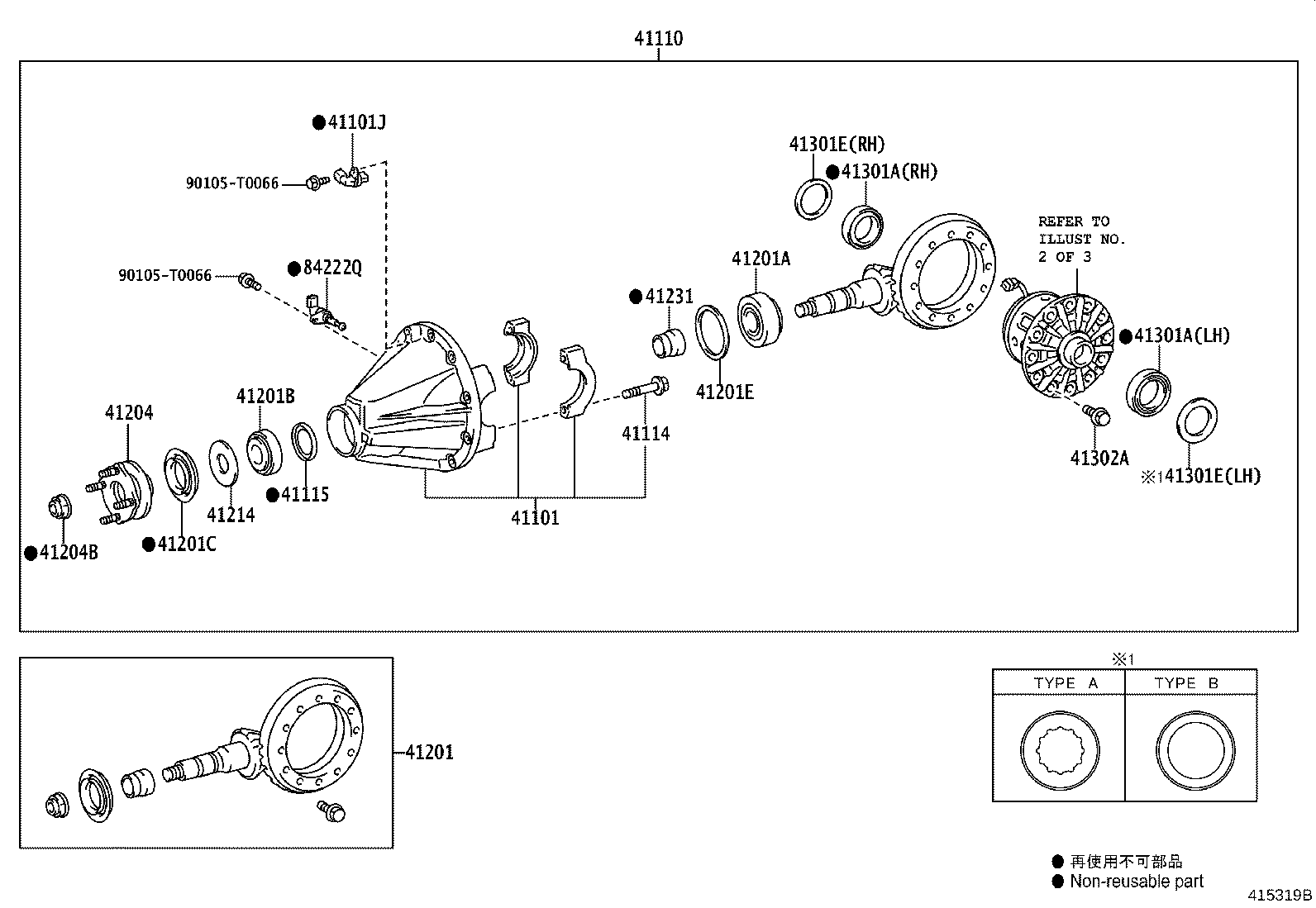

ILLUST NO. 1 OF 3(2006- )GGN125,GUN126,136..MD,MMD,PD,PS,TD,TS,TX ; (2006- )GUN125..MD,MS,TS,T

Click highlighted areas on diagram

W(DIFFERENTIAL LOCK)

diagram 41101 41101J 41110 41114 41115 41201 41201A 41201B 41201C 41201E 41204 41204B 41214 41231 41301A 41301A 41301E 41301E 41302A 84222Q 90105T0066 90105T0066
Part # Description Qty Price
Common parts
90105-T0066

ILLUST NO. 2 OF 3(2006- )ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR,PH,PKN,SA,TH,TWN,VN

Click highlighted areas on diagram

W(DIFFERENTIAL LOCK)

diagram 41039 412450K010 41301D 41302 41303E 41342 41342M 41342M 41343 41343 41351 41351 41351 41351 41361 41362 41363 41367 41417 41433A 41451H 41474A 90148T0021
Part # Description Qty Price
Common parts
41245-0K010
90148-T0021

ILLUST NO. 3 OF 3(2006- )GGN125,GUN125,126,13#,TGN126,128,13#..ARL,BZAG,GCC,GEN,IDN,KEN,LA,MA,MMR

Click highlighted areas on diagram

diagram 04412 41101G 41101H 41110A 41171 42110 42110A 42110B 42110C 42110D 42110E 42181 42306A 42306B 42306C 42306D 42306F 8202 8202 8202 90105T0053 90119T0126 90119T0314
Part # Description Qty Price
Common parts
90105-T0053
90119-T0126
90119-T0314
Linked diagrams
8202
