GUN136R-DTTSHQ (2015)
Toyota Hilux

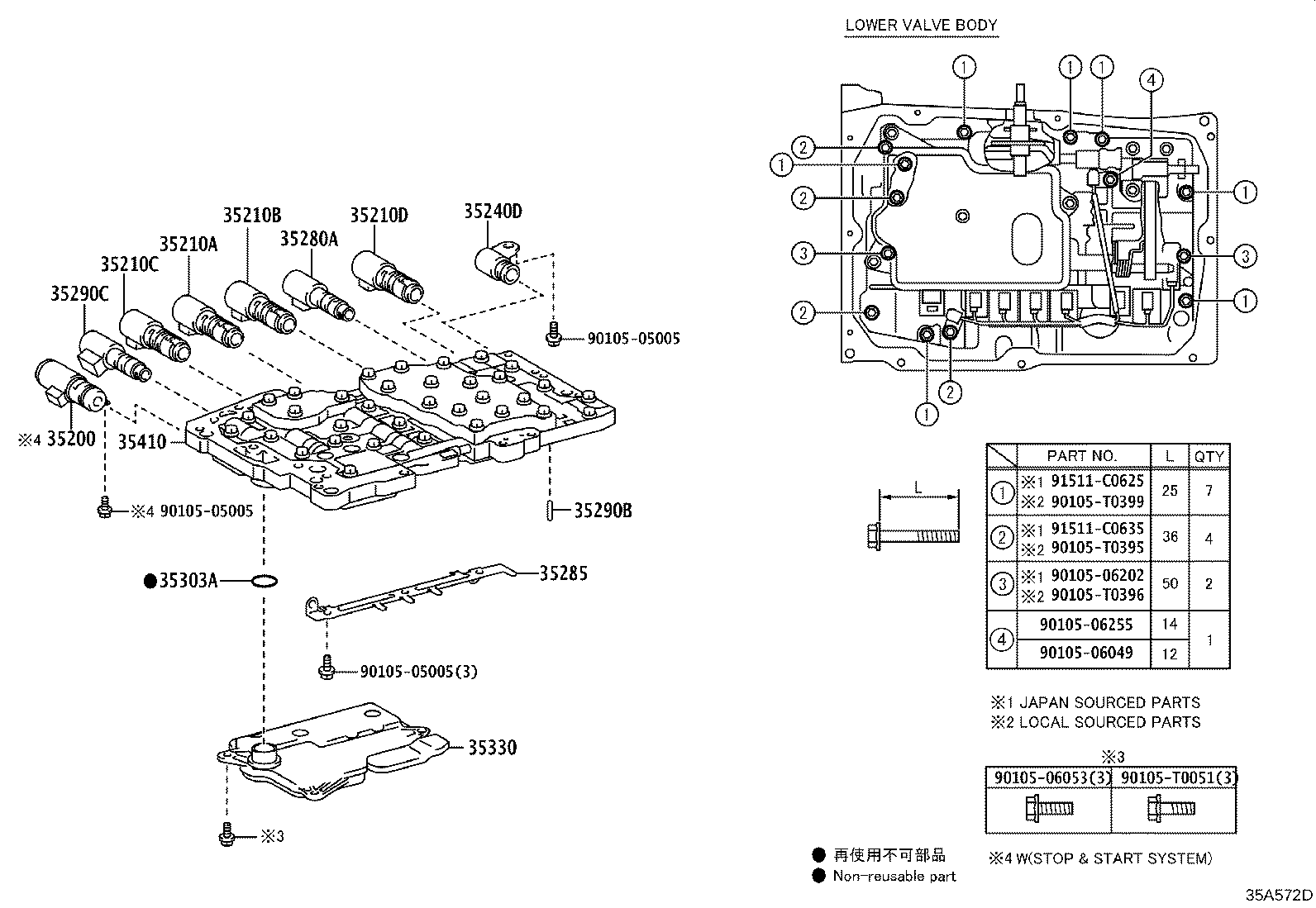

ILLUST NO. 1 OF 2(1505- )ADC,KDC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT..6FC
AC60E,AC60F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35210A - VALVE, SOLENOID(SL1) | ||||
| 35210-71010 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,TGN121,126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC |
1 | ||
| 35210B - VALVE, SOLENOID(SL3) | ||||
| 35210-71010 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,TGN121,126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC |
1 | ||
| 35210C - VALVE, SOLENOID(SL2) | ||||
| 35210-71010 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,TGN121,126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC |
1 | ||
| 35210D - VALVE, SOLENOID(SL4) | ||||
| 35210-71010 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,TGN121,126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC |
1 | ||
| 35240D - VALVE, SOLENOID(SL) | ||||
| 35240-71010 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,TGN121,126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC |
1 | ||
| 35280A - VALVE, SOLENOID(SLU) | ||||
| 35280-71010 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,TGN121,126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-71010 |
GUN125,126,13#,TGN121,126,136..(TDC,TSC,TXT)..6FC |
1 | ||
| 35290B - PIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID) | ||||
| 90250-03045 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,TGN121,126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC |
6 | ||
| 35290C - VALVE, SOLENOID(SLT) | ||||
| 35290-71020 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,TGN121,126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC |
1 | ||
| 35303A - RING, O (FOR OIL STRAINER) | ||||
| 90301-27010 |
GUN125,126,13#,TGN121,126,136..(TDC,TSC,TXT)..6FC |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-71010 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,TGN121,126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-71101 |
GUN126..6FC..(M,S);GGN12#,GUN125,13#,TGN121,126,136..6FC |
1 | ||
| 35410-71102 |
GUN126..(TDC,TSC)..6FC..(ARL,LA,PH,VN);GUN125,13#,TGN121,126,136..(TDC,TSC,TXT)..6FC |
1 | ||
| 35410-0K010 |
GUN120,125,13#,TGN121,126,136..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN) (L) |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90105-06049 | ||||
| 90105-06053 | ||||
| 90105-06202 | ||||
| 90105-T0051 | ||||
| 90105-T0395 | ||||
| 90105-T0396 | ||||
| 90105-T0399 | ||||
| 91511-C0625 | ||||
| 91511-C0635 | ||||
ILLUST NO. 2 OF 2(1505- )ADC,KDC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT..6FC
AC60E,AC60F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35482B - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-73010 |
TGN126..LHD..TDC..6FC;GUN125..(TDC,TXT)..6FC..IV3;GUN125..(TDC,TSC)..6FC..CBU;GUN126..(TDC,TSC,TXT)..6FC..(H,M,S,X);GUN120,13#,TGN121..(TDC,TSC,TXT)..6FC |
2 | ||
| 35482B - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-73010 |
TGN126..LHD..TDC..6FC;GUN125..(TDC,TXT)..6FC..IV3;GUN125..(TDC,TSC)..6FC..CBU;GUN126..(TDC,TSC,TXT)..6FC..(H,M,S,X);GUN120,13#,TGN121..(TDC,TSC,TXT)..6FC |
2 | ||
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-71020 |
GUN126..6FC..(ARL,BZAGT,LA,MA,PH,SA,VN);GGN12#,135,GUN125,13#,TGN121,126,128,13#..6FC |
1 | ||
| 82125-71020 |
GGN12#,135,GUN125,13#,TGN121,126,128,13#..6FC;GUN126..6FC..(ARL,BZAGT,GCC,GEN,LA,MA,PH,PKN,SA,VN) (J) |
1 | ||
| 82125-71021 |
GUN125,126..6FC..(ARL,BZAGT,GCC,GEN,IDN,LA,PH,PKN,SA,TAIW,VN);GGN125,GUN120,13#,TGN121,126,128,138..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC (J) |
1 | ||
| 82125-0K010 |
GUN125,126..6FC..(ARL,BZAGT,GCC,GEN,IDN,LA,PH,PKN,SA,TAIW,VN);GGN12#,135,GUN120,13#,TGN121,126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC (L) |
1 | ||
| 82125L - RING, O(FOR TRANSMISSION WIRE) | ||||
| 90301-36014 |
GUN125,126..(ADC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC;GGN12#,135,GUN120,13#,TGN121,126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC |
1 | ||
| 89429K - RING, O(FOR OIL TEMPERATURE SENSOR) | ||||
| 90301-06004 |
GUN125,126..6FC..(ARL,BZAGT,GCC,GEN,IDN,LA,PH,PKN,SA,TAIW,VN);GGN12#,135,GUN120,13#,TGN121,126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC |
2 | ||
| 89429K - RING, O(FOR OIL TEMPERATURE SENSOR) | ||||
| 90301-06004 |
GUN125,126..6FC..(ARL,BZAGT,GCC,GEN,IDN,LA,PH,PKN,SA,TAIW,VN);GGN12#,135,GUN120,13#,TGN121,126,128,13#..(ADC,MDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC |
2 | ||
| Common parts | ||||
| 90105-06049 | ||||
| 91511-C0635 | ||||
| 91611-B0614 | ||||
| Linked diagrams | ||||
| 8410 | ||||
ILLUST NO. 1 OF 2(2006- )AD,KD,MD,MMD,PD,SD,SS,SX,TD,TS,TX..6FC
AC60E,AC60F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05005 | ||||
| 90105-06049 | ||||
| 90105-06053 | ||||
| 90105-06202 | ||||
| 90105-06255 | ||||
| 90105-T0051 | ||||
| 90105-T0395 | ||||
| 90105-T0396 | ||||
| 90105-T0399 | ||||
| 91511-C0625 | ||||
| 91511-C0635 | ||||
ILLUST NO. 2 OF 2(2006- )AD,KD,MD,MMD,PD,SD,SS,SX,TD,TS,TX..6FC
AC60E,AC60F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-06255 | ||||
| 90105-T0395 | ||||
| 91511-C0635 | ||||
| 91611-B0614 | ||||
| Linked diagrams | ||||
| 8410 | ||||
