GUN136L-DGFSJG (2015)

Toyota Hilux

Production Nov 2015 - Jul 2018
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

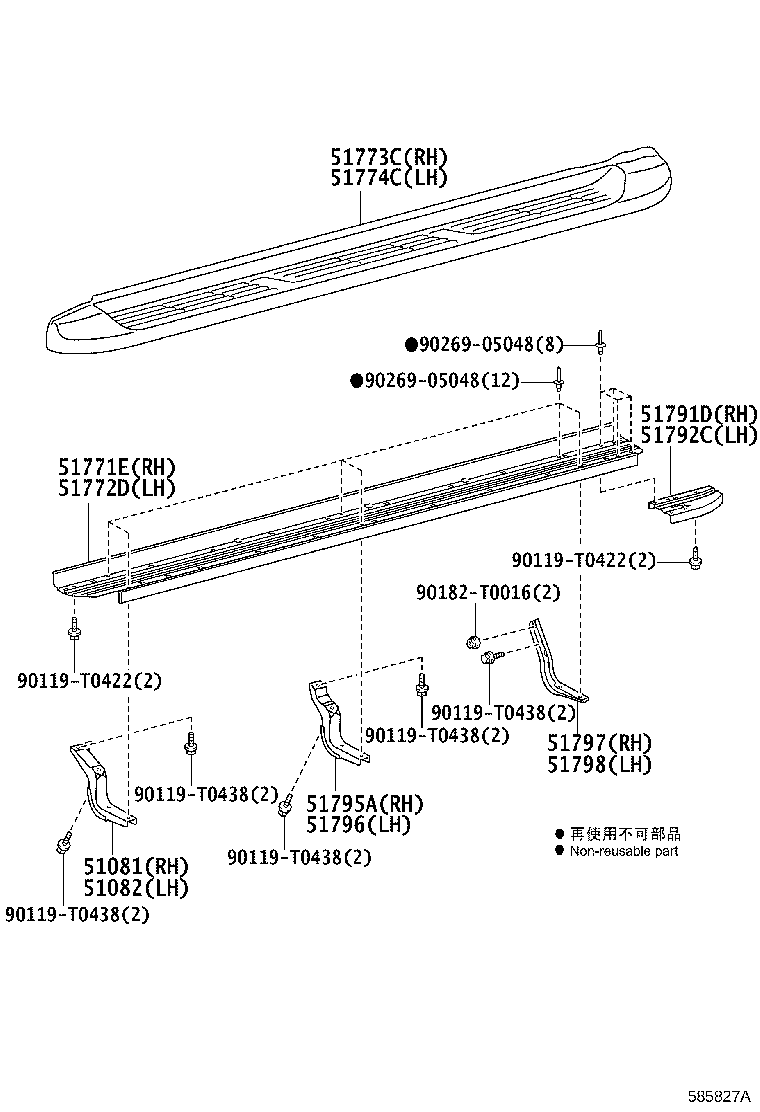

ILLUST NO. 3 OF 3(1511- )ADC

Click highlighted areas on diagram

SIDE STEP

diagram 51081 51082 51771E 51772D 51773C 51774C 51791D 51792C 51795A 51796 51797 51798 90119T0422 90119T0422 90119T0438 90119T0438 90119T0438 90119T0438 90119T0438 90182T0016 9026905048 9026905048
Part # Description Qty Price
51791D - PANEL, STEP, REAR RH
51791-0K070

GUN126..ADC..BZAGT;TGN126,136..ADC..M;TGN136..ADC..X..BZAGT;GUN125,13#,KUN136..ADC;GUN126,KUN126..ADC..M..LA

 1
51792C - PANEL, STEP, REAR LH
51792-0K070

GUN126..ADC..BZAGT;TGN126,136..ADC..M;TGN136..ADC..X..BZAGT;GUN125,13#,KUN136..ADC;GUN126,KUN126..ADC..M..LA

 1
Common parts
90119-T0422
90119-T0438
90182-T0016
90269-05048
