GUN136L-DGFSJG (2015)

Toyota Hilux

Production Nov 2015 - Jul 2018
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )GUN122,135,TGN120..5F,6FC..SA..CBU ;(1511- )GGN135,GUN136,KUN122,13#

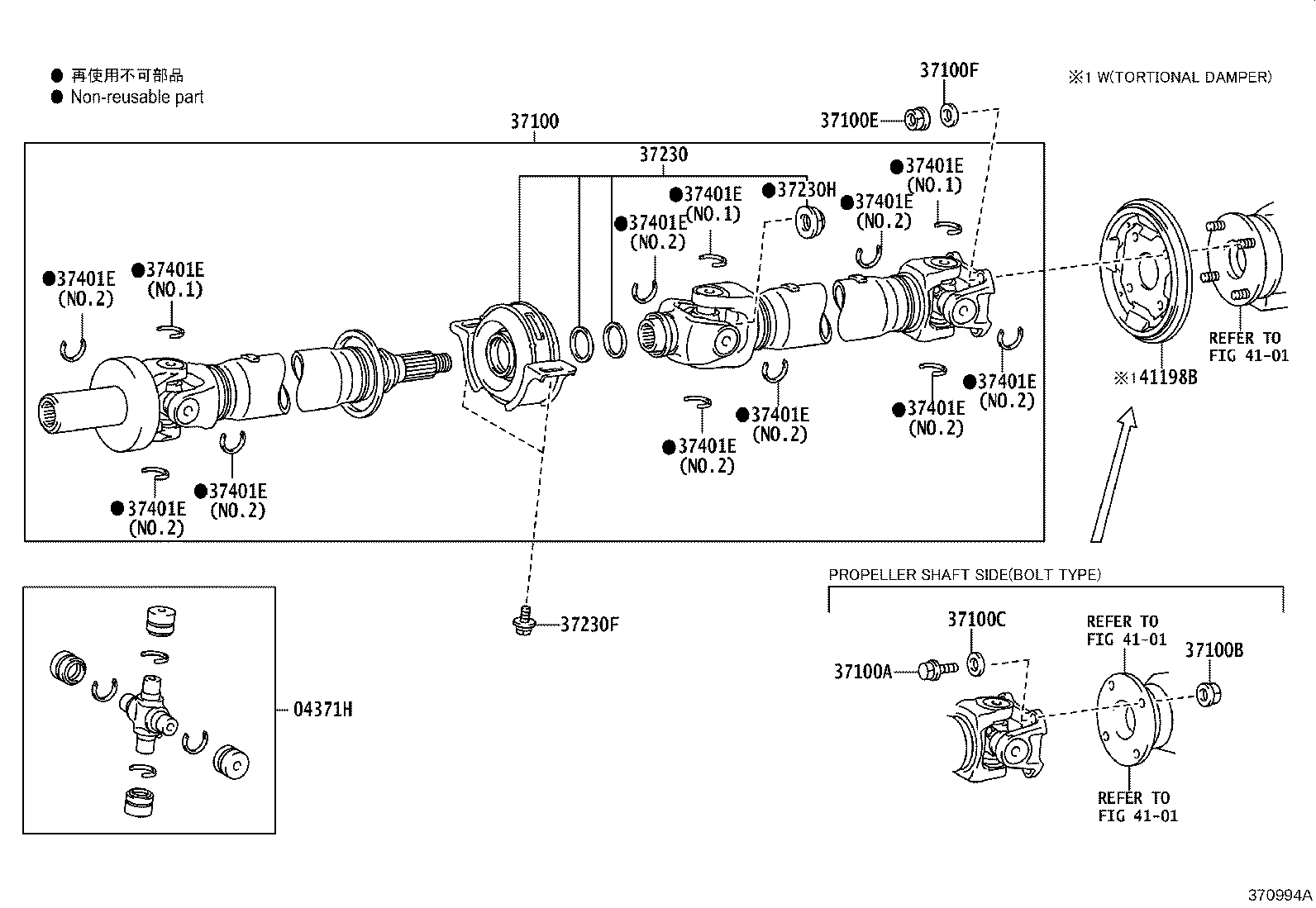

Click highlighted areas on diagram

diagram 04371H 37100 37100A 37100B 37100C 37100E 37100F 37230 37230F 37230H 37401E 37401E 37401E 37401E 37401E 37401E 37401E 37401E 37401E 37401E 37401E 37401E 4101 4101 4101 41198B
Part # Description Qty Price
37100E - NUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90178-T0024

TGN136..5F;GUN120,122,13#..(6F,6FC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);GGN120,135,GUN112,122,123,KUN13#,LAN125,TGN111,121,138..ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN

 4
90178-T0024

TGN136..5F;GUN120,122,13#..(6F,6FC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);GGN120,135,GUN112,122,123,KUN13#,LAN125,TGN111,121,138..ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN

 4
37100F - WASHER, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90201-T0003

TGN136..5F;GUN120,122,13#..(6F,6FC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);GGN120,135,GUN112,122,123,KUN13#,LAN125,TGN111,121,138..ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN

 4
90201-T0003

TGN136..5F;GUN120,122,13#..(6F,6FC)..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH,VN);GGN120,135,GUN112,122,123,KUN13#,LAN125,TGN111,121,138..ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN

 4
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37230-09050

GUN125,126,13#,KUN125,126,13#,TGN126,136..ADC,ASC

 1
37230-09050

GUN125,126,13#,KUN125,126,13#,TGN126,136..ADC,ASC

 1
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-T0148

GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 2
90119-T0148

GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,13#..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 2
41198B - DAMPER, DIFFERENTIAL MASS
41197-0K020

KUN13#;GUN136..6F..H;GUN136..ADC..LA;GUN135..6F..S..VN;GUN135..(ASC,SSC)..X..(LA,SA)

 1
41197-0K020

KUN13#;GUN136..6F..H;GUN136..ADC..LA;GUN135..6F..S..VN;GUN135..(ASC,SSC)..X..(LA,SA)

 1
41197-0K020

GUN135..L..VN;GUN13#..6F..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH)

 1
41197-0K020

GUN135..L..VN;GUN13#..6F..(ARL,BZAGT,GEN,LA,MA,PH,SA,TH)

 1
Linked diagrams
4101
