GUN135R-CTFSXT (2020)

Toyota Hilux

Production Jun 2020 - Aug 2021
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

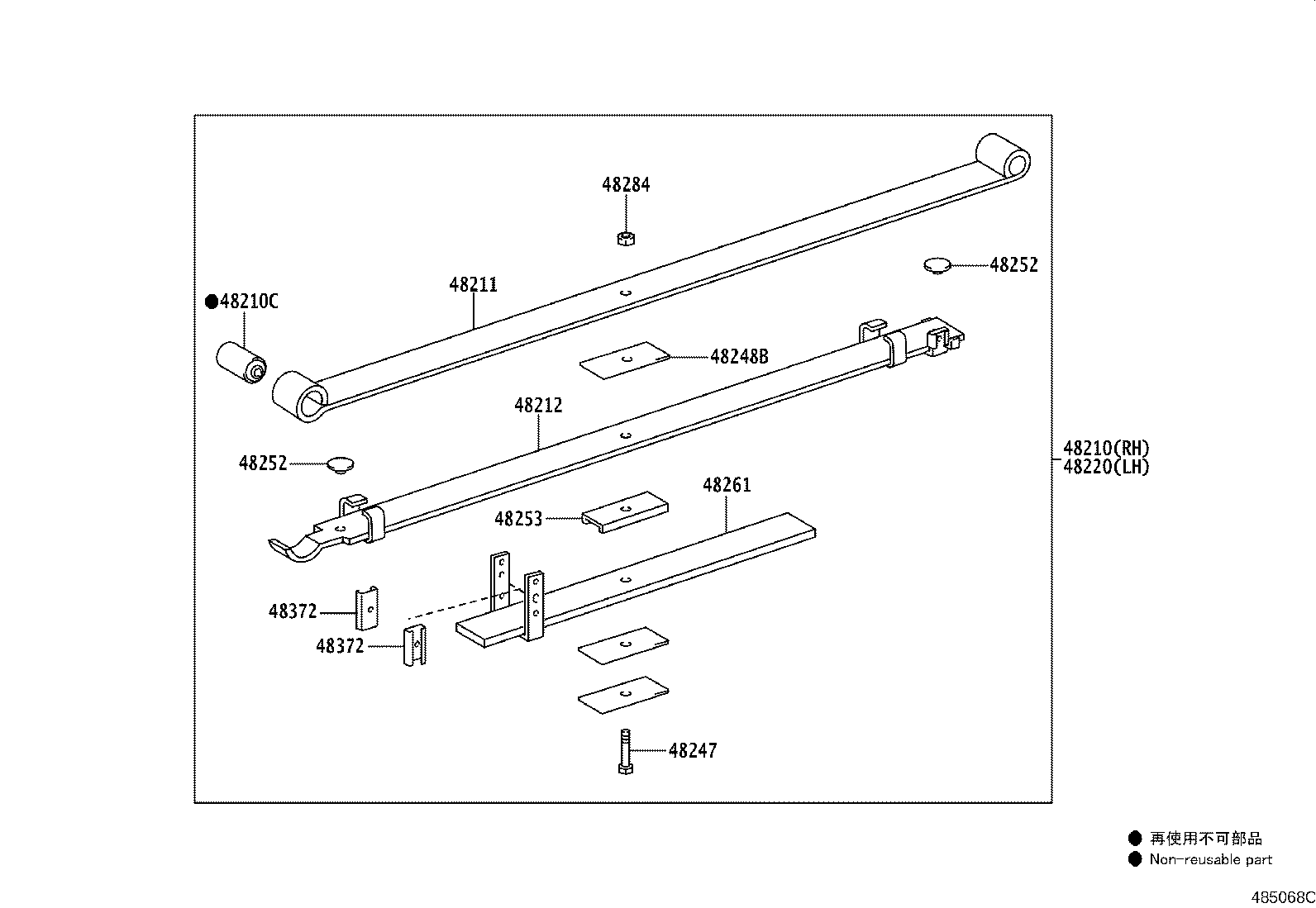

ILLUST NO. 2 OF 2(2006- )GUN125,126,135..TD,TX..TH

Click highlighted areas on diagram

3-LEAF

diagram 48210 48210C 48211 48212 48220 48247 48248B 48252 48252 48253 48261 48284 48372 48372
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-0KD70

GUN135..L..TH

3-LEAF

 1
48210-0KD60

GUN125,126,135..(H,S)..TH

3-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-T0031

GGN125,GUN125,126,13#,LAN125,TGN126,136..KD,MD,MMD,SD,SX,TD,TX

 4
48211 - LEAF, REAR SPRING, NO.1
48201-0KD60

GUN125,126,135..(H,S)..TH

 2
48201-0KD70

GUN135..L..TH

 2
48212 - LEAF, REAR SPRING, NO.2
48203-0KD60

GUN125,126,135..(H,S)..TH

 2
48212-0KD70

GUN135..L..TH

 2
48220 - SPRING ASSY, REAR LH
48210-0KD60

GUN125,126,135..(H,S)..TH

3-LEAF

 1
48210-0KD70

GUN135..L..TH

3-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-0K540

GGN125,GUN112,125,126,13#,TGN11#,126,136..MMD,TD,TS,TX

 2
48248B - SPACER, REAR SPRING, NO.3
48248-0K020

GUN122..TX..S;GUN122..TD..TH;GUN120,125,126,135..(TD,TX)..TH

 2
48252 - SILENCER, REAR SPRING
48252-0KC60

GUN125,126,135..(TD,TX)..TH

 4
48252 - SILENCER, REAR SPRING
48252-0KC60

GUN125,126,135..(TD,TX)..TH

 4
48253 - SPACER, REAR SPRING, NO.1
48253-0K010

GGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MMD,TD,TS,TX

 2
48261 - LEAF, REAR HELPER SPRING, NO.1
48207-0KD70

GUN135..L..TH

 2
48207-0KD60

GUN125,126,135..(H,S)..TH

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-0K310

GGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MMD,TD,TS,TX

 2
48372 - PAD, REAR SPRING
48372-0K030

GGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MMD,TD,TS,TX

 4
48372 - PAD, REAR SPRING
48372-0K030

GGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MMD,TD,TS,TX

 4

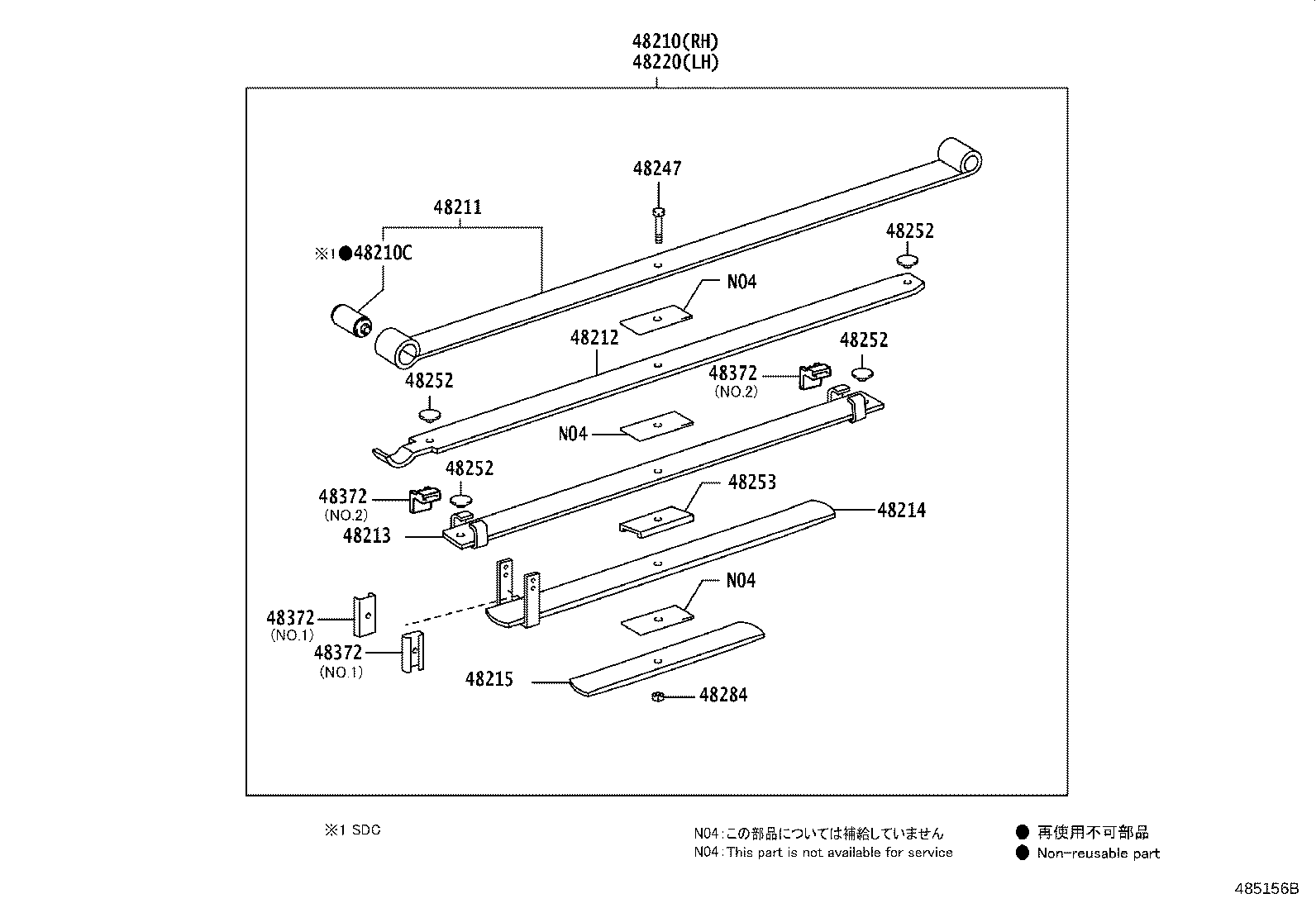

ILLUST NO. 2 OF 2(2009- )GGN125,GUN122,TGN120,121,126..SA ; (2009- )GUN125,126,13#,LAN125,TGN1

Click highlighted areas on diagram

5-LEAF

diagram 48210 48210C 48211 48212 48213 48214 48215 48220 48247 48252 48252 48252 48252 48253 48284 48372 48372 48372 48372
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-0KD70

GUN135..L..TH

3-LEAF

 1
48210-0KD60

GUN125,126,135..(H,S)..TH

3-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-T0031

GGN125,GUN125,126,13#,LAN125,TGN126,136..KD,MD,MMD,SD,SX,TD,TX

 4
48211 - LEAF, REAR SPRING, NO.1
48201-0KD60

GUN125,126,135..(H,S)..TH

 2
48201-0KD70

GUN135..L..TH

 2
48212 - LEAF, REAR SPRING, NO.2
48203-0KD60

GUN125,126,135..(H,S)..TH

 2
48212-0KD70

GUN135..L..TH

 2
48220 - SPRING ASSY, REAR LH
48210-0KD60

GUN125,126,135..(H,S)..TH

3-LEAF

 1
48210-0KD70

GUN135..L..TH

3-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-0K540

GGN125,GUN112,125,126,13#,TGN11#,126,136..MMD,TD,TS,TX

 2
48252 - SILENCER, REAR SPRING
48252-0KC60

GUN125,126,135..(TD,TX)..TH

 4
48252 - SILENCER, REAR SPRING
48252-0KC60

GUN125,126,135..(TD,TX)..TH

 4
48252 - SILENCER, REAR SPRING
48252-0KC60

GUN125,126,135..(TD,TX)..TH

 4
48252 - SILENCER, REAR SPRING
48252-0KC60

GUN125,126,135..(TD,TX)..TH

 4
48253 - SPACER, REAR SPRING, NO.1
48253-0K010

GGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MMD,TD,TS,TX

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-0K310

GGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MMD,TD,TS,TX

 2
48372 - PAD, REAR SPRING
48372-0K030

GGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MMD,TD,TS,TX

 4
48372 - PAD, REAR SPRING
48372-0K030

GGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MMD,TD,TS,TX

 4
48372 - PAD, REAR SPRING
48372-0K030

GGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MMD,TD,TS,TX

 4
48372 - PAD, REAR SPRING
48372-0K030

GGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MMD,TD,TS,TX

 4

ILLUST NO. 2 OF 2(2006- )GGN125,GUN125,126,13#,TGN126,136..AD,KD,MD,MMD,PD,SD,SX,TD,TX

Click highlighted areas on diagram

5-LEAF

diagram 48210 48210C 48211 48212 48213 48214 48220 48247 48252 48252 48252 48252 48252 48252 48253 48261 48284 48372 48372 48372 48372
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-0KD70

GUN135..L..TH

3-LEAF

 1
48210-0KD60

GUN125,126,135..(H,S)..TH

3-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-T0031

GGN125,GUN125,126,13#,LAN125,TGN126,136..KD,MD,MMD,SD,SX,TD,TX

 4
48211 - LEAF, REAR SPRING, NO.1
48201-0KD60

GUN125,126,135..(H,S)..TH

 2
48201-0KD70

GUN135..L..TH

 2
48212 - LEAF, REAR SPRING, NO.2
48203-0KD60

GUN125,126,135..(H,S)..TH

 2
48212-0KD70

GUN135..L..TH

 2
48220 - SPRING ASSY, REAR LH
48210-0KD60

GUN125,126,135..(H,S)..TH

3-LEAF

 1
48210-0KD70

GUN135..L..TH

3-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48247-0K540

GGN125,GUN112,125,126,13#,TGN11#,126,136..MMD,TD,TS,TX

 2
48252 - SILENCER, REAR SPRING
48252-0KC60

GUN125,126,135..(TD,TX)..TH

 4
48252 - SILENCER, REAR SPRING
48252-0KC60

GUN125,126,135..(TD,TX)..TH

 4
48252 - SILENCER, REAR SPRING
48252-0KC60

GUN125,126,135..(TD,TX)..TH

 4
48252 - SILENCER, REAR SPRING
48252-0KC60

GUN125,126,135..(TD,TX)..TH

 4
48252 - SILENCER, REAR SPRING
48252-0KC60

GUN125,126,135..(TD,TX)..TH

 4
48252 - SILENCER, REAR SPRING
48252-0KC60

GUN125,126,135..(TD,TX)..TH

 4
48253 - SPACER, REAR SPRING, NO.1
48253-0K010

GGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MMD,TD,TS,TX

 2
48261 - LEAF, REAR HELPER SPRING, NO.1
48207-0KD70

GUN135..L..TH

 2
48207-0KD60

GUN125,126,135..(H,S)..TH

 2
48284 - NUT, REAR SPRING CENTER BOLT
48284-0K310

GGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MMD,TD,TS,TX

 2
48372 - PAD, REAR SPRING
48372-0K030

GGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MMD,TD,TS,TX

 4
48372 - PAD, REAR SPRING
48372-0K030

GGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MMD,TD,TS,TX

 4
48372 - PAD, REAR SPRING
48372-0K030

GGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MMD,TD,TS,TX

 4
48372 - PAD, REAR SPRING
48372-0K030

GGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MMD,TD,TS,TX

 4
