GUN126L-DTFXHF (2016)
Toyota Hilux

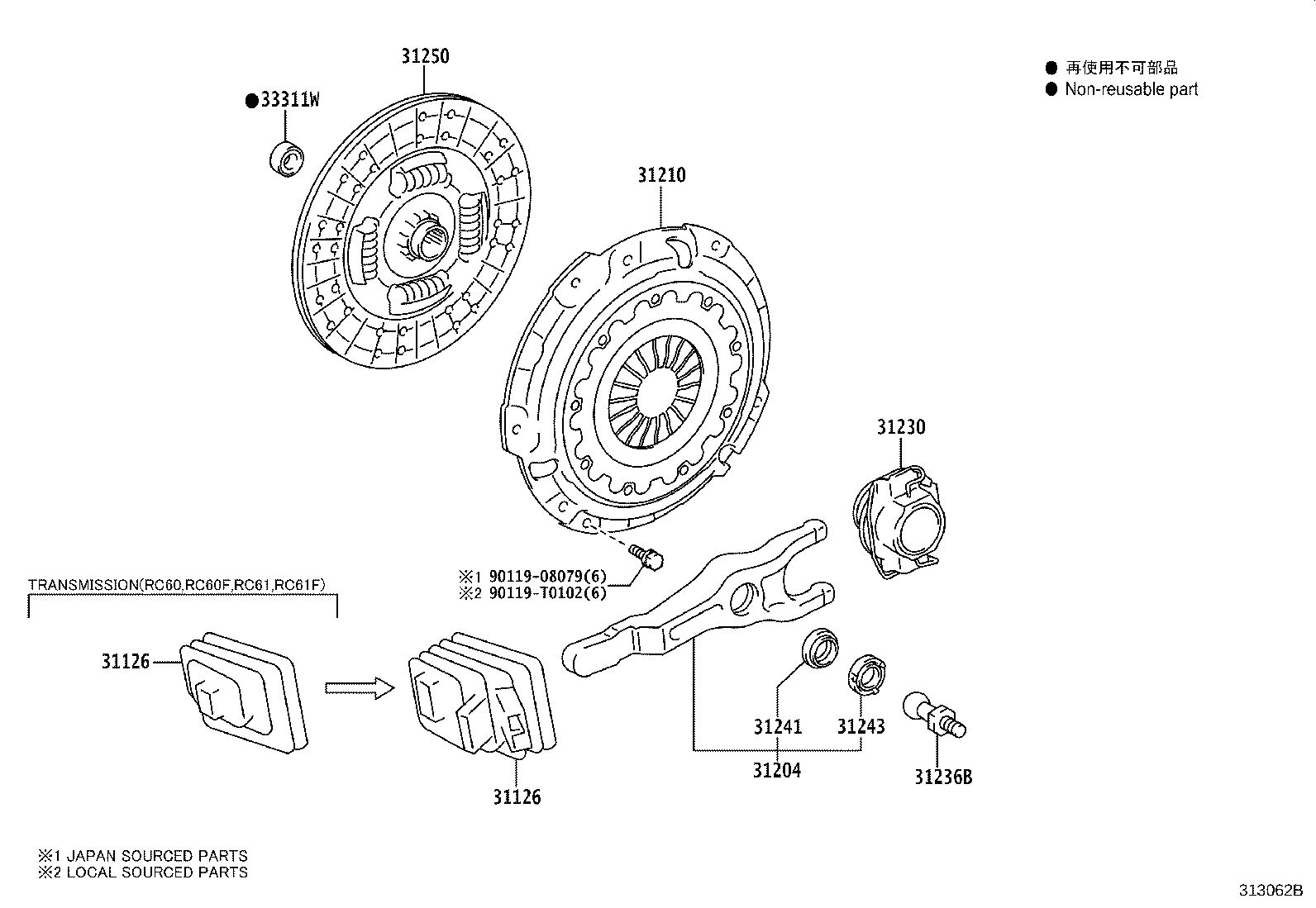

(1505- )KUN112,12#,13#..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-0K080 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F |
1 | ||
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-0K080 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F |
1 | ||
| 31204 - FORK SUB-ASSY, CLUTCH RELEASE | ||||
| 31204-0K110 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,KUN122,126..MTM..(ARL,BZAGT,GCC,GEN,LA,PH,PKN,SA,TH,VN);GUN112,122,123,KUN112,125,13#..(ADC,ASC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE B:REFER 33-01 |
1 | ||
| 31204-0K110 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,12#,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE A:REFER 33-01 |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-0K280 |
GUN125,126,13#..(MDC,MSC,TDC,TSC,TXT)..6F |
1 | ||
| 31210-0K281 |
GUN125..(TSC,TXT)..6F;GUN126,13#..(MDC,PDC,PSC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN) |
1 | ||
| 31230 - BEARING ASSY, CLUTCH RELEASE | ||||
| 31230-71051 |
GUN112,122,123,125,126,13#..MTM TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
1 | ||
| 31230-71050 |
GUN112,12#,13#,KUN125,126,13#..MTM TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
1 | ||
| 31230-71052 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE A:REFER 33-01 |
1 | ||
| 31230-71052 |
GUN112,122,123..SDC,SSC,TDC,TSC,TXT;GUN13#..6F..(BZAGT,GEN,LA,PH,SA,TH,VN);GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126..6F..(ARL,BZAGT,GCC,GEN,LA,PH,PKN,SA,TH) TYPE B:REFER 33-01 |
1 | ||
| 31236B - SUPPORT, RELEASE FORK | ||||
| 31236-0K010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE A:REFER 33-01 |
1 | ||
| 31236-0K010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE B:REFER 33-01 |
1 | ||
| 31241 - SEAL, CLUTCH RELEASE FORK DUST | ||||
| 31241-71010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,KUN122,126..MTM..(ARL,BZAGT,GCC,GEN,LA,PH,PKN,SA,TH,VN);GUN112,122,123,KUN112,125,13#..(ADC,ASC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE B:REFER 33-01 |
1 | ||
| 31241-71010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,12#,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE A:REFER 33-01 |
1 | ||
| 31243 - COLLAR, CLUTCH RELEASE FORK | ||||
| 31243-0K010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,KUN122,126..MTM..(ARL,BZAGT,GCC,GEN,LA,PH,PKN,SA,TH,VN);GUN112,122,123,KUN112,125,13#..(ADC,ASC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE B:REFER 33-01 |
1 | ||
| 31243-0K010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,12#,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE A:REFER 33-01 |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-0K280 |
GUN135..L..VN;GUN125,136..(MDC,MSC,TDC,TSC,TXT)..6F;GUN126,135..(MDC,TDC,TSC,TXT)..6F..(ARL,GCC,GEN,LA,MA,PH,TH) |
1 | ||
| 31250-0K281 |
GUN125..(TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#..(MDC,PDC,PSC,TDC,TSC,TXT)..6F |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 90363-T0006 |
KUN12#,135..MTM;GUN125..(ADC,ASC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,136..(ADC,ASC,MDC,PDC,PSC,TDC,TSC,TXT)..MTM |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90119-T0102 | ||||
(1505- )GUN125,126..MDC,MSC,TDC,TSC,TXT..6F ;(1505- )GUN135..ASC,MDC,TDC,TSC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-0K080 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F |
1 | ||
| 31126-0K080 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F |
1 | ||
| 31126-0K080 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F |
1 | ||
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-0K080 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F |
1 | ||
| 31126-0K080 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F |
1 | ||
| 31126-0K080 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F |
1 | ||
| 31204 - FORK SUB-ASSY, CLUTCH RELEASE | ||||
| 31204-0K110 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,KUN122,126..MTM..(ARL,BZAGT,GCC,GEN,LA,PH,PKN,SA,TH,VN);GUN112,122,123,KUN112,125,13#..(ADC,ASC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE B:REFER 33-01 |
1 | ||
| 31204-0K110 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,KUN122,126..MTM..(ARL,BZAGT,GCC,GEN,LA,PH,PKN,SA,TH,VN);GUN112,122,123,KUN112,125,13#..(ADC,ASC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE B:REFER 33-01 |
1 | ||
| 31204-0K110 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,KUN122,126..MTM..(ARL,BZAGT,GCC,GEN,LA,PH,PKN,SA,TH,VN);GUN112,122,123,KUN112,125,13#..(ADC,ASC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE B:REFER 33-01 |
1 | ||
| 31204-0K110 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,12#,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE A:REFER 33-01 |
1 | ||
| 31204-0K110 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,12#,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE A:REFER 33-01 |
1 | ||
| 31204-0K110 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,12#,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE A:REFER 33-01 |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-0K280 |
GUN125,126,13#..(MDC,MSC,TDC,TSC,TXT)..6F |
1 | ||
| 31210-0K280 |
GUN125,126,13#..(MDC,MSC,TDC,TSC,TXT)..6F |
1 | ||
| 31210-0K280 |
GUN125,126,13#..(MDC,MSC,TDC,TSC,TXT)..6F |
1 | ||
| 31210-0K281 |
GUN125..(TSC,TXT)..6F;GUN126,13#..(MDC,PDC,PSC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN) |
1 | ||
| 31210-0K281 |
GUN125..(TSC,TXT)..6F;GUN126,13#..(MDC,PDC,PSC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN) |
1 | ||
| 31210-0K281 |
GUN125..(TSC,TXT)..6F;GUN126,13#..(MDC,PDC,PSC,TDC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN) |
1 | ||
| 31230 - BEARING ASSY, CLUTCH RELEASE | ||||
| 31230-71051 |
GUN112,122,123,125,126,13#..MTM TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
1 | ||
| 31230-71051 |
GUN112,122,123,125,126,13#..MTM TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
1 | ||
| 31230-71051 |
GUN112,122,123,125,126,13#..MTM TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
1 | ||
| 31230-71050 |
GUN112,12#,13#,KUN125,126,13#..MTM TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
1 | ||
| 31230-71050 |
GUN112,12#,13#,KUN125,126,13#..MTM TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
1 | ||
| 31230-71050 |
GUN112,12#,13#,KUN125,126,13#..MTM TYPE B:REFER 33-01,TYPE A:REFER 33-01 |
1 | ||
| 31230-71052 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE A:REFER 33-01 |
1 | ||
| 31230-71052 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE A:REFER 33-01 |
1 | ||
| 31230-71052 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE A:REFER 33-01 |
1 | ||
| 31230-71052 |
GUN112,122,123..SDC,SSC,TDC,TSC,TXT;GUN13#..6F..(BZAGT,GEN,LA,PH,SA,TH,VN);GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126..6F..(ARL,BZAGT,GCC,GEN,LA,PH,PKN,SA,TH) TYPE B:REFER 33-01 |
1 | ||
| 31230-71052 |
GUN112,122,123..SDC,SSC,TDC,TSC,TXT;GUN13#..6F..(BZAGT,GEN,LA,PH,SA,TH,VN);GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126..6F..(ARL,BZAGT,GCC,GEN,LA,PH,PKN,SA,TH) TYPE B:REFER 33-01 |
1 | ||
| 31230-71052 |
GUN112,122,123..SDC,SSC,TDC,TSC,TXT;GUN13#..6F..(BZAGT,GEN,LA,PH,SA,TH,VN);GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126..6F..(ARL,BZAGT,GCC,GEN,LA,PH,PKN,SA,TH) TYPE B:REFER 33-01 |
1 | ||
| 31236B - SUPPORT, RELEASE FORK | ||||
| 31236-0K010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE A:REFER 33-01 |
1 | ||
| 31236-0K010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE A:REFER 33-01 |
1 | ||
| 31236-0K010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#,KUN125,126,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE A:REFER 33-01 |
1 | ||
| 31236-0K010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE B:REFER 33-01 |
1 | ||
| 31236-0K010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE B:REFER 33-01 |
1 | ||
| 31236-0K010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,KUN125,126,13#..(ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..6F TYPE B:REFER 33-01 |
1 | ||
| 31241 - SEAL, CLUTCH RELEASE FORK DUST | ||||
| 31241-71010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,KUN122,126..MTM..(ARL,BZAGT,GCC,GEN,LA,PH,PKN,SA,TH,VN);GUN112,122,123,KUN112,125,13#..(ADC,ASC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE B:REFER 33-01 |
1 | ||
| 31241-71010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,KUN122,126..MTM..(ARL,BZAGT,GCC,GEN,LA,PH,PKN,SA,TH,VN);GUN112,122,123,KUN112,125,13#..(ADC,ASC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE B:REFER 33-01 |
1 | ||
| 31241-71010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,KUN122,126..MTM..(ARL,BZAGT,GCC,GEN,LA,PH,PKN,SA,TH,VN);GUN112,122,123,KUN112,125,13#..(ADC,ASC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE B:REFER 33-01 |
1 | ||
| 31241-71010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,12#,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE A:REFER 33-01 |
1 | ||
| 31241-71010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,12#,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE A:REFER 33-01 |
1 | ||
| 31241-71010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,12#,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE A:REFER 33-01 |
1 | ||
| 31243 - COLLAR, CLUTCH RELEASE FORK | ||||
| 31243-0K010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,KUN122,126..MTM..(ARL,BZAGT,GCC,GEN,LA,PH,PKN,SA,TH,VN);GUN112,122,123,KUN112,125,13#..(ADC,ASC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE B:REFER 33-01 |
1 | ||
| 31243-0K010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,KUN122,126..MTM..(ARL,BZAGT,GCC,GEN,LA,PH,PKN,SA,TH,VN);GUN112,122,123,KUN112,125,13#..(ADC,ASC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE B:REFER 33-01 |
1 | ||
| 31243-0K010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN13#..6F..(BZAGT,GEN,LA,MA,PH,SA,TH,VN);GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN126,KUN122,126..MTM..(ARL,BZAGT,GCC,GEN,LA,PH,PKN,SA,TH,VN);GUN112,122,123,KUN112,125,13#..(ADC,ASC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE B:REFER 33-01 |
1 | ||
| 31243-0K010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,12#,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE A:REFER 33-01 |
1 | ||
| 31243-0K010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,12#,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE A:REFER 33-01 |
1 | ||
| 31243-0K010 |
GUN125..(ADC,ASC,SDC,SSC,SXT,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,12#,13#..(ADC,ASC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..MTM TYPE A:REFER 33-01 |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-0K280 |
GUN135..L..VN;GUN125,136..(MDC,MSC,TDC,TSC,TXT)..6F;GUN126,135..(MDC,TDC,TSC,TXT)..6F..(ARL,GCC,GEN,LA,MA,PH,TH) |
1 | ||
| 31250-0K280 |
GUN135..L..VN;GUN125,136..(MDC,MSC,TDC,TSC,TXT)..6F;GUN126,135..(MDC,TDC,TSC,TXT)..6F..(ARL,GCC,GEN,LA,MA,PH,TH) |
1 | ||
| 31250-0K280 |
GUN135..L..VN;GUN125,136..(MDC,MSC,TDC,TSC,TXT)..6F;GUN126,135..(MDC,TDC,TSC,TXT)..6F..(ARL,GCC,GEN,LA,MA,PH,TH) |
1 | ||
| 31250-0K281 |
GUN125..(TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#..(MDC,PDC,PSC,TDC,TSC,TXT)..6F |
1 | ||
| 31250-0K281 |
GUN125..(TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#..(MDC,PDC,PSC,TDC,TSC,TXT)..6F |
1 | ||
| 31250-0K281 |
GUN125..(TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN122,126,13#..(MDC,PDC,PSC,TDC,TSC,TXT)..6F |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 90363-T0006 |
KUN12#,135..MTM;GUN125..(ADC,ASC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,136..(ADC,ASC,MDC,PDC,PSC,TDC,TSC,TXT)..MTM |
1 | ||
| 90363-T0006 |
KUN12#,135..MTM;GUN125..(ADC,ASC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,136..(ADC,ASC,MDC,PDC,PSC,TDC,TSC,TXT)..MTM |
1 | ||
| 90363-T0006 |
KUN12#,135..MTM;GUN125..(ADC,ASC,TSC,TXT)..6F;GUN125..TDC..6F..(GCC,GEN,IDN,LA,PH,TH,VN);GUN112,122,123,126,13#,KUN112,136..(ADC,ASC,MDC,PDC,PSC,TDC,TSC,TXT)..MTM |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90119-T0102 | ||||

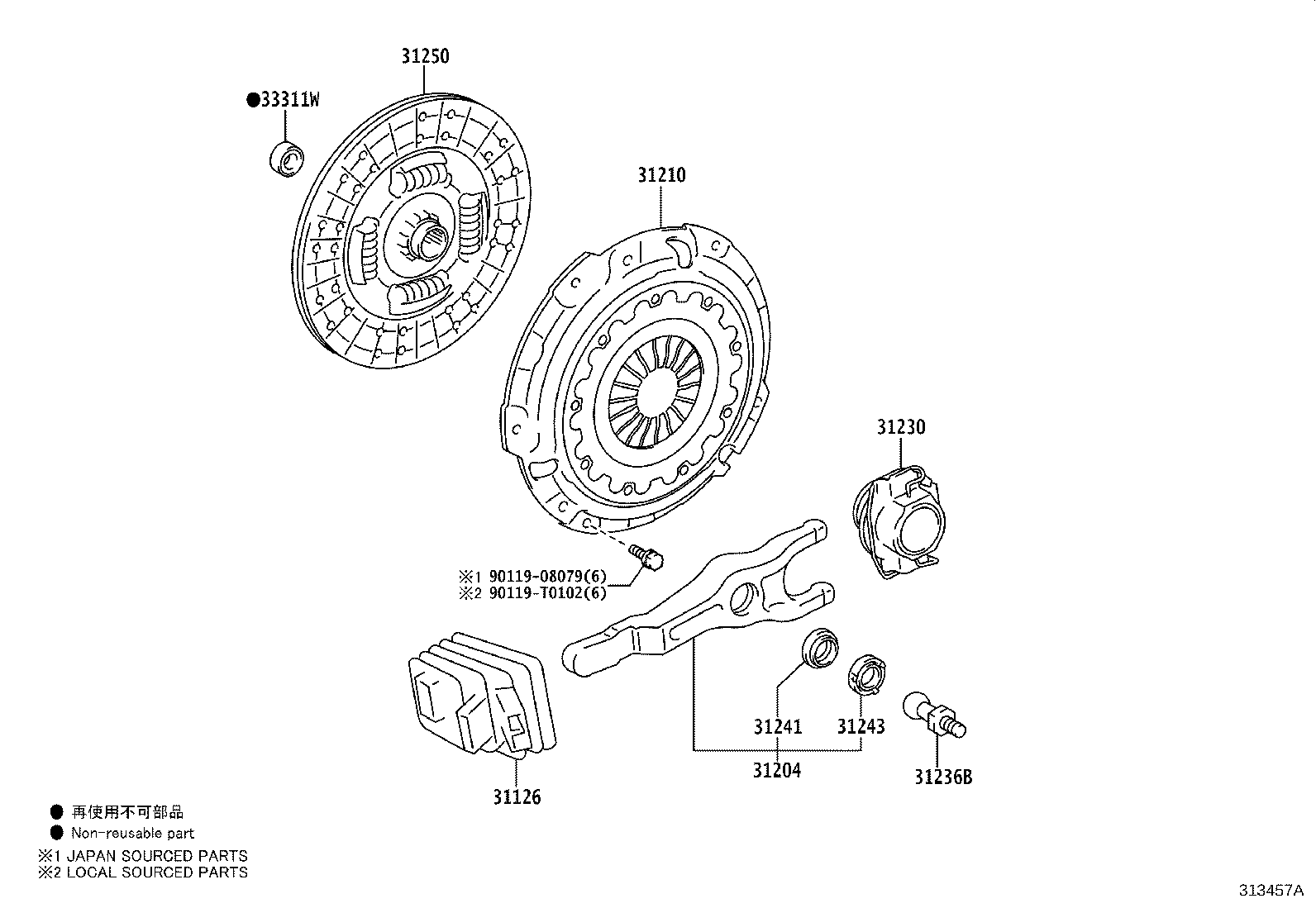

(2006- )GUN125,126,13#..MD,MS,PD,PS,TD,TS,TX..6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08079 | ||||
| 90119-T0102 | ||||
