GUN126L-DGFSXG (2020)
Toyota Hilux
(2011- )2GDFTV..GUN135..6F..BZAG ; (2011-)1GDFTV,2GDFTV..GUN125,126,136..BZA
12V 90A(BOSCH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

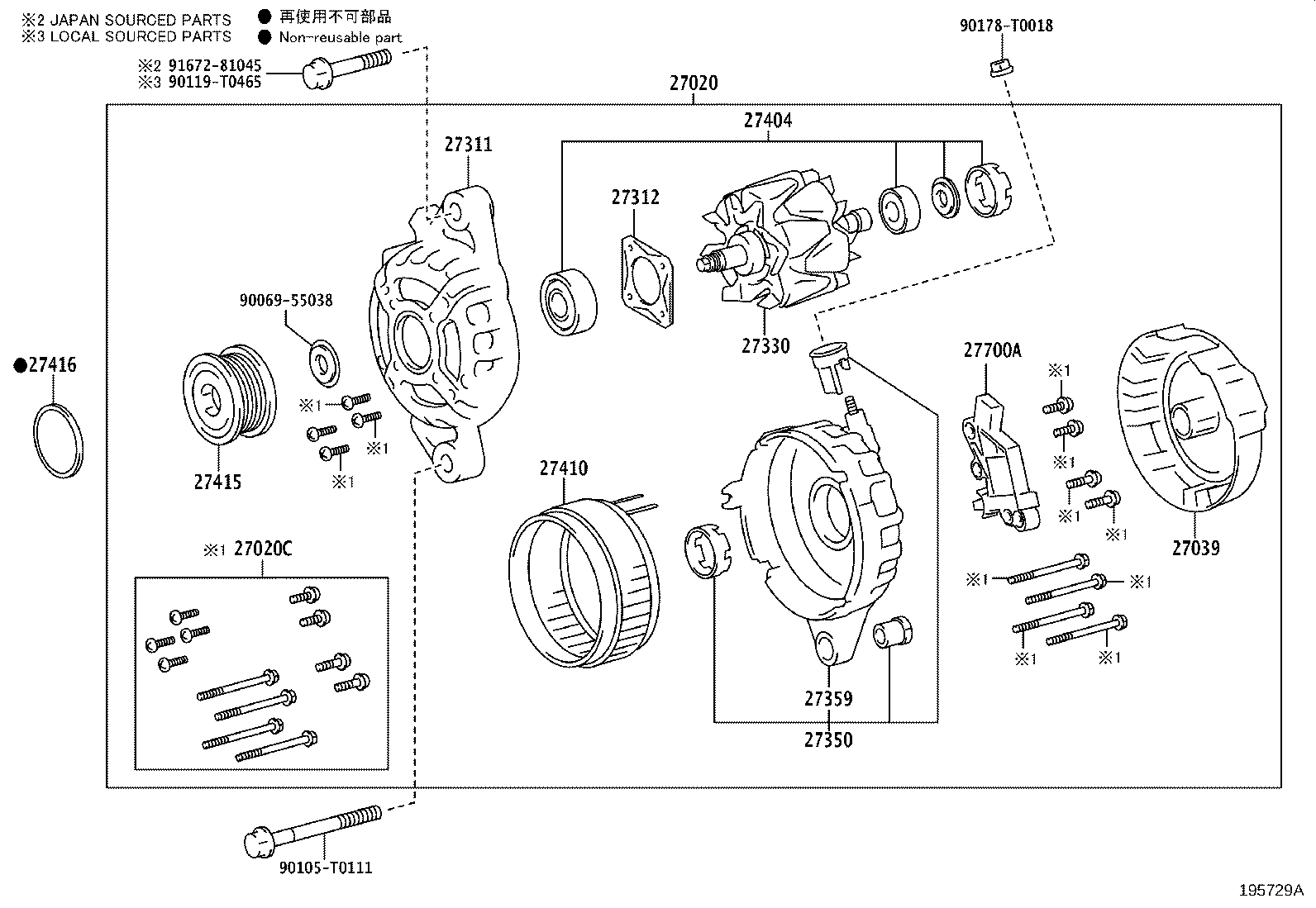

| 27020 - ALTERNATOR ASSY | ||||
| 27060-0L150 |
2GDFTV..GUN135..6F..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG 12V 90A,BOSCH |
1 | ||
| 27060-0L160 |
2GDFTV..GUN135..6F..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG 12V 100A,DENSO |
1 | ||
| 27020C - SCREW SET, ALTERNATOR | ||||
| 90069-32067 |
2GDFTV..GUN135..6F..BZAG;1GDFTV,2GDFTV,2TRFE..GUN125,126,136,TGN128,13#..BZAG |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-0L180 |
2GDFTV..GUN135..6F..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG BOSCH |
1 | ||
| 27039-0T300 |
2GDFTV..GUN135..6F..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG DENSO |
1 | ||
| 27311 - FRAME, ALTERNATOR DRIVE END | ||||
| 27311-0L180 |
2GDFTV..GUN135..6F..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG BOSCH |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-0T300 |
2GDFTV..GUN135..6F..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG DENSO |
1 | ||
| 27312-0C020 |
2TRFE..TGN136..GEN,LA;1GDFTV..GUN126..TD..6F..TH;1GDFTV..GUN126..KD,MD,MMD,SD,SS,SX,TS,TX;1GDFTV..GUN126..TD..(ARL,GCC,GEN,LA,PH,TWN,VN);1GDFTV,2GDFTV..GUN122,125,13#..KD,KS,MD,MS,SD,SS,SX,TD,TS,TX;1G#,2GDFTV,1TRFE,2TRFE..GGN125,GUN112,120,123,TGN11#,120,121,126..AD,AS,TD,TS,TX |
1 | ||
| 27312-0C130 |
2GDFTV..GUN135..6F..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG BOSCH |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-0L180 |
2GDFTV..GUN135..6F..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG BOSCH |
1 | ||
| 27330-0T300 |
2GDFTV..GUN135..6F..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG DENSO |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-0L180 |
2GDFTV..GUN135..6F..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG BOSCH |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-0L180 |
2GDFTV..GUN135..6F..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG BOSCH |
1 | ||
| 27404 - BEARING SET, ALTERNATOR | ||||
| 27404-0C130 |
2GDFTV..GUN135..6F..BZAG;1GDFTV,2GDFTV,2TRFE..GUN125,126,136,TGN128,13#..BZAG |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-0L180 |
2GDFTV..GUN135..6F..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG BOSCH |
1 | ||
| 27415 - PULLEY, ALTERNATOR W/CLUTCH | ||||
| 27415-0L050 |
2GDFTV..GUN135..6F..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG PNC 27020=DENSO |
1 | ||
| 27415-0L040 |
2GDFTV..GUN135..6F..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG PNC 27020=BOSCH |
1 | ||
| 27416 - CAP, ALTERNATOR PULLEY | ||||
| 27416-33010 |
2GDFTV..GUN135..6F..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG (J) |
1 | ||
| 27416-0L050 |
2GDFTV..GUN135..6F..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG (L) |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-0L100 |
2GDFTV..GUN135..6F..BZAG;1GDFTV,2GDFTV..GUN125,126,136..BZAG BOSCH |
1 | ||
| Common parts | ||||
| 90069-55038 | ||||
| 90105-T0111 | ||||
| 90119-T0465 | ||||
| 90178-T0018 | ||||
| 91672-81045 | ||||
