GUN125R-BTFMH (2017)

Toyota Hilux

Production Aug 2017 - May 2020
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )

Click highlighted areas on diagram

diagram 75531 75551 75552 75561 75561
Part # Description Qty Price

(1107- )

Click highlighted areas on diagram

diagram 75531 75551 75552 75561 75561
Part # Description Qty Price

(1505- )ASC,KSC,MSC,PSC,SSC,TSC

Click highlighted areas on diagram

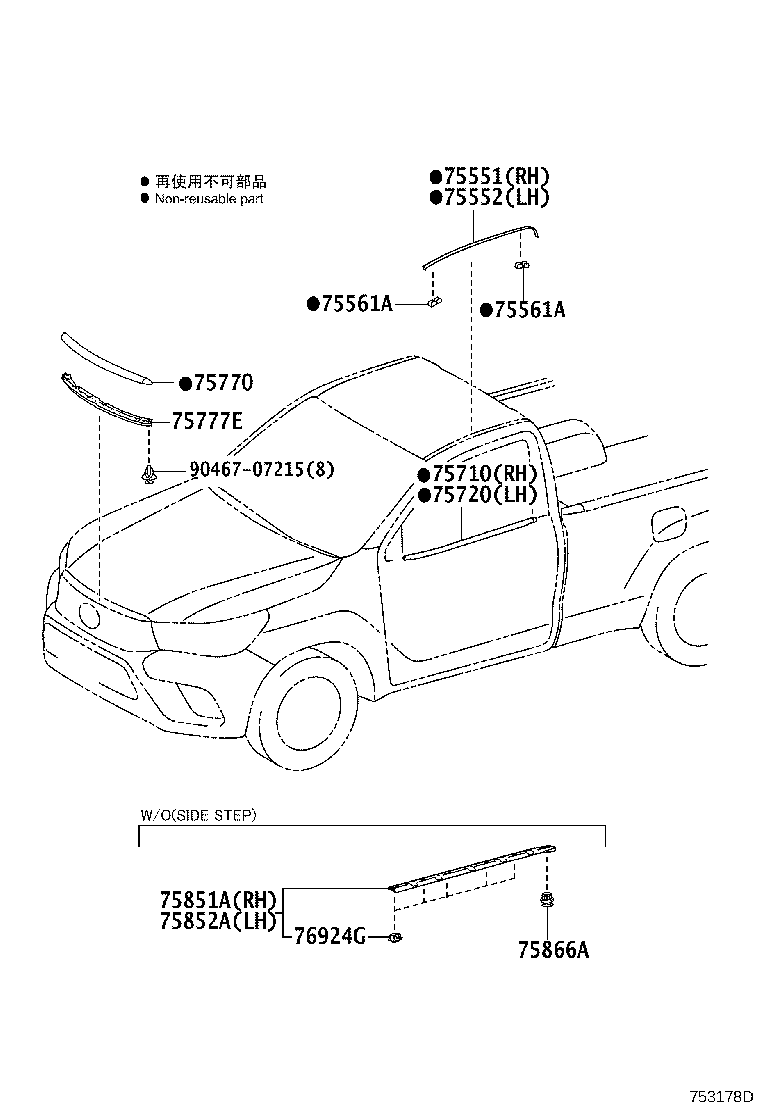

diagram 75551 75552 75561A 75561A 75710 75720 75770 75777E 75851A 75852A 75866A 76924G 9046707215
Part # Description Qty Price
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-0K170

TGN136..ASC,TSC;GUN112,12#,13#,KUN112,12#,135,LAN125,TGN11#,120,121,126..ASC,PSC,SSC,TSC

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-0K170

TGN136..ASC,TSC;GUN112,12#,13#,KUN112,12#,135,LAN125,TGN11#,120,121,126..ASC,PSC,SSC,TSC

 1
75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING
75561-33030

GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 4
75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING
75561-33030

GUN125..TDC..6FC..ARL;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN125..ADC,ASC,SDC,SSC,SXT,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,135,GUN112,135..ADC,ASC,MDC,SDC,SSC,SXT,TDC,TSC,TXT;GUN120,122,123,126,136,KUN112,12#,13#,LAN125,TGN11#,120,121,126,128,138..ADC,ASC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT

 4
75710 - MOULDING ASSY, FRONT DOOR BELT, RH
68160-0K040

TGN136..ASC,TSC,TXT;GUN112,12#,13#,KUN112,12#,135,LAN125,TGN11#,120,121,126..ASC,PSC,SSC,SXT,TSC,TXT

 1
75720 - MOULDING ASSY, FRONT DOOR BELT, LH
68210-0K040

TGN136..ASC,TSC,TXT;GUN112,12#,13#,KUN112,12#,135,LAN125,TGN11#,120,121,126..ASC,PSC,SSC,SXT,TSC,TXT

 1
75770 - MOULDING ASSY, HOOD, FRONT
75770-YP010

GUN125..H

NO PAINT REQ.,OCEANIA GENERAL SPEC&PREMIUM FULL PACKAGE(HOOD MOLD = BLACK)

 1
75770-0K310

TGN136..GEN,TH;GUN135..(TDC,TXT)..L;TGN126..(ASC,TSC)..LA;TGN126..6FC..(M,S)..GCC;GUN125..LHD..TDC..S..GEN;TGN121..(L,M,S)..(GCC,TH);GUN125..RHD..6F..(H,M,S)..GEN;KUN122,125,TGN126..L..(GCC,IDN);TGN126..(ADC,TDC,TSC)..5F..(M,S);GUN125,TGN138..(ADC,TXT)..(M,S)..(BZAGT,GEN);GUN125..6F..(L,M,S)..(GCC,IDN,LA,MA,PH,TH,VN);GUN126,135,KUN12#..(ADC,MDC,PDC,TDC,TSC,TXT)..(H,M,S);GUN125,TGN136..(5F,6FC)..(L,M,S)..(BZAGT,GCC,GEN,IDN,LA,MA);GGN12#,GUN112,120,122,123,136,KUN112,13#,TGN11#,120,128..(H,L,M,S)..(ARL,BZAGT,GCC,GEN,LA,TH,VN)

PLATED

 1
75770-0K311

TGN136..GEN;GUN135..S..BZAGT;KUN122..LHD..(L,M,S);TGN126..(ASC,TSC)..LA;GUN125..(ADC,TDC,TSC)..6FC..(L,M,S);GUN135..(H,L,M,S)..(GEN,LA,PH,TH,VN);GUN122,125..MTM..(H,M,S)..(BZAGT,GEN);GUN126..(ADC,PDC,TDC,TSC,TXT)..(H,M,S);GUN125..6F..(L,M,S)..(GCC,IDN,LA,PH,TH,VN);GGN125,GUN112,120,122,123,136,KUN112,TGN11#,120,121,126,128,13#..(H,L,M,S)..(ARL,BZAGT,GCC,LA,TH)

 1
75777E - PAD, HOOD FRONT MOULDING
53393-0K010

GUN125..TDC..6FC..ARL;GUN125..ADC,ASC,TSC,TXT;GUN135..ADC,ASC,MDC,TDC,TSC,TXT;GUN125..TDC..(GCC,GEN,IDN,LA,PH,TH,VN);GGN12#,GUN112,120,122,123,126,136,KUN112,12#,13#,TGN11#,120,121,126,128,13#..ADC,ASC,PDC,PSC,TDC,TSC,TXT

 1
Common parts
90467-07215

(2006- )AS,KS,MS,PS,SS,TS

Click highlighted areas on diagram

diagram 75551 75552 75561A 75561A 75710 75720 75770 75770 75777E 75777E 75851A 75852A 75866A 76924G 90159T0009 9046707215 9046707215 9046708225 90467T0050 90467T0050
Part # Description Qty Price
Common parts
90159-T0009
90467-07215
90467-08225
90467-T0050
